  • Architectural Radiant Panel
  • Overview
  • Characteristics
  • Documents

SRP

Architectural Radiant Panel

Enveloping warmth

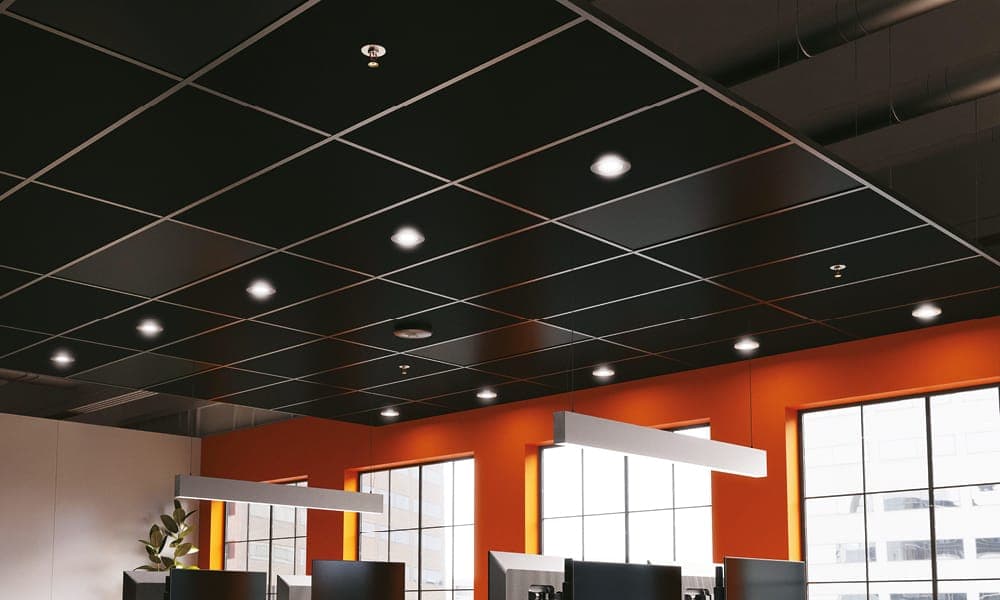

The Architectural Radiant Panel delivers clean, enveloping, energy-efficient warmth. Designed for
easy integration into a T-Bar suspended ceiling, it can also be surface-mounted or recessed using
a range of optional accessories.

Color

Use cases

  • Interior use

Spaces

  • School
  • Hospital
  • Daycare centre
  • Commercial building
  • Office

Characteristics

Advantages
  • Radiant comfort where you need it most — A quiet, discreet, and efficient ceiling-mounted heating solution
  • Free up space. keep the comfort — Direct radiant heat without taking up floor space
  • Direct, even warmth — Heats occupants and surrounding surfaces without air circulation
  • Built for demanding spaces — Ideal for offsetting heat loss or heating an entire space
COLORS
  • Standard: white, black
  • Orora (optional): refer to stelpro.com/en/orora/
FINISH
  • High-temperature polyester powder coating
MANUFACTURING
  • Reflective foil bonded to the panel’s heating elements
  • High-temperature mineral wool insulation, density 2.5 PSF, 1 in (25.4 mm) thick
  • The front of the panel is made of 22-gauge painted steel. The panel cover is made of 22-gauge satin-finished steel
  • Suspension brackets at the four corners of the panel (suspension cable not included)
ELEMENT
  • Single-conductor heating wire with fluoropolymer insulation evenly distributed across the panel
DENSITY
  • 62.5 to 93.75W/ft2 at rated voltage

CONTROL
  • Line-voltage control circuit for thermostat, timer or switch (not included; must be compatible with the appliance’s voltage and power rating)
  • Stelpro strongly recommends the use of a wall-mounted electronic thermostat for greater comfort
CERTIFICATION
  • CSA STD C22.2 No.46 / UL 2021
INSTALLATION

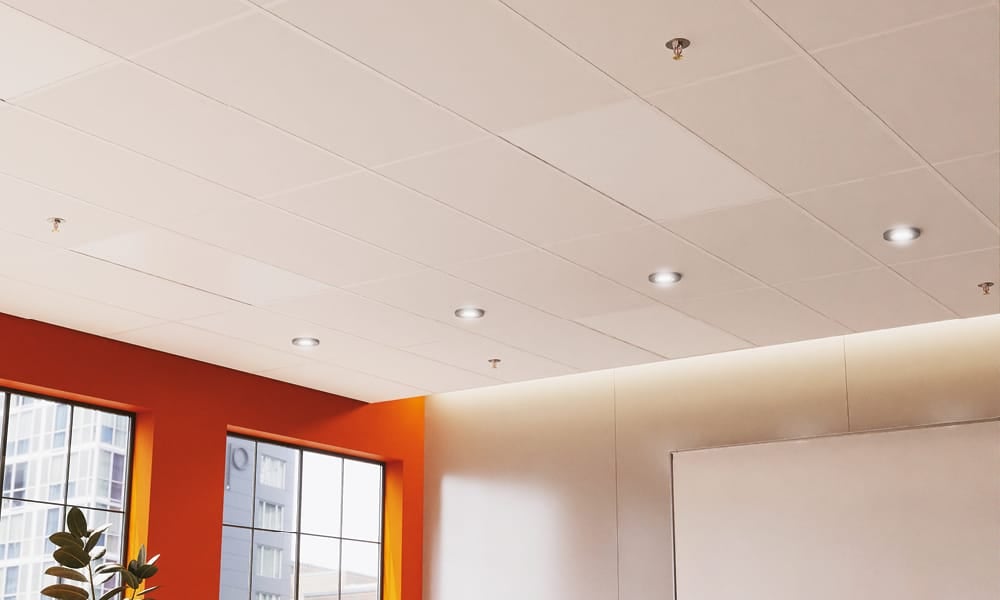

  • Suspended from the ceiling or fitted into a T-bar suspended ceiling

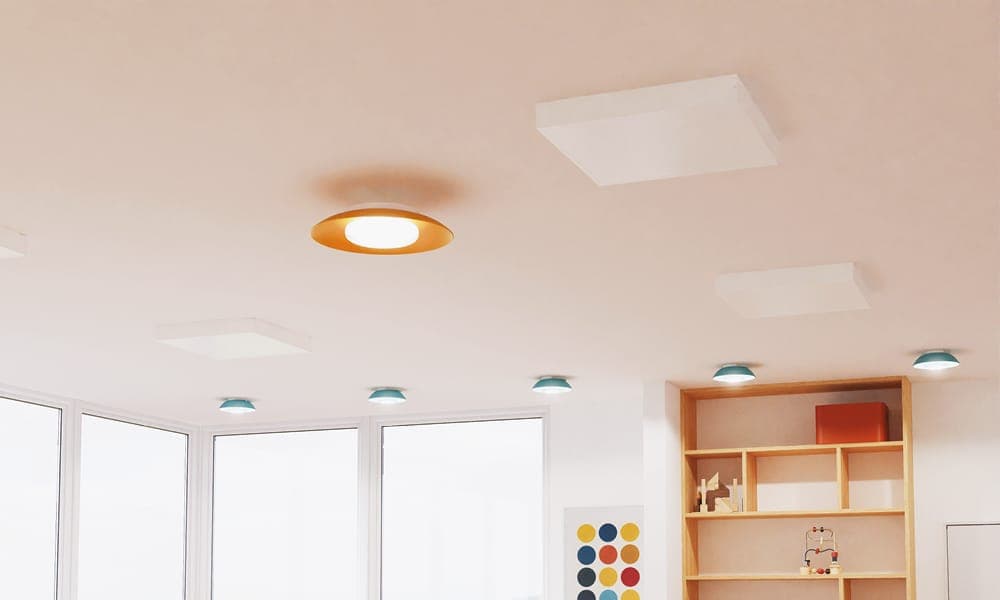

  • A variety of optional accessories is available for surface mounting using an SF frame on a drywall ceiling, or for recessed installation using an RF frame. An RB option is also available for recessed installation in a non-ventilated ceiling
  • Minimum clearance of 2 in (50.8 mm) above the panel
  • Minimum installation height of 7 ft (2.13 m) from the floor
  • Relocation possible
WARRANTY
  • One year on paintwork, ten years on components
