Characteristics

Advantages

• Rounded corners
• Quick and easy installation
• Rugged casing: one-piece construction

COLORS

• Standard: white
• ORORA (optional): refer to the Orora section

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

• 22-gauge steel casing able to support 165 lb at its centre
• Full-length thermal protection with automatic reset
• Cabinet designed to ensure optimal hot air distribution
• Full-length wireway

ELEMENT

• Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises

CONTROL

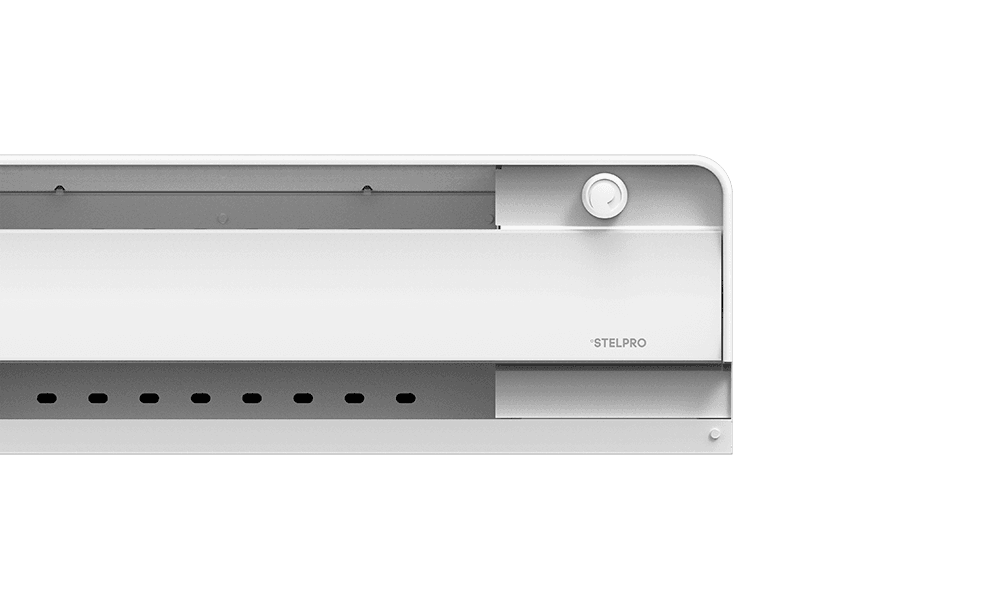

• Built-in thermostat installed in the left or right junction box (optional)

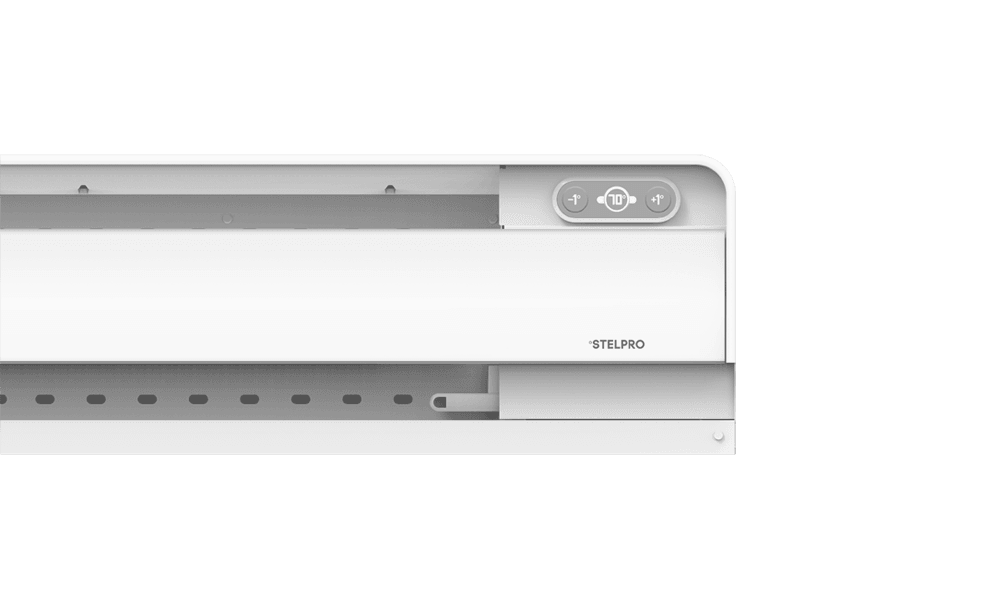

• Single pole electronic thermostat installed in the left or right junction box (optional)
• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Low voltage relay kit installed in the left junction box only (optional)
• Several integrated controls can be installed in the same baseboard by adding an extension (optional) see Accessories. Factory installation required

INSTALLATION

• Surface mounted
• Knockouts for the BX and clamps for the NMD cables located at each end
• Mounting holes spaced at 1-inch intervals along the top and the bottom of the unit

WARRANTY

• Five years, three years on electronic components and lifetime warranty on heating element (for original owner)
