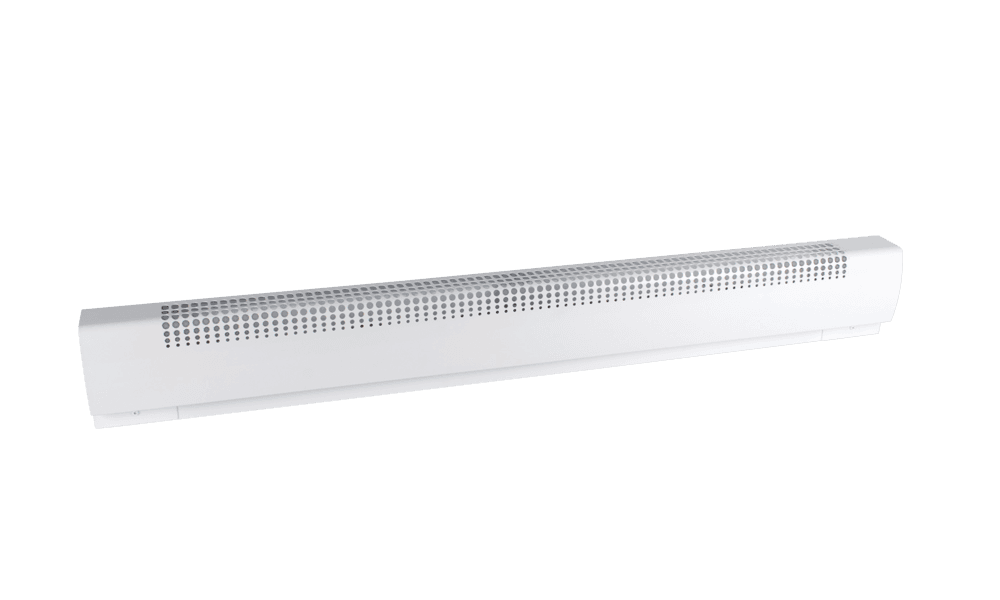

SBB | ANGLE

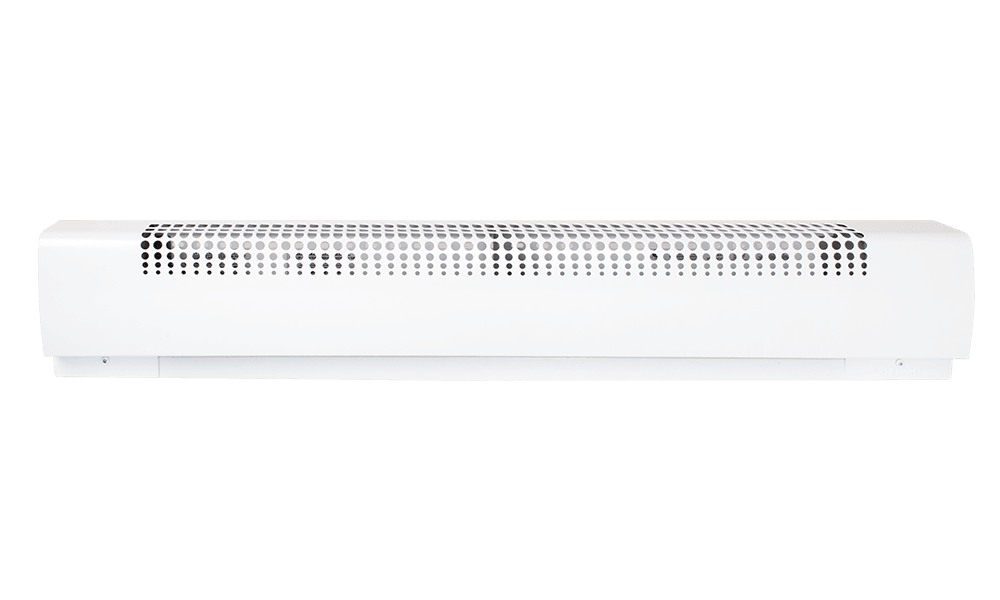

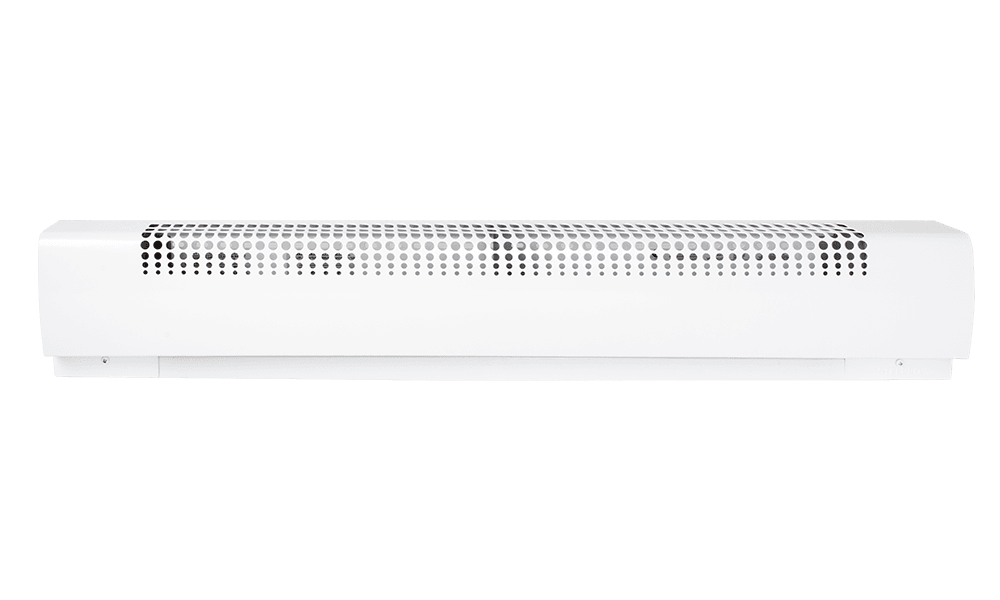

SBB | FACE

ASBB

Compact Multipurpose Baseboard

A breakthrough in performance


Looking for the sleekest baseboard to heat your living room, kitchen, bedroom or office that won’t take up too much wall space? The compact multipurpose SBB baseboard fits the bill perfectly since it comes in three watt densities. The SBB can be up to 30% shorter than conventional baseboards without sacrificing power and safety.

Characteristics

Advantages
  • Up to 30% shorter than conventional baseboards — frees up precious wall space
  • Optimal performance and safety
  • Offered in three different watt densities — meets the needs of any project in the home or office
  • Totally quiet
COLORS
  • Standard: white
FINISH
  • Epoxy-polyester powdercoat
MANUFACTURING
  • 22-gauge steel cabinet and 18-gauge steel one-piece front
  • Full-length thermal protection with automatic reset
  • Discreet air inlet and top air discharge to maximize air flow
  • Full-length wireway
ELEMENT
  • Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises

CONTROL
  • Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
  • Built-in single or double pole mechanical thermostat installed in the left or right junction box (optional)
  • Built-in tamper-proof single or double pole mechanical thermostat installed in the left or right junction box (optional)
  • Low voltage relay kit installed in the right junction box only (optional)
INSTALLATION
  • Surface mounted
  • Wiring compartment at both ends of unit
WARRANTY
  • Five years, *lifetime warranty on the heating element (for original owner)

Documents

ASBB

Accessoires installation guide

Accessories installation guides

Download

ASBB

User guide

User guide

Download
