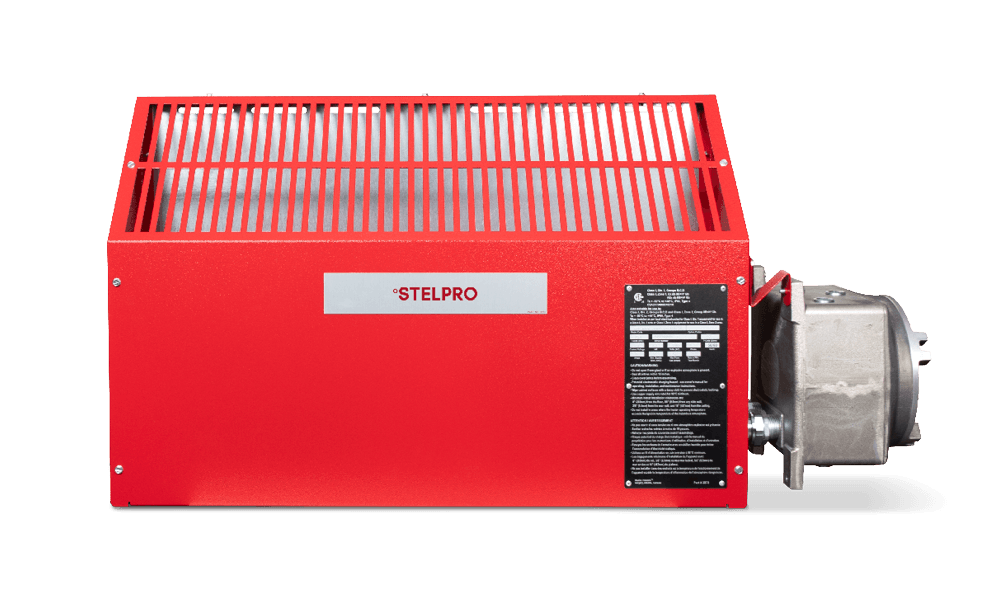

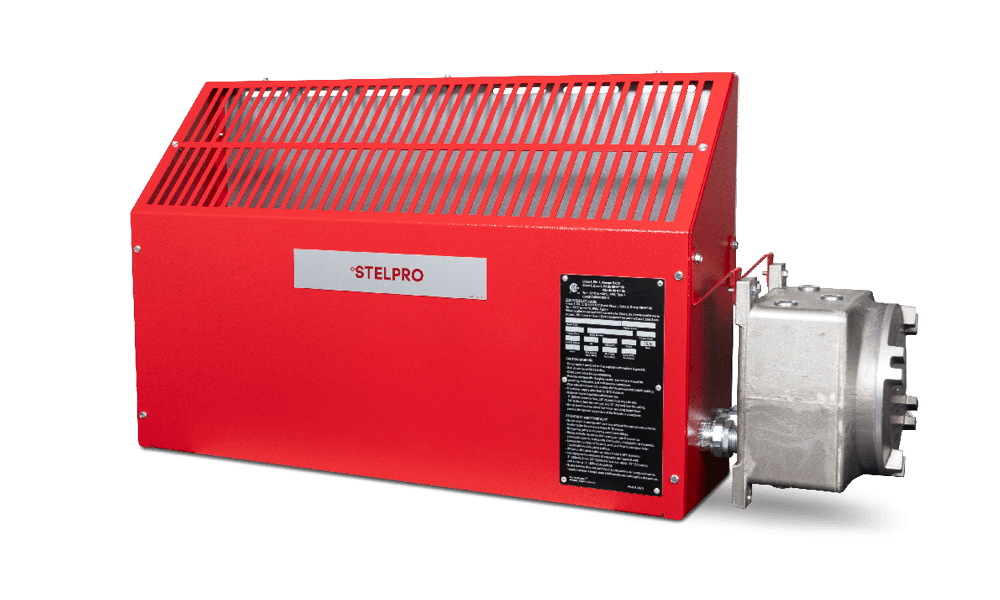

Explosion-Proof Sloped Top Convector Heater

SEC

Explosion-Proof Sloped Top Convector Heater

Your ally in hazardous locations

Stelpro’s X-PRO series explosion-proof convector heater is designed for hazardous locations. Available in a range of wattages (from 0.4 kW to 10 kW) and voltages (120 V to 600 V) along with many controls and options available, this heavy-duty unit is designed to meet your most demanding needs.

Characteristics

Advantages: Quick and easy installation — Wall mounting bracket compatible with select competitor models included

Robust, exclusive heating element — Engineered for optimal, even heat distribution

Precision built-in thermostat — Consistent and reliable temperature control

Extensive model selection — Multiple power levels, voltages, and phases available to suit any application

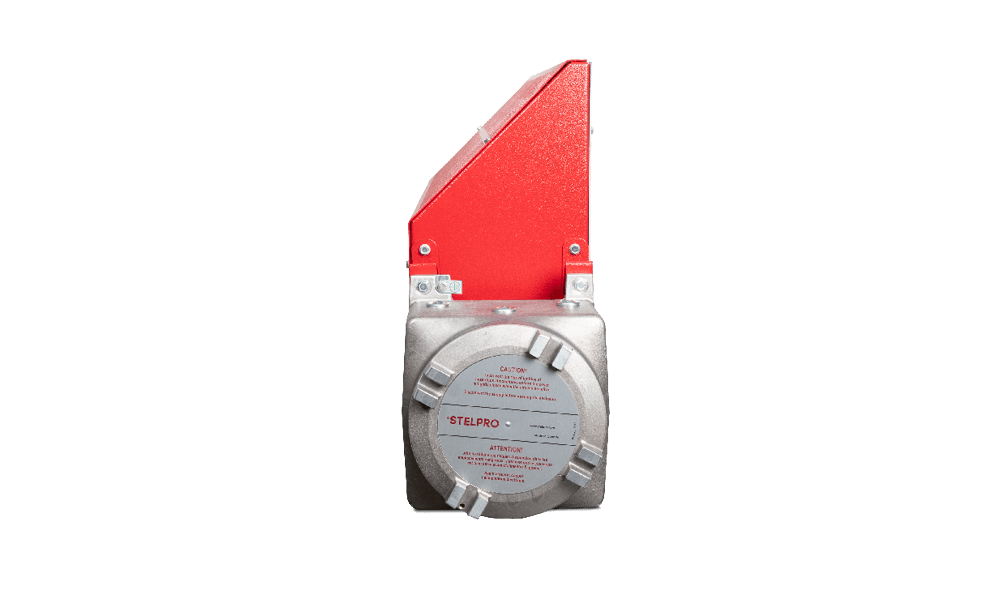

Smart sloped top design — Deterrent to use as a shelf or seating surface
COLOR: Standard: red
FINISH: Standard: epoxy/polyester powder paint
VOLTAGE: 120 V, 208 V, 240 V, 277 V, 347 V, 480 V, 600 V, 1 or 3-phase
MANUFACTURING: Sloped top. 14-gauge galvanized steel back panel

14-gauge carbon steel front and side panels with epoxy/polyester powder-coating.

Low temperature convection

Linear high-limit temperature control with automatic reset

Sealed junction box
ELEMENTS: Incoloy® 800 tubular heating element with radial-embossed aluminum fins
STANDARDS: CSA C22.2 No. 30, No. 60079-0, No. 60079-1, No. 46, No. 60529, No. 94.2

ANSI/UL 823, 60079-0, 60079-1

ANSI/IEC 60529

UL 50E
CLASSIFICATION: North American Hazardous Location:

Class I, Division 1 and 2, Groups B, C and D (T2B or T3A)

Class I, Zone 1 and 2, Ex db, Groups IIA, IIB+H2, Gb

Class I, Zone 1 and 2, AEx db, Groups IIA, IIB+H2, Gb

Ta = −50 °C to +40 °C, IP66, Type 4, (T2 or T3)
TEMPERATURE CODE: Division System: T2B 260 °C (500 °F) or T3A 180 °C (356 °F)

Zone System: T2 300 °C (572 °F) or T3 200 °C (392 °F)
INGRESS PROTECTION: IP66 and Type 4
CONTROL: Built-in thermostat or wall thermostat available

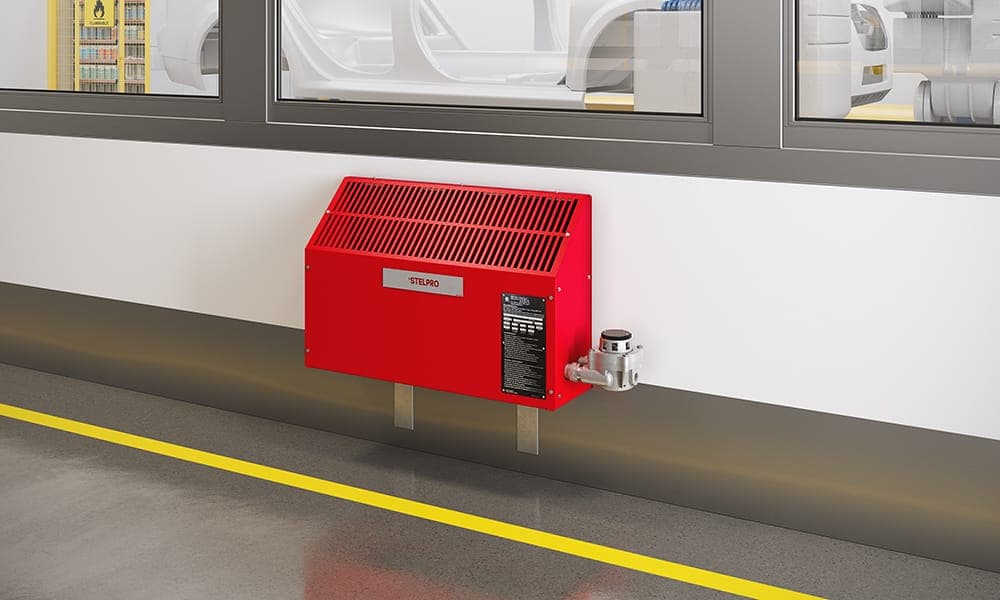

INSTALLATION: Built-in wall bracket

Minimum mounting distances of 8 in. (20 cm) above the floor and 18 in. (45 cm) from the ceiling
WARRANTY: One year
