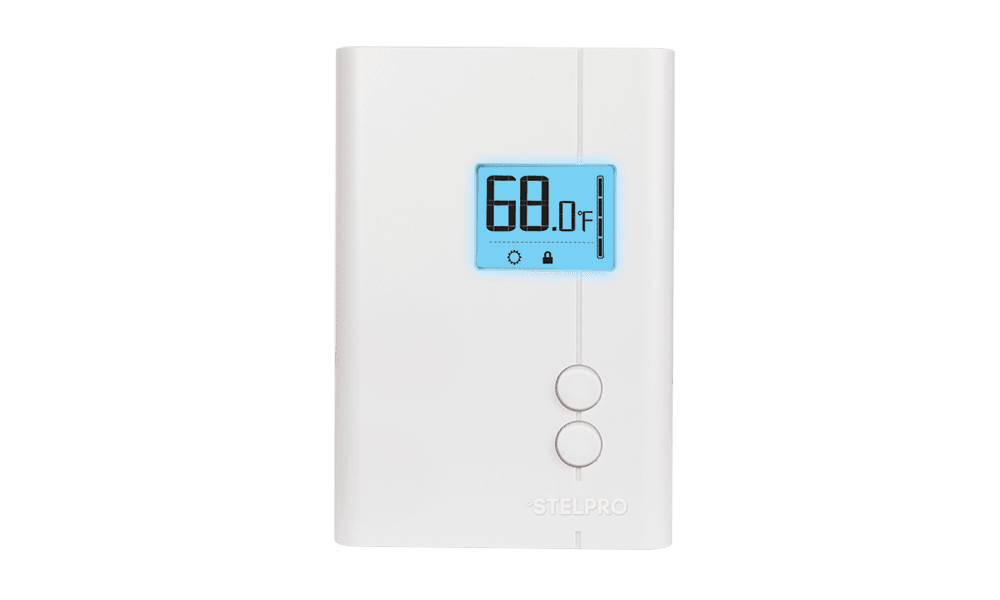

STE241 | FRONT2

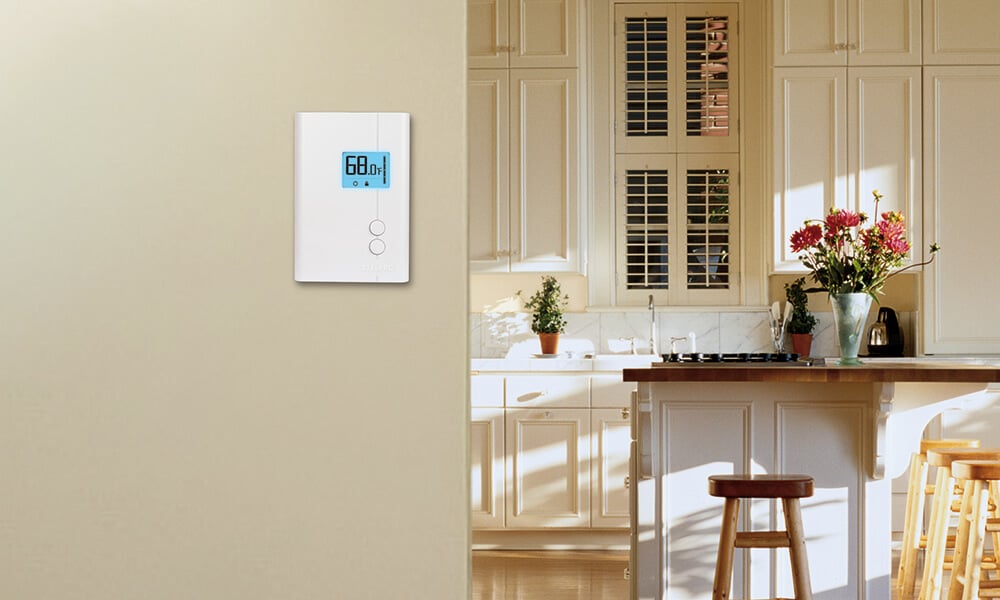

STE241 | AMBIANCE | USA

STE241

Low Voltage – 24 V Single Programming Electronic Thermostat

This electronic thermostat was designed to control electric heating units or Stelpro RE relays. The STE241 also makes it possible to adjust cycles based on the type of furnace being controlled, including units equipped with fans, for increased efficiency.

Characteristics

Advantages
  • Easy to install and use
  • Greater savings and comfort
  • Three-wire thermostat (R, W, C)
  • Compatible with RE relays
  • Lowers the temperature at specified times
  • Option to define a maximum setpoint
COLOR
  • White
FINISH
  • Molded plastic
VOLTAGE
  • 0.5 A @ 24 Vac
CONTROL
  • Three-wire connection
  • Compatible with electric furnaces (R, C, W connections) and Stelpro, “RE” series heating relays
  • Adjustable cycles to accomodate both convection and forced-air heating modes. Attention: not compatible with solely inductive loads.
  • Acts like a programmable thermostat by automatically lowering the temperature once per 24-hour period (Single programming mode)
  • Frost-free warning
  • Lock option at a maximum temperature setpoint (Security mode)
  • Display in Celsius or Fahrenheit

ACCURACY
  • Accurate ambient temperature control ± 1 °F
  • Temperature sensing with thermistor
TEMPERATURE RANGE
  • 37 to 86 °F
WARRANTY
  • Three years

Documents

STE241

Shop drawings

Shop drawings

Download

STE241

User guide

User guide

Download

STE241

Specsheet

Specsheet

Download
