  • Mini Architectural Baseboard
  • Overview
  • Characteristics
  • Documents

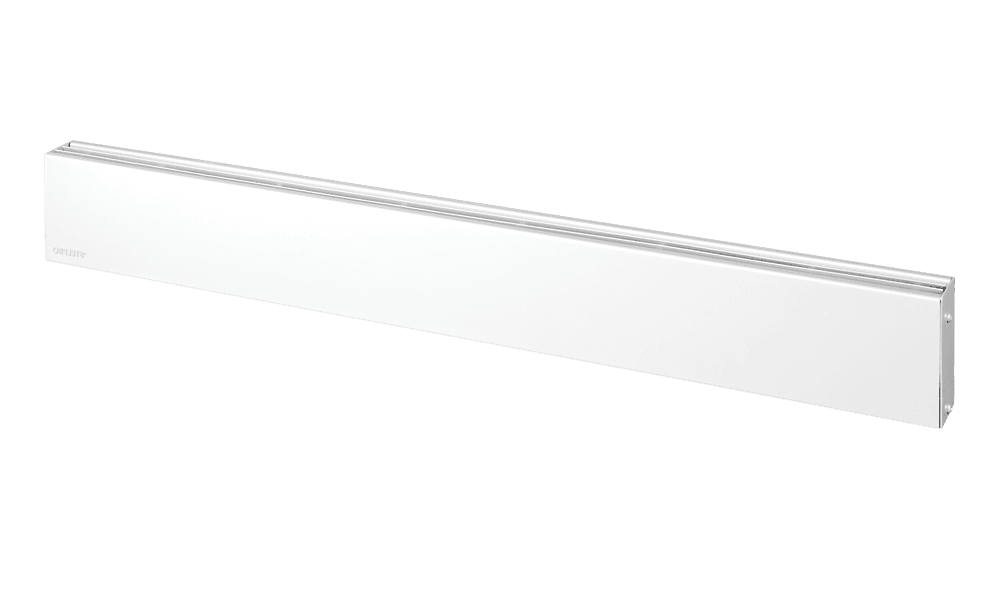

ALC1B | ANGLE

ALC1B

Mini Architectural Baseboard

The smallest in its class


A mini baseboard that lives up to the great expectations of
designers, architects and engineers alike. Only 4 1/2 in. high
and 2 in. deep, the ALC1B can be installed in locations previously
thought impossible. Discreetly blending into the decor,
the ALC1B mini architectural baseboard heater is solid, powerful
and elegant all at once. Even though it is compact in size,
the ALC1B conforms to the strictest of norms.

Characteristics

Advantages
  • Very compact — 2 in. width and 4 1/2 in. height
  • Versatile — Adapts to building’s architecture
  • Perfect for public places — Shopping malls, hospitals, etc.
  • Blank sections available — For a continuous effect
COLORS
  • Standard: white, silica white
  • Optional: almond, black, textured charcoal, silver, clear anodized (paint), nickel, champagne, light bronze, dark brown (10% surcharge)
FINISH
  • Epoxy-polyester powdercoat
MANUFACTURING
  • Solid 18-gauge steel cabinet and front
  • Bottom air intake and top air discharge
  • Thermal protection with automatic reset
  • Full-length wireway
ELEMENT
  • Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its center, floating in nylon sleeves at each end, eliminating expansion and contraction noises

CONTROL
  • Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
  • Built-in tamper-proof thermostat accessible without removing front grille, installed in the right junction box only (optional)
  • Low voltage relay kit installed in the left or right junction box (optional)
INSTALLATION
  • Surface mounted
  • Wall or floor mounted with or without pedestal kit (optional)
  • At least 2 in. from the floor
  • Wiring compartment at both ends of unit
  • Blank sections (custom lengths) and accessories are available for a continuous effect (optional)
WARRANTY
  • Three years
