SMZ

Multizone Ductless Heat Pump

Performance in every space


With a Multi-B ductless systems, you can connect up to six indoor units to a single outdoor unit to achieve an efficient, versatile, and tailored heating and cooling solution. It independently controls multiple zones through one integrated system, ensuring consistent comfort throughout the home with personalized zoning controls and optimal energy savings.

Use cases

  • Exterior use
  • Interior use

Spaces

  • Commercial space
  • Restaurant
  • Office

Characteristics

Advantages
  • New R-454B high-performance gas
  • Greater reliability thanks to newgas leak sensor
  • New technology and machine design — Meet high energy efficiency standards
  • 5 operation modes — Cooling, heating, dehumidifying, fan and auto
  • Can connect up to 6 indoor units
  • Eligible for provincial and federal grants
NOMINAL CAPACITY
  • 18,000, 27,000, 36,000, 48,000, 55,000 BTU/hr
VOLTAGE
  • 230/208V, 60 Hz, 1-phase
MANUFACTURING

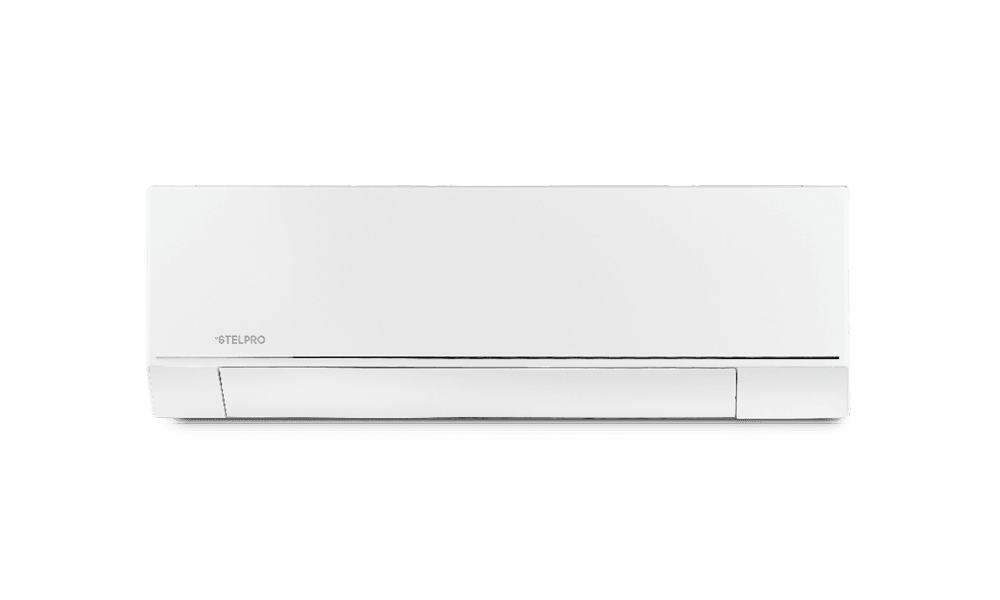

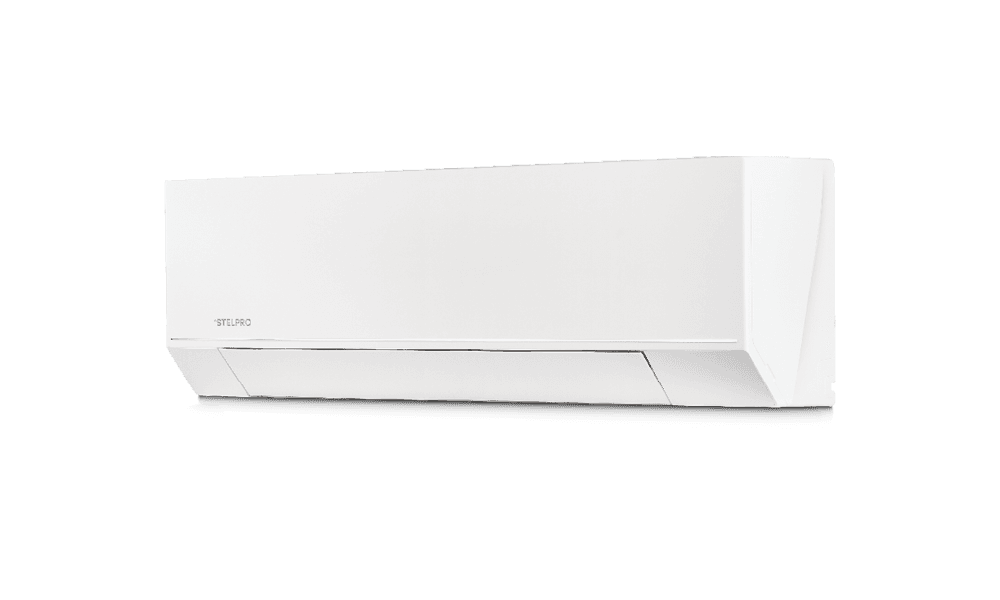

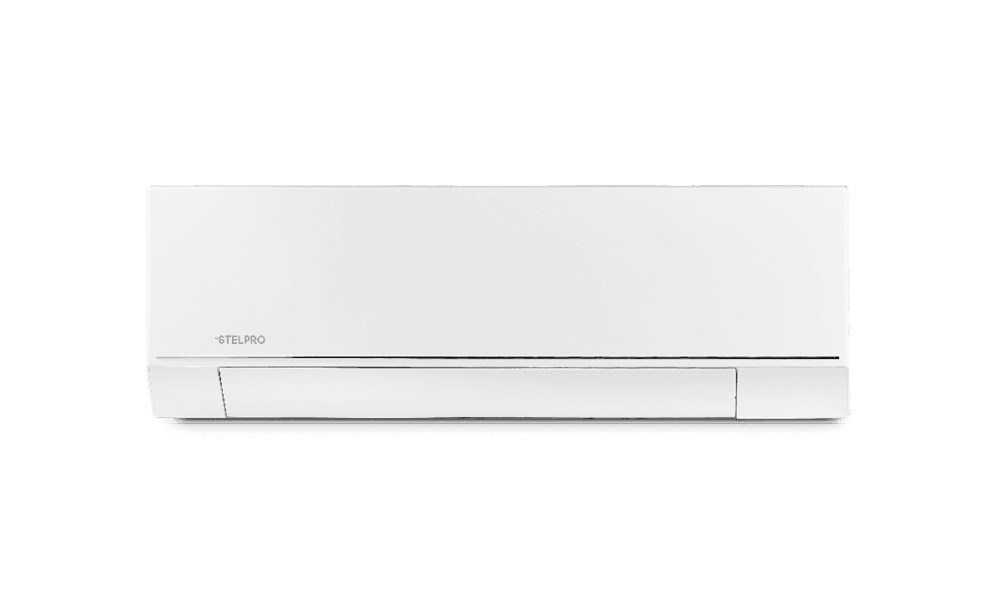

Indoor unit/Wall-Mounted Split

  • Plastic housing, standard white
  • Evaporator fins covered with hydrophilic coating for improved corrosion resistance
  • Washable filters

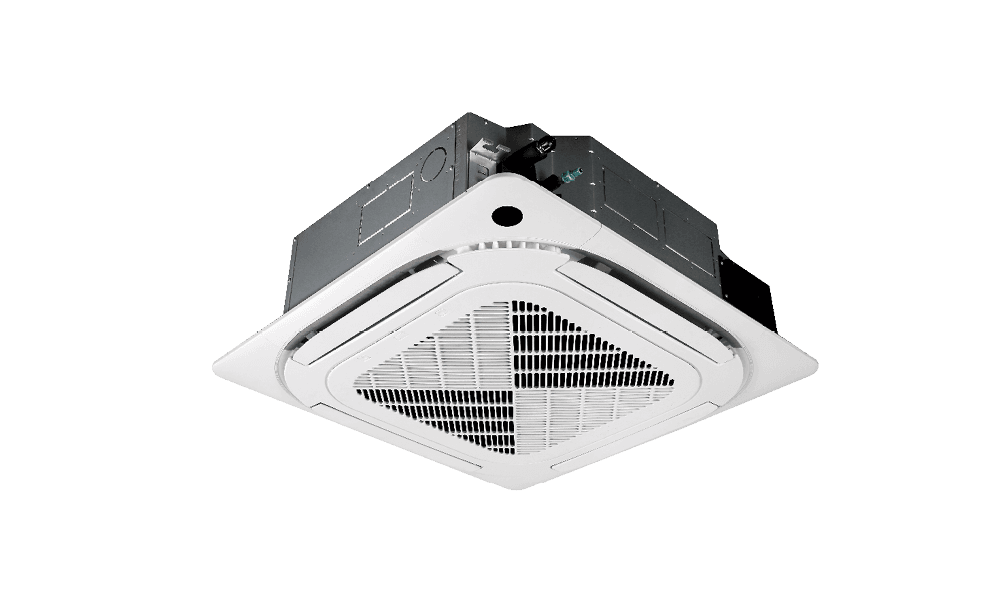

Indoor unit/Ceiling cassette

  • Plastic housing, standard white
  • Evaporator fins covered with hydrophilic coating for improved corrosion resistance
  • Washable filters
  • Includes a remote control

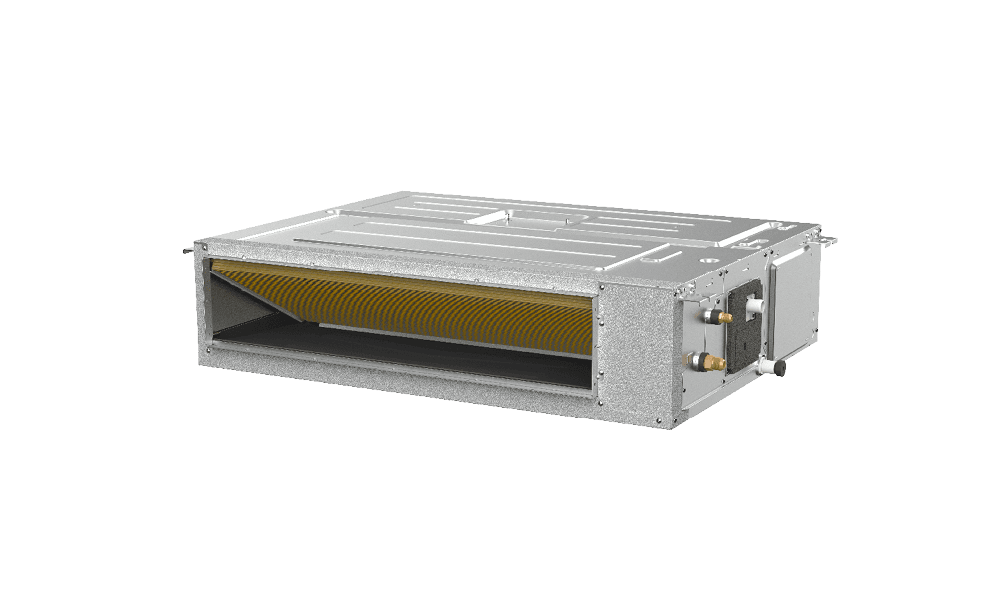

Indoor unit/Ducted Fan Coil

  • Evaporator fins covered with hydrophilic coating for improved corrosion resistance
  • Washable filters
  • Includes a wall controller

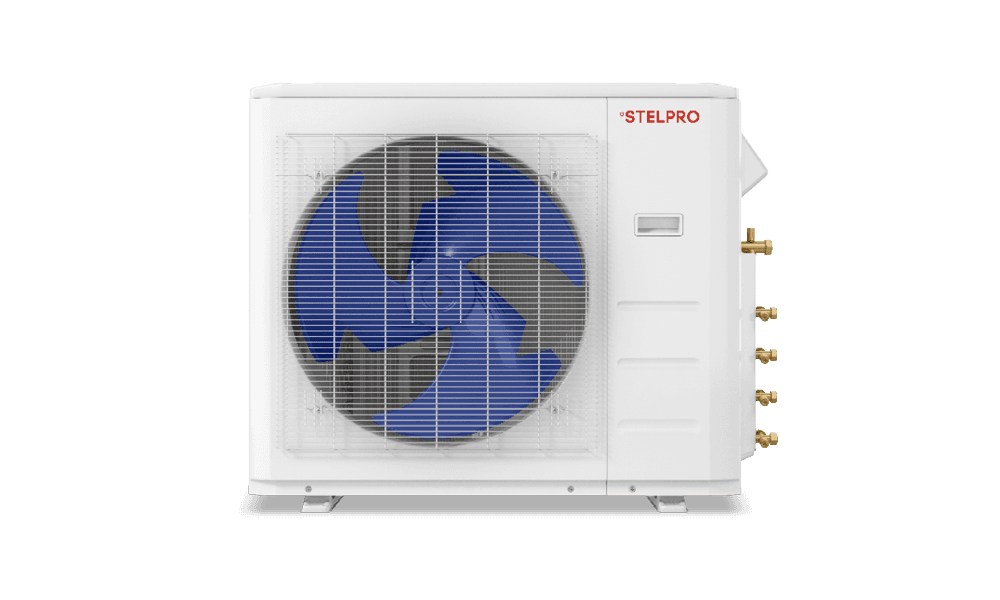

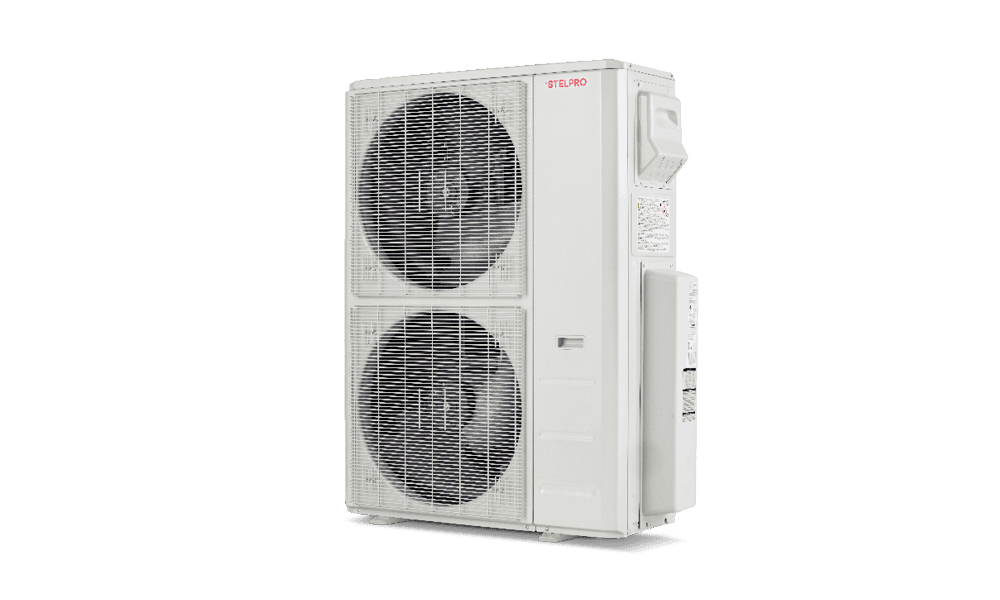

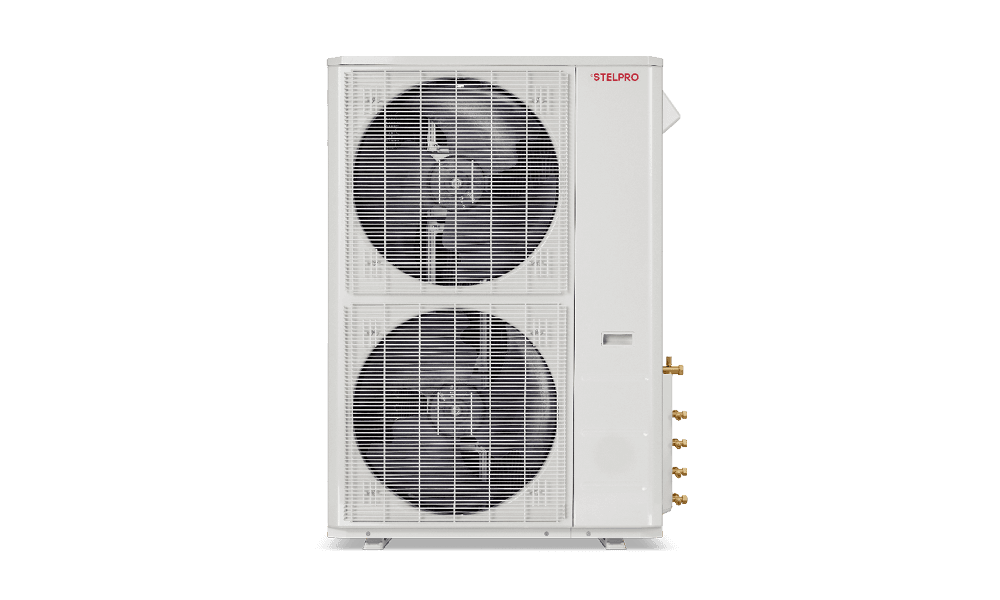

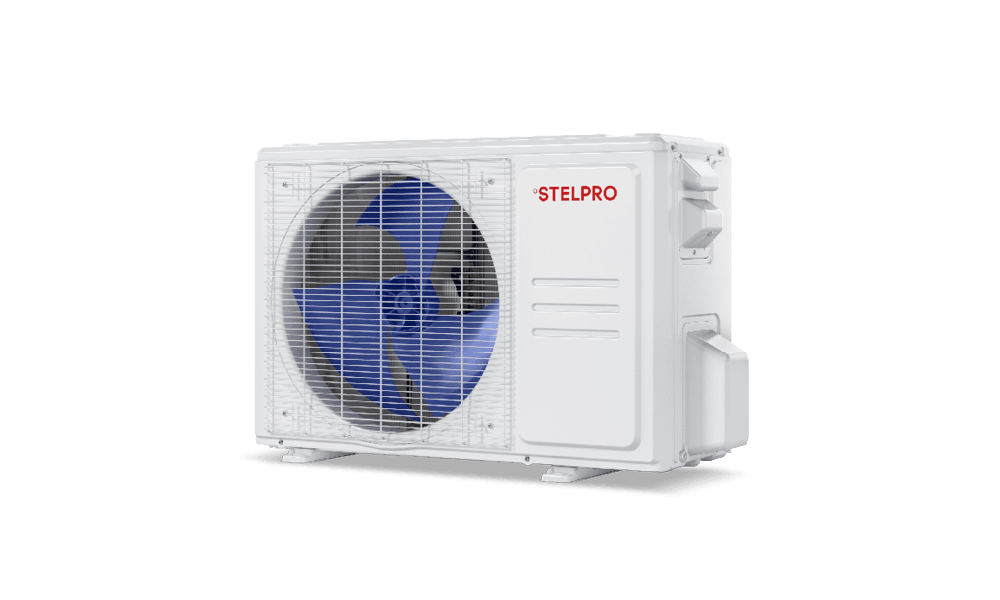

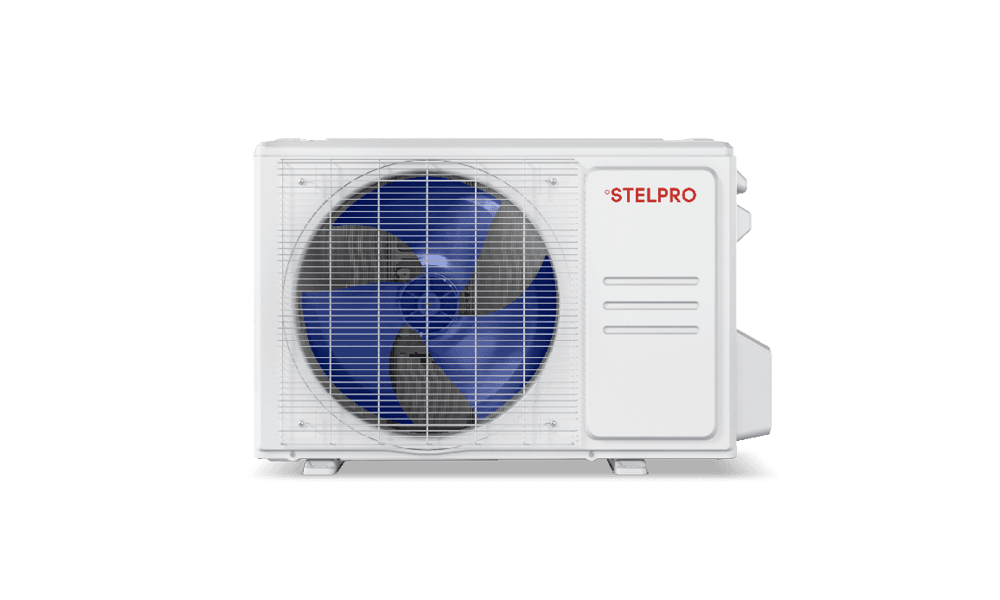

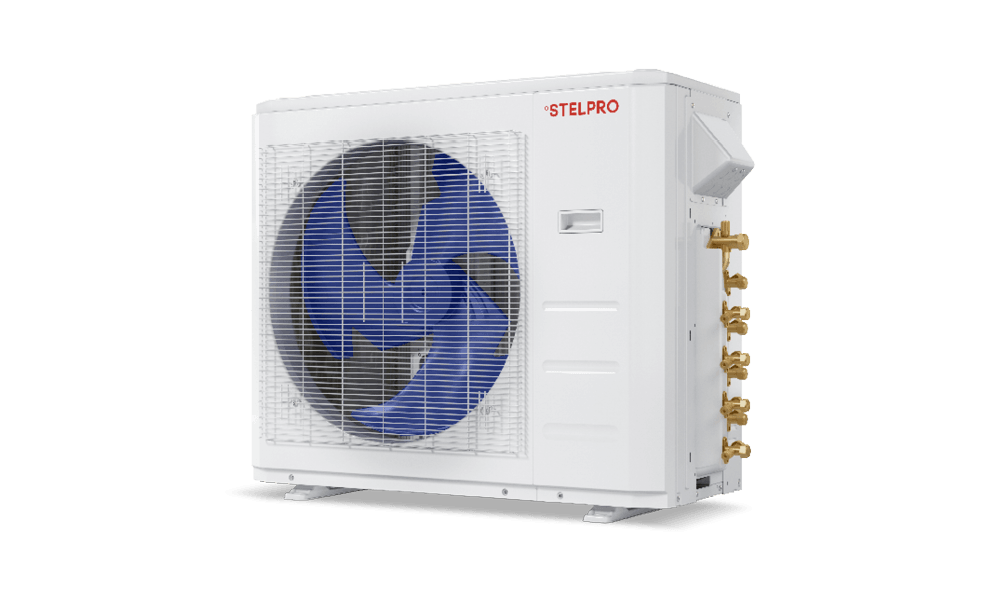

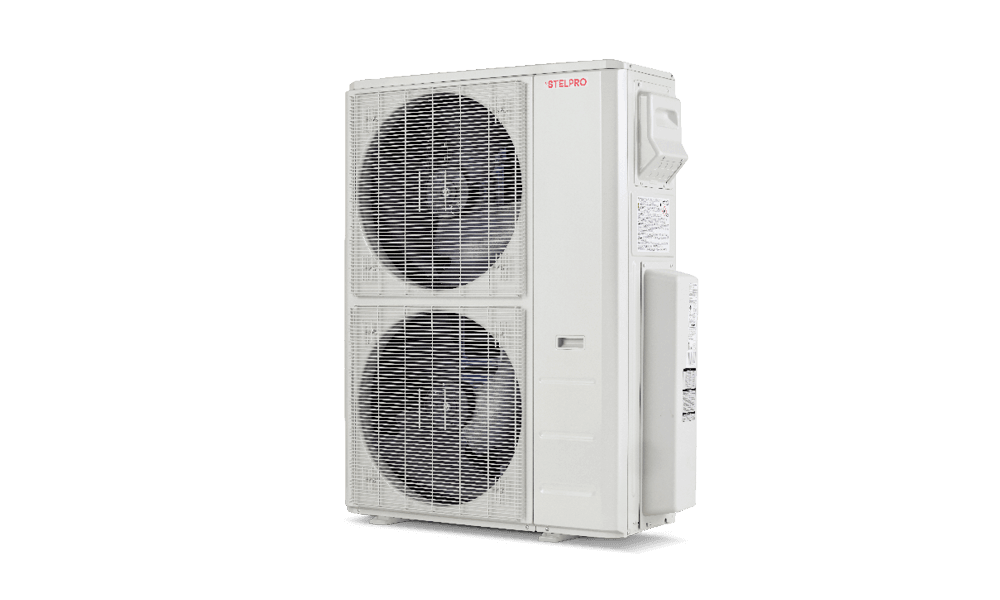

Outdoor unit

  • Variable speed rotary compressor (INVERTER), with PCB control protection. Electronic expansion valve for precise control of refrigerant flow
  • Condenser fins covered with a hydrophilic coating for improved corrosion resistance
  • Quiet axial-flow fan
  • Multi-hole pan with smart heater to prevent ice formation
  • Compressor blanket and preheating technology

Connection piping

  • Minimum piping length of 10 ft (3 m)
  • Flared connections
INSTALLATION

Indoor unit

  • High wall installation with ceiling clearance as low as 5 cm
  • Dual side connection

Outdoor unit

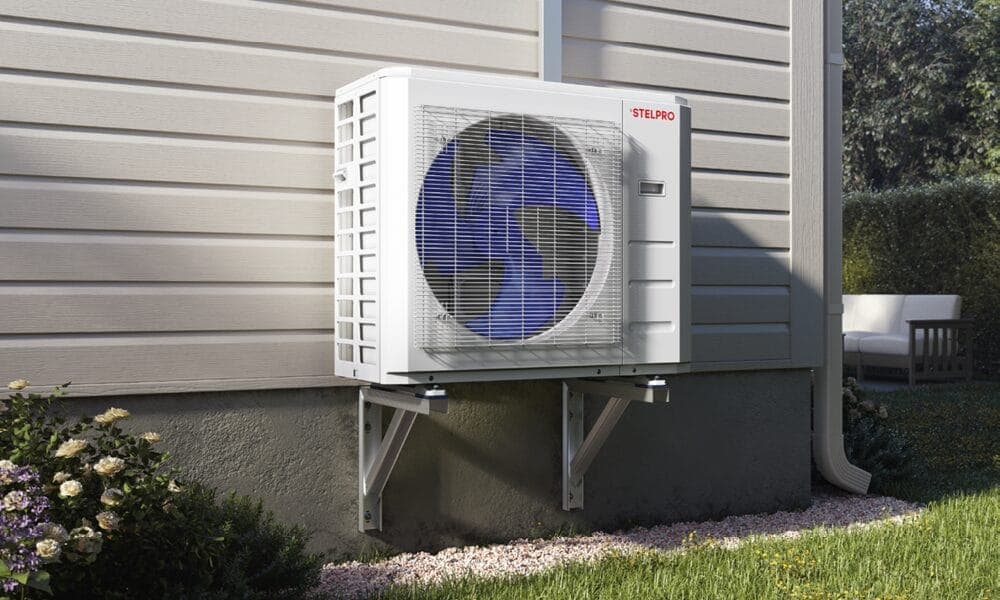

  • Installation on aluminum wall bracket or ground stand (optional)
CONTROL
  • Wireless remote included with wall bracket
  • Wi-Fi option available for the wall unit
  • Set temperature: 16°C to 32°C (61°F to 90°F)
  • Temperature display format: °C or °F
  • Interface for wall unit only
WARRANTY
  • 10-year basic warranty on parts and 10-year basic warranty on the compressor (labour not included)
  • Labour warranty (sold separately) from the first to the tenth year on parts and labour, with condenser replacement if the compressor fails
GRANTS
  • Qualifies for rebate programs
