  • Self-regulating Freeze Protection Cable Reel
  • Overview
  • Characteristics
  • Documents
  • Related Products
SSFP | AMBIANCE1
SSFP | AMBIANCE2
SSFR | FACE

SSFR

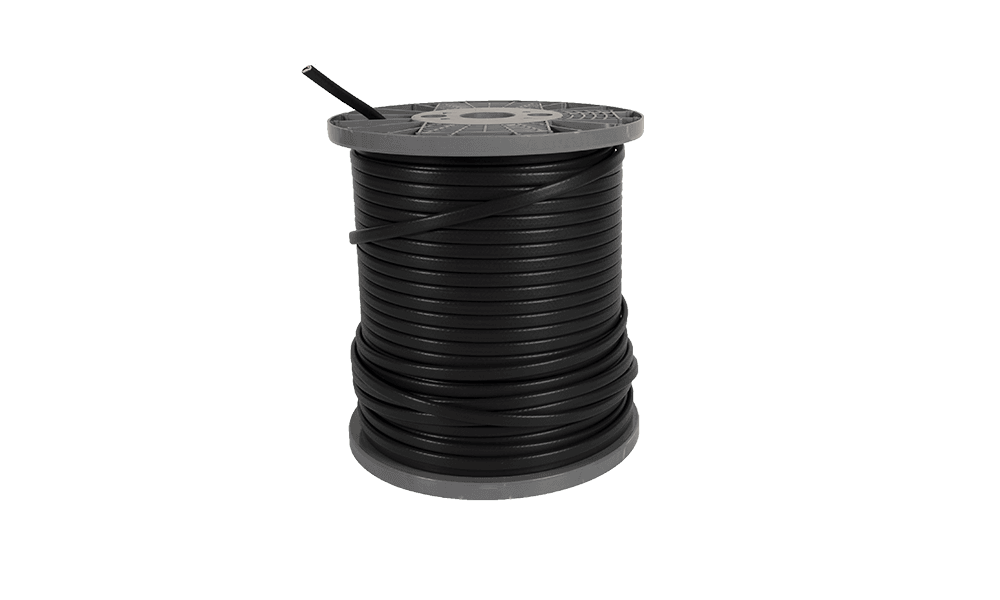

Self-regulating Freeze Protection Cable Reel

Melt away your worries

The SSFR heating cable increases or decreases its heat output in a self-regulating way, based on changes in the ambient temperature. Therefore, it will never overheat or burn, even if it is overlapped. A host of accessories requiring no special tools are available to cut down on installation time.

Use cases

  • Exterior use
  • Interior use

Spaces

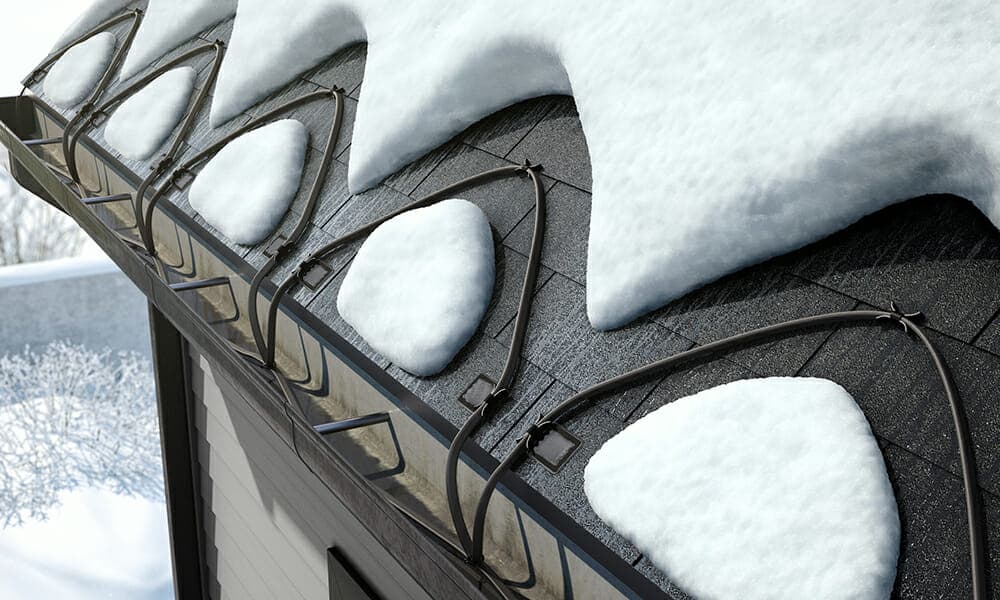

  • Roofs and gutters with ice damming problems

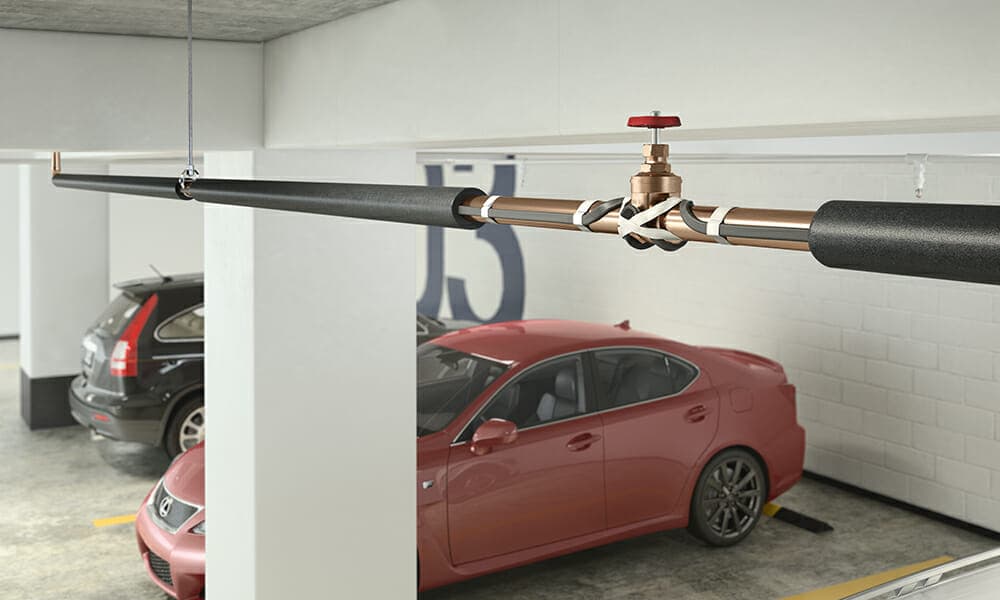

  • Pipes at risk of freezing

Characteristics

Advantages
  • Saves on energy — Automatically adjusts its heat output based on ambient temperature
  • Easy to install — Can be cut to the desired length (up to the maximum circuit capacity) on site, which avoids wasting cable
  • Safe — Even if the cable is overlapped
  • Greater installation flexibility
  • Optional connection, splice, T-connection and end-seal kit
MANUFACTURING
  • Normal cable width 0.42 in.
  • Normal cable thickness 0.23 in.
  • Cable bus wire gauge 16 AWG
WATTAGE
  • 5 W/ft, 8 W/ft, 10 W/ft

INSTALLATION
  • Maximum exposure temperature is 185 °F
  • Minimum installation temperature -40 °F
WARRANTY
  • Two years

Documents

SSFR

Technical drawings

Shop drawings

Download

SSFR

Design guide

Technical drawings

Download

SSFR

Design guide

User guide

Download

SSFR

User guide

User guide

Download

SSFR

Specsheet

Specsheet

Download
