Characteristics

Advantages

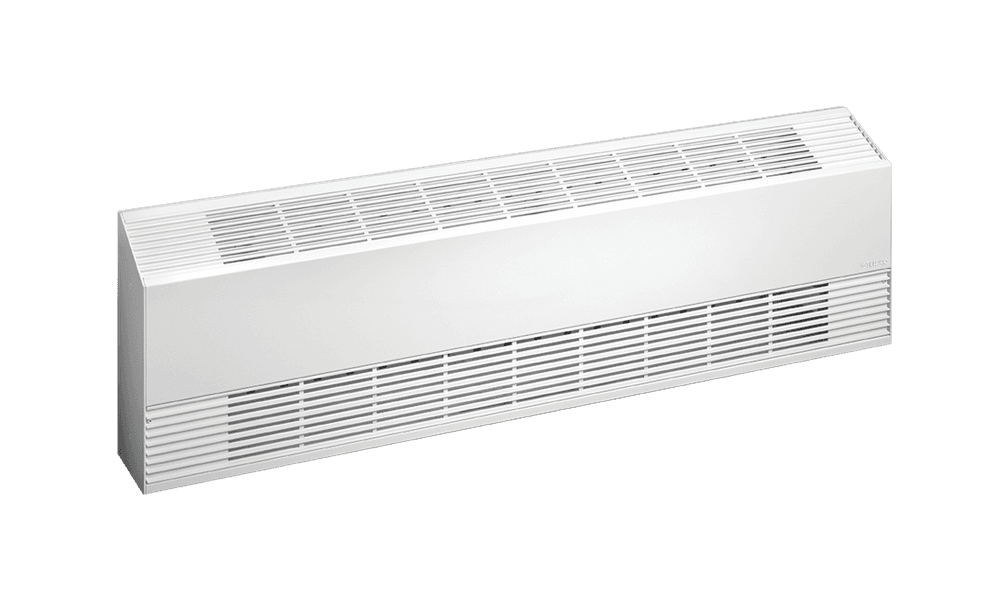

• Sloped top – keeps the unit from being used as a shelf or bench
• Outstanding heat density
• Extruded aluminum grille – serves to enhance the unit’s appearance

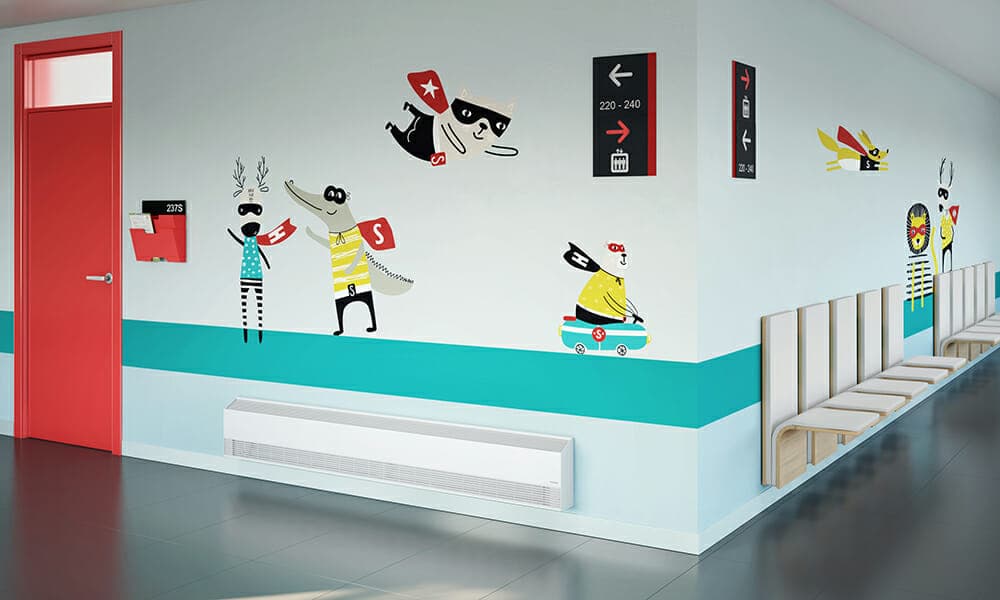

• Can be installed in public spaces

COLORS

• Standard: white
• ORORA (optional): refer to the Orora section

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

• 18-gauge steel cabinet, 16-gauge steel front panel and extruded aluminum grilles with a thickness equivalent to 13 gauge
• Front air intake and top air discharge
• Thermal protection with automatic reset
• Full-length wireway

ELEMENTS

• Tubular elements, stainless steel sheathed with boxed aluminum fins for improved heat dissipation; the elements are securely fastened at their centres, floating in nylon sleeves at each end, eliminating expansion and contraction noises
• Three (ACWS750) or four elements (ACWS1000)

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Built-in tamper-proof thermostat accessible without removing front grille, installed in the left or right junction box (optional)
• Low voltage relay kit installed in the left or right junction box (optional)

INSTALLATION

• Surface mounted
• Wall or floor mounted with or without pedestal kit (optional)
• Wiring compartments at both ends of unit

WARRANTY

• Three years
