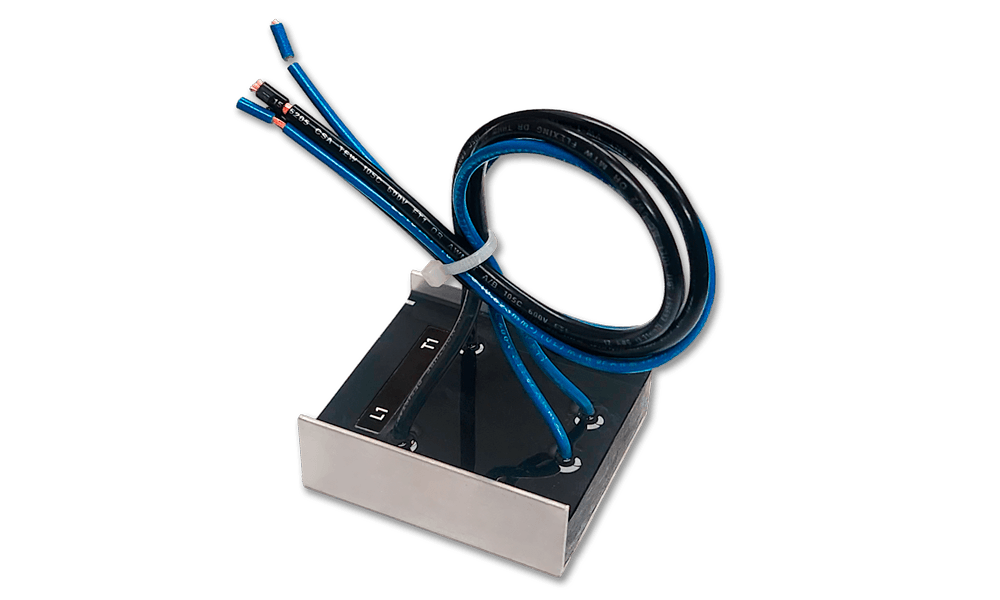

Relais Cristal

CCT-15/CCT-06

SSR Type Electronic Relay without Heat Sink

These compact relays fit easily into the junction box of a heating device. Several models are available to meet your needs.

Characteristics

Advantages
  • Maintains the temperature closer to the desired setpoint for greater comfort and lower energy costs
  • More precise than mechanical relays
  • Easy adjustment and installation
  • Installation in the heater junction box
  • Compatible with low-voltage thermostats
  • No maintenance required — And no risk of damage, as there are no mechanical components
  • Cast in epoxy — Which protects the relay against moisture, excess heat and contaminated environments
CONTROL
  • 24 VAC pulse or On/Off signal

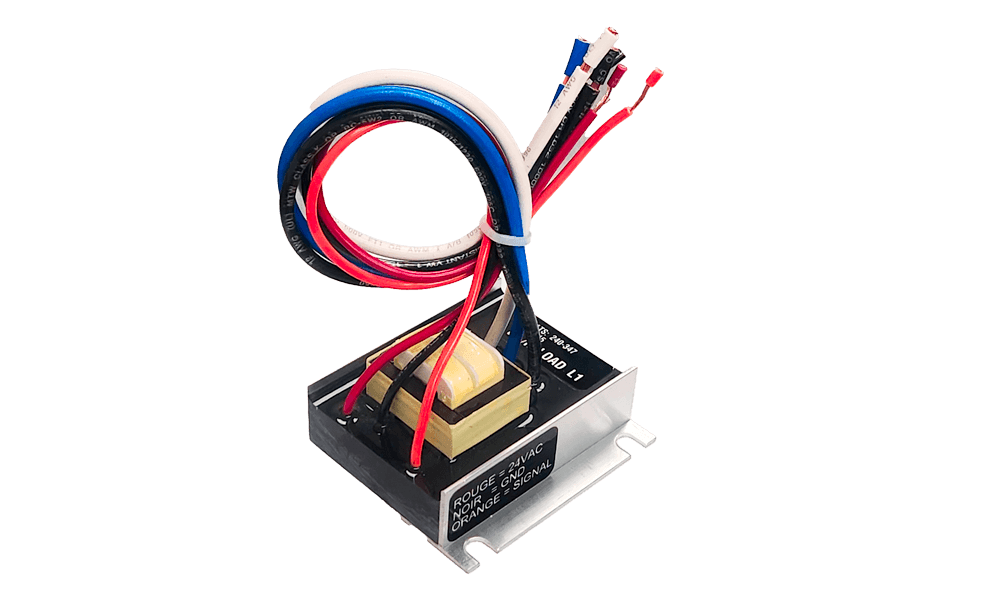

  • With transformer (CCT-15-1-ST-347)
TRANSFORMER VALUE (CCT-15-1-ST-347)
  • 347 VAC = 24 VAC
  • 277 VAC = 19.2 VAC
  • 240 VAC = 16.6 VAC
INSTALLATION
  • Must be installed in the heater junction box

OPERATING TEMPERATURE
  • -20°C to 45°C (-4°F to 113°F); if over 25°C (77°F), derating required
STORAGE TEMPERATURE
  • -40°C to 80°C (-40°F to 176°F)
WARRANTY
  • Two years

Documents

CCT-15/CCT-06

CCT-06-1-S technical drawings

Shop drawings

Download

CCT-15/CCT-06

CCT-15-1-S

Technical drawings

Download

CCT-15/CCT-06

CTT-15-1-ST-347

Technical drawings

Download

CCT-15/CCT-06

Specsheet

Specsheet

Download

Specifications
