Characteristics

Advantages

• Energy efficient, quiet, and safe
• Easy to install with cable spacers or uncoupling membranes
• Flexible, easy-to-handle cable

MANUFACTURING

• Diameter suitable for use with an uncoupling membrane
• Heating elements sheathed in thermoplastic polymer insulation
• Dual heating element that allows for a return to the thermostat inside the cable (therefore, cable route planning doesn’t need to include a return to the thermostat)
• Tin-plated copper braiding for better corrosion resistance

WATTAGE

• 12 W/ft² – 3 spaces (with a membrane or cable spacers)
• 9 W/ft² – 4 spaces (cable spacers)

CONTROL

• Electronic thermostat for floor heating (sold separately)

Note: a temperature sensor is included with the SCU product and another with the Stelpro electronic thermostat.

INSTALLATION

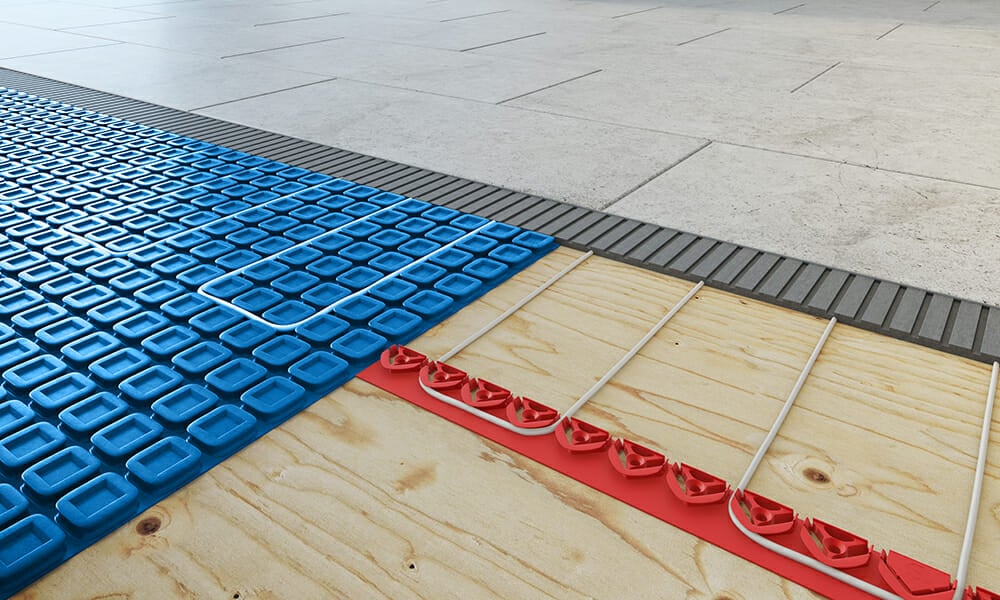

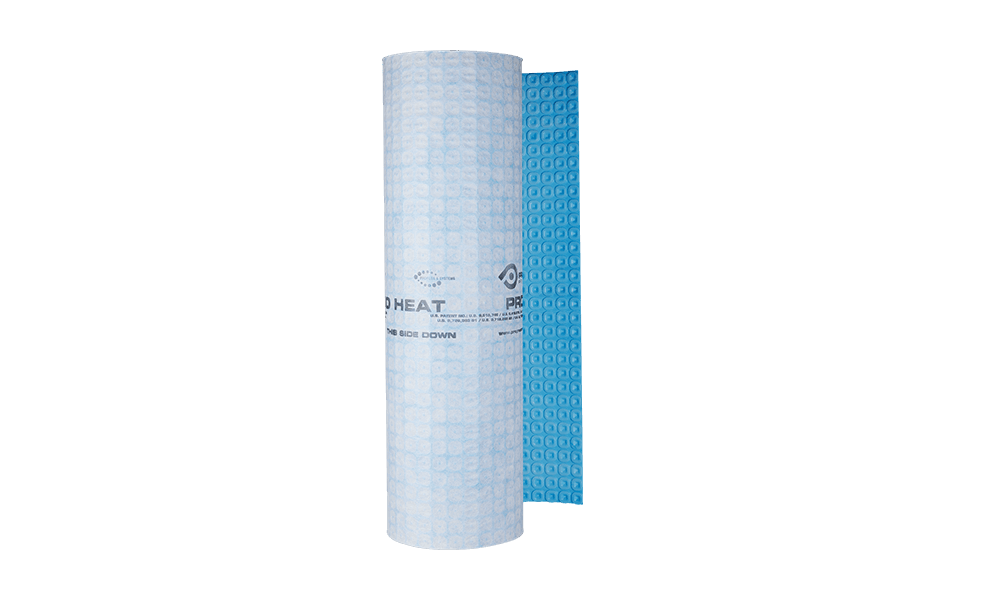

• With any uncoupling membrane
• Directly on concrete (slab or basement floor) using the cable spacers (included with the product)
• Directly on plywood using the cable spacers (included with the product)
• Glue sticks included
• Under most floor coverings*, so long as the heating cable is completely covered with self-leveling mortar

WARRANTY

• Twenty-five years

* For more information on floor coverings that can be installed over a heating cable, we strongly recommend that you check with the floor covering manufacturers in question.
