Name: Single Zone Ductless Heat Pump
Brand: Stelpro
SKU: SELB

SELB

Single Zone Ductless Heat Pump

Efficiency and comfort redefined

Improve ambient temperature control and enjoy unmatched efficiency, comfort, and peace of mind. Equipped with cutting-edge technology, the Elite-B indoor unit operates quietly while its self-cleaning system removes dust, mold, and bacteria. Its smart mode adjusts the temperature for optimal comfort.

Use cases

Interior use

Spaces

Characteristics

ADVANTAGES

New R-454B high-performance gas
Greater reliability thanks to new gas leak sensor*
5 operation modes — Cooling, heating, dehumidifying, fan and auto
Integrated Wi-Fi plus — The connectlife smart app puts easy operation right at your fingertips
Indoor with auto clean technology mode
Eligible for provincial and federal grants

*Available for 9000 and 12 000 BTU products only. See the accessory sheet for more details

NOMINAL CAPACITY

9,000, 12,000, 18,000, 24,000 BTU/hr

VOLTAGE

230/208V, 60 Hz, 1-phase

MANUFACTURING

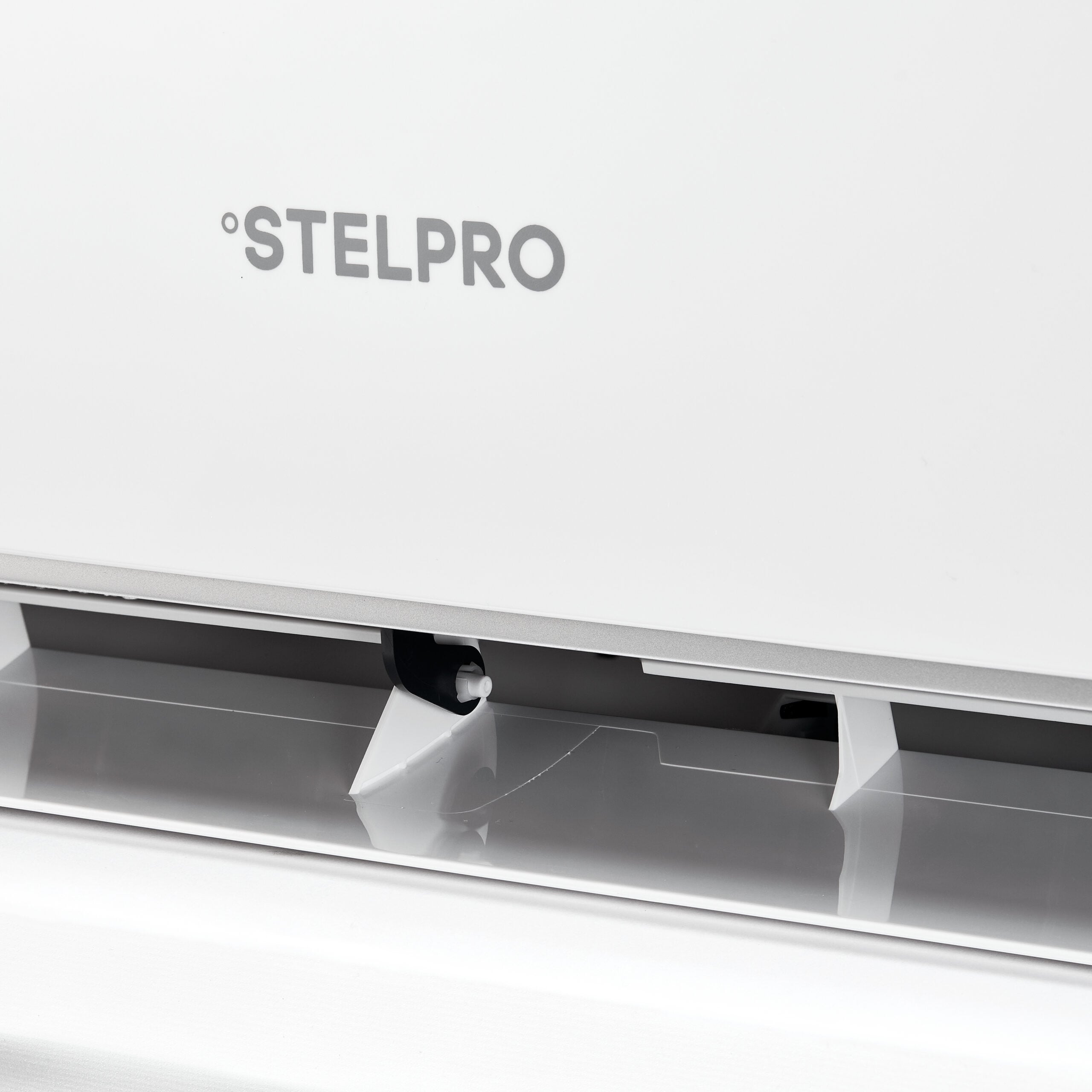

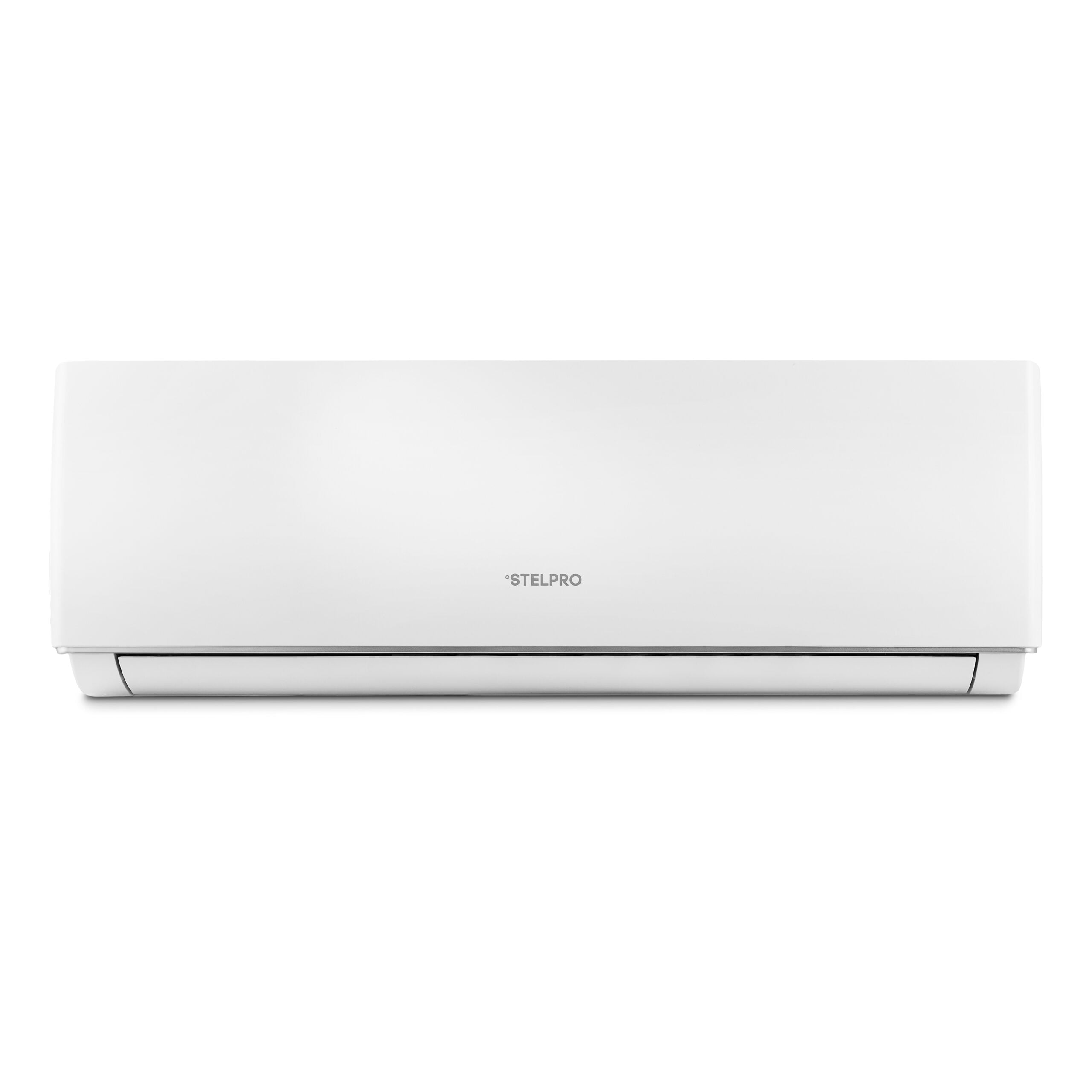

Indoor unit

Plastic housing, standard white
Cross-flow fan with 5 selectable speed and 2 operation modes (auto and silence)
Evaporator fins covered with hydrophilic coating for improved corrosion resistance

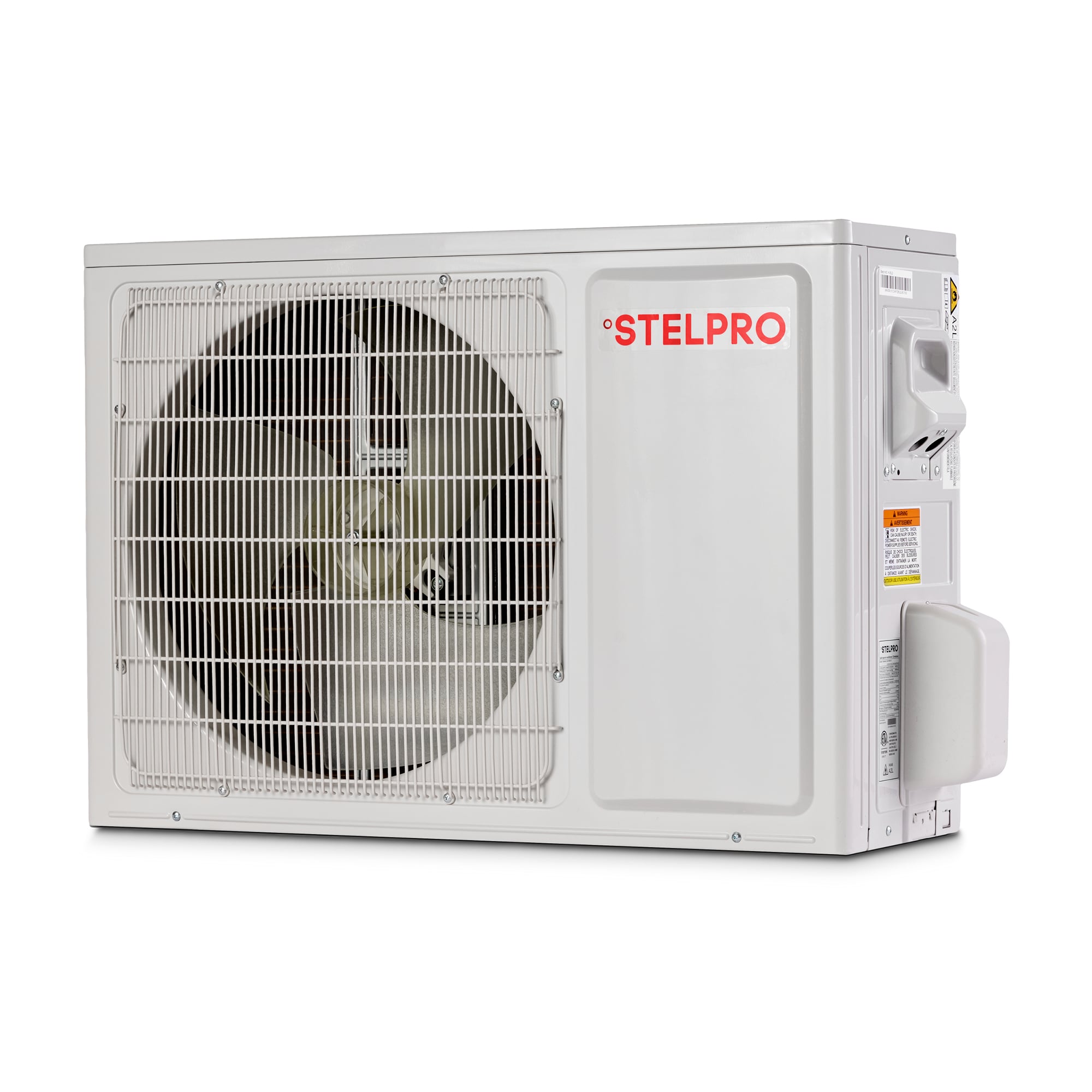

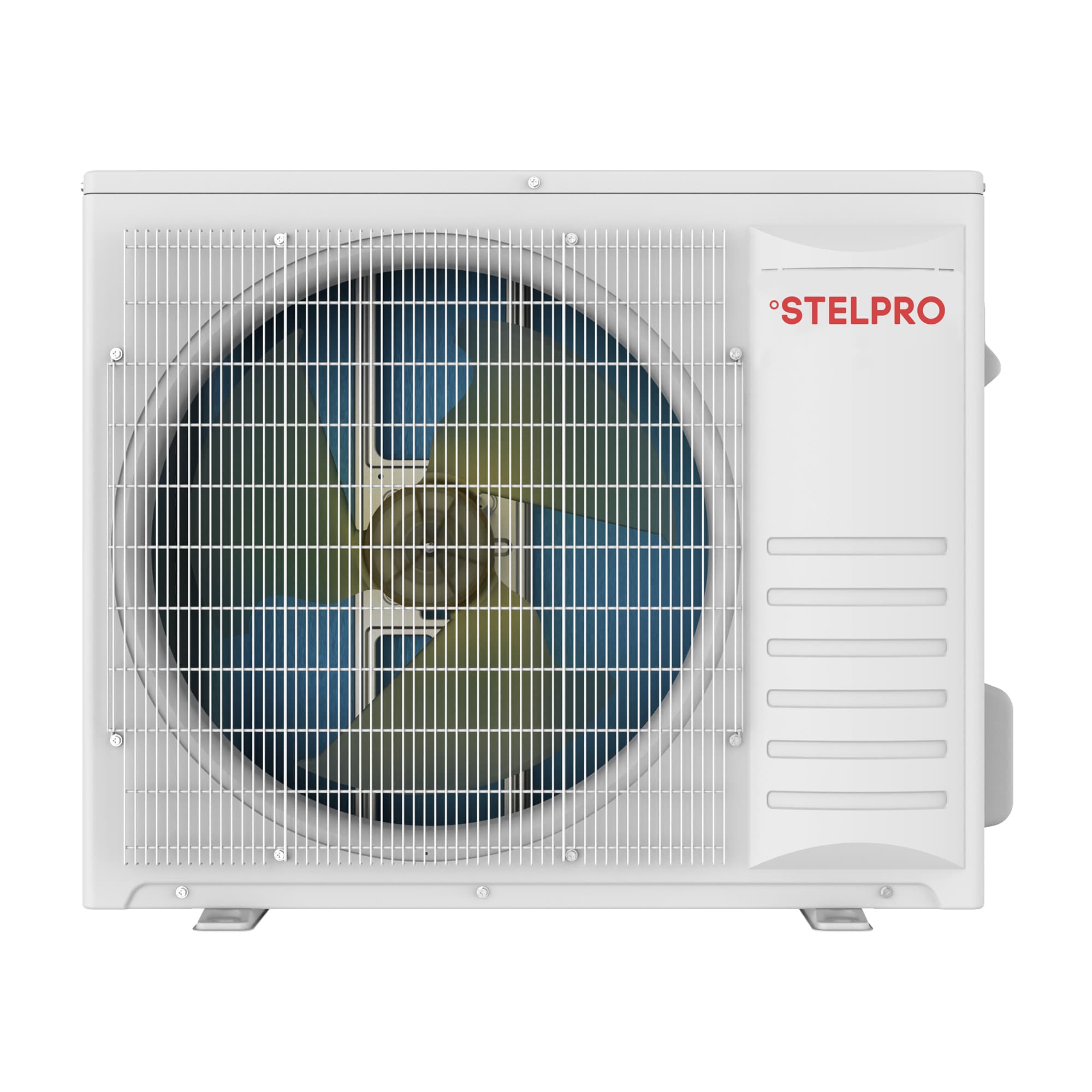

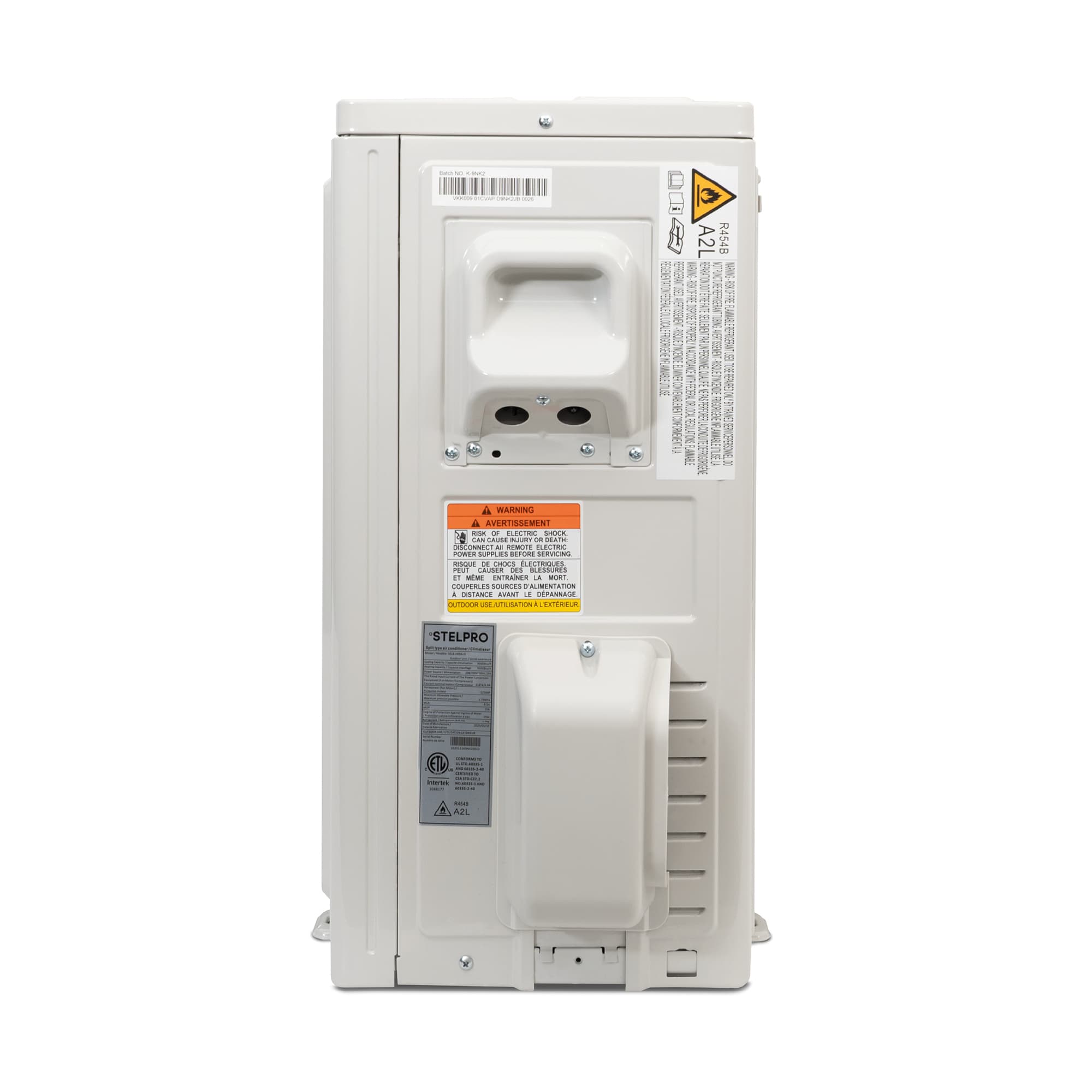

Outdoor unit

Variable speed rotary compressor (INVERTER), with PCB control protection
Electronic expansion valve for precise control of refrigerant flow
Condenser fins covered with a hydrophilic coating for improved corrosion resistance
Quiet axial-flow fan
Multi-hole pan with smart heater to prevent ice formation
Compressor blanket and preheating technology

Connection piping

Minimum piping length of 3 m (10 ft)
Flared connections

INSTALLATION

Indoor unit

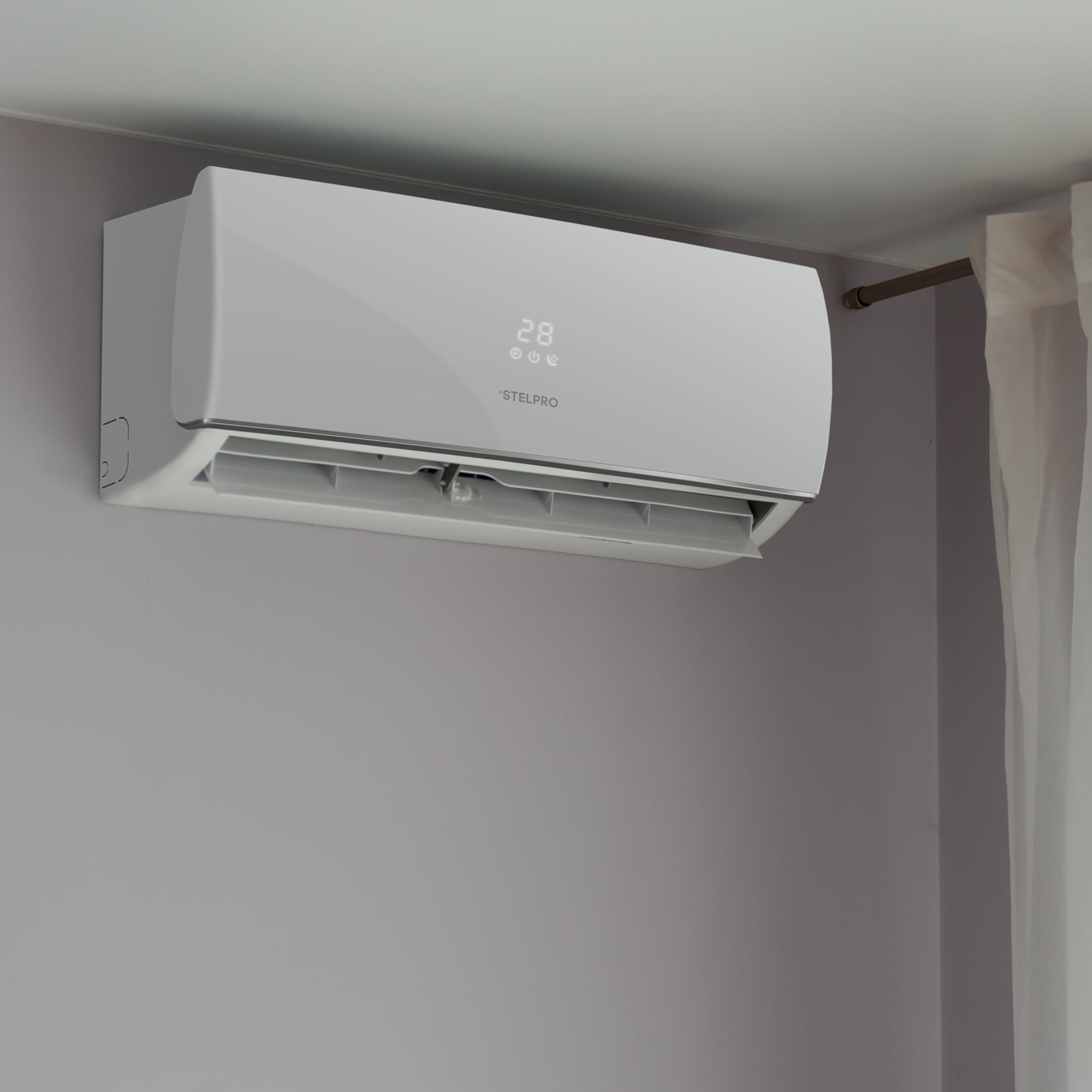

High wall installation
Dual side connection

Outdoor unit

Installation on aluminum wall bracket or ground stand (optional)

CONTROL

Wireless remote included with wall bracket
Wi-Fi included
Set temperature: 16°C to 30°C (61°F to 86°F)
Temperature display format: °C or °F

WARRANTY

10-year basic warranty on parts and 10-year basic warranty on the compressor (labor not included)
Labour warranty (sold separately) from the first to the tenth year on parts and labour, with condenser replacement if the compressor fails

GRANTS

Qualifies for rebate programs

Spare Parts

SELB-H09A-I

Download the complete parts list for SELB-H09A-I

PDF

INDOOR UNIT¹			SELB-H09A-I	SELB-H12A-I	SELB-H18A-I	SELB-H24A-I
OUTDOOR UNIT¹			SELB-H09A-O	SELB-H12A-O	SELB-H18A-O	SELB-H24A-O
Voltage		V	230/208	230/208	230/208	230/208
Cooling capacity	Nominal	W (BTU/hr)	2638 (9000)	3517 (12000)	5275 (18000)	7034 (24000)
Cooling capacity	Min. - Max.	W (BTU/hr)	1055-2931 (3600-10000)	1172-3810 (4000-13000)	1905-5568 (6500-19000)	2345-7327 (8000-25000)
Heating capacity	Nominal	W (BTU/hr)	2638 (9000)	3517 (12000)	5275 (18000)	7034 (24000)
Heating capacity	Min. - Max.	W (BTU/hr)	1055-2931 (3600-10000)	1172-3810 (4000-13000)	1905-5568 (6500-19000)	2345-7327 (8000-25000)
Used cooling power input	Nominal	W	659	980	1390	1959
Used heating power input	Nominal	W	659	902	1426	1954
Cooling rated current		A	2.5	4.3	6.1	8.7
Heating rated current		A	3.1	4.1	6.5	9.3
MCA		A	9.5	10.5	20	22
Max. over-current protection (MOCP)		A	15	15	30	35
SEER2		-	25	23	21	22.5
HSPF2 IV		-	11	10	10	9.5
EER2		BTU/W	13.65	12.25	12.95	12.25
COP		W/W	4.00	3.90	3.70	3.60
AHRI number			216445285	216445286	216445287	216445288
ENERGY STAR			✓	✓	✓	✓

		SELB-H09A-I	SELB-H12A-I	SELB-H18A-I	SELB-H24A-I
Dehumidification	pt/hr (l/hr)	1.90 (0.9)	2.54 (1.2)	3.17 (1.5)	4.65 (2.2)
Air flow volume	UH / H / M / L (cfm)	383 / 341 / 294 / 247	394 / 365 / 312 / 253	647 / 589 / 483 / 383	706 / 647 / 559 / 441
Sound level	UH / H / M / L / S² (dB A)	42 / 39 / 37 / 35 / 32	42 / 39 / 37 / 35 / 32	48 / 45 / 41 / 39 / 36	50 / 48 / 43 / 41 / 39
Fan motor power output	W	25	25	35	35
Fan motor RLA	A	0.11	0.11	0.17	0.17
Net weight	lb (kg)	17.64 (8.5)	17.64 (8.5)	30.87 (14)	30.87 (14)

			SELB-H09A-O	SELB-H12A-O	SELB-H18A-O	SELB-H24A-O
Sound level		dB(A)	53	53	58	61
Compressor power input		W	659	979	1425	1959
Fan motor power output		W	36	36	60	102
Fan motor RLA		A	0.17	0.17	0.27	0.45
Refrigerant volume (R454B)		oz (g)	35.27 (1000)	38.1 (1080)	52.91 (1500)	70.55 (2000)
Net weight		lb (kg)	70.55 (32)	70.55 (32)	97.0 (44)	112.44 (51)
Operating ambient temperature	Cooling	°C (°F)	-15 to 48 (5 to 118)	-15 to 48 (5 to 118)	-15 to 48 (5 to 118)	-15 to 48 (5 to 118)
Operating ambient temperature	Heating	°C (°F)	-25 to 24 (-13 to 75)	-25 to 24 (-13 to 75)	-25 to 24 (-13 to 75)	-25 to 24 (-13 to 75)

Pre-charge length	ft. (m)	25 (7.5)	25 (7.5)	25 (7.5)	25 (7.5)
Liquid pipe outer diameter	in.	1/4	1/4	1/4	3/8
Gas pipe outer diameter	in.	3/8	3/8	1/2	5/8
Maximum height difference	ft. (m)	49.21 (15)	49.21 (15)	49.21 (15)	49.21 (15)
Maximum total length	ft. (m)	65.62 (20)	65.62 (20)	98.43 (30)	98.43 (30)

Model	L		H		D
	mm	in.	mm	in.	mm	in.
SELB-H09A-I	802	31 1/2	297	11 3/4	189	7 1/2
SELB-H12A-I	802	31 1/2	297	11 3/4	189	7 1/2
SELB-H18A-I	957	37 5/8	302	11 7/8	213	8 3/8
SELB-H24A-I	1040	40 7/8	327	12 7/8	220	8 5/8

Model	L		H		D		A		B
	mm	in.	mm	in.	mm	in.	mm	in.	mm	in.
SELB-H09A-O	874	34 3/8	554	21 3/4	346	13 5/8	511	20 1/8	317	12 1/2
SELB-H12A-O	874	34 3/8	554	21 3/4	346	13 5/8	511	20 1/8	317	12 1/2
SELB-H18A-O	955	37 5/8	673	26 1/2	380	15	663	26 1/8	325	12 3/4
SELB-H24A-O	1030	40 1/2	810	31 7/8	455	17 7/8	672	26 1/2	386	15 1/4
