Characteristics

ADVANTAGES

• Radiant comfort where you need it most — A quiet, discreet, and efficient ceiling-mounted heating solution
• Free up space. keep the comfort — Direct radiant heat without taking up floor space
• Direct, even warmth — Heats occupants and surrounding surfaces without air circulation
• Built for demanding spaces — Ideal for offsetting heat loss or heating an entire space

COLORS

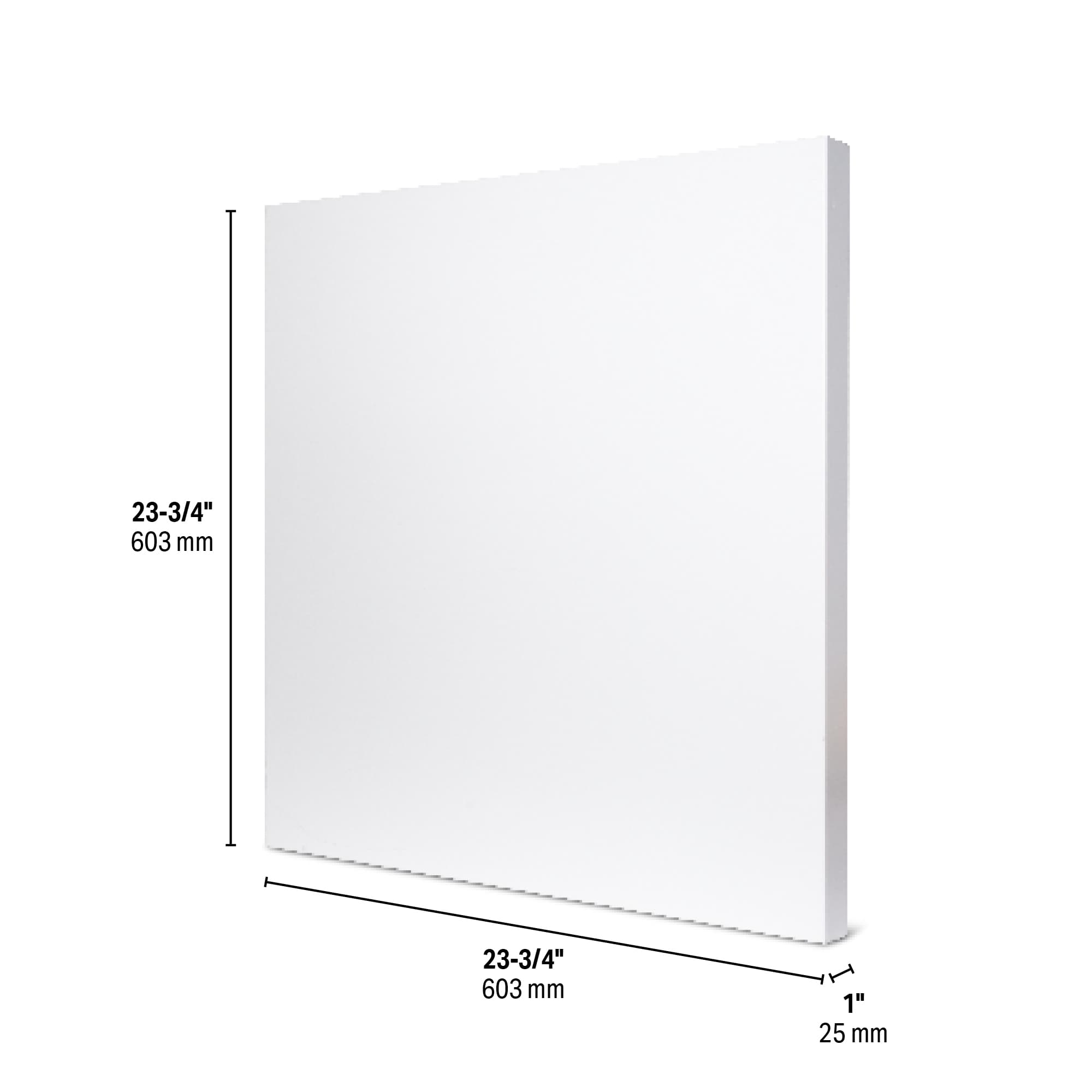

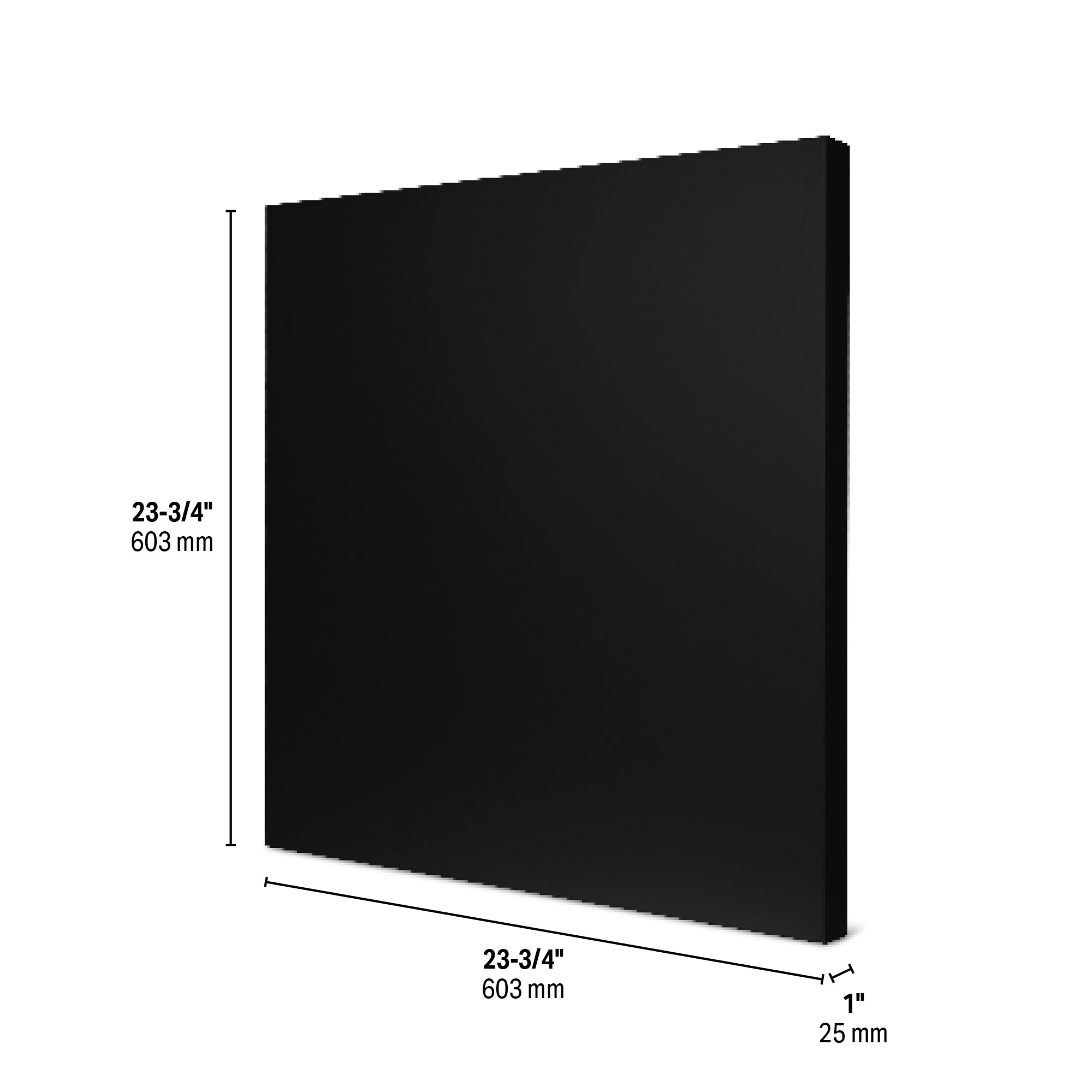

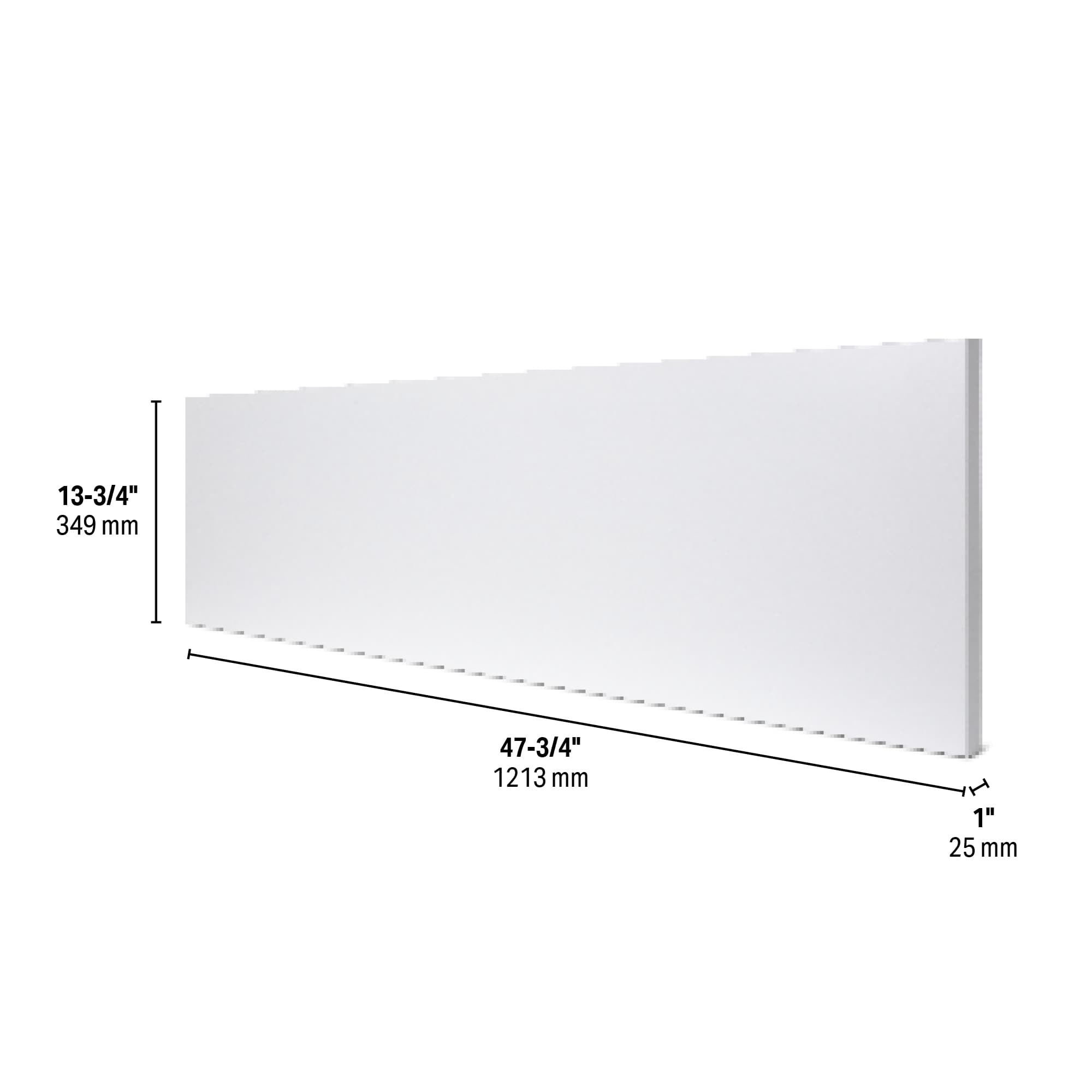

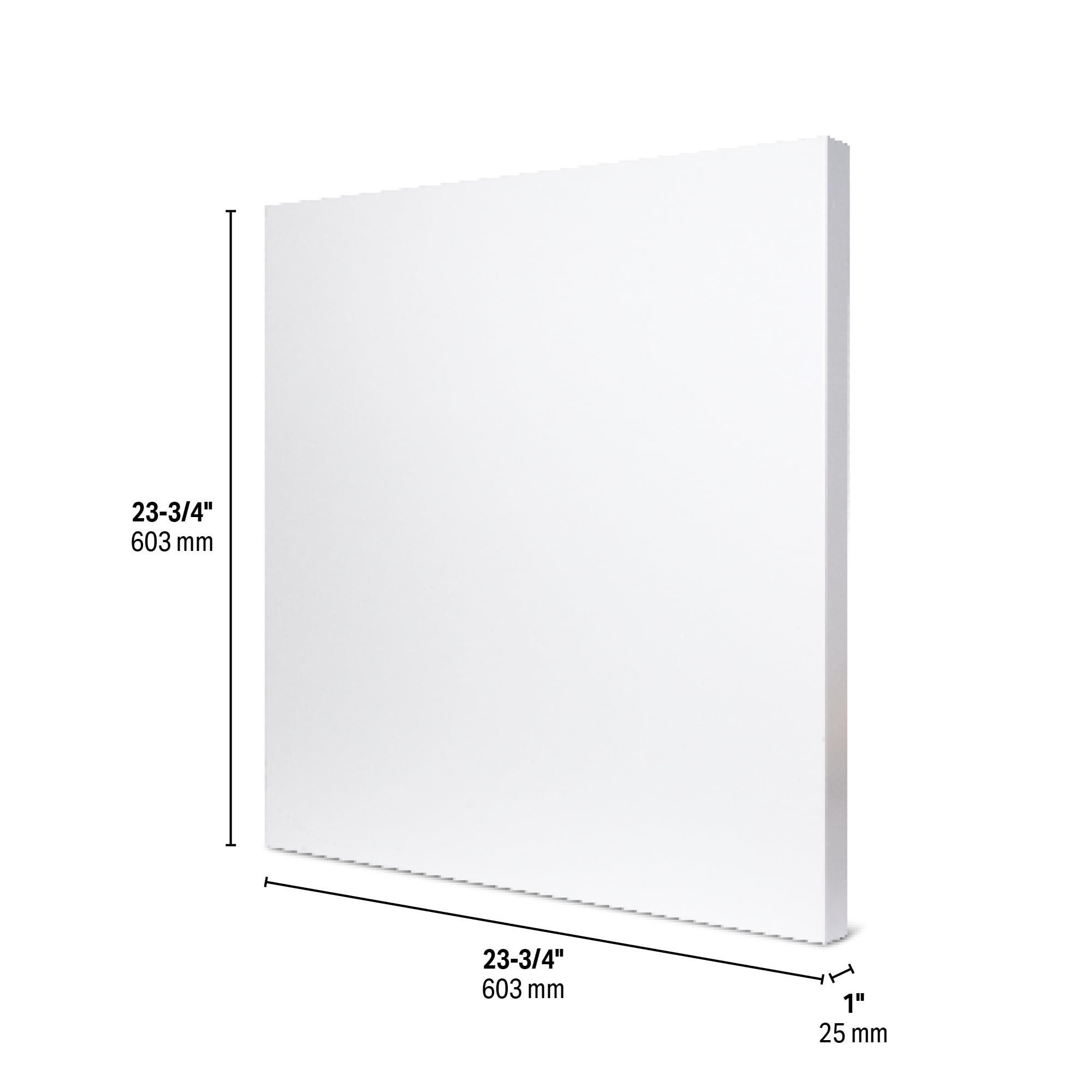

• Standard: white, black
• Orora (optional): refer to the Orora page

FINISH

• High-temperature polyester powder coating

MANUFACTURING

• Reflective foil bonded to the panel’s heating elements
• High-temperature mineral wool insulation, density 2.5 PSF, 1 in (25.4 mm) thick

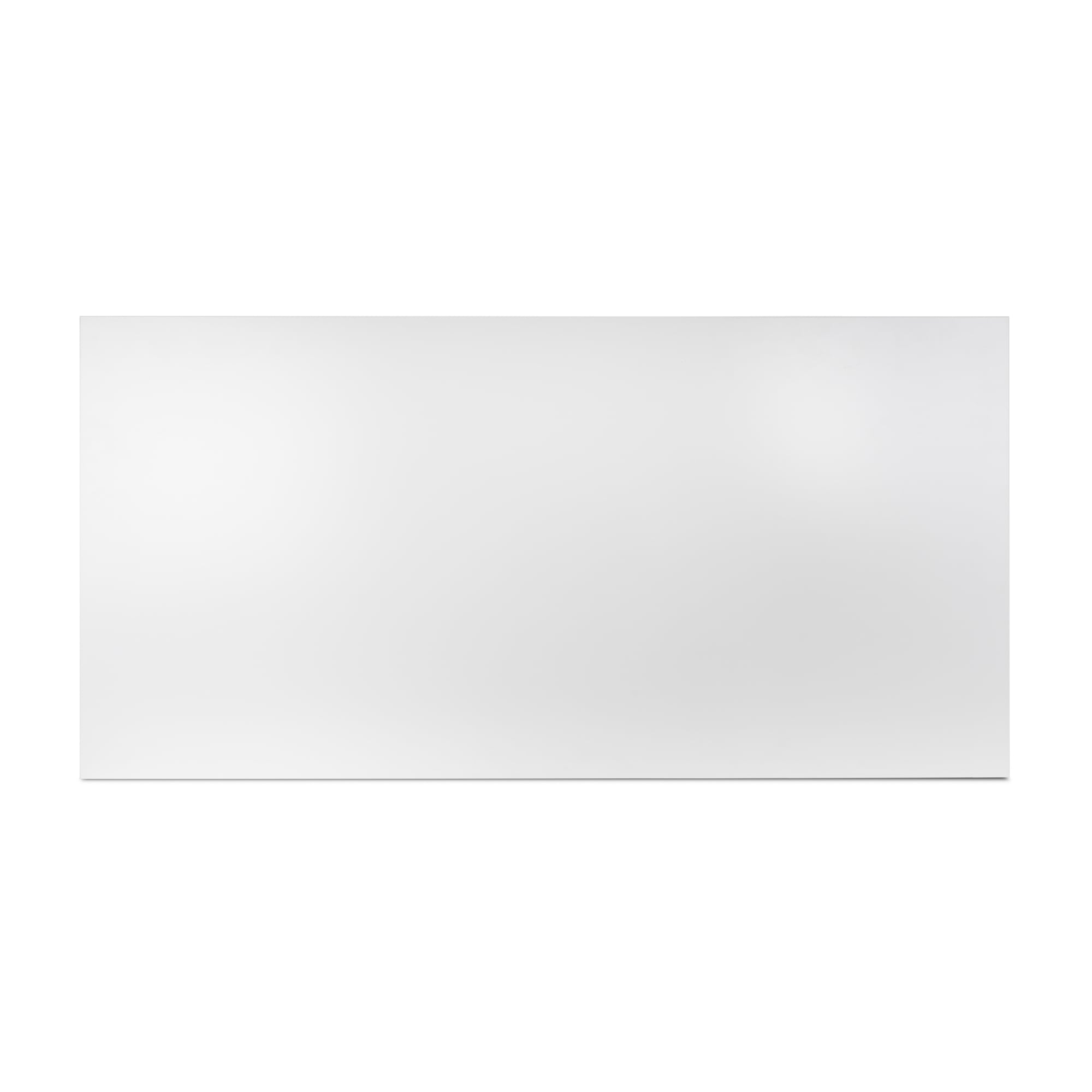

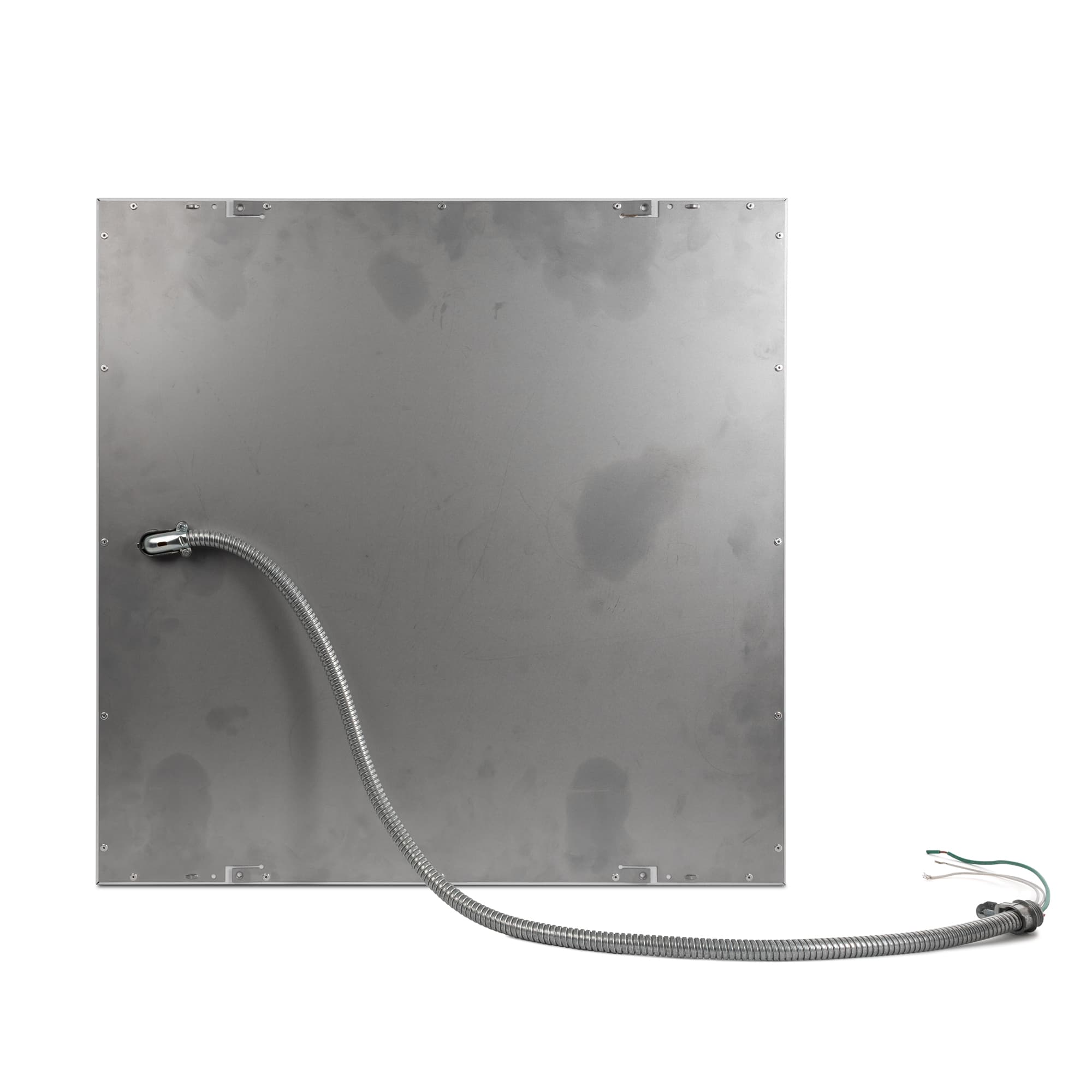

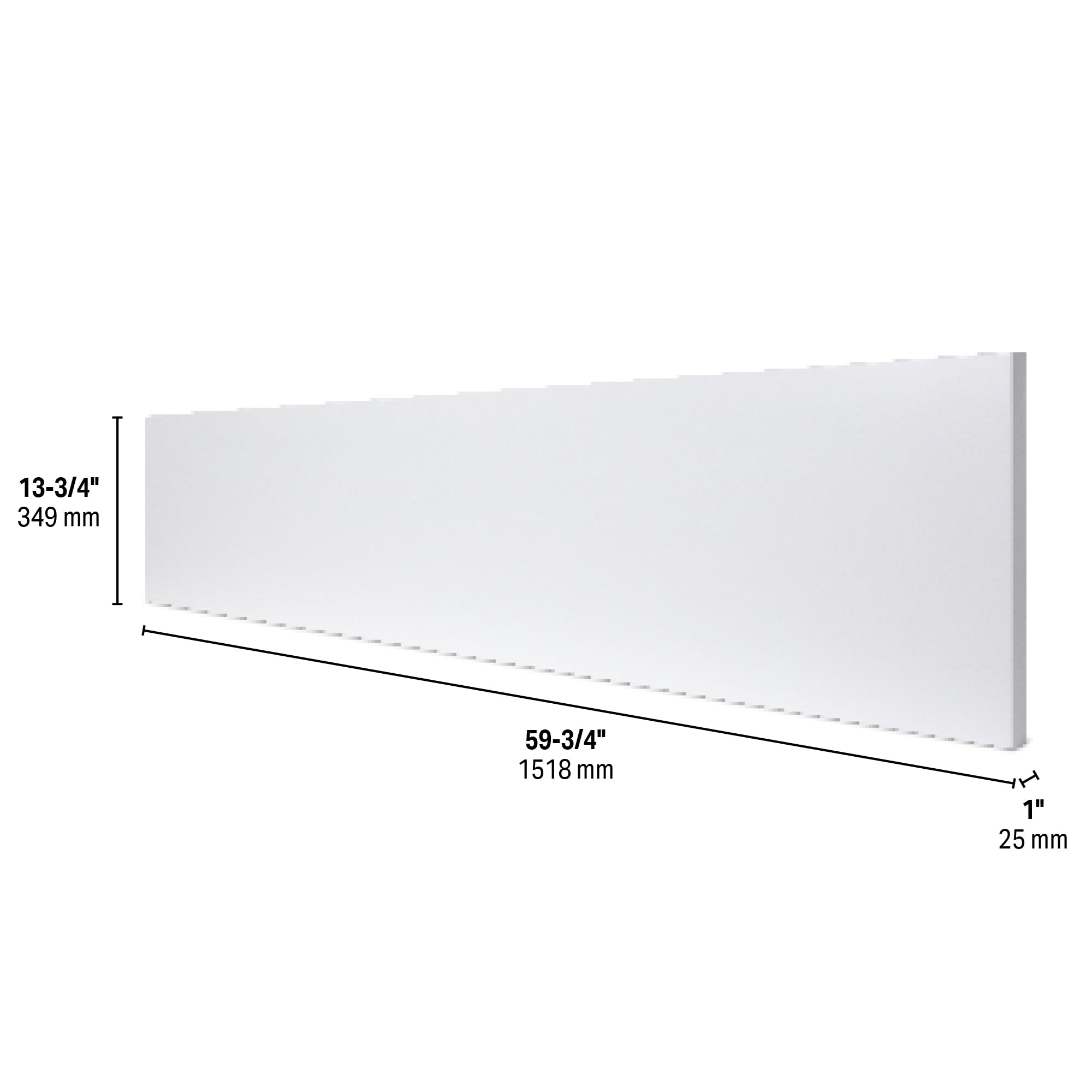

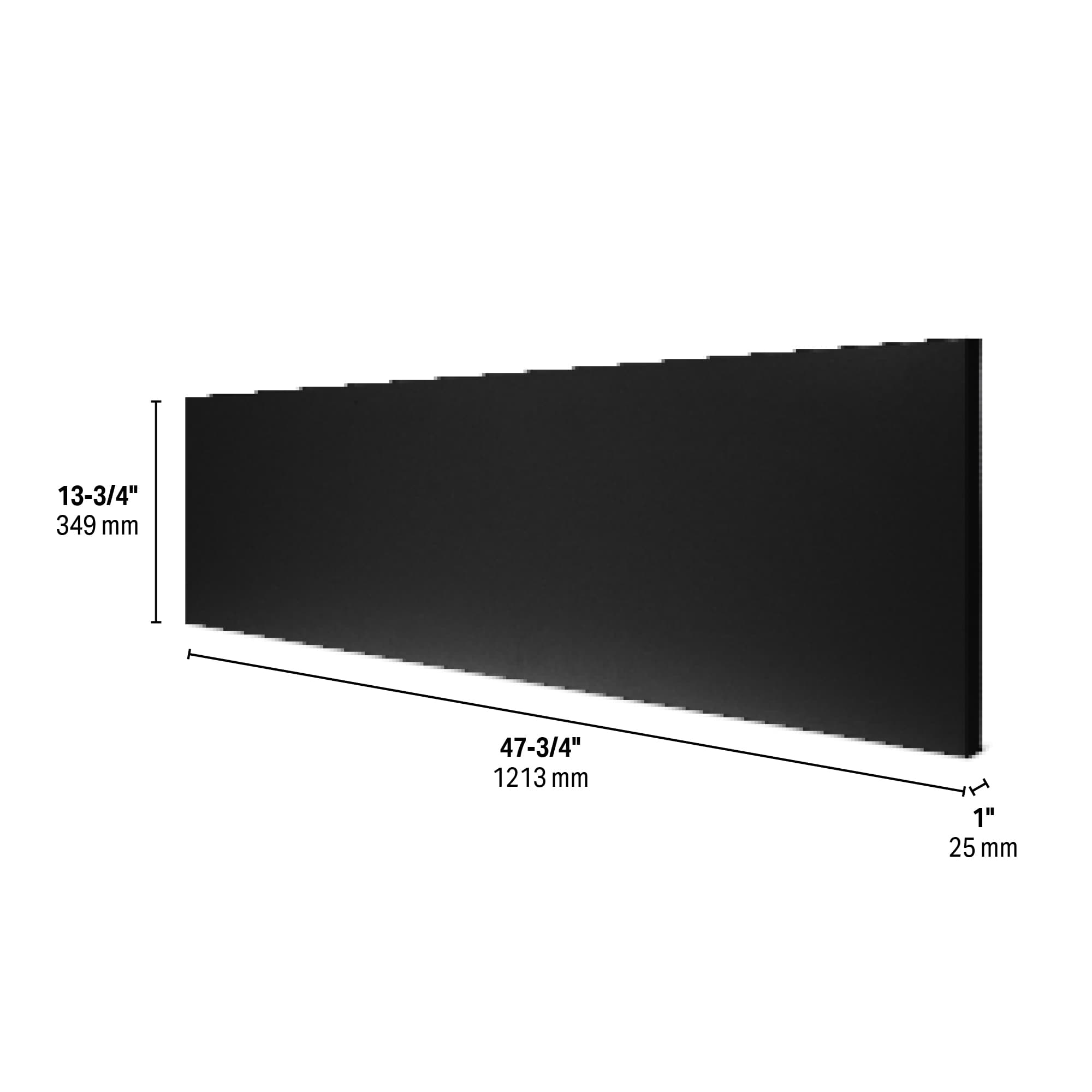

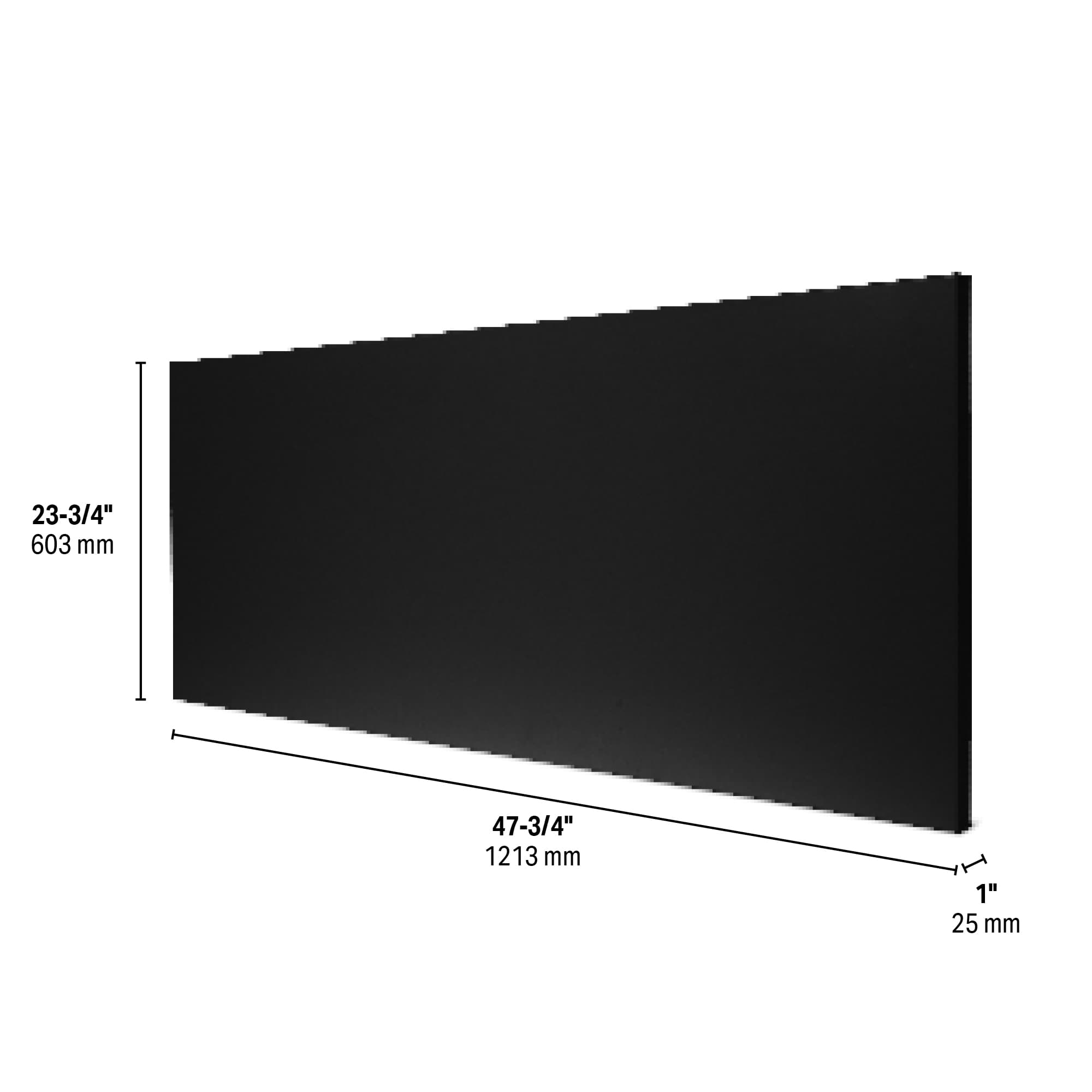

• The front of the panel is made of 22-gauge painted steel. The panel cover is made of 22-gauge satin-finished steel
• Suspension brackets at the four corners of the panel (suspension cable not included)

ELEMENT

• Single-conductor heating wire with fluoropolymer insulation evenly distributed across the panel

DENSITY

• 62.5 to 93.75W/ft² at rated voltage

CONTROL

• Line-voltage control circuit for thermostat, timer or switch (not included; must be compatible with the appliance’s voltage and power rating)
• Stelpro strongly recommends the use of a wall-mounted electronic thermostat for greater comfort

CERTIFICATION

• CSA STD C22.2 No.46 / UL 2021

INSTALLATION

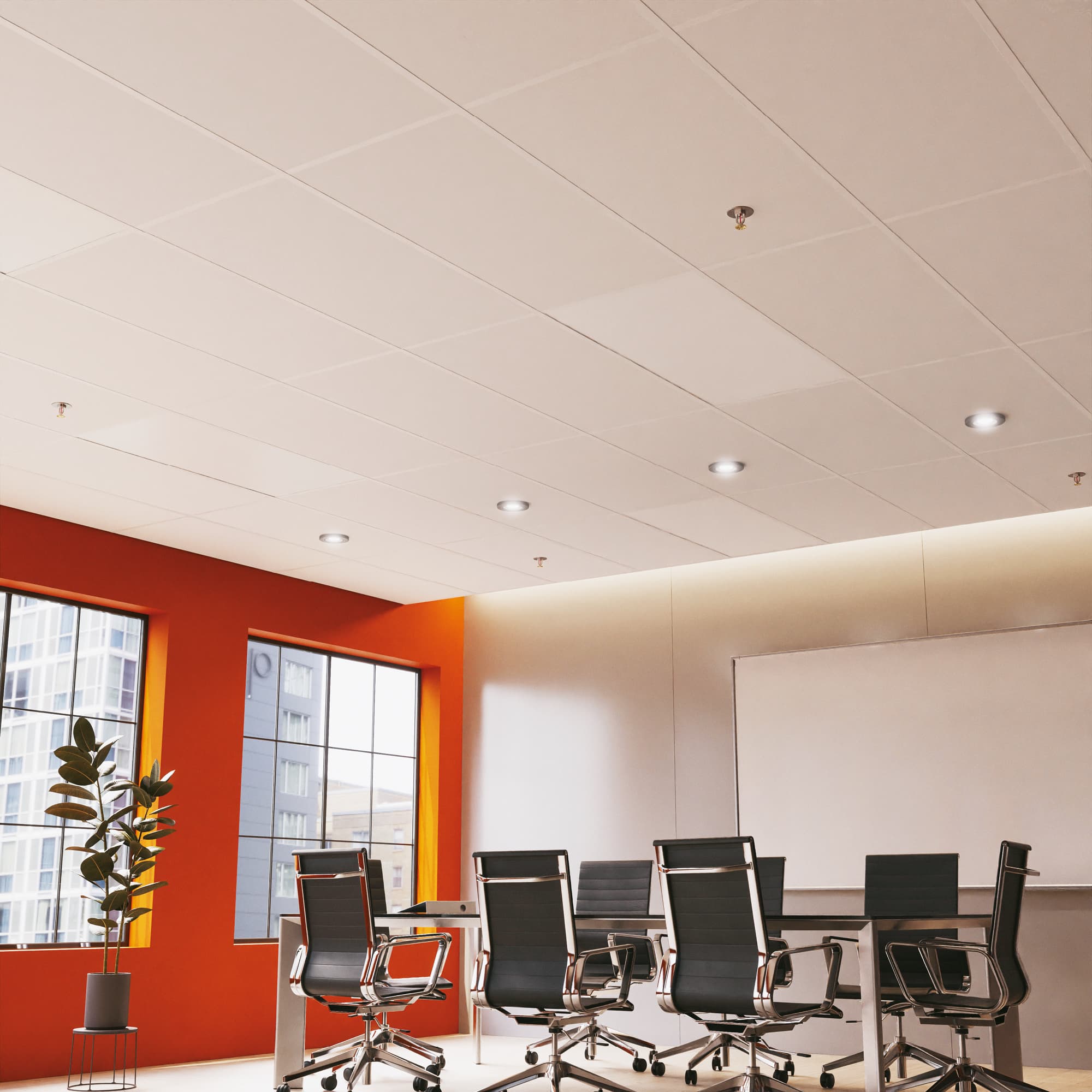

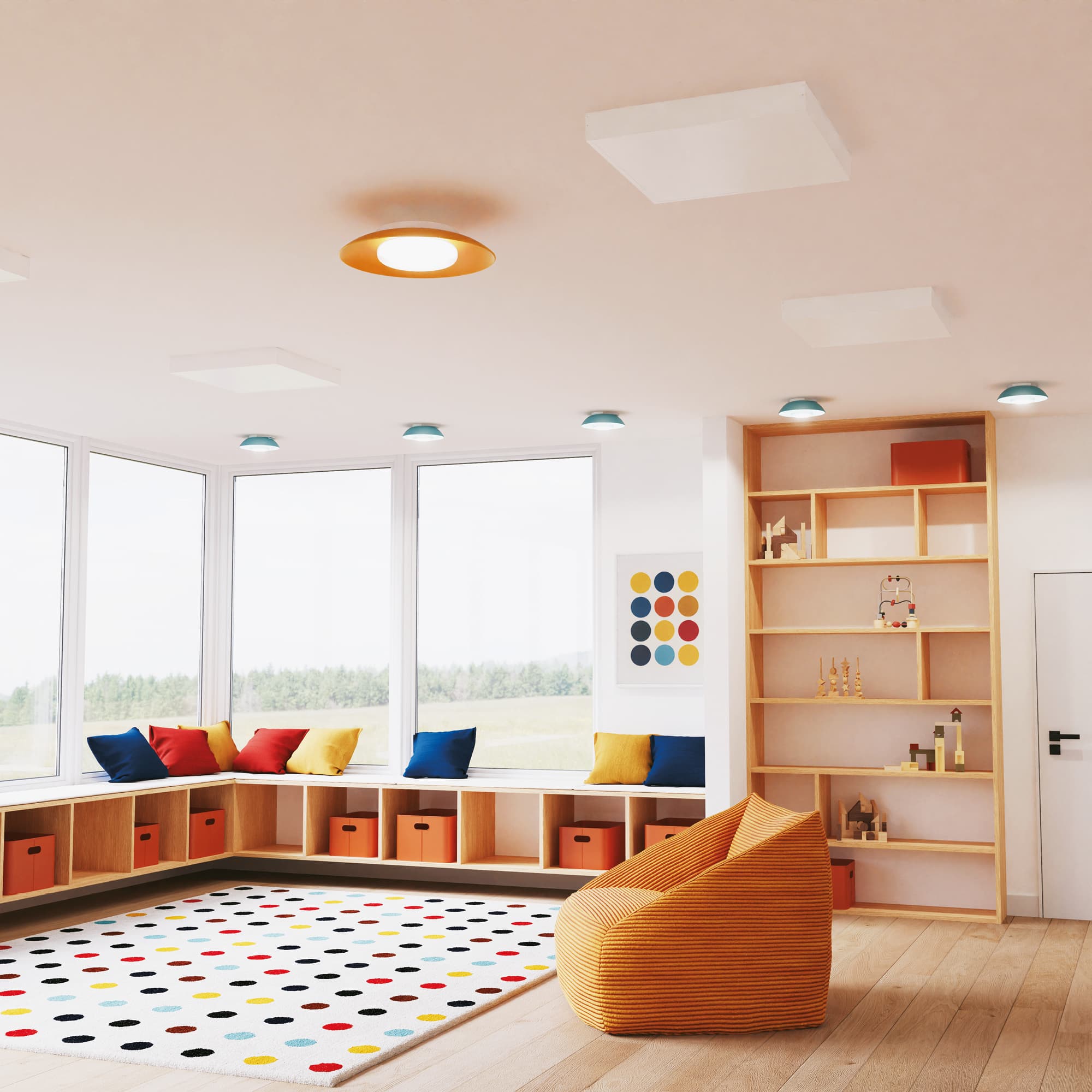

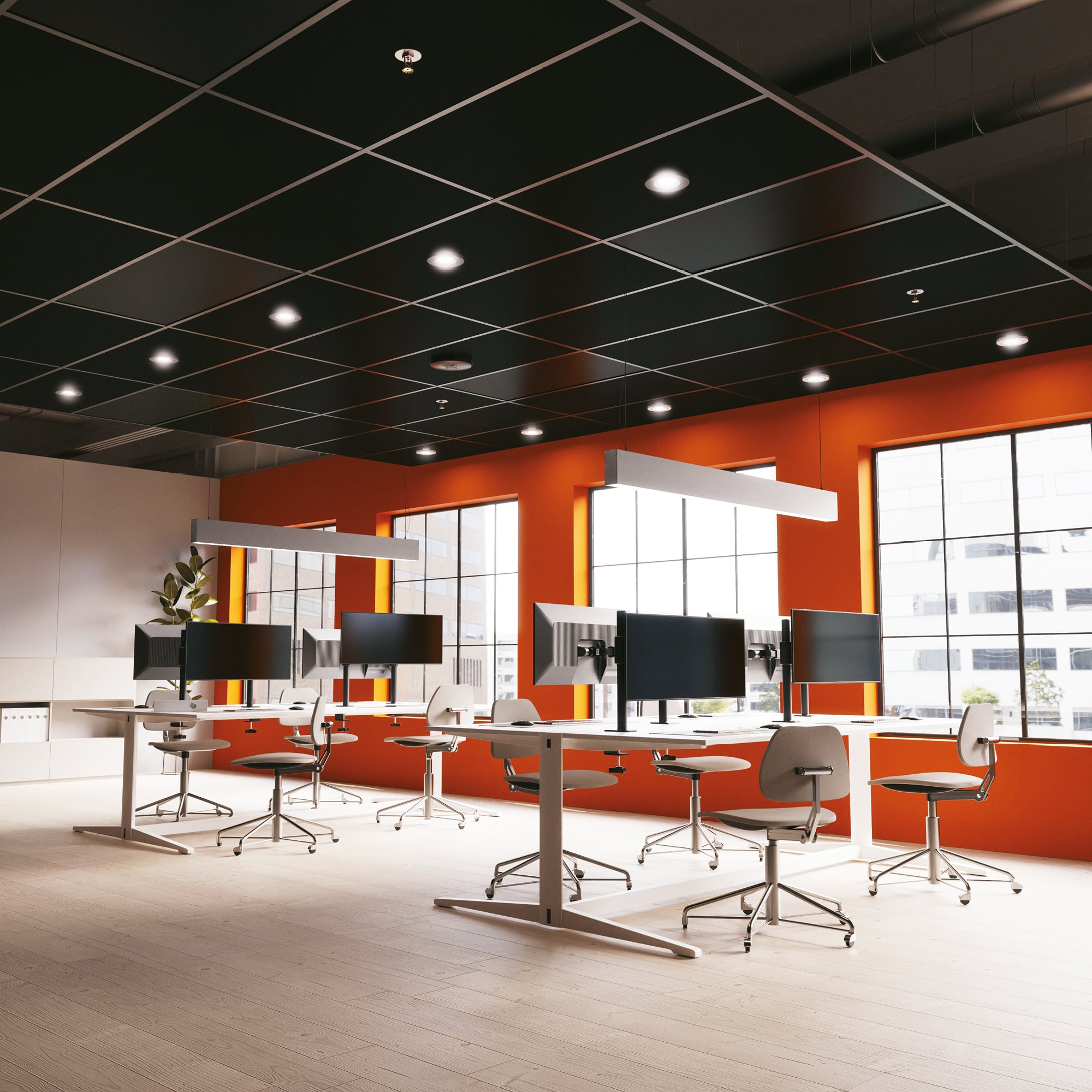

• Suspended from the ceiling or fitted into a T-bar suspended ceiling
• A variety of optional accessories is available for surface mounting using an SF frame on a drywall ceiling, or for recessed installation using an RF frame. An RB option is also available for recessed installation in a non-ventilated ceiling
• Minimum clearance of 2 in (50.8 mm) above the panel
• Minimum installation height of 7 ft (2.13 m) from the floor
• Relocation possible

WARRANTY

• One year on paintwork, ten years on components
