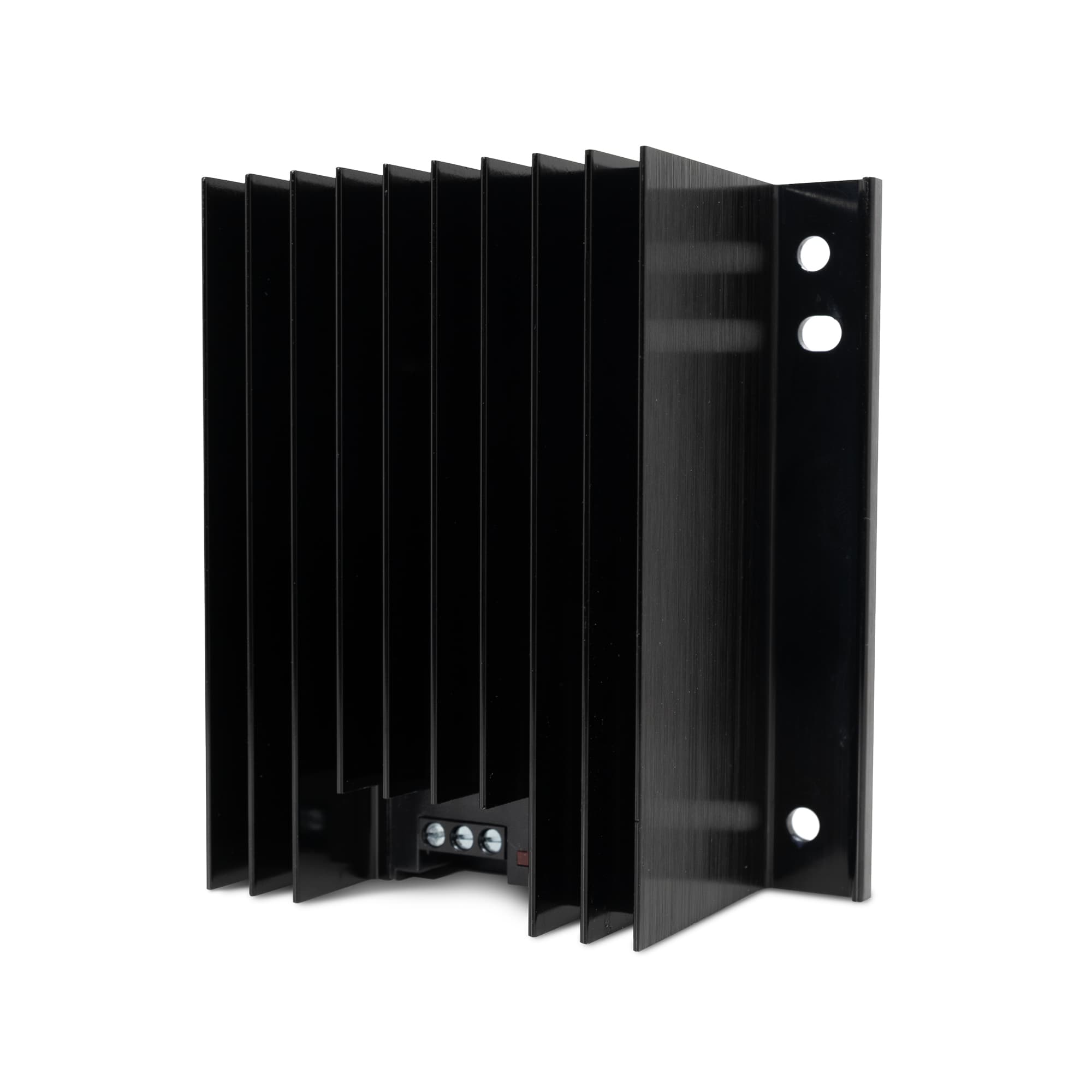

SRT850

SSR Type Electronic Relay with Heat Sink


For installations that require greater control capacity, choose our high-performance models for installation in an external junction box. Available in several versions, they’ll adapt perfectly to your specific needs.

Characteristics

ADVANTAGES
  • Maintains the temperature closer to the desired setpoint for greater comfort and lower energy costs
  • Simple installation and easy adjustment on a 4″ x 4″ electrical junction box

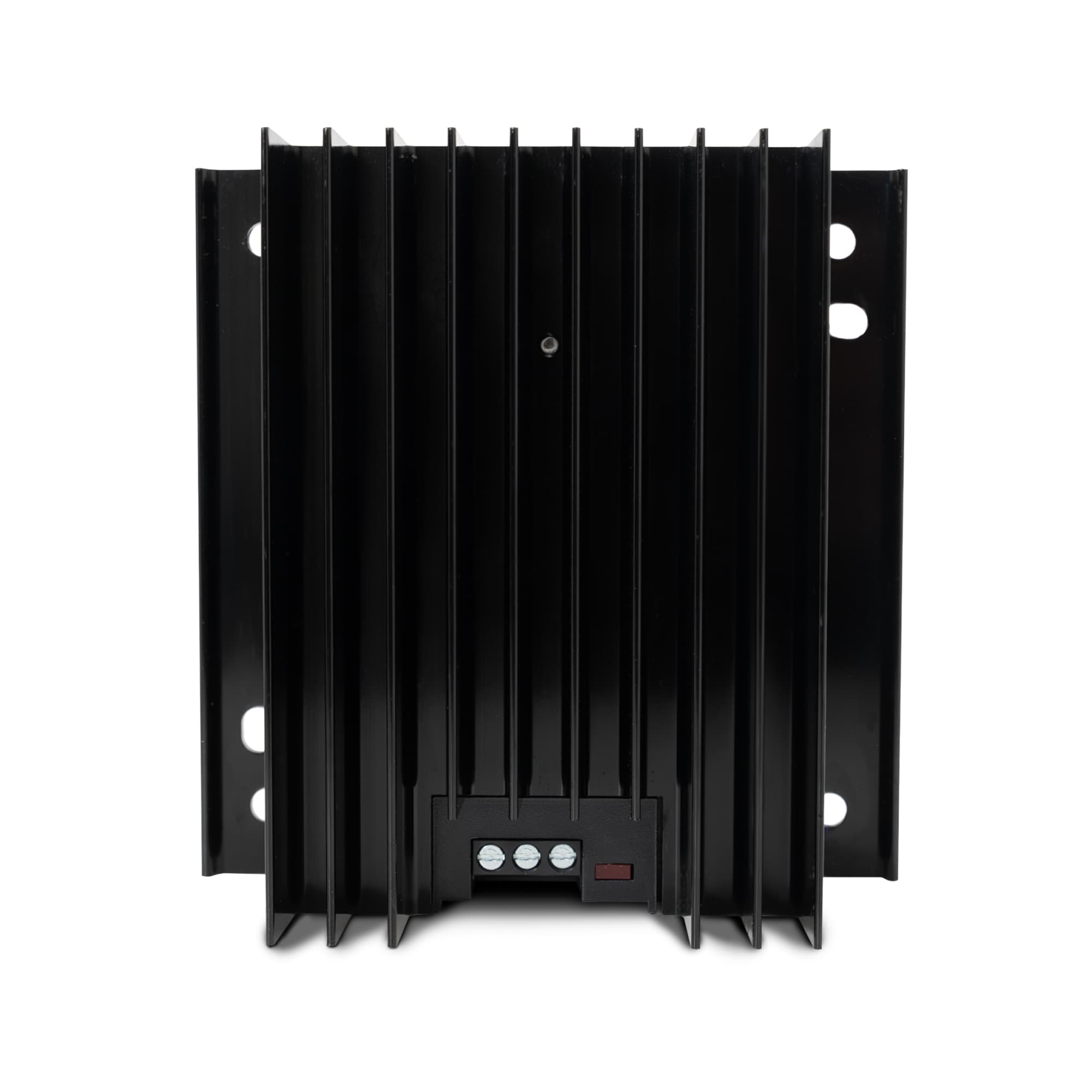

  • Integrated heat sink — To dissipate heat from the electronic relay
  • More precise than mechanical relays
  • Compatible with low-voltage thermostats
  • No maintenance required — No risk of damage, as there are no mechanical components
  • Cast in epoxy — Which protects the relay against moisture, excess heat and contaminated environments
CONTROL
  • 24 VAC pulse or On/Off signal

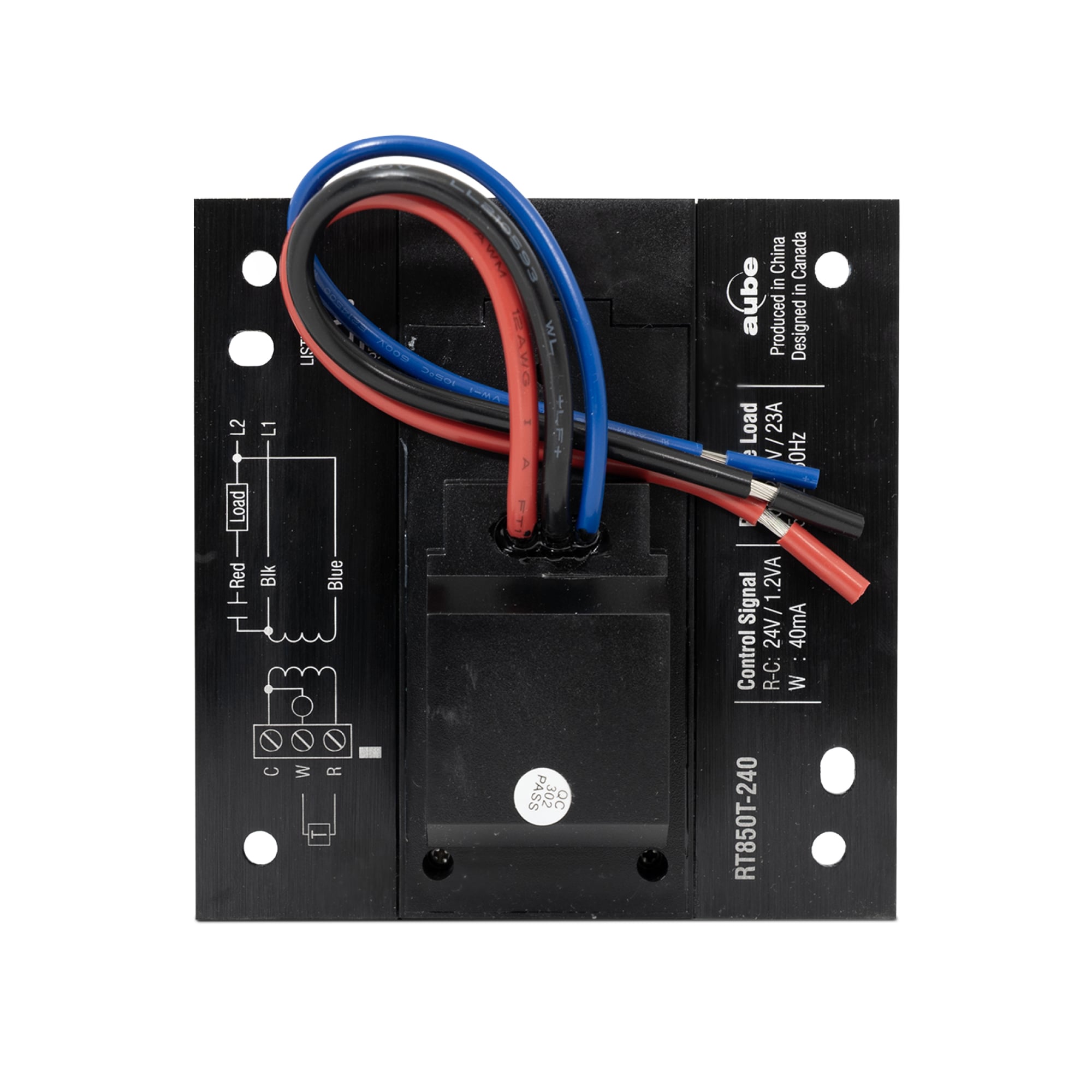

  • With transformer (SRT850T-240 and SRT850T-347)

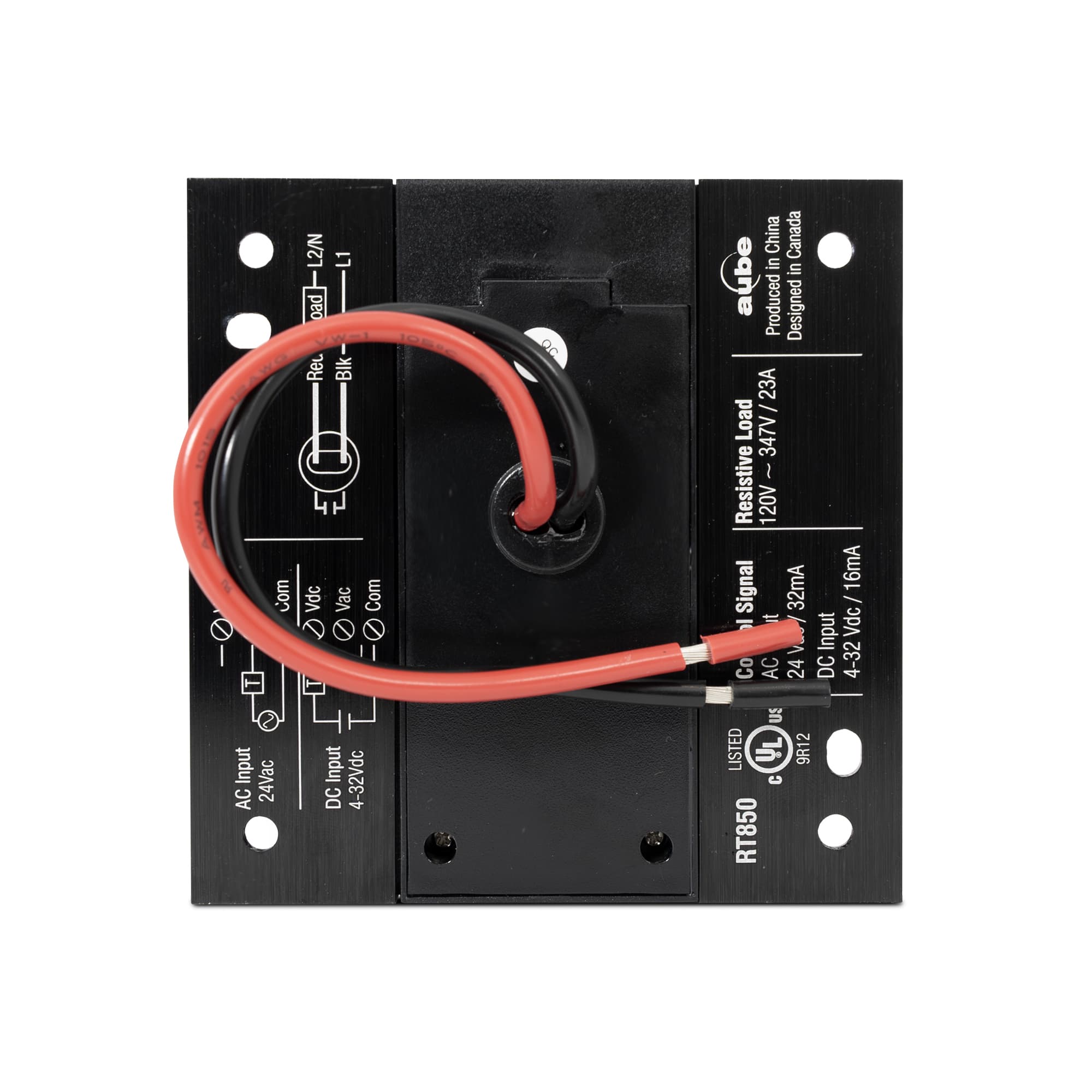

CONTROL SIGNAL (NOMINAL)
  • AC: 24 V / 32 mA
  • DC: 4 to 32 V / 16 mA
TRANSFORMER VALUE
  • SRT850T-240
    • 240 VAC = 24 VAC, 2.4 VA
  • SRT850T-347
    • 347 VAC = 24 VAC, 2.4 VA

INSTALLATION
  • Must be installed in an external junction box
OPERATING TEMPERATURE
  • −20°C to 60°C (−4°F to 140°F)
STORAGE TEMPERATURE
  • −40°C to 80°C (−40°F to 175°F)
MOUNTING
  • 4 mounting holes for 4 11/16” electrical box
WARRANTY
  • Three years
