Characteristics

Advantages

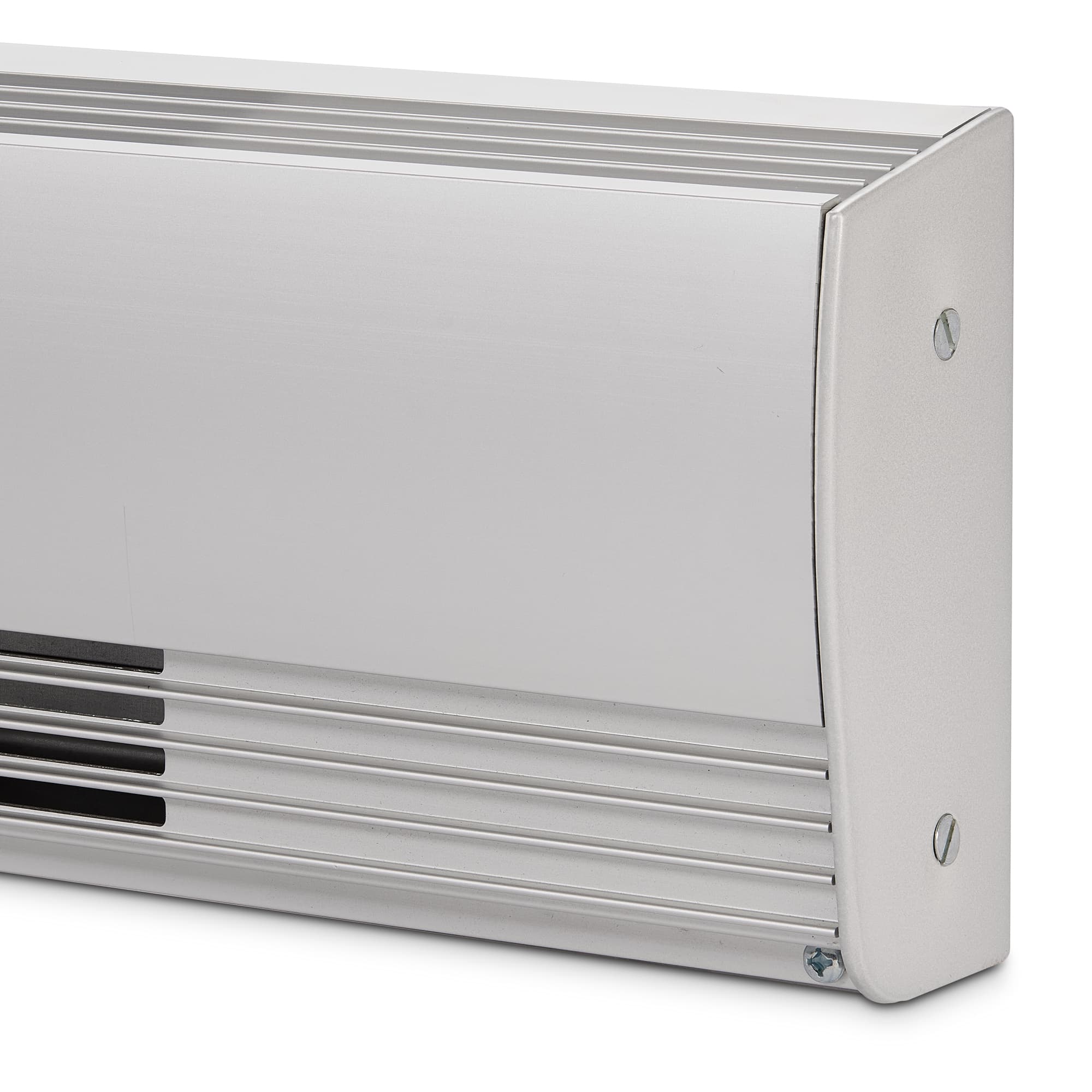

• Strong extruded aluminum front and top — Impact and rust resistant
• Available in three watt densities — Meets all your needs
• Blank sections, pedestals and finished backs available — Customizable installation

COLORS

• Standard: white
• Luxury finish: anodized aluminum (see price list)
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat or anodized aluminum finish

MANUFACTURING

• 18-gauge steel cabinet
• Extruded aluminum front panel with a thickness equivalent to 11 gauge
• Front air intake and top air discharge (bottom air intake available on demand [BT])
• Thermal protection with automatic reset
• Full-length wireway

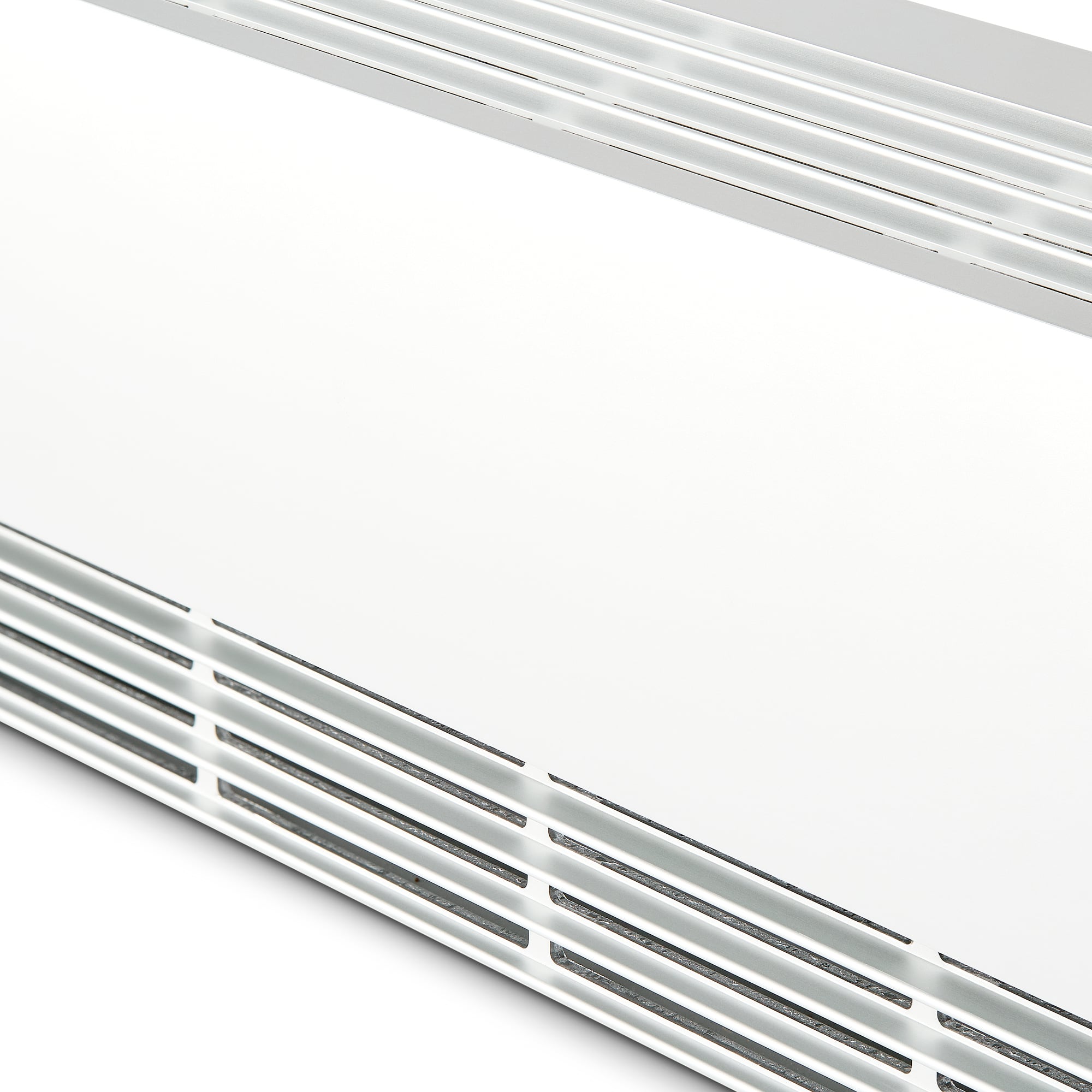

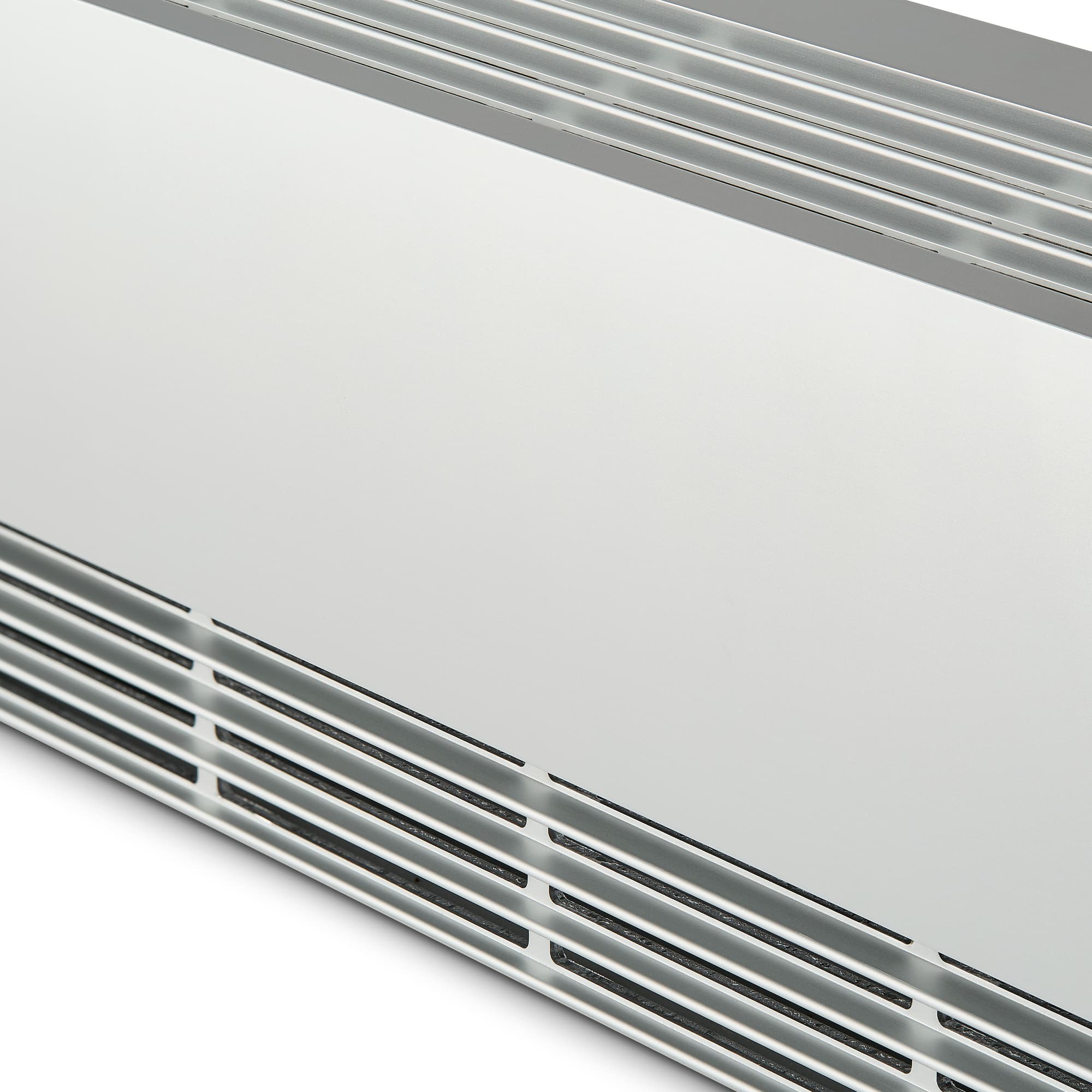

• Pencil-proof openings of less than 1/4 in. prevent foreign objects from entering the unit

ELEMENT

• Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Built-in tamper-proof thermostat accessible without removing front grille, installed in the left junction box only (optional)
• Low voltage relay kit installed in the left or right junction box (optional)
• Built-in thermostat with button installed in the left junction box only (optional)

INSTALLATION

• Surface mounted
• Wall or floor mounted with or without pedestal kit (optional)
• Wiring compartments at both ends of unit
• Blank sections (custom lengths) and accessories are available for a continuous look (optional)

WARRANTY

• Three years
