Characteristics

Advantages

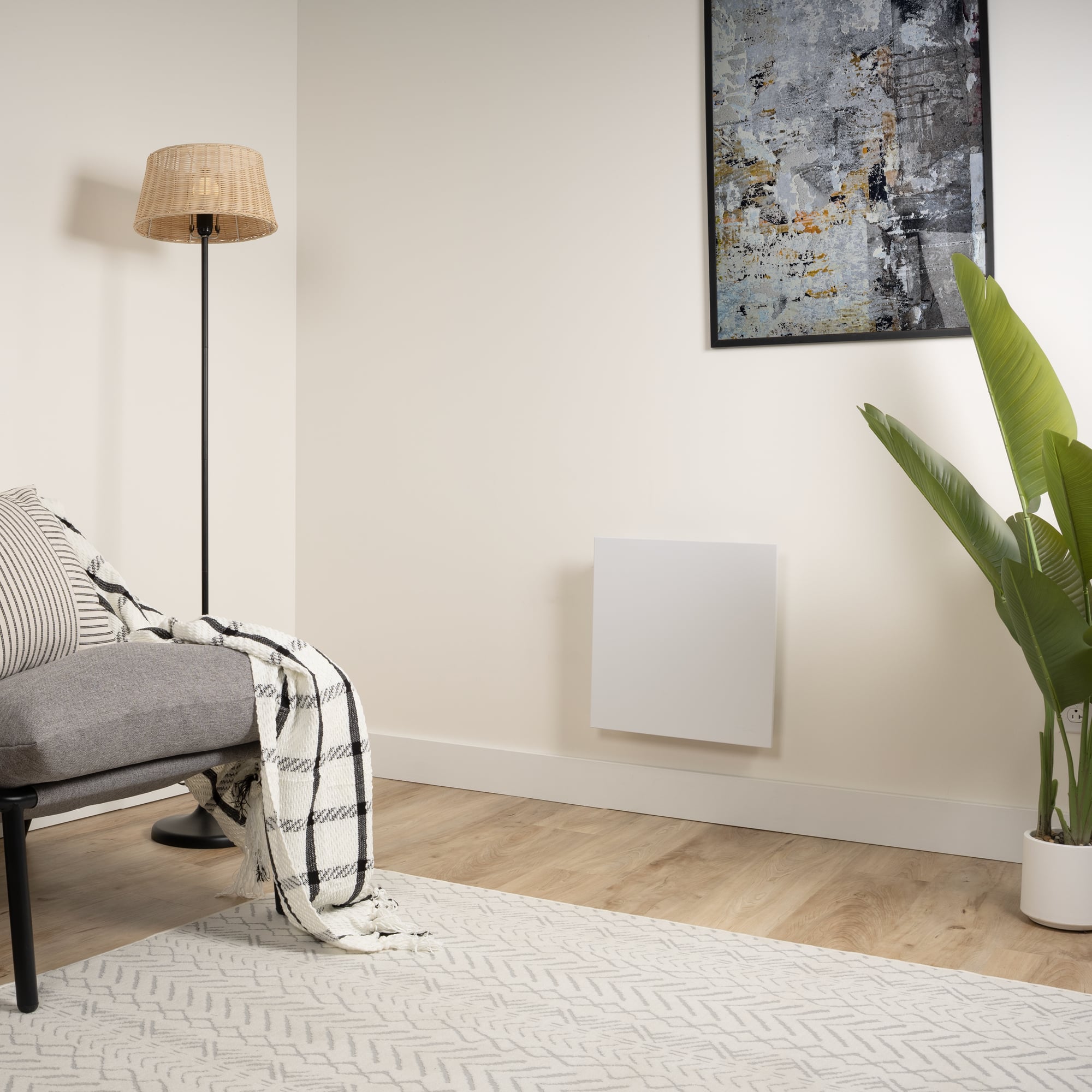

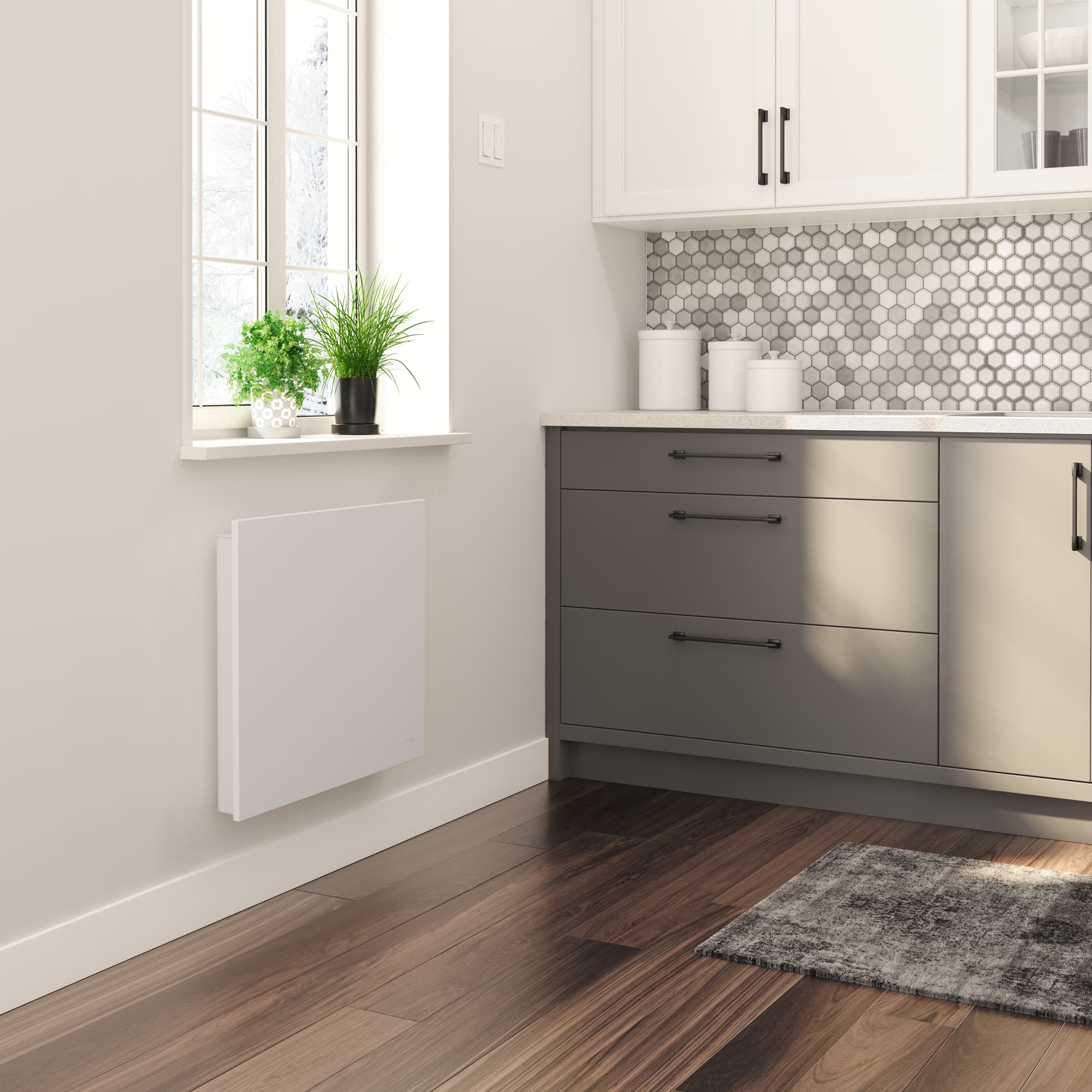

• Blends discreetly with any decor

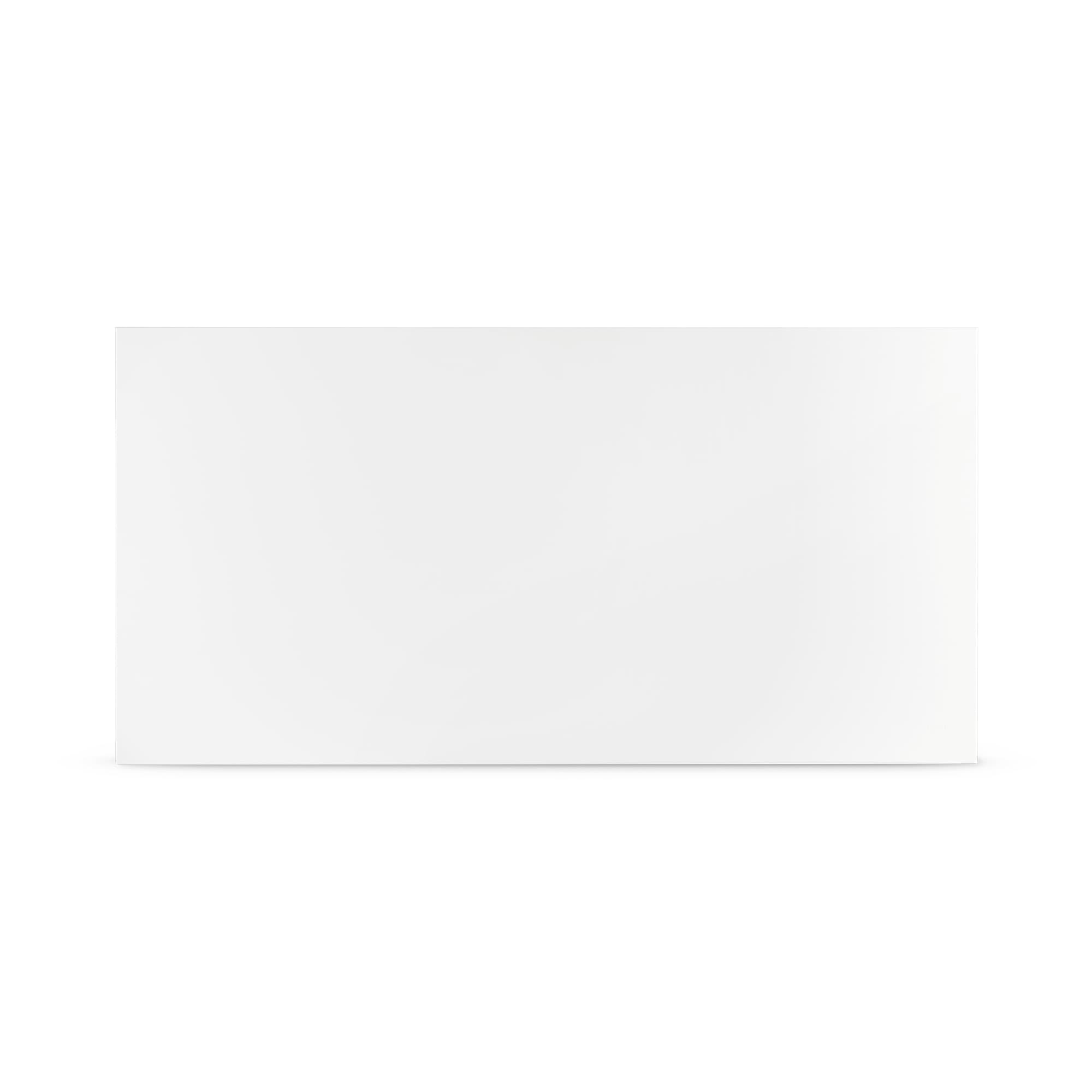

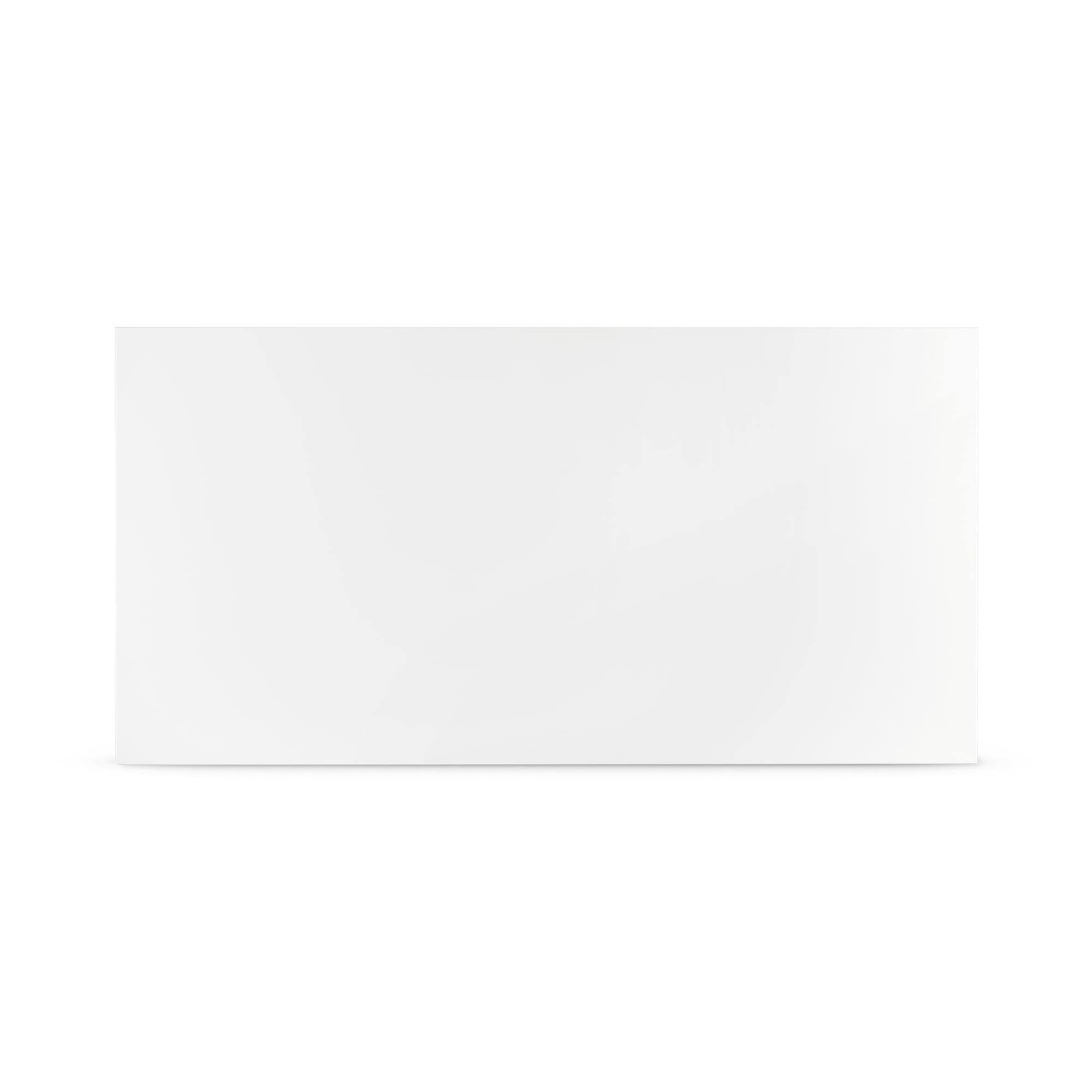

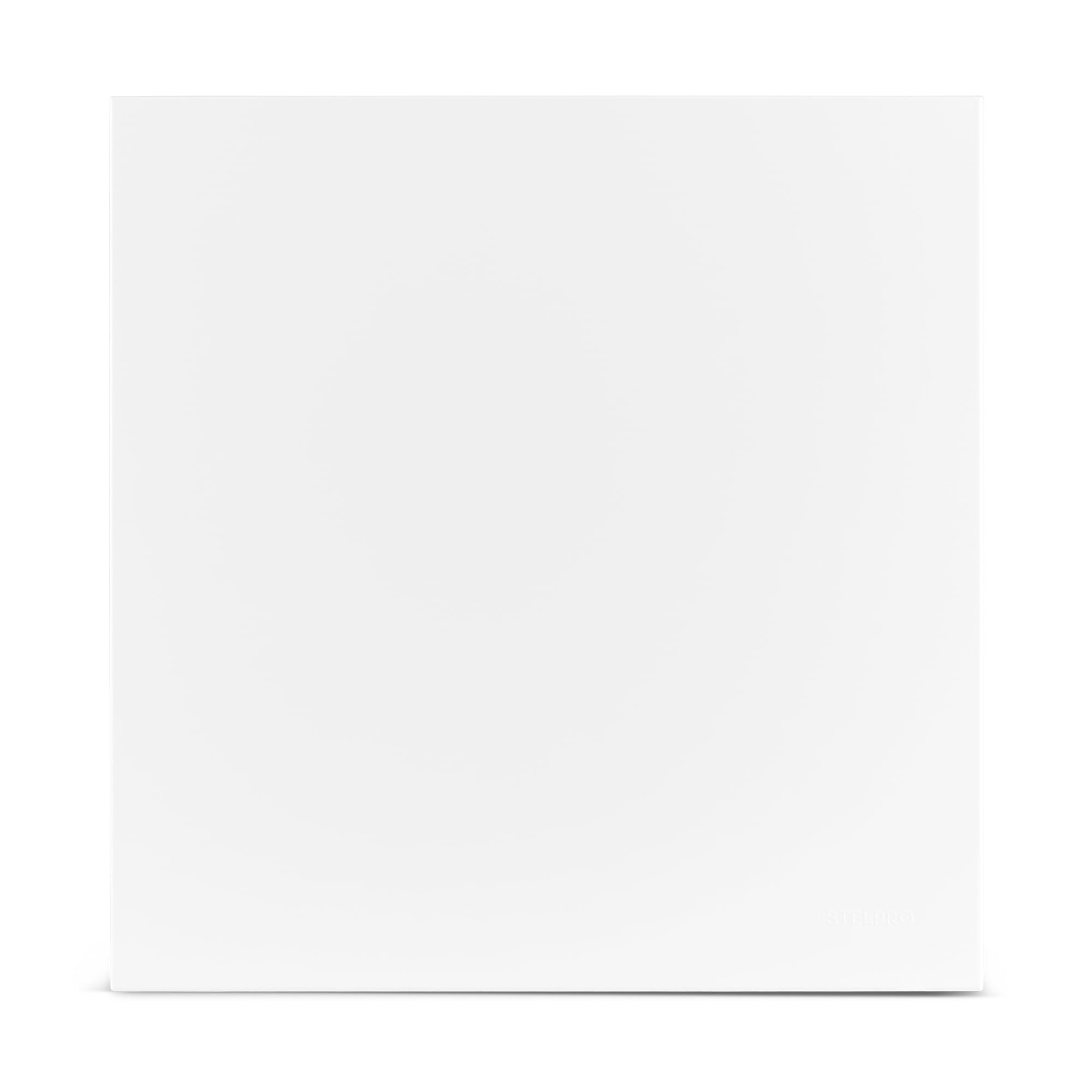

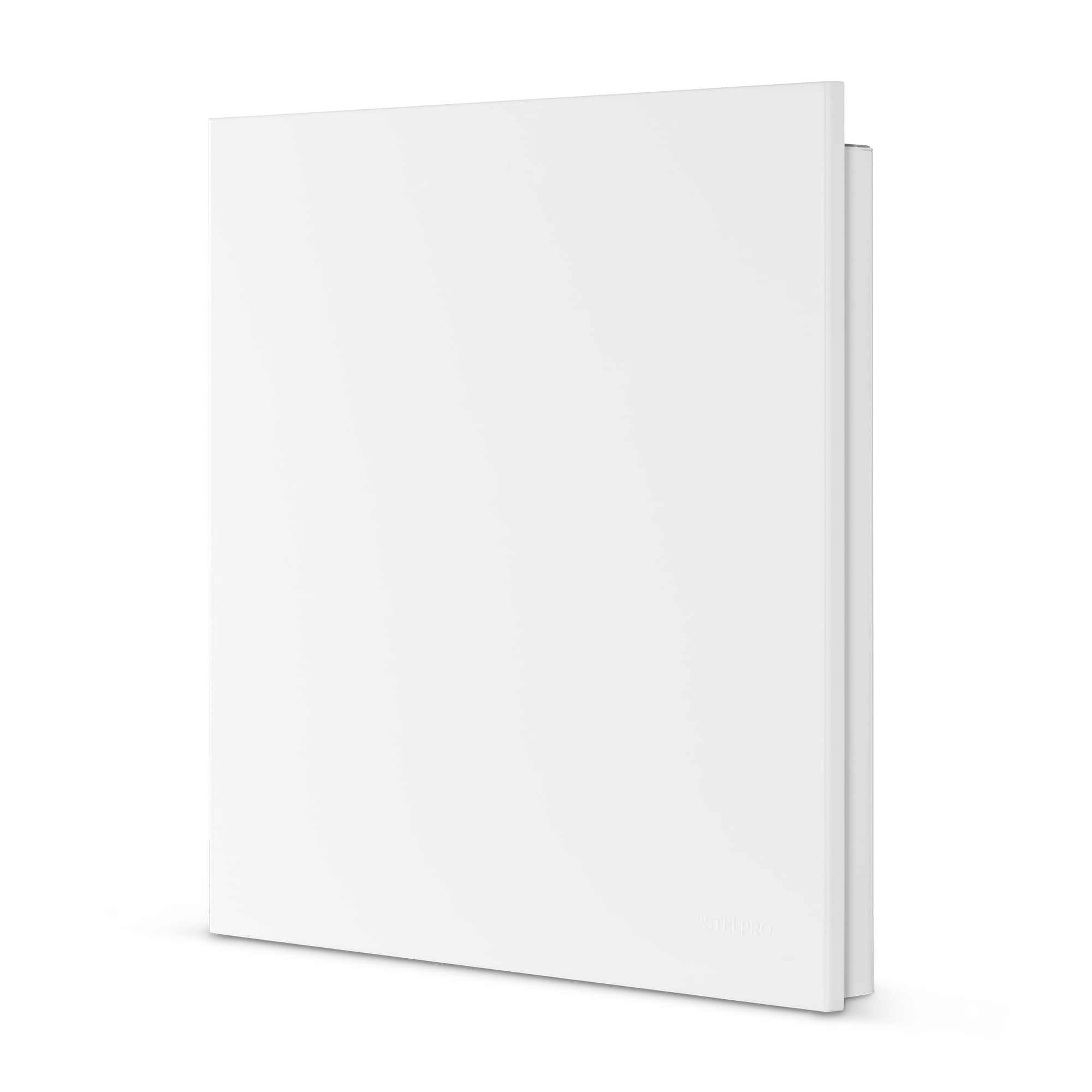

• Sturdy monocoque front panel
• Adapts to multiple markets: available in 120 V, 208 V, 240 V, 347 V and 600 V
• Model with 120v plug available

COLORS

• Standard: white
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

• 20-gauge steel cabinet and front
• The cabinet height improves the chimney effect

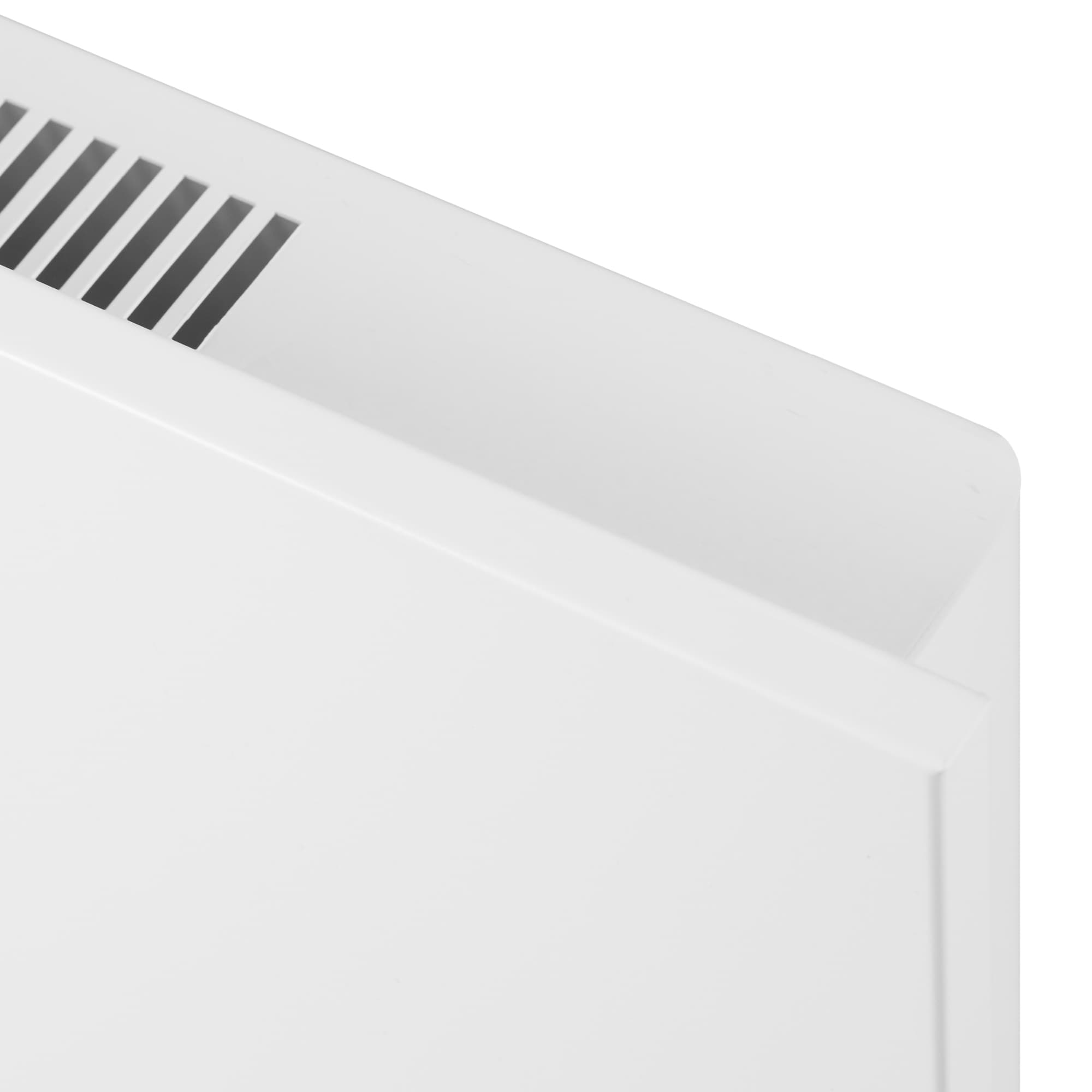

• Bottom air intake and top air discharge
• 6 ft (2 m) 16 gage molded cable with 3-prong grounded, 120 V plug (AMIR1501P model)

ELEMENTS

• Two stainless steel tubular sheathed elements insulated with nylon sleeves reducing expansion and contraction noises

CONTROL

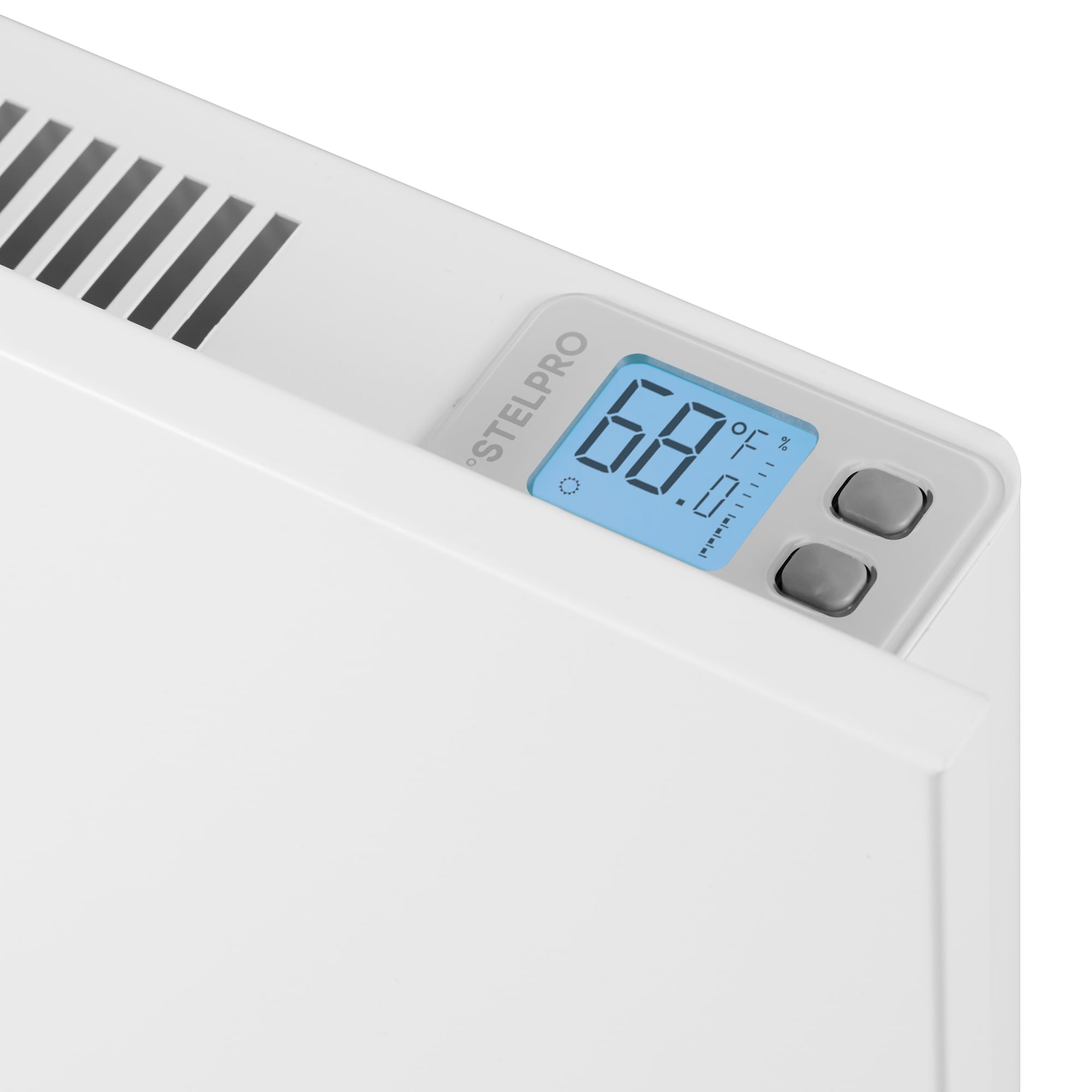

• Electronic thermostat required: built-in electronic thermostat with LCD screen (optional) or electronic wall thermostat (not included)
• Automatic temperature lowering at night (Automatic mode)
• Maximum temperature setpoint lock option (Security mode)

INSTALLATION

• Surface mounted only
• Wall mounted at least 4 in. from the floor
• Concealed mounting bracket (included)
• Back entry plate with cable clamps (included)

WARRANTY

• Five years, three years on electronic components
