Characteristics

Advantages

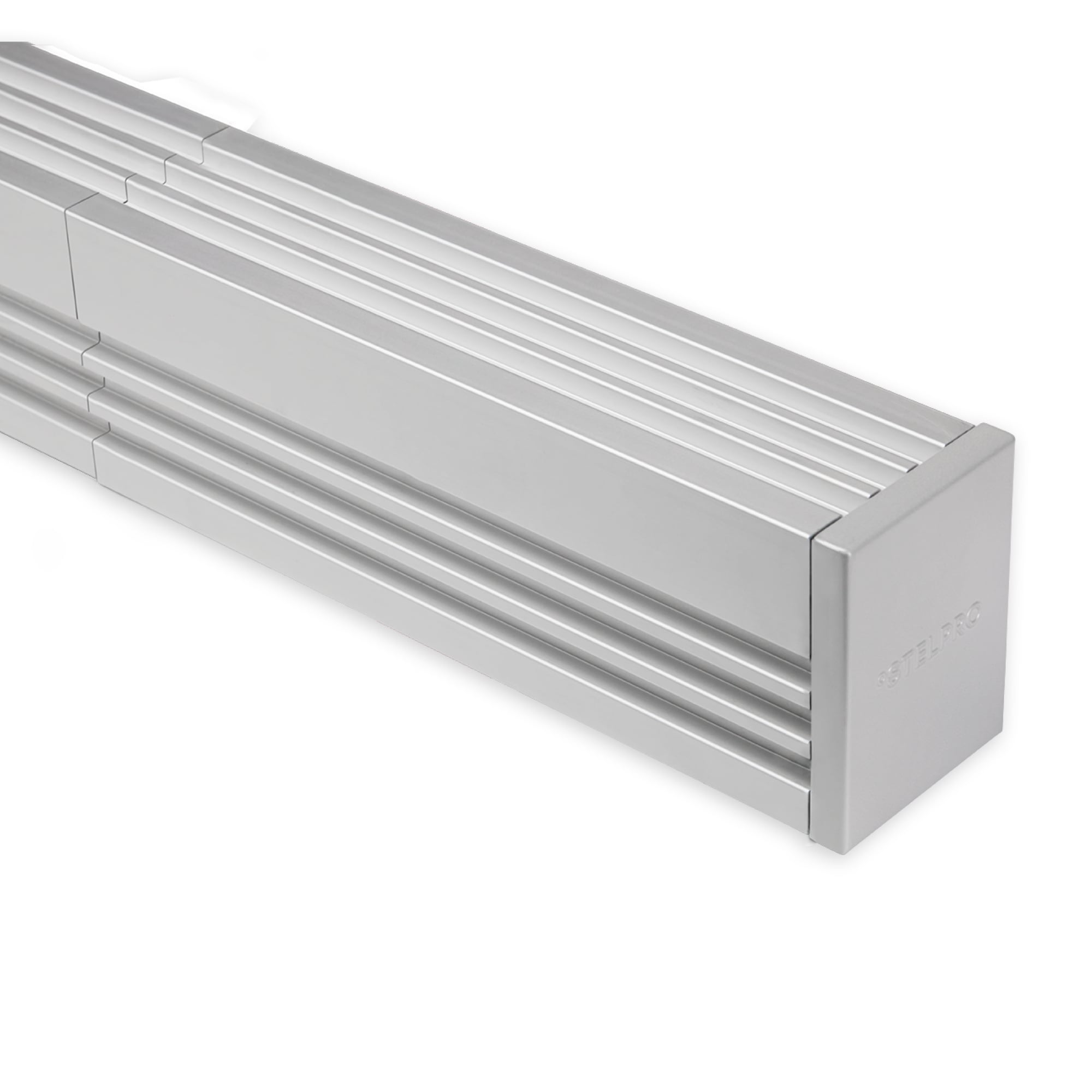

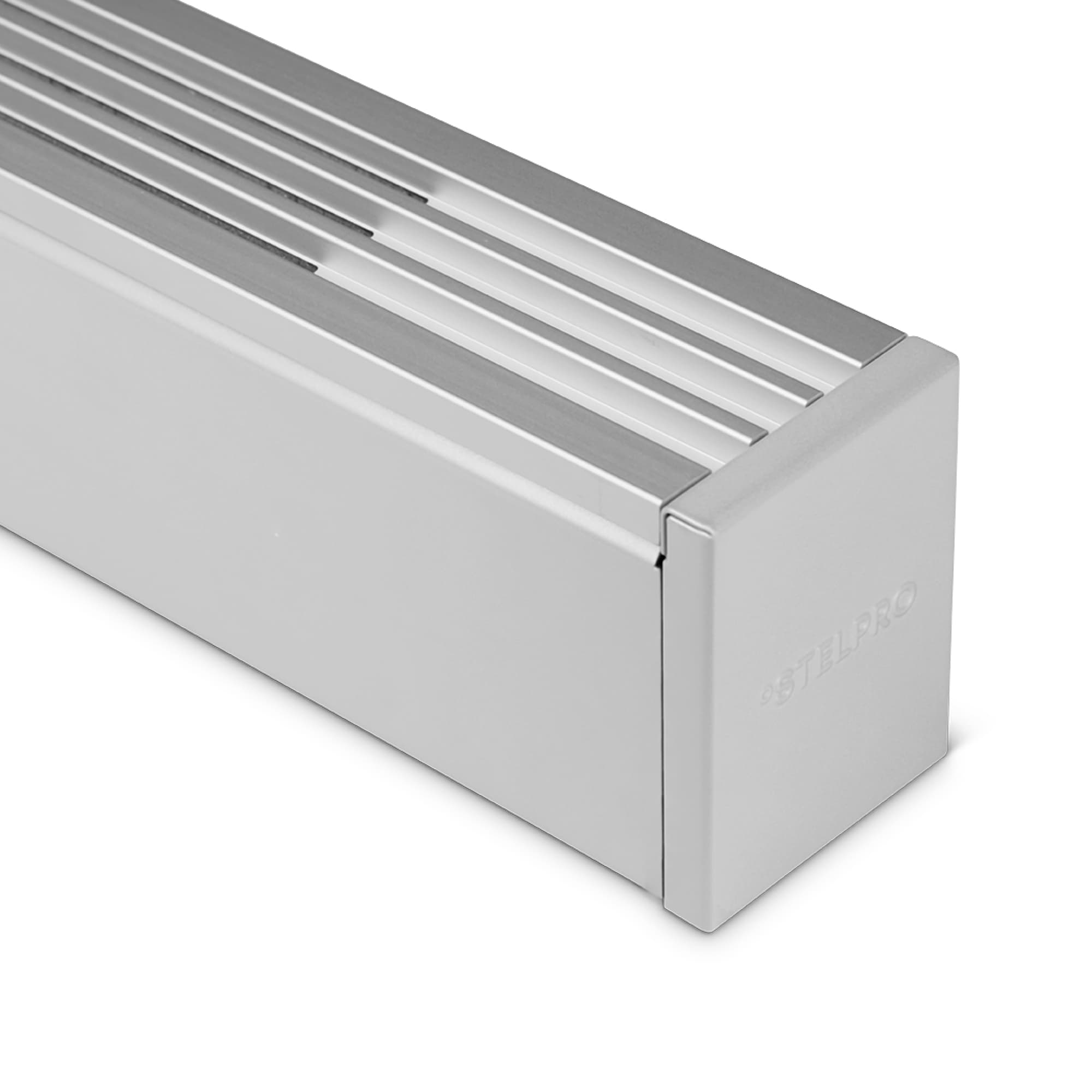

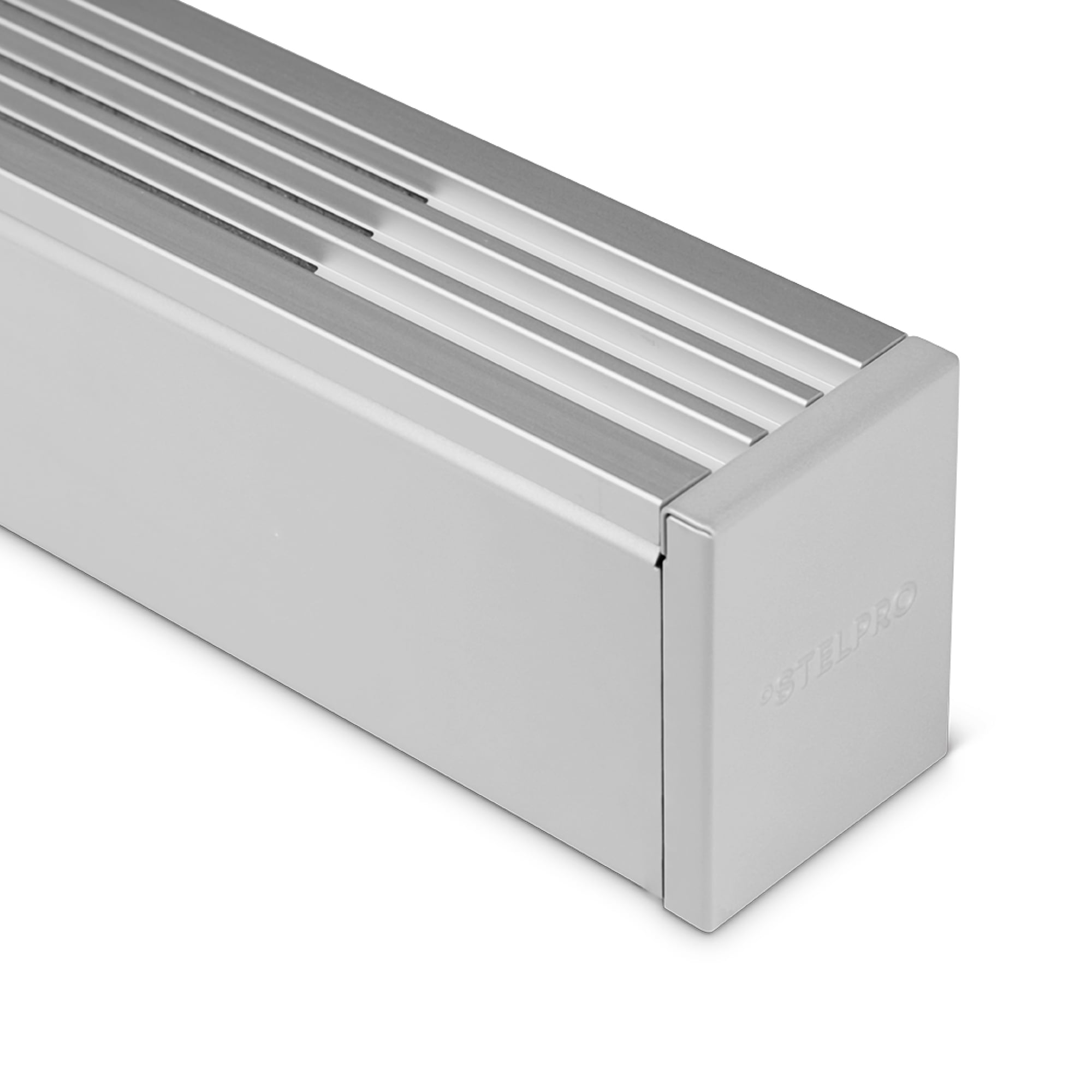

• Extruded aluminum — Front and top cover with a unique, luxury design
• Extremely solid, impact and rust resistant
• Offered in three watt densities
• Personalized installation — Blank sections, pedestals and clean backs available
• Up to 3 built-in control — In the same baseboard

COLORS

• Standard: white
• Luxury finish: anodized aluminum (see price list)
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat or anodized aluminum finish

MANUFACTURING

• 3 in. x 4 in. compact profile
• Solid 20-gauge steel cabinet
• Extremely resistant extruded aluminum front cover with a thickness equivalent to 10 gauge
• Thermal protection with automatic reset
• Full-length wireway
• Pencil-proof openings of less than 1/4 in. prevent foreign objects from entering the unit

ELEMENT

• Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noise

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Built-in tamper-proof thermostat accessible without removing front grille, installed in the left junction box only (optional)
• Low voltage relay kit installed in the left junction box only (optional)
• Multiple integrated controls can be installed in the same baseboard inside one or two extensions (optional)

INSTALLATION

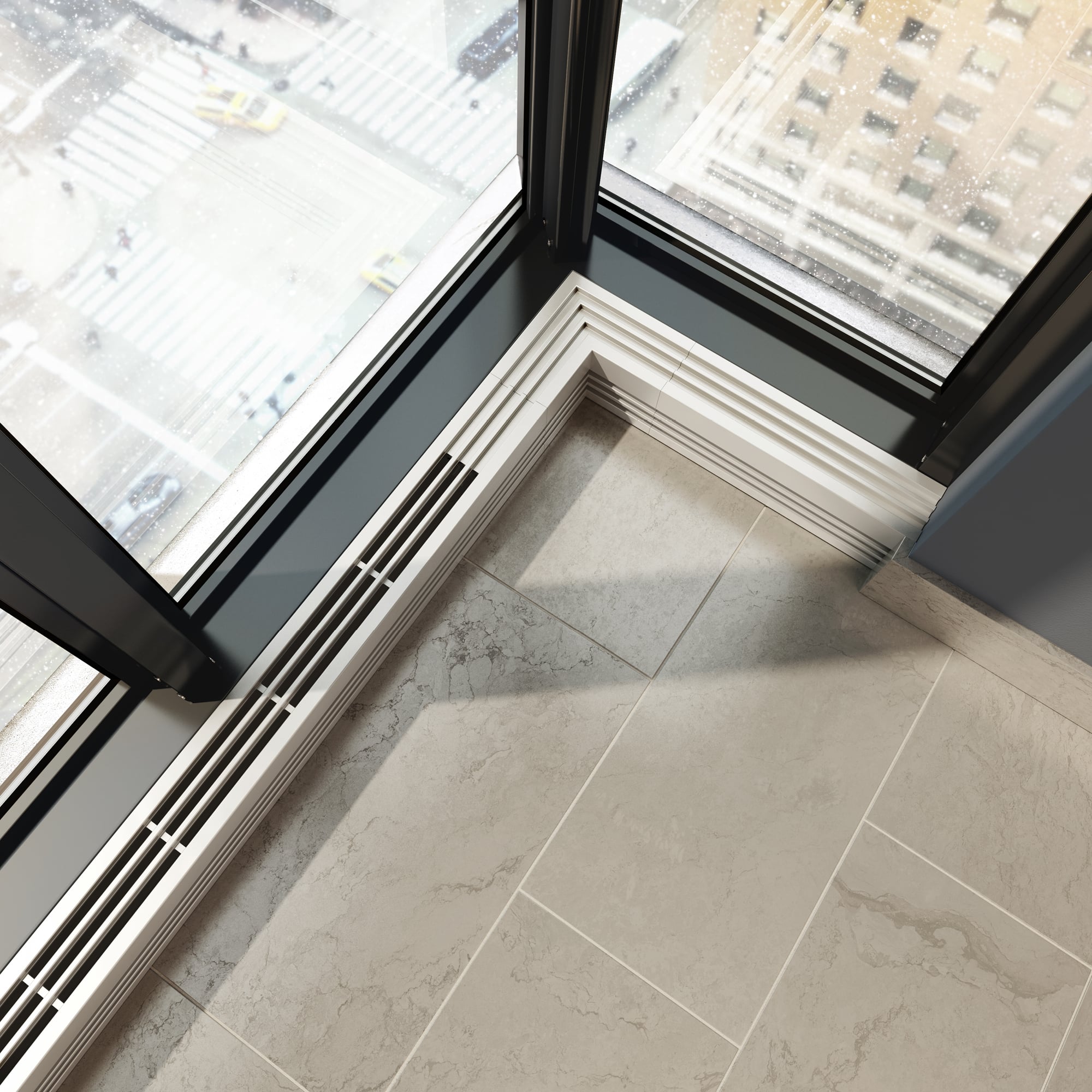

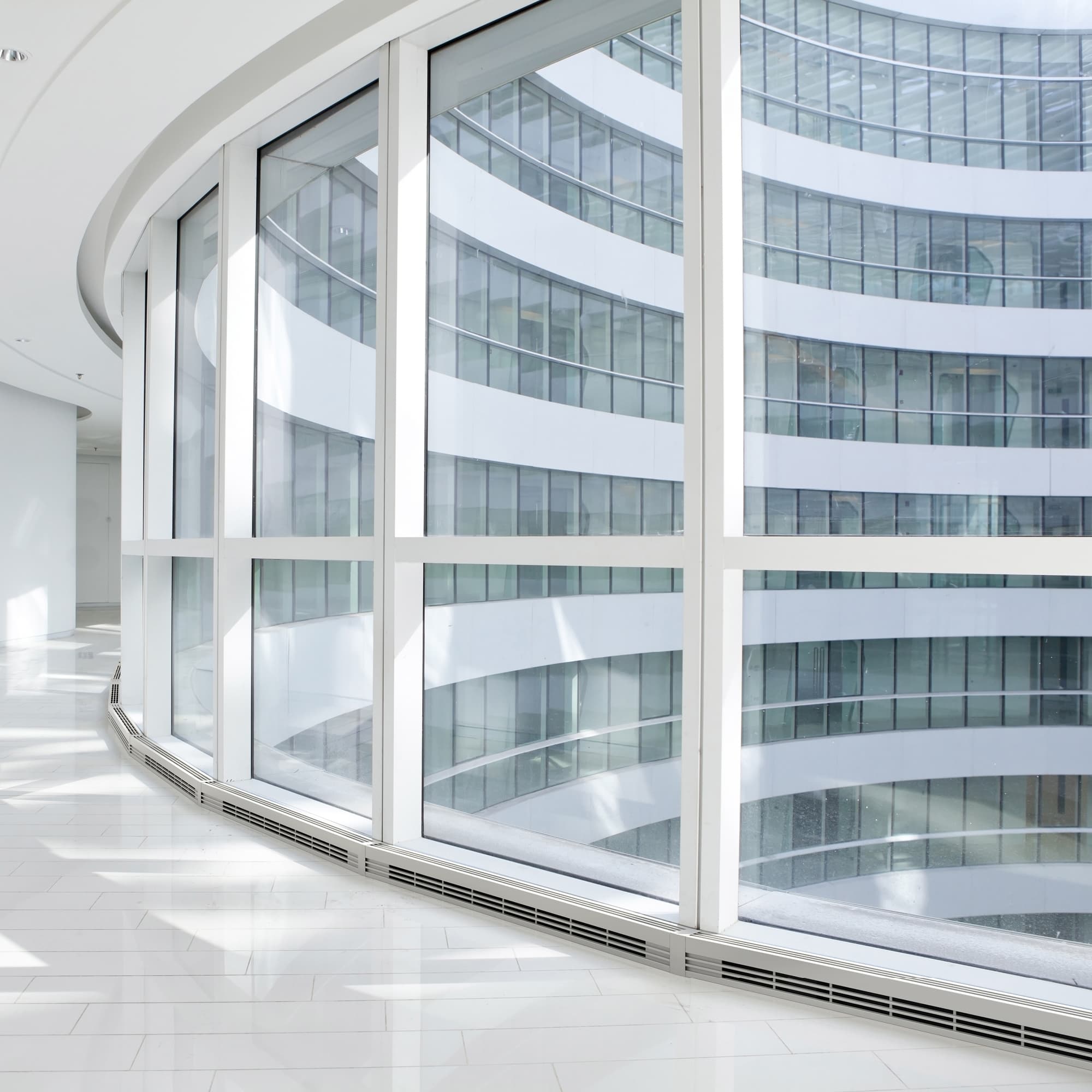

• Surface mounted
• Wall or floor mounted with or without pedestal kit (optional)
• At least 3 in. from the floor (models with BT option only)
• Wiring compartments at both ends of unit
• For a continuous look, custom blank sections with a simple attachment system are available (optional)
• Disconnect switch (optional)

WARRANTY

• Three years
