ASDC

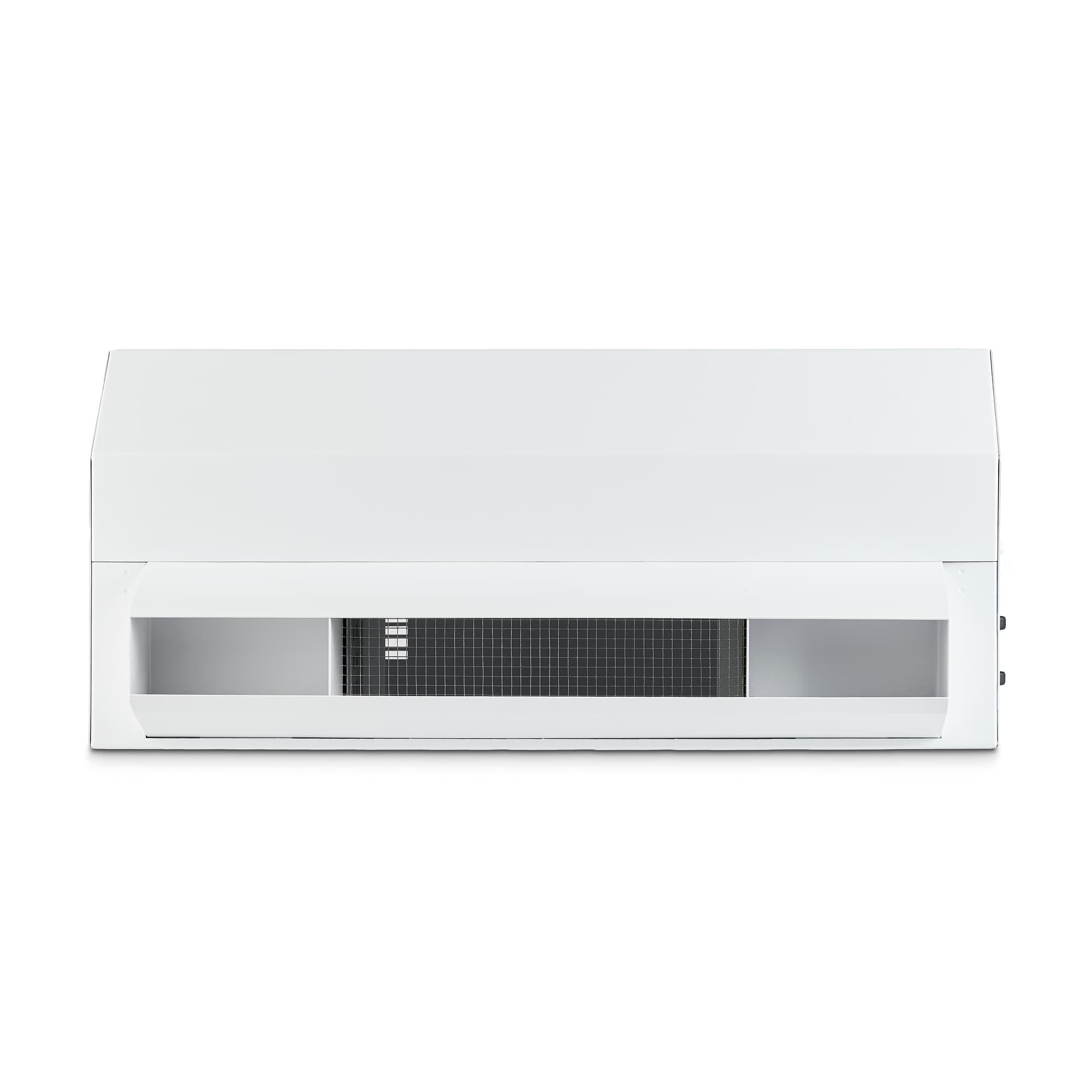

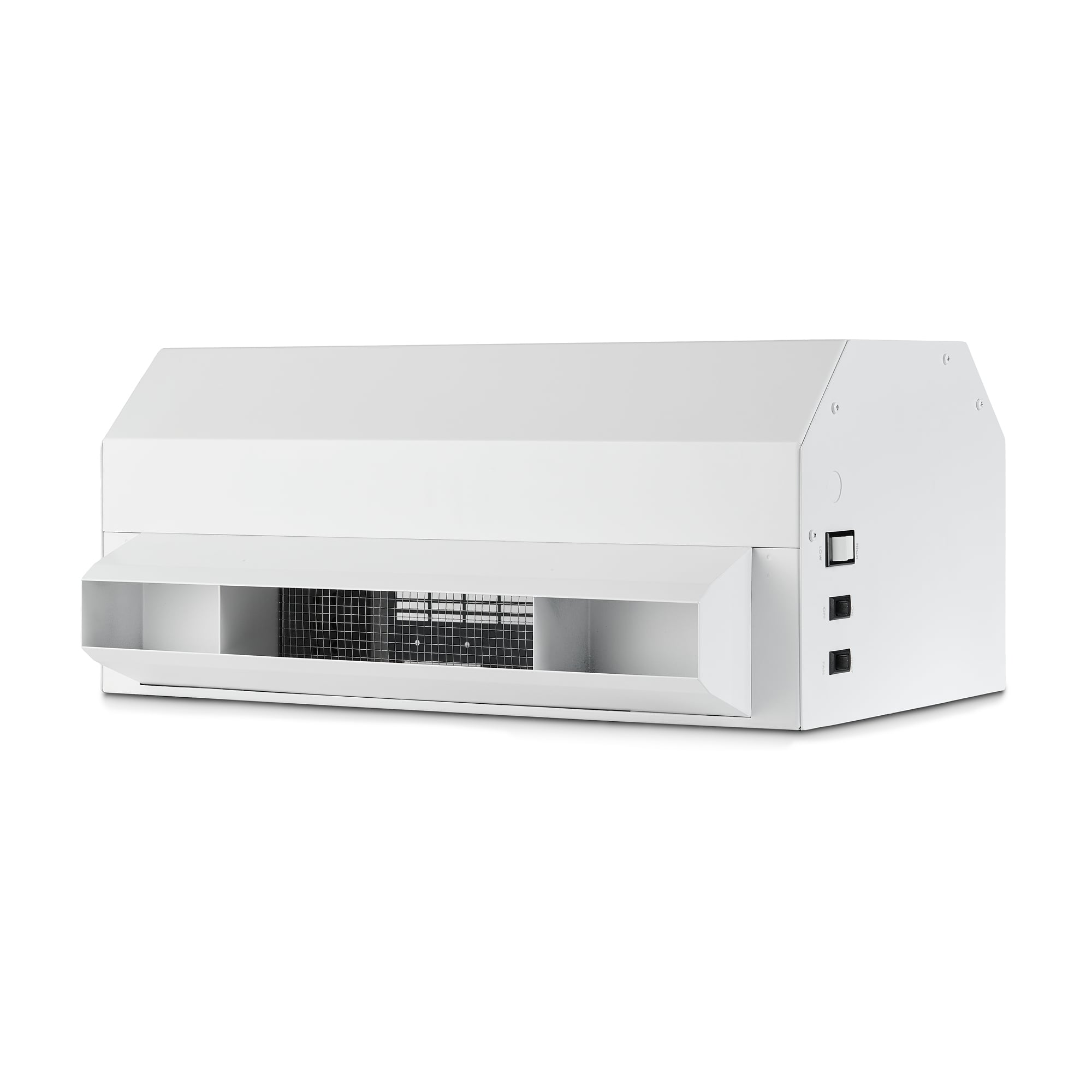

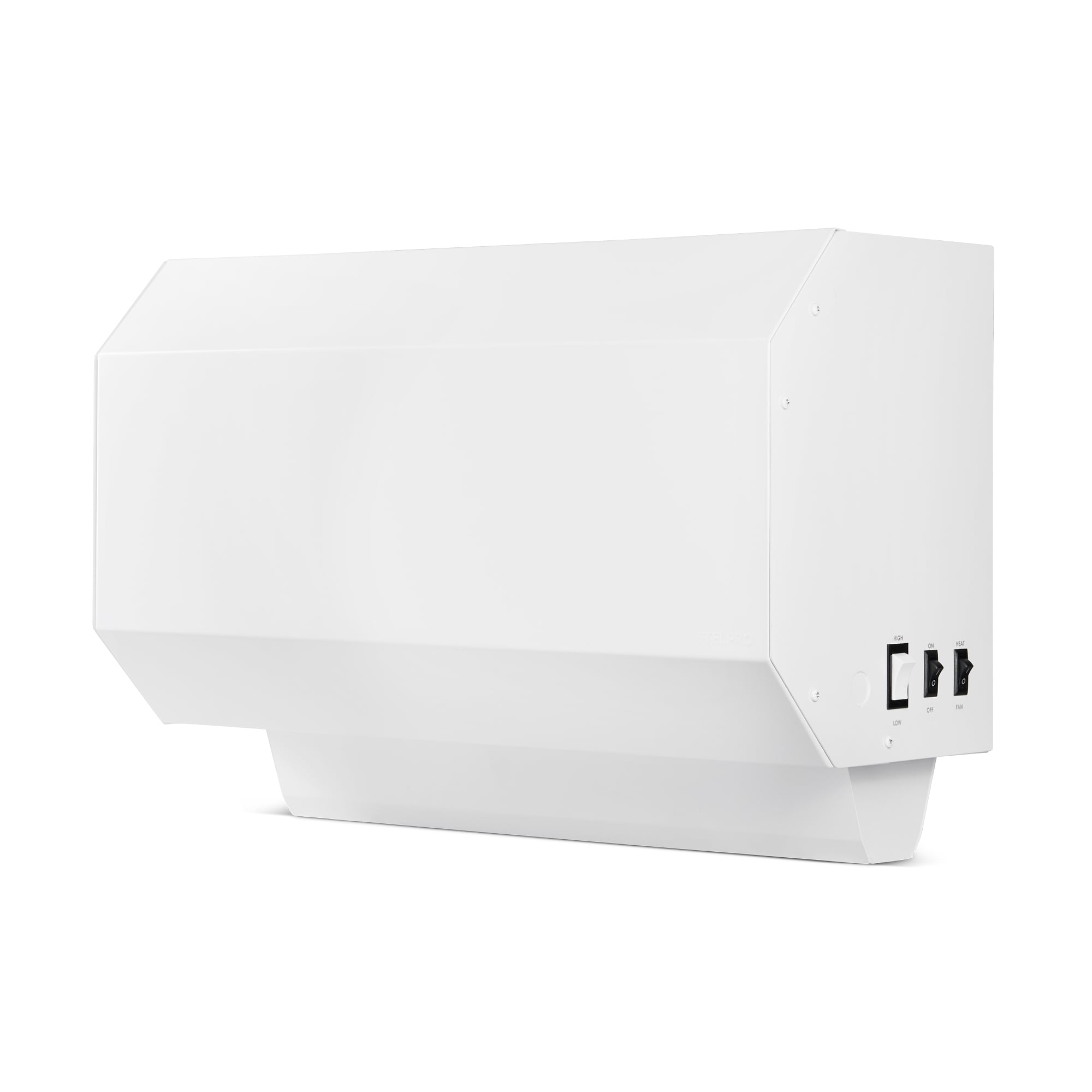

Commercial Air Curtain

Big on comfort, big on looks!

The ASDC air curtain is exceptionally efficient when installed over sliding doors or windows. Simple to use thanks to its handy controls, it can also generate heat for commercial building, hospital and school lobbies.

Color

Spaces

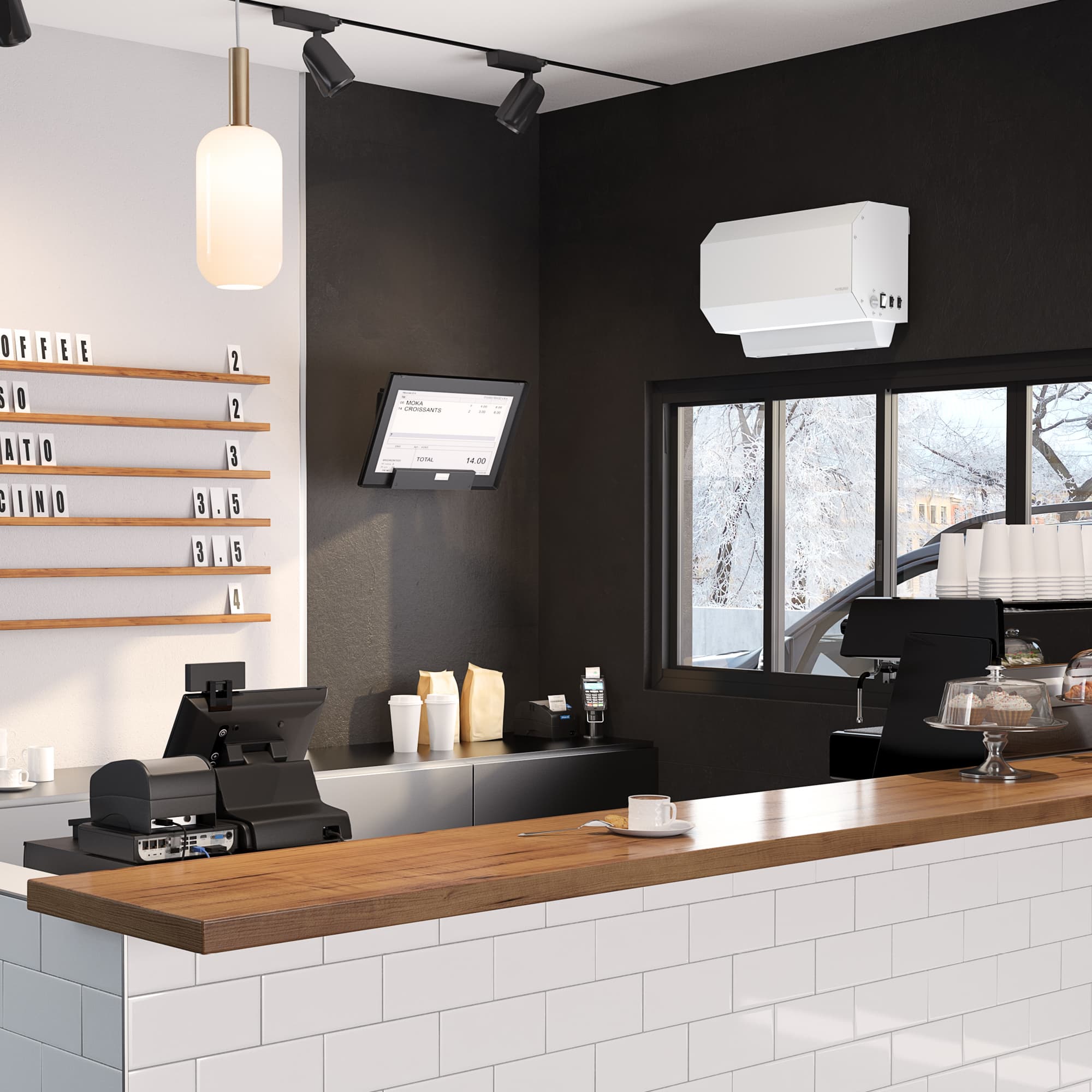

  • Restaurant drive-through
  • Hospital

Characteristics

Advantages
  • Perfect for drive-throughs
  • High power, small size
  • Easy to maintain
  • Readily accessible controls
COLORS
  • Standard: white
  • ORORA (optional): refer to the Orora page
FINISH
  • Epoxy-polyester powdercoat
MANUFACTURING
  • 18-gauge steel cabinet
  • Easy access to all components and easy maintenance via the front cover
  • Centrifugal fan
  • Thermal protection with automatic reset
ELEMENT
  • Nichrome element producing instant heat

CONTROL
  • High/low switch
  • On/off switch
  • Fan/heat or fan only switch
  • 24V circuit (included with the C24 series) can be used with an external low voltage door contact (not provided)
  • Built-in thermostat (included with CT series)
INSTALLATION
  • Wall mounted (mounting bracket included)
  • Suspended with four 3/8 in. threaded rods (not provided)
WARRANTY
  • Three years

Documents

ASDC

Specsheet

PDF

Download (opens in a new tab)

ASDC

Technical drawings

PDF

Download (opens in a new tab)

ASDC

User guide

PDF

Download (opens in a new tab)

ASDC

Revit files

ZIP

Download (opens in a new tab)

ASDC

Shop drawings

ZIP

Download (opens in a new tab)

Complementary Products

  • SWT

    Line Voltage Mechanical Thermostat

Specifications

Parts
