Characteristics

Advantages

• Fast temperature rise through heat recovery
• Wide range of powers
• Superior performance nichrome alloy elements
• Surface-mounted or recessed installation
• Wall switch for continuous fan operation (OFS model)

COLORS

• Standard: white
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

• 20-gauge steel cabinet and 14-gauge steel grille

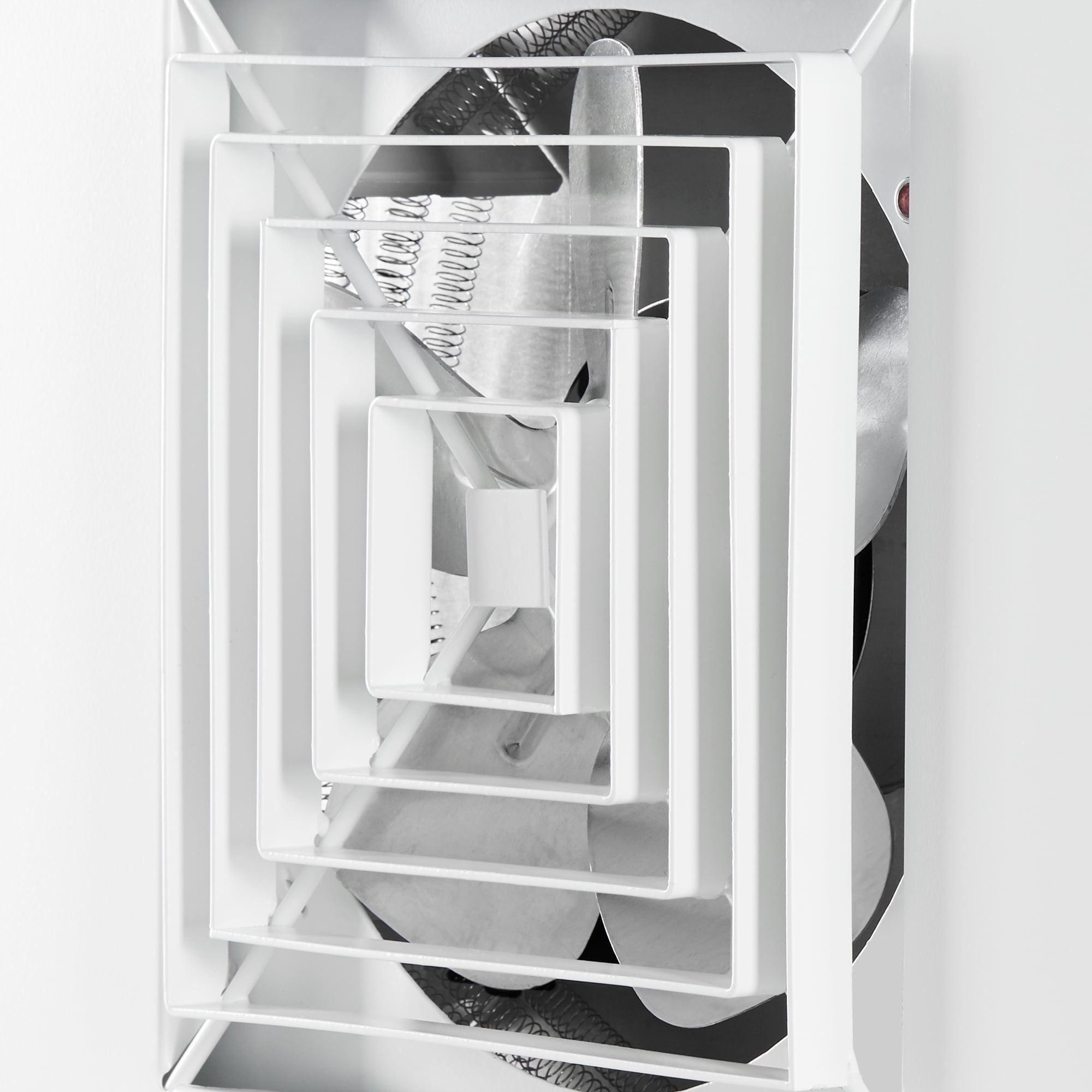

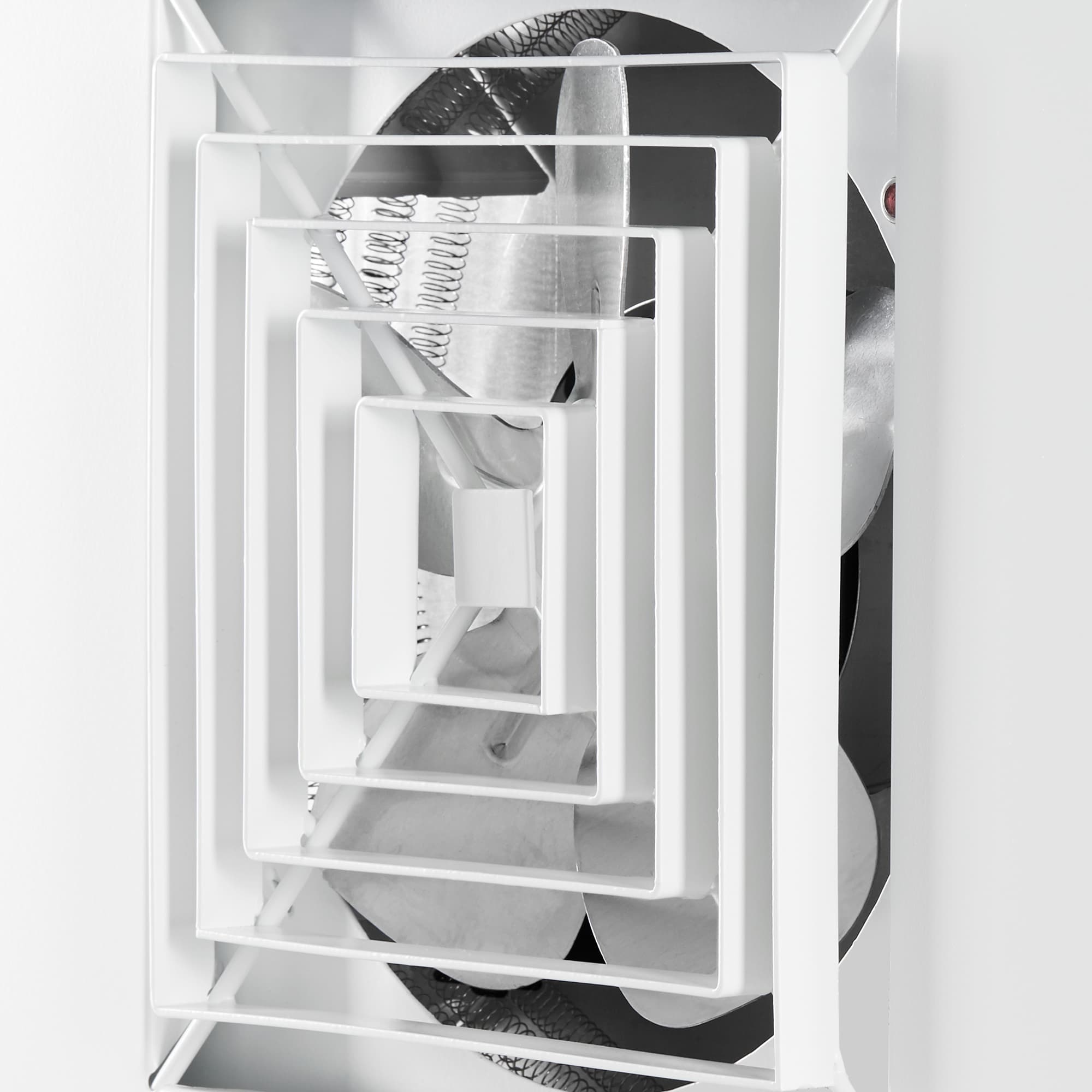

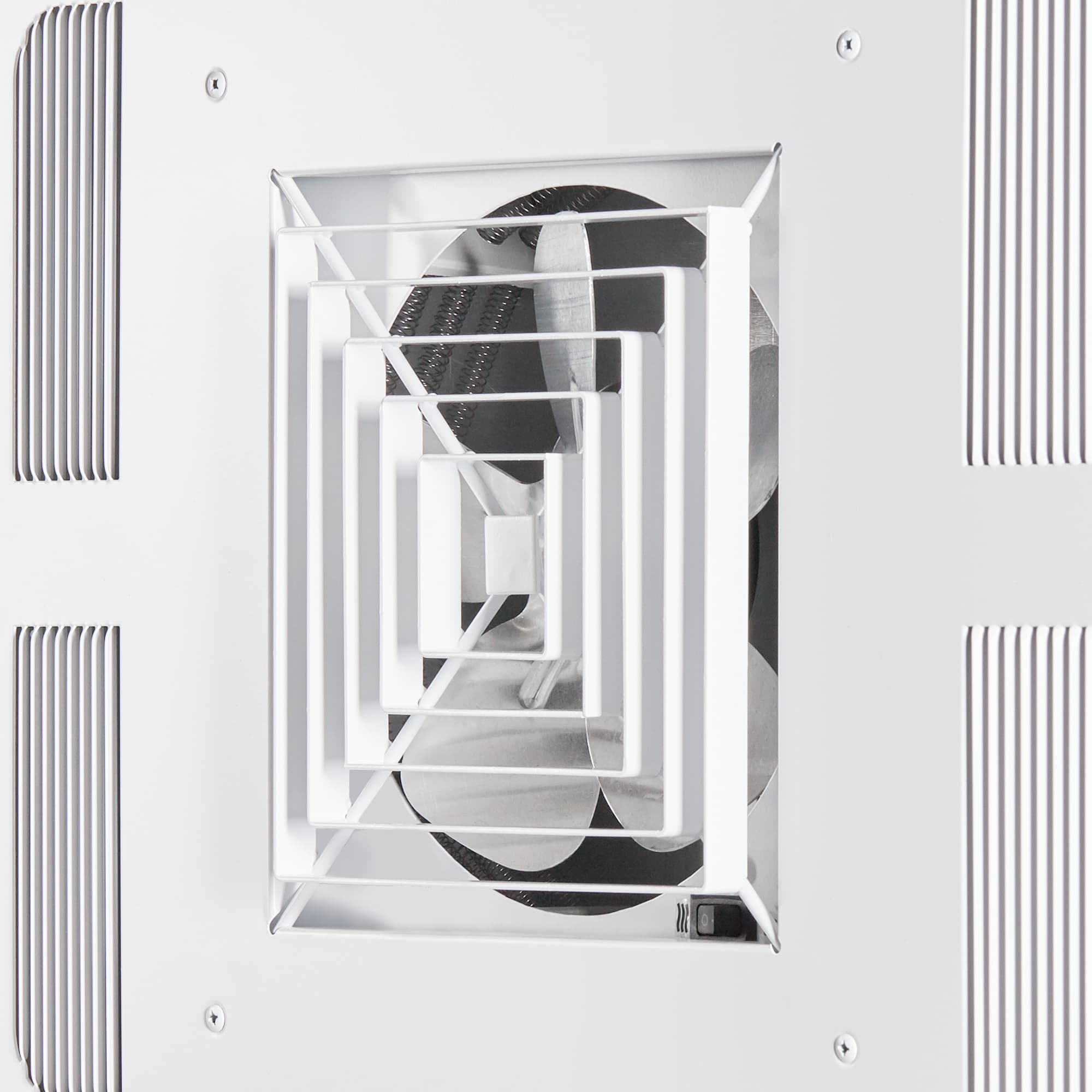

• Quiet helicoidal fan
• Thermal protection with automatic reset
• Closed and permanently lubricated motor
• Pilot light indicates when power is on

ELEMENT

• Nichrome element produces instant heat

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended (up to 4000 W)
• Fan-only mode for continuous air circulation, controlled by built-in selection switch
• Disconnect switch option available (ADRR models only)

• Fan-only mode available for use with wall mounted switch (optional OFS model, wall switch not provided)
• Heating mode, confirmed by pilot light when heating is on
• Connection of multiple units to the same thermostat is possible with a relay kit without a transformer (optional) and an external transformer (not provided)

INSTALLATION

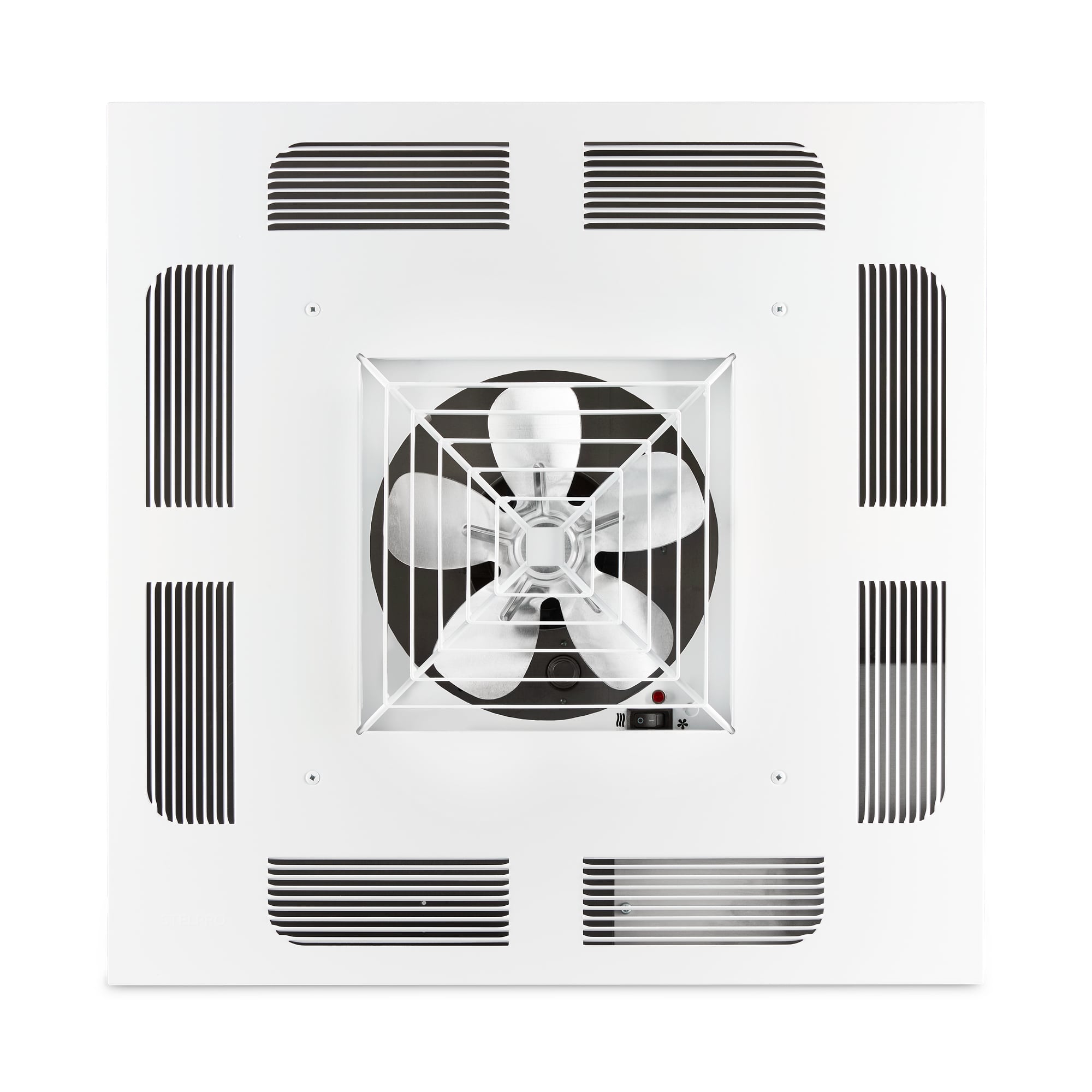

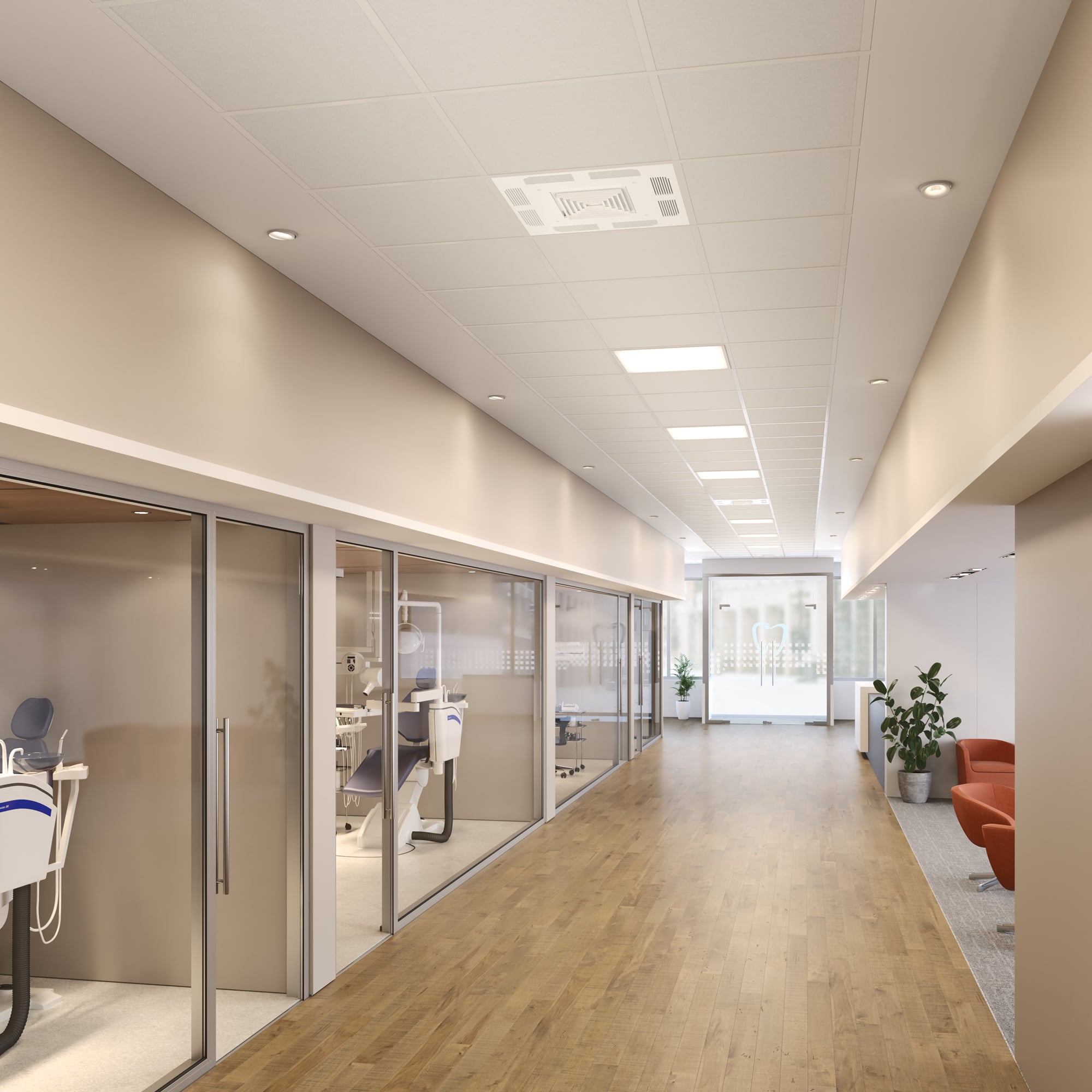

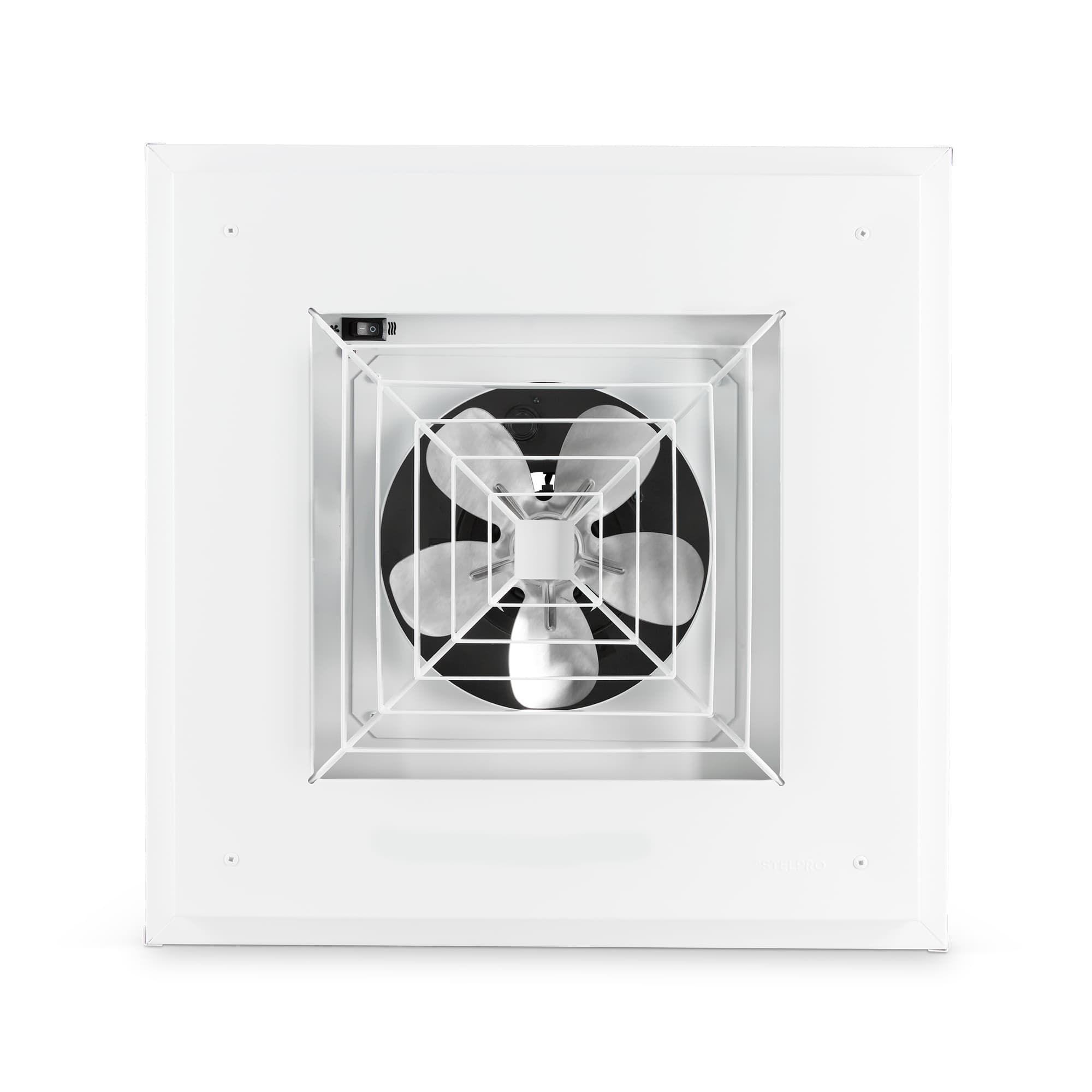

• Ceiling recessed in a T-bar (ADRR model)

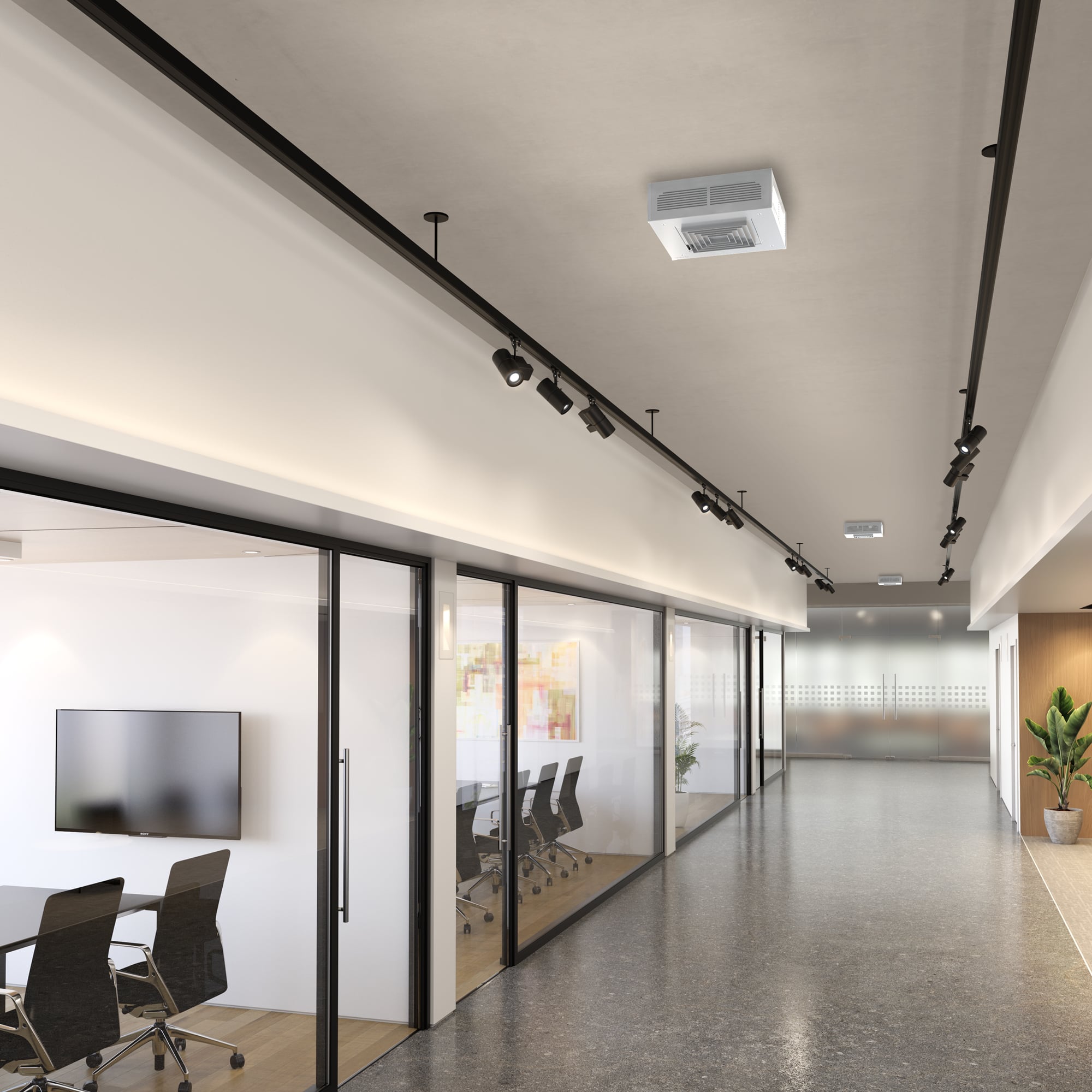

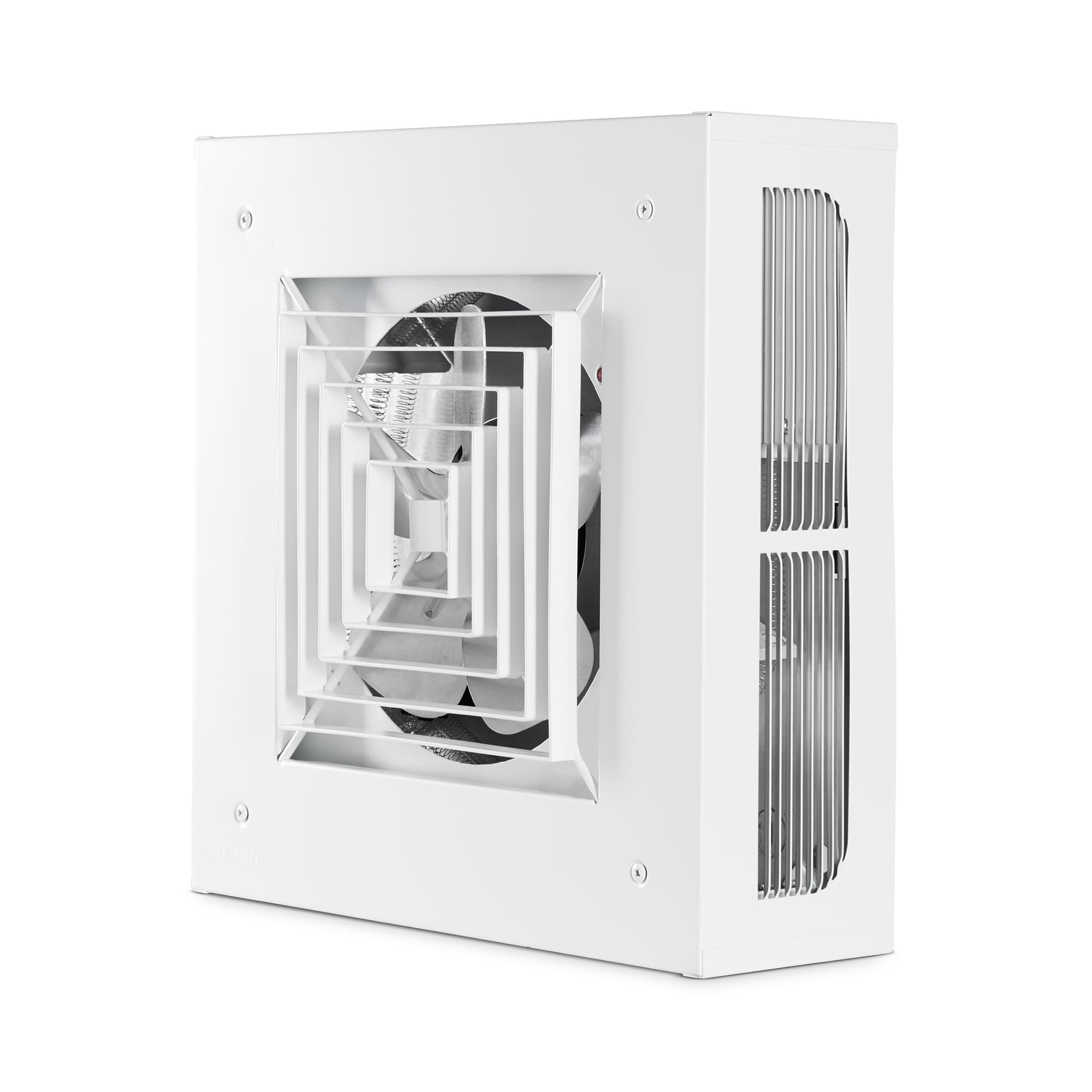

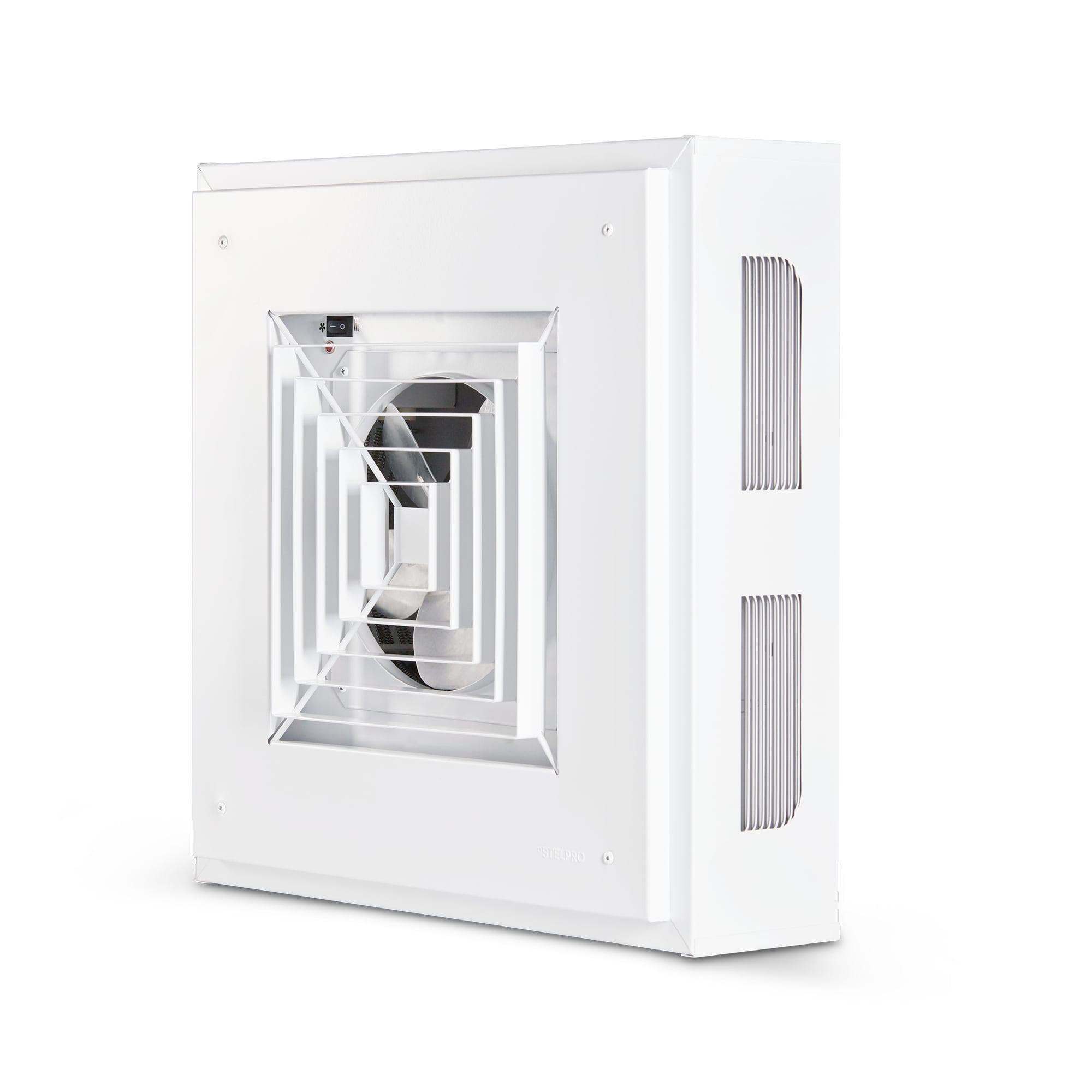

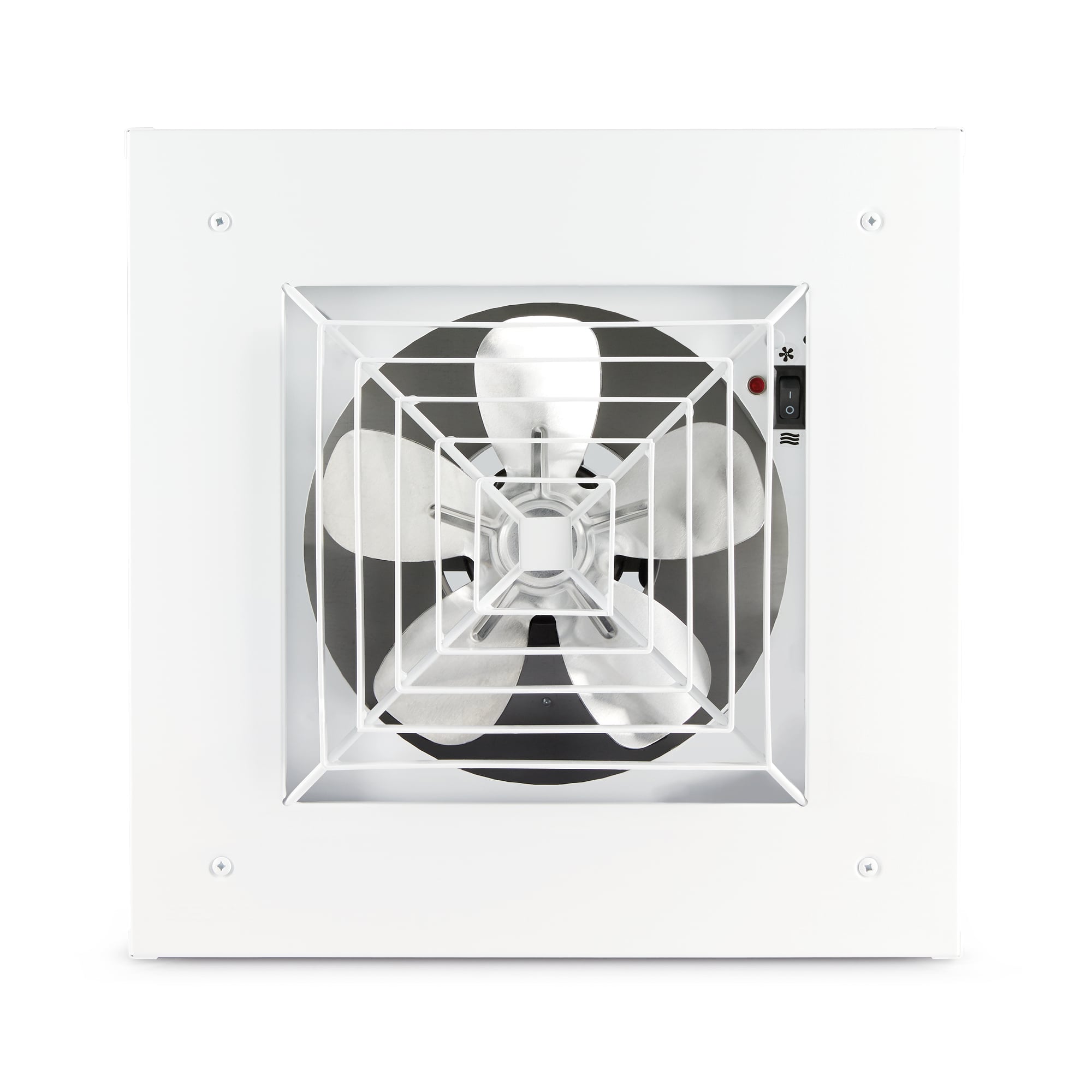

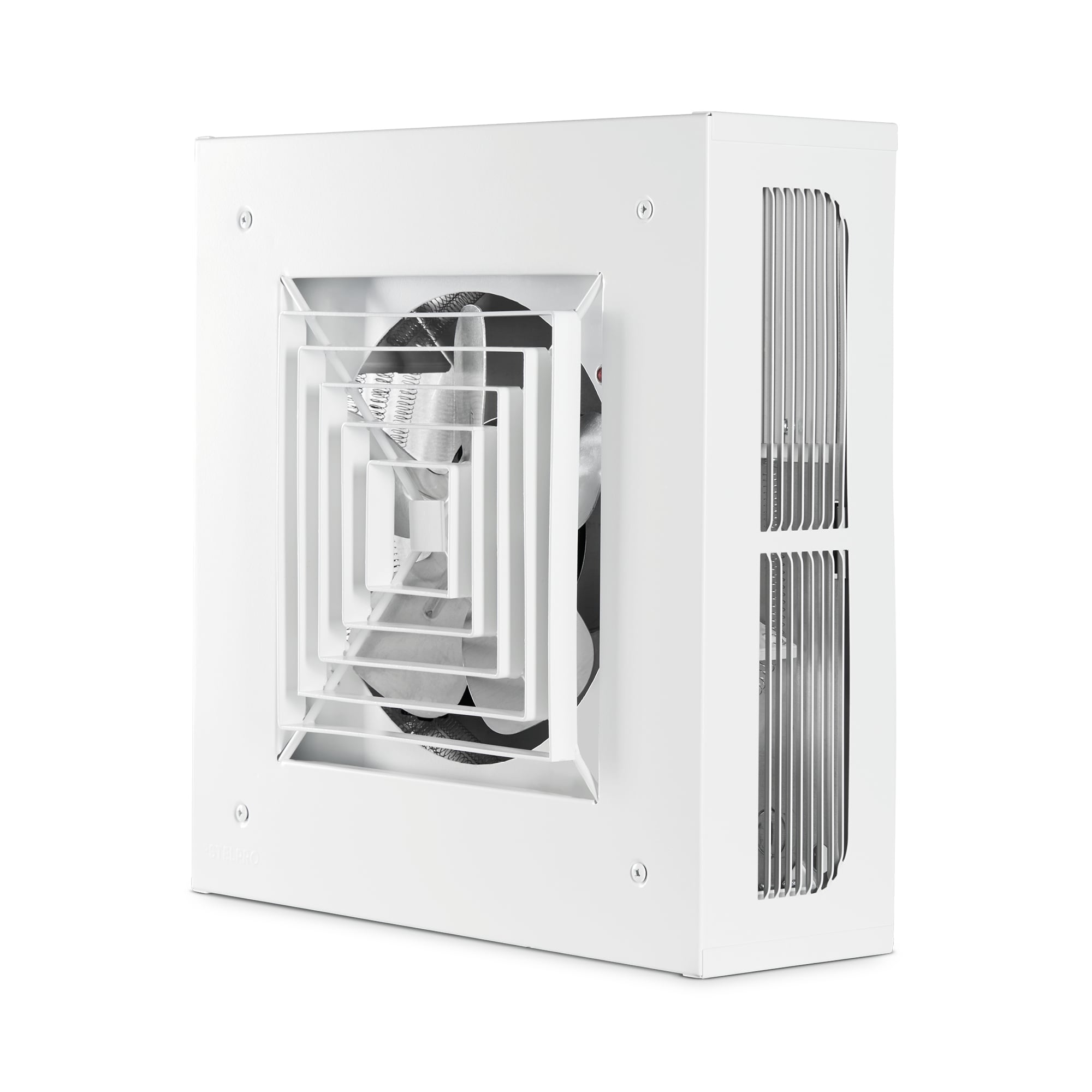

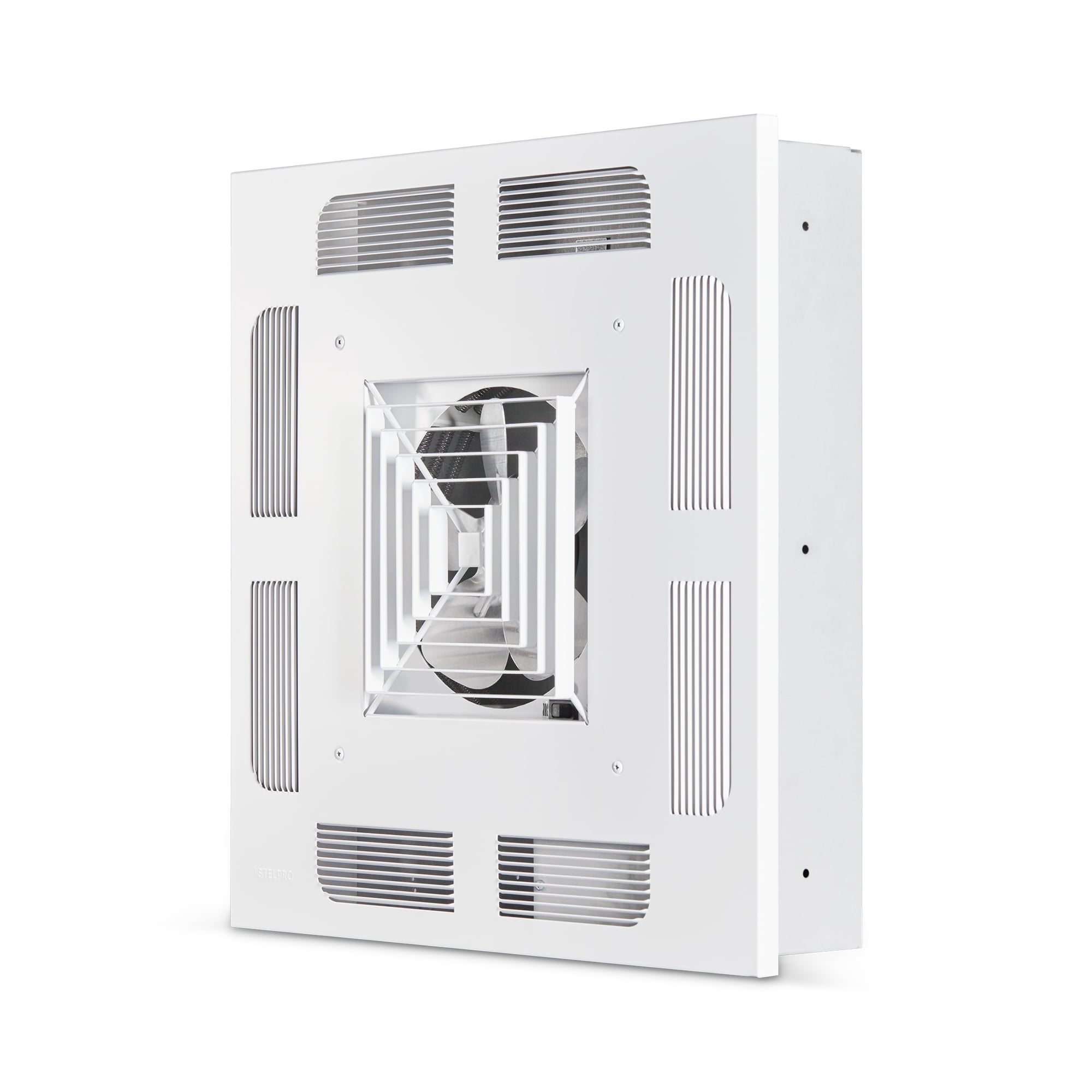

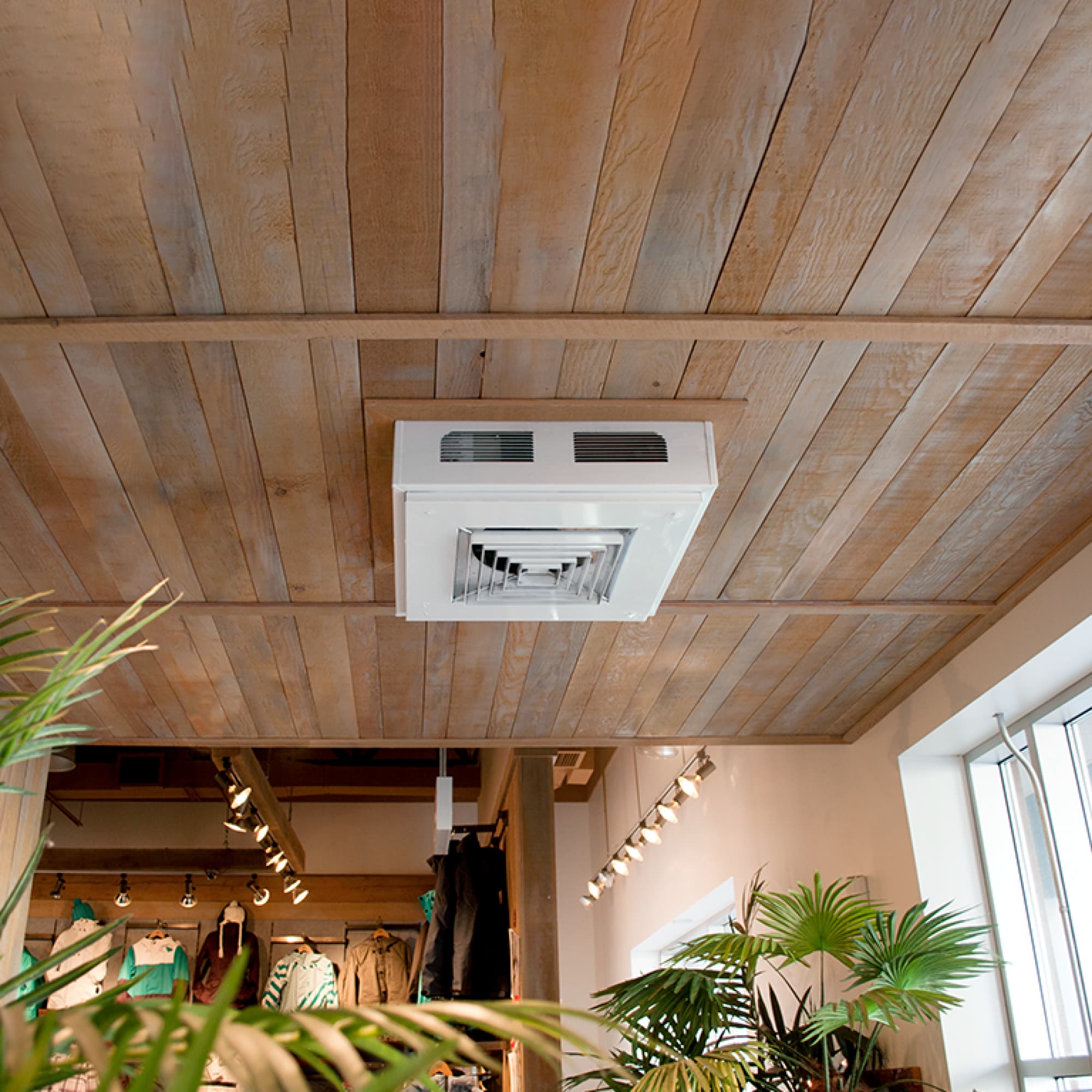

• Ceiling surface mounted with bracket to support unit during wiring (ADRI and ADRII models) (included)
• Install at a minimum distance from adjacent or surrounding walls: 12 in. (ADRR or ADRI models); 24 in. (ADRII models)
• Mounting heights: 8 ft. (2 kW or 3 kW units); 10 ft. (4 kW or 5 kW units); 12 ft. (7.5 kW or 10 kW units)

WARRANTY

• Three years
