TC
An invisible, high-performance system

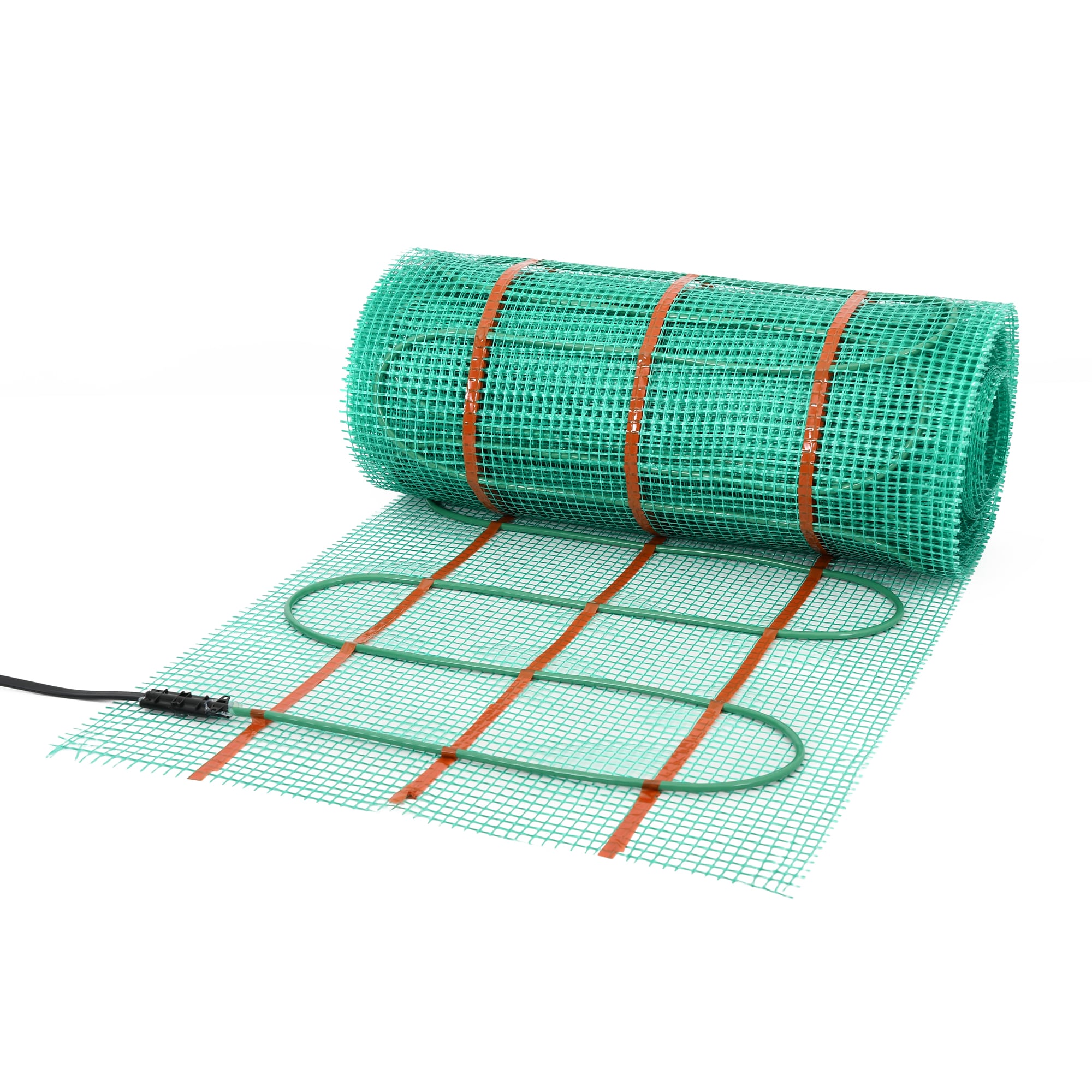

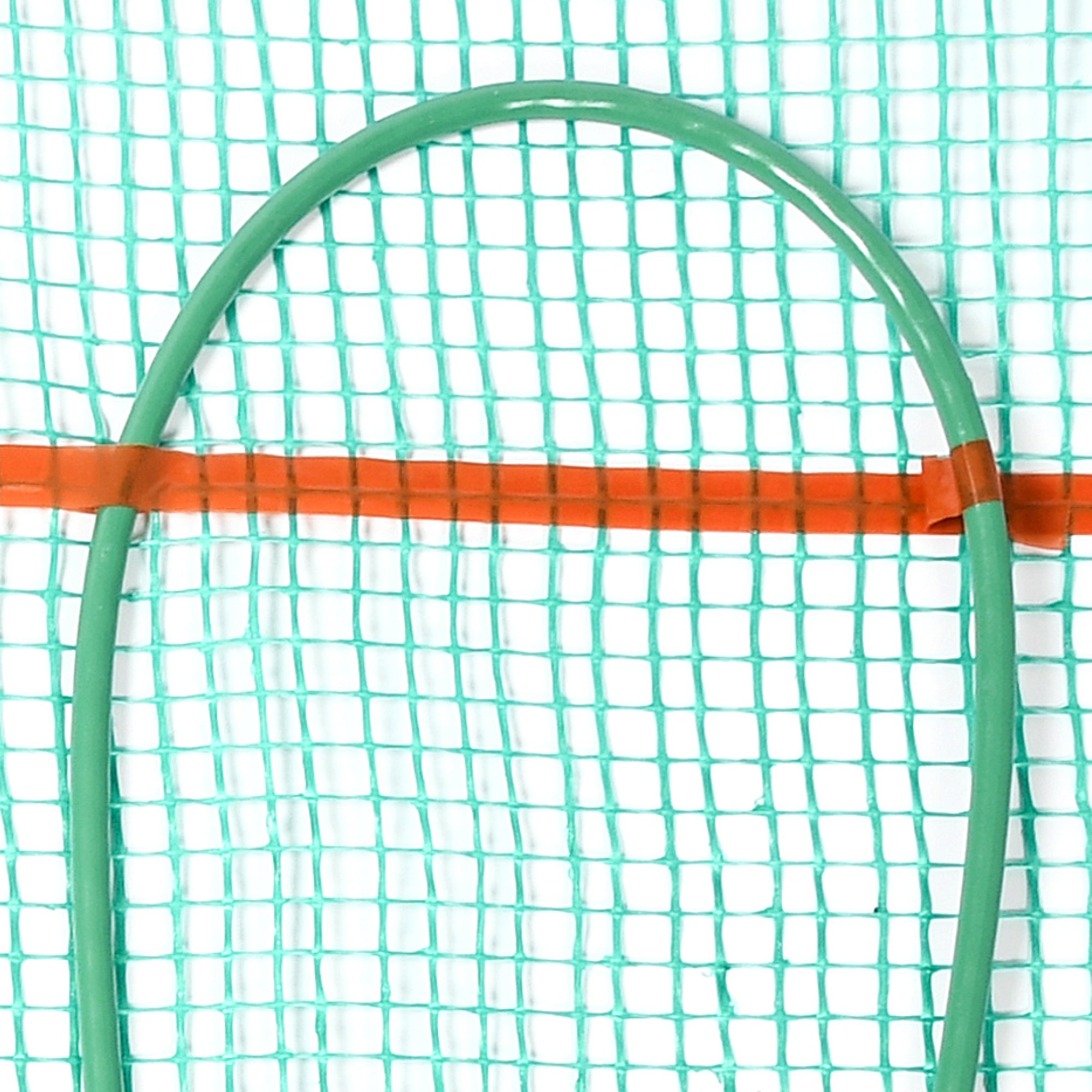

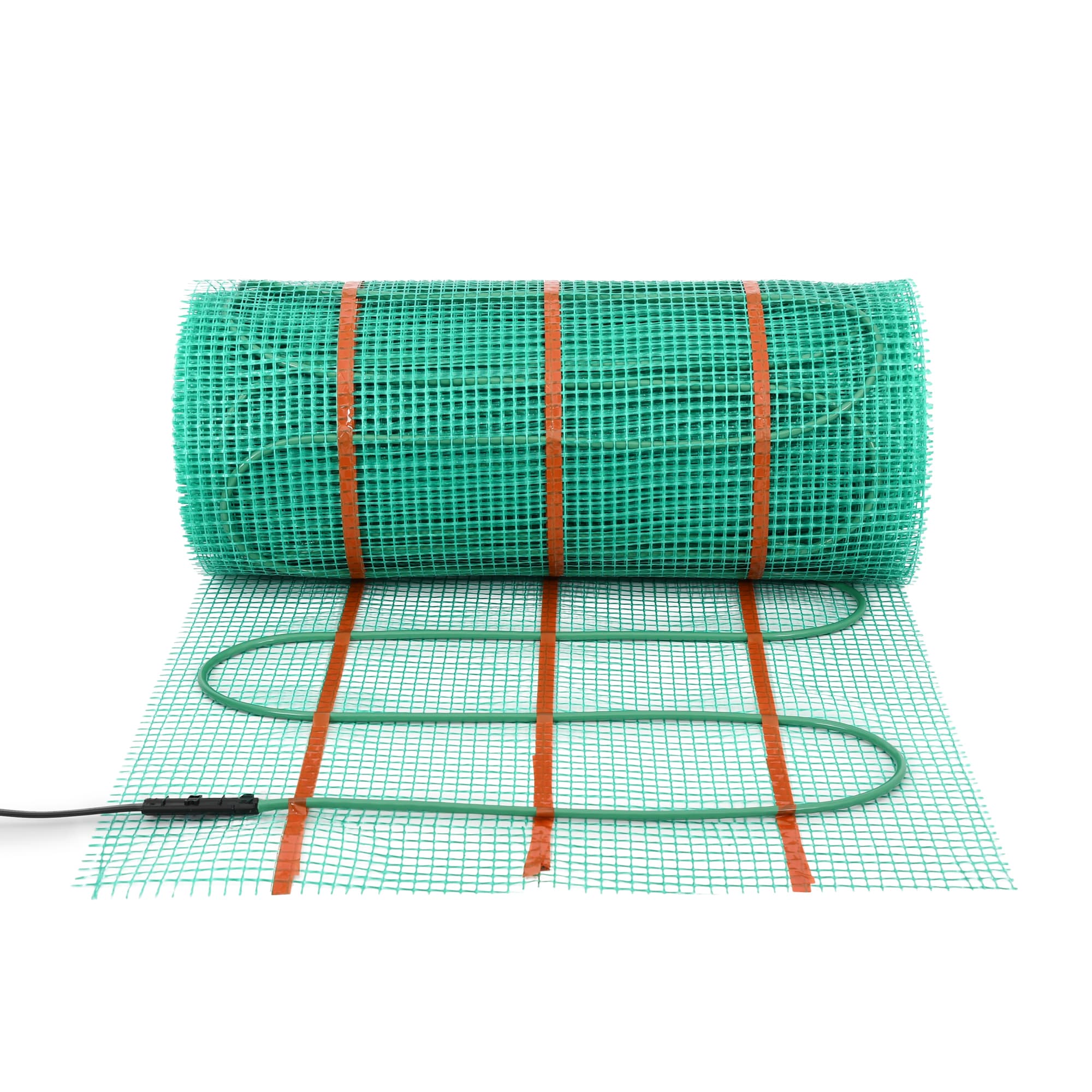

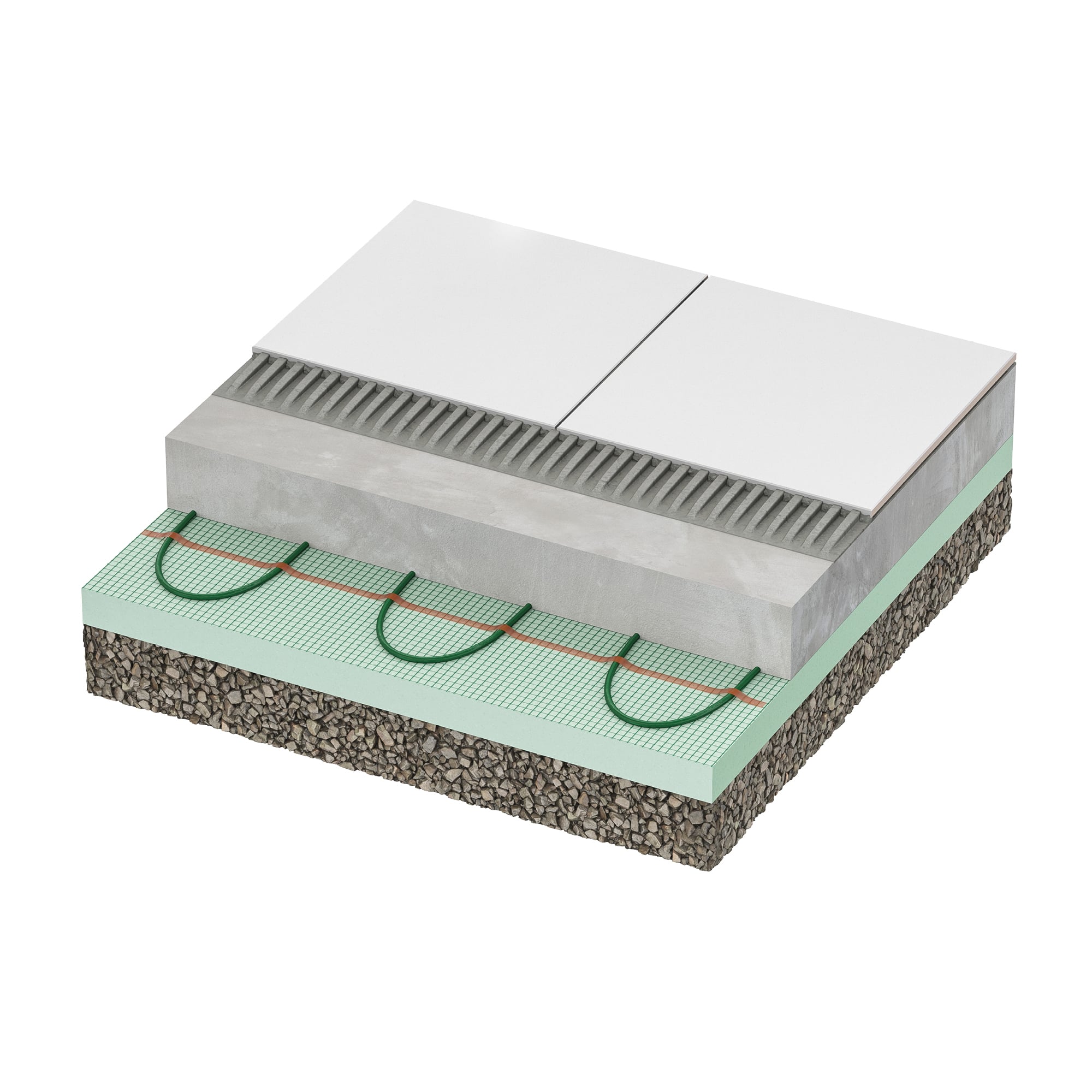

With the simplicity of a self-adhesive backing, the Concrete Mat XpressTM is the ideal choice for any installation embedded in concrete. Simply unroll over the insulation under the concrete slab or over plywood under a concrete topping and you’re done.
Note: This product must be used with a ground fault circuit interrupter (GFCI) unless this is not required by the national or local code in the region where it is being installed.
* For more information about the types of floor coverings under which you can safely install a heating cable, we strongly recommend you contact the relevant floor covering manufacturers.
**We offer a limited lifetime warranty on Concrete Mat XpressTM when installed by a certified FLEXpert. Certain conditions apply.
| Part No. | Area heated (ft2) | Mat width (in) | Mat length (ft) | Volts (V) | Wattage (W) | Amperage (A) | Price CAD |
|---|---|---|---|---|---|---|---|
| TC240P0024 | 12 | 24 | 6 | 240/208 | 148 / 111 | 0.7 / 0.6 | $279.00 CAD |
| TC240P0040 | 20 | 24 | 10 | 240/208 | 227 / 170 | 1.0 / 0.9 | $288.00 CAD |
| TC240P0048 | 24 | 24 | 12 | 240/208 | 300 / 226 | 1.3 / 1.1 | $298.00 CAD |
| TC240P0068 | 34 | 24 | 17 | 240/208 | 424 / 318 | 1.8 / 1.6 | $315.00 CAD |
| TC240P0088 | 44 | 24 | 22 | 240/208 | 510 / 383 | 2.2 / 1.9 | $357.00 CAD |
| TC240P0104 | 52 | 24 | 26 | 240/208 | 624 / 469 | 2.6 / 2.3 | $381.00 CAD |
| TC240P0120 | 60 | 24 | 30 | 240/208 | 749 / 562 | 3.2 / 2.7 | $397.00 CAD |
| TC240P0140 | 70 | 24 | 35 | 240/208 | 820 / 616 | 3.5 / 3.0 | $403.00 CAD |
| TC240P0156 | 78 | 24 | 39 | 240/208 | 932 / 700 | 3.9 / 3.4 | $425.00 CAD |
| TC240P0172 | 86 | 24 | 43 | 240/208 | 1043 / 784 | 4.4 / 3.8 | $445.00 CAD |
| TC240P0200 | 100 | 24 | 50 | 240/208 | 1206 / 906 | 5.1 / 4.4 | $494.00 CAD |
| TC240P0224 | 112 | 24 | 56 | 240/208 | 1370 / 1029 | 5.8 / 5.0 | $509.00 CAD |
| TC240P0248 | 124 | 24 | 62 | 240/208 | 1497 / 1124 | 6.3 / 5.4 | $552.00 CAD |
| TC240P0272 | 136 | 24 | 24 | 240/208 | 1654 / 1242 | 6.9 / 6.0 | $572.00 CAD |
| TC240P0300 | 150 | 24 | 75 | 240/208 | 1839 / 1381 | 7.7 / 6.7 | $591.00 CAD |
| TC240P0324 | 162 | 24 | 81 | 240/208 | 1956 / 1469 | 8.2 / 7.1 | $612.00 CAD |
| TC240P0372 | 186 | 24 | 93 | 240/208 | 2246 / 1687 | 9.4 / 8.1 | $681.00 CAD |
| TC240P0391 | 196 | 24 | 98 | 240/208 | 2265 / 1701 | 9.5 / 8.2 | $705.00 CAD |
| TC240P0428 | 214 | 24 | 107 | 240/208 | 2726 / 2048 | 11.4 / 9.9 | $735.00 CAD |
| TC240P0492 | 246 | 24 | 123 | 240/208 | 2871 / 2157 | 12.0 / 10.4 | $814.00 CAD |
| TC240P0552 | 276 | 24 | 138 | 240/208 | 3144 / 2362 | 13.1 / 11.4 | $905.00 CAD |
| TC240P0600 | 302 | 24 | 151 | 240/208 | 3569 / 2684 | 14.9 / 12.9 | $977.00 CAD |
Accessories
| Product | Description | Price CAD |

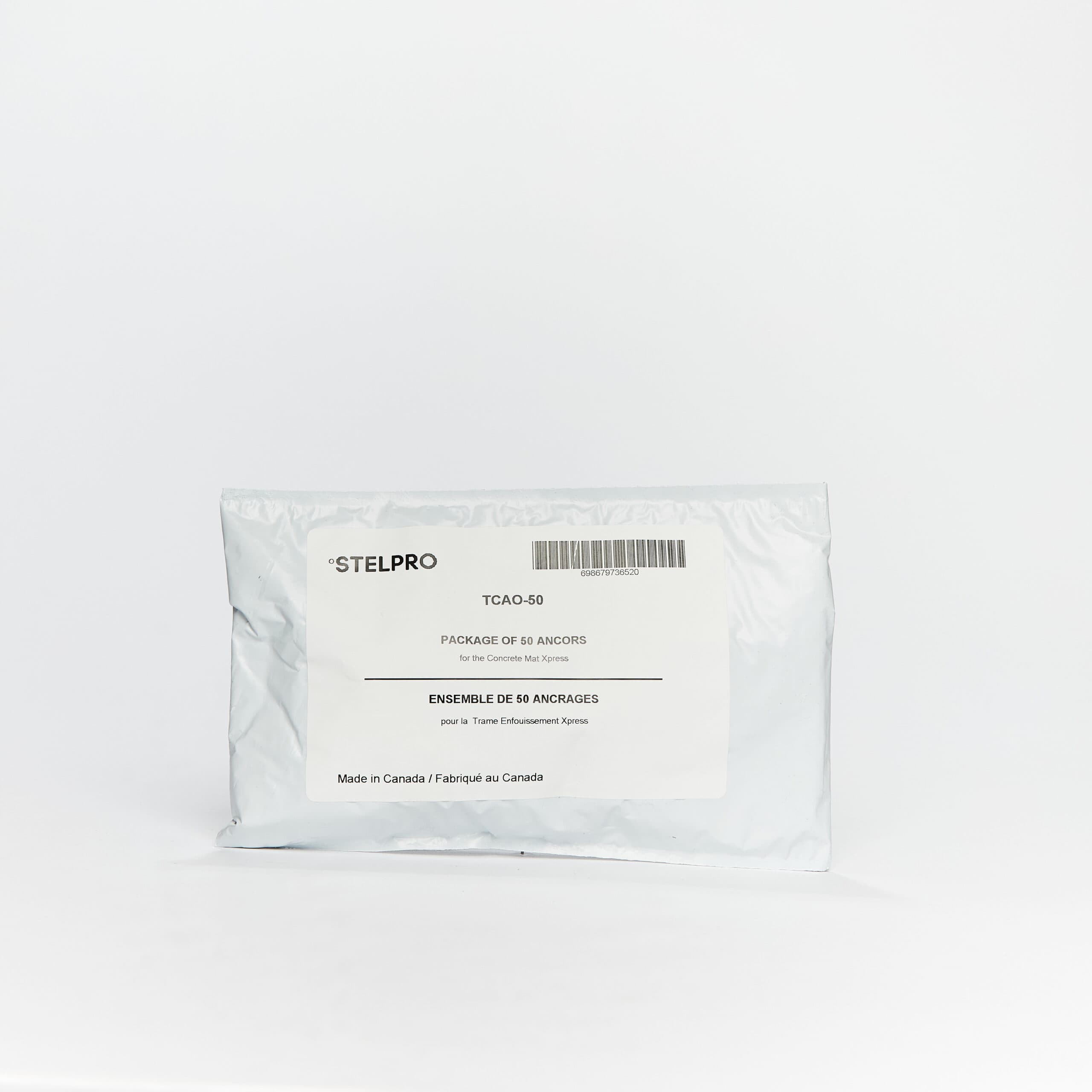

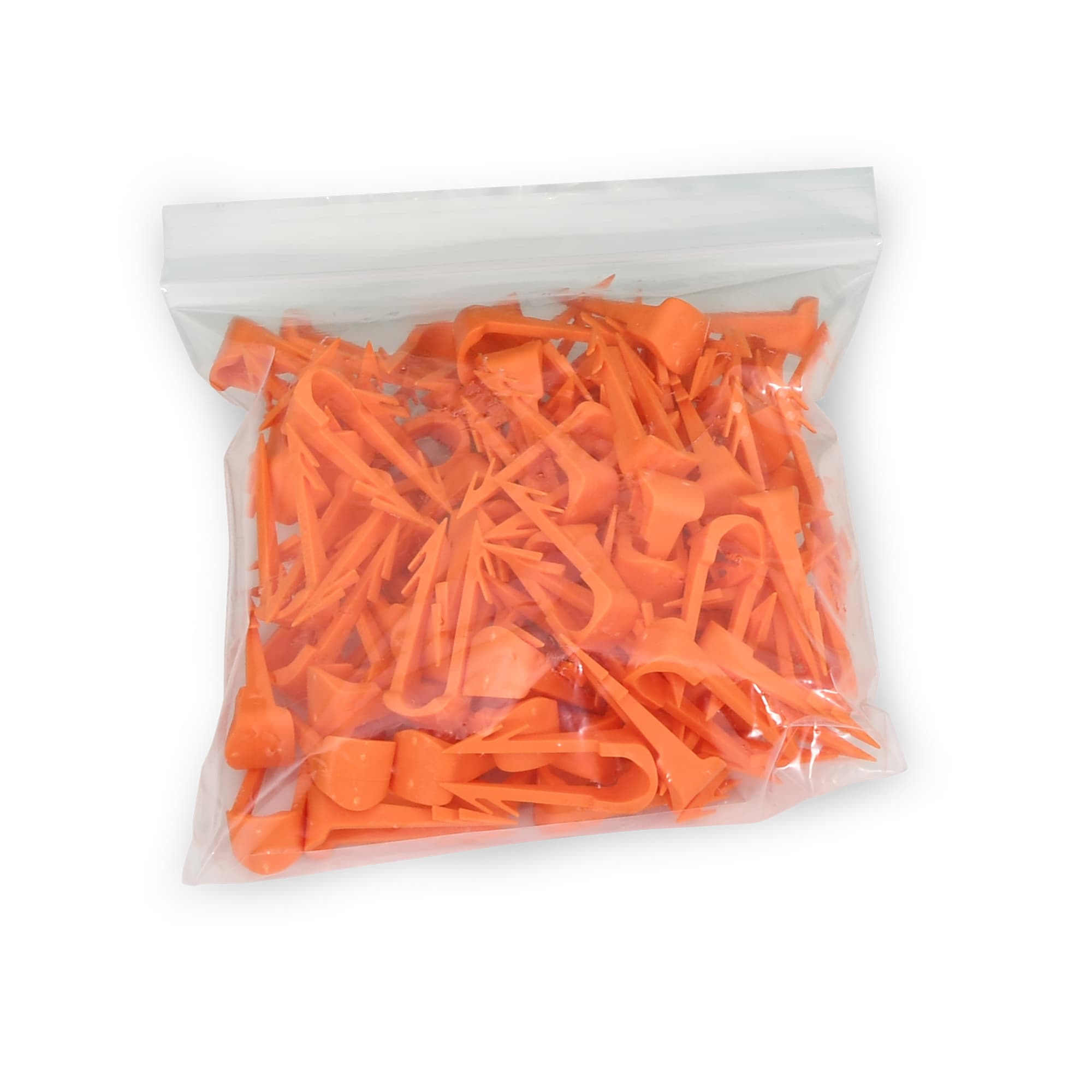

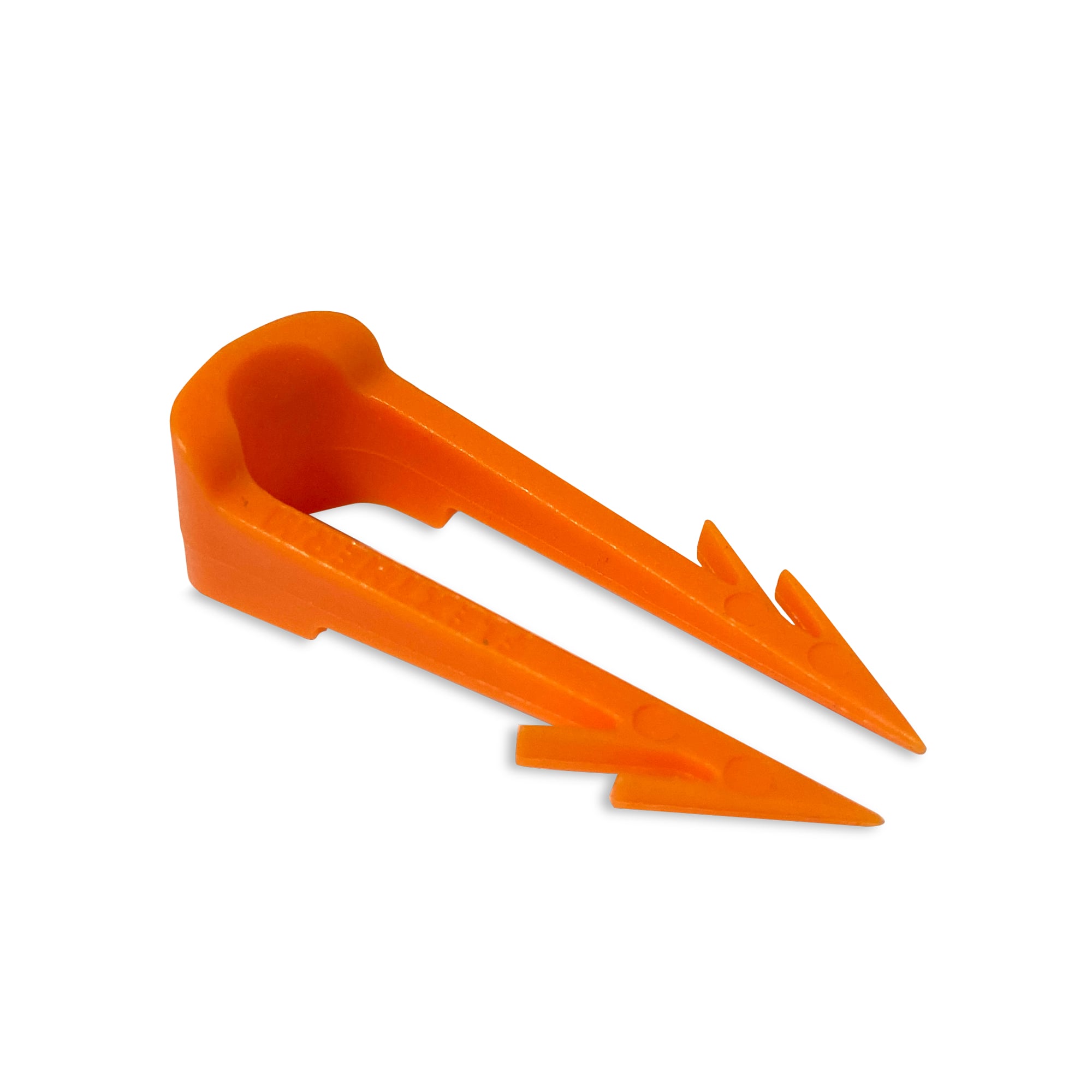

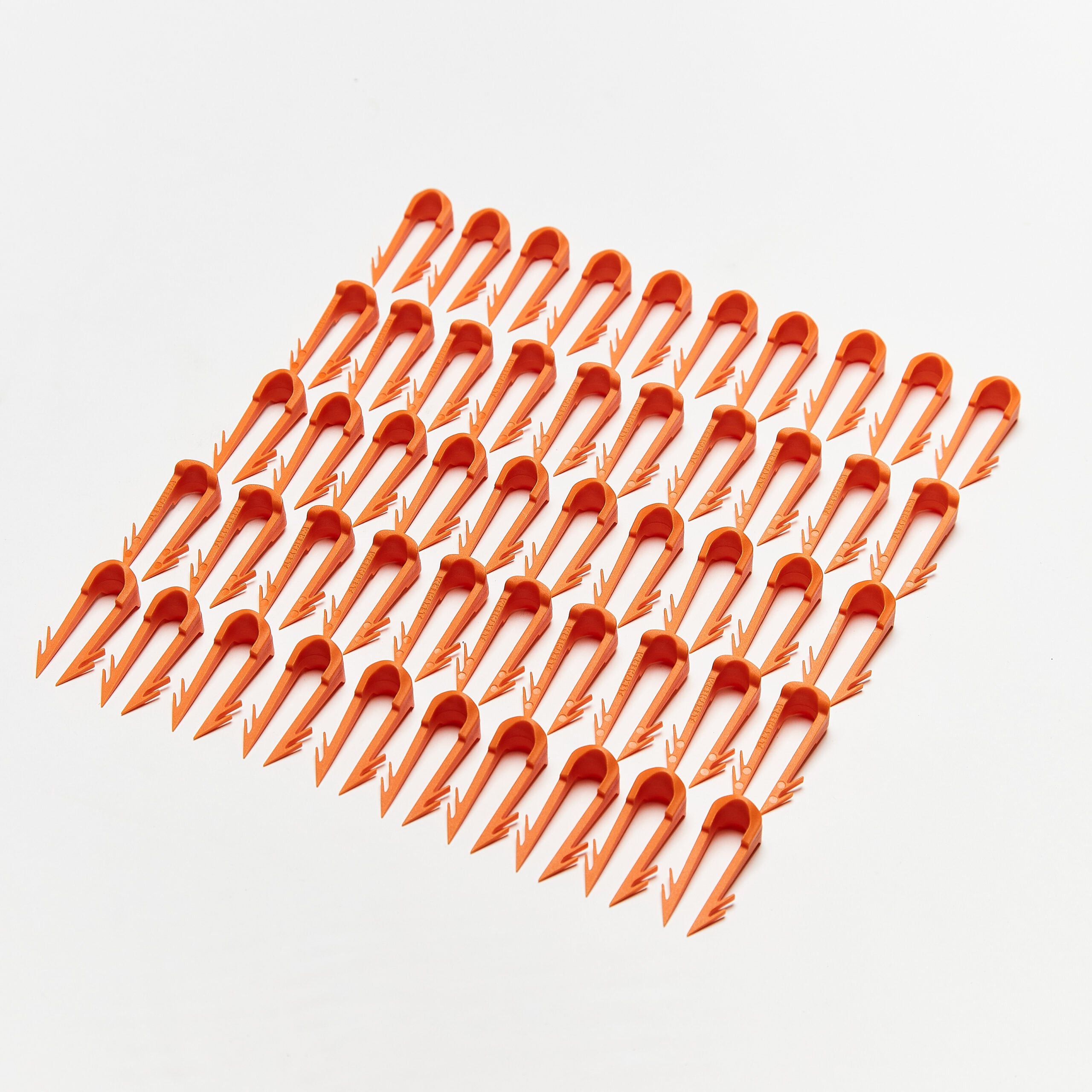

| TCAO-50 | STELPRO - ANCHORS FOR THE CONCRETE MAT XPRESS 50/PCK | $23.00 CAD |
| FLS1240 | STELPRO - THERMAL FLOOR SENSOR (10K) - 4.6 m (15 ft) WIRE | $29.00 CAD |
| FLS1250 | STELPRO - 10K THERMAL FLOOR SENSOR FOR CONCRETE (INCLUDES CONDUIT) - 10 ft WIRE | $38.00 CAD |
| FLS1260T | STELPRO - CONDUIT FOR THERMAL SENSOR (CONCRETE BURIAL) - 9 ft | $24.00 CAD |
| FSK-05 | STELPRO - REPAIR KIT (FOR 1 SPLICE) - EMBEDED IN CONCRETE CABLE AND MAT (GC, TC) | $48.00 CAD |
