HGS
Outstanding flexibility

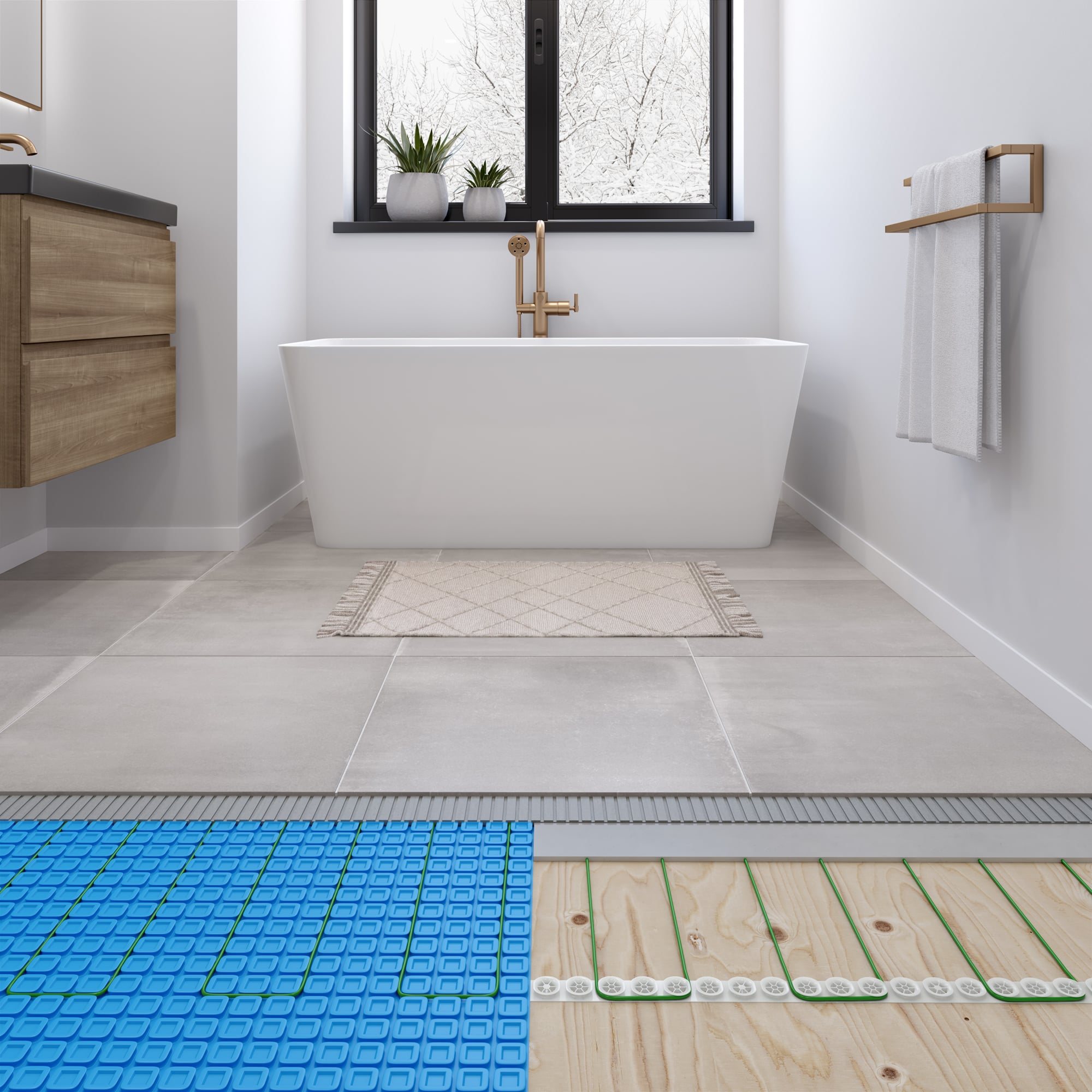

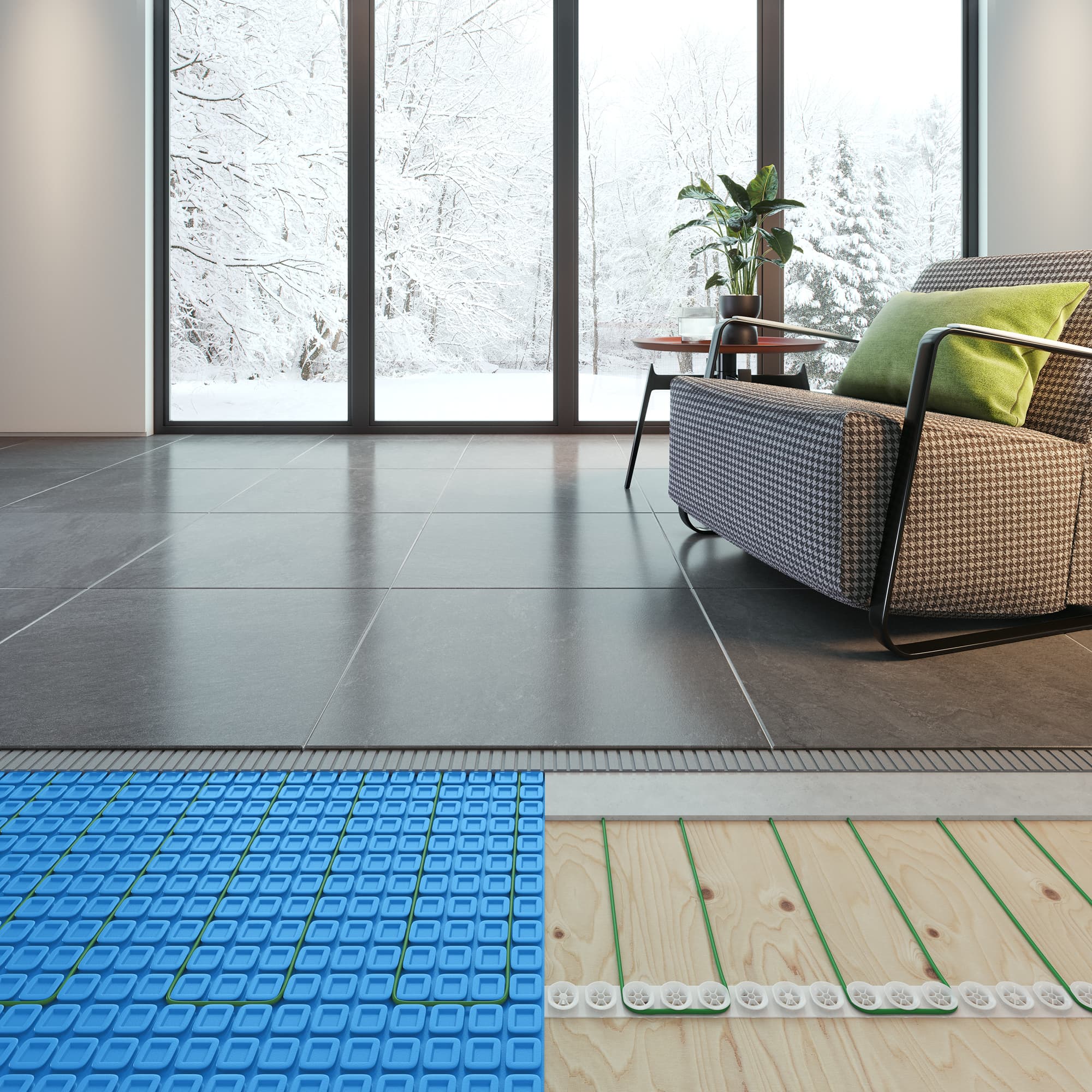

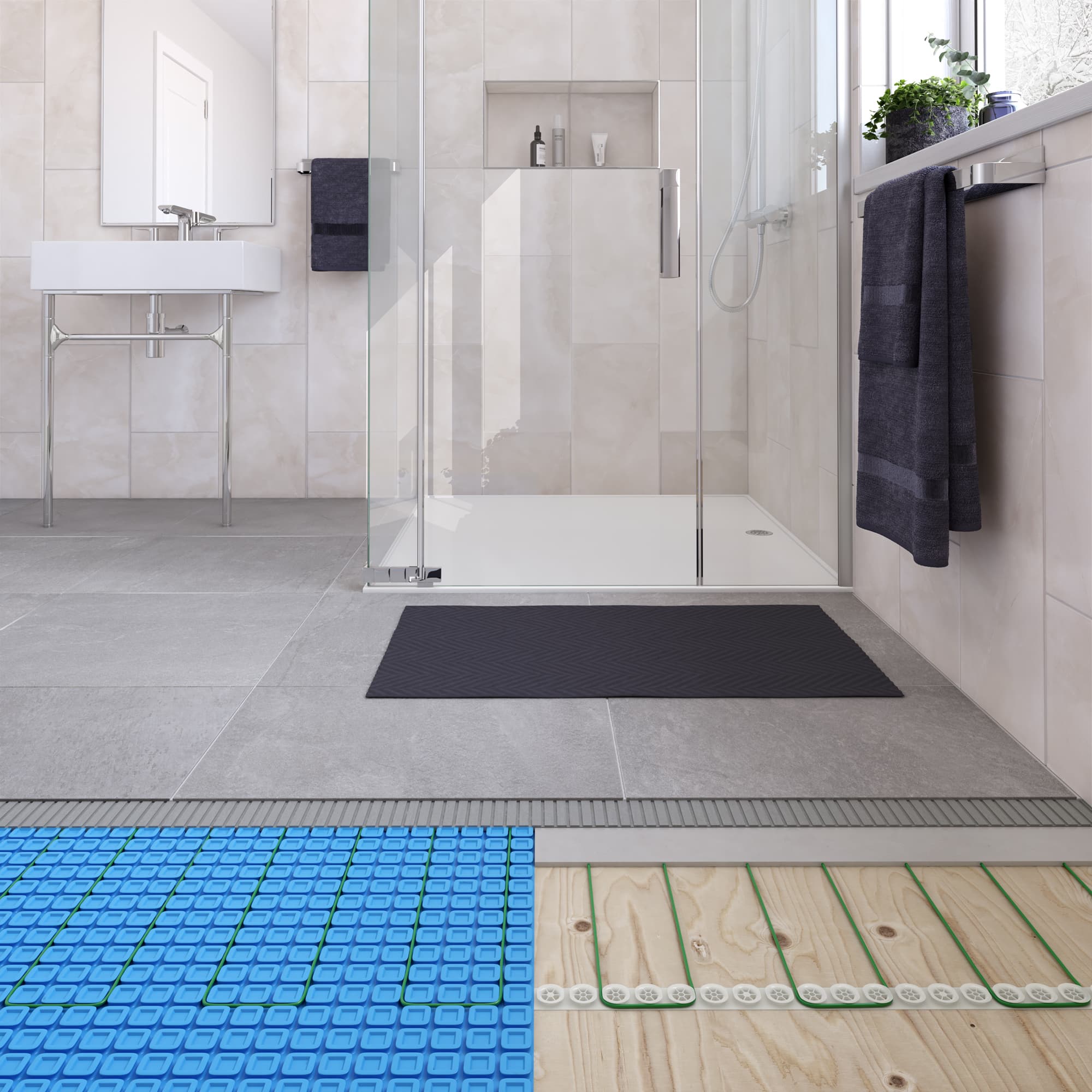

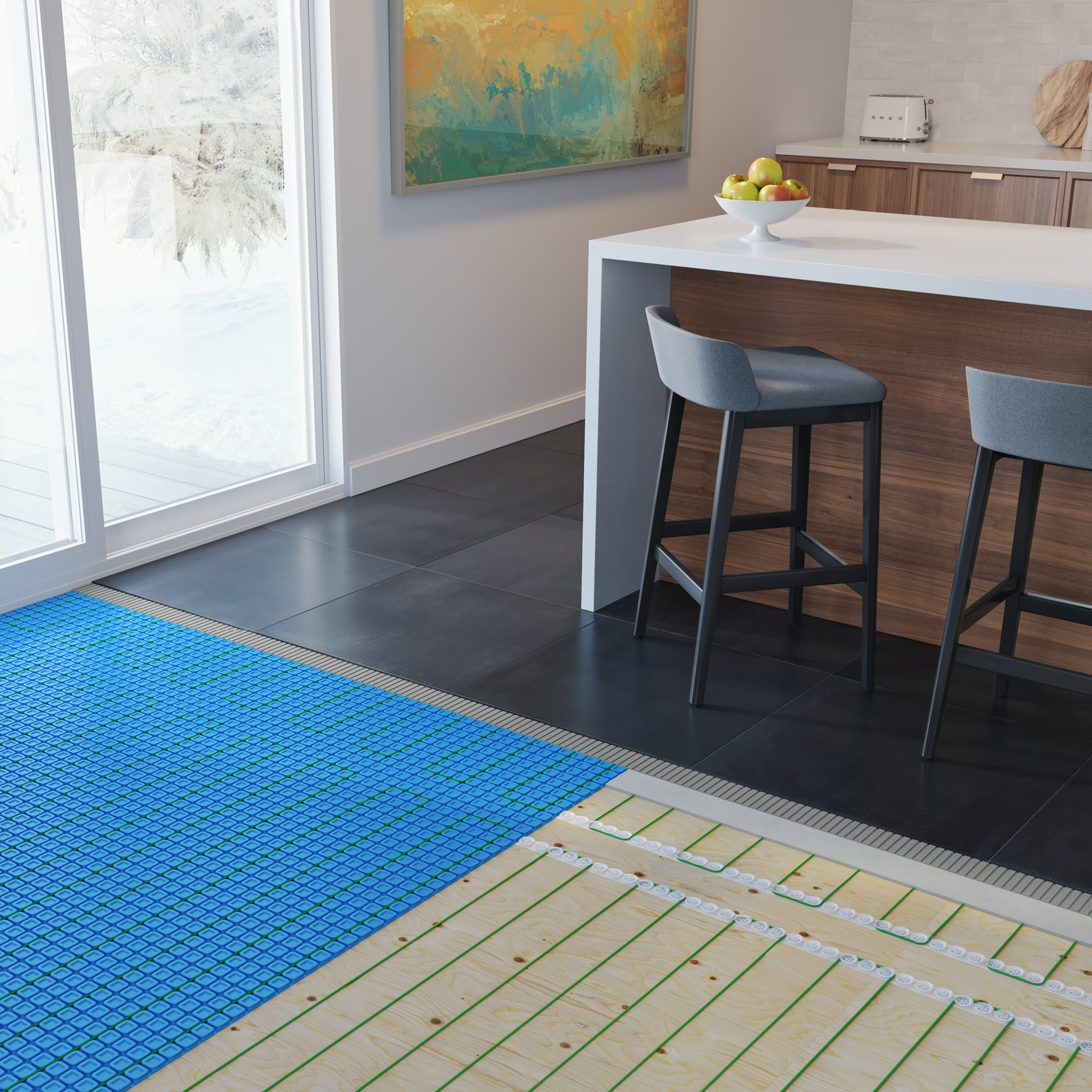

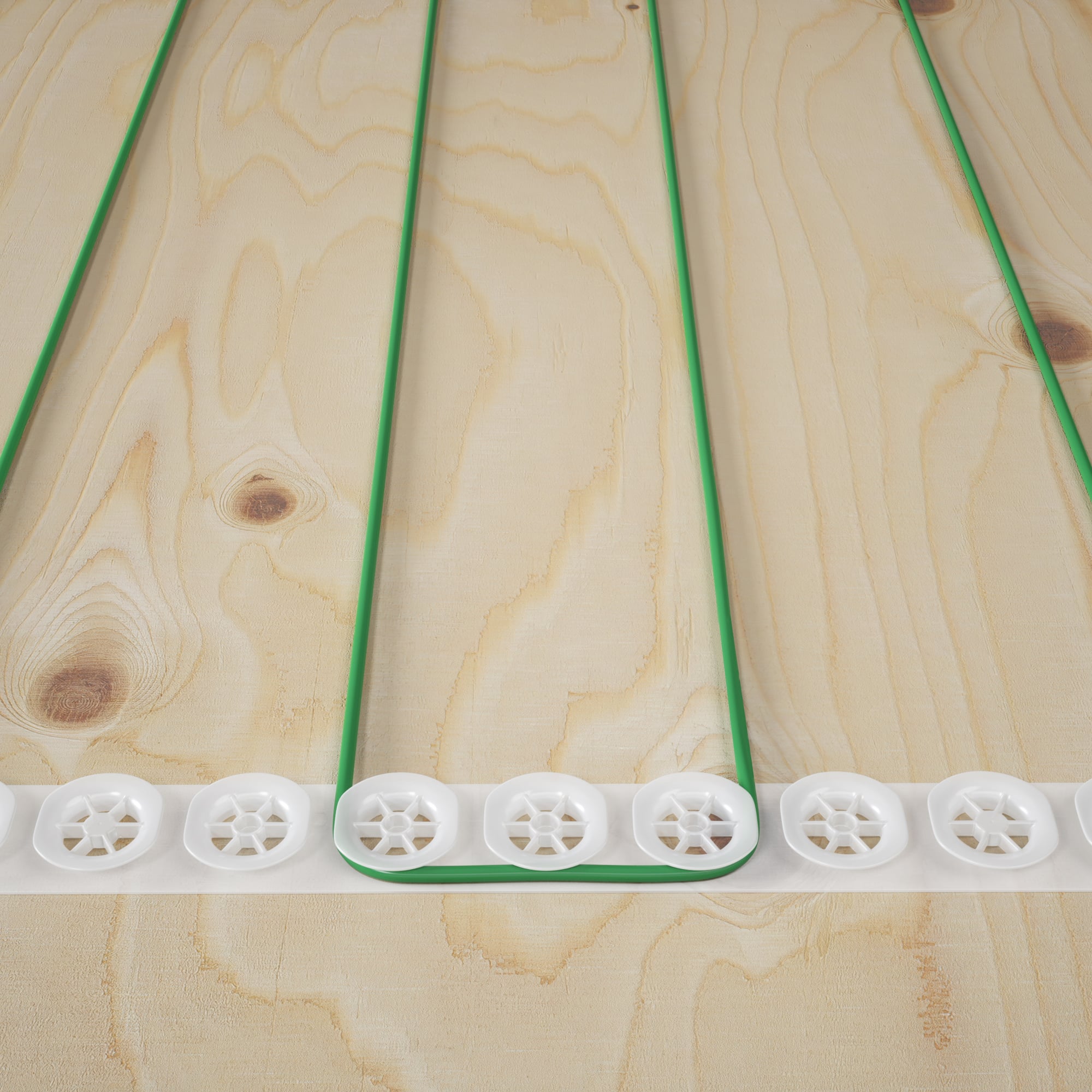

With its constant diameter at every length, the Green Cable Surface XLTM is not only the perfect complement to uncoupling membrane installation systems, but it can also be installed with traditional gauges.
*We offer a limited lifetime warranty on Green Cable Surface XLTM when installed by a certified FLEXpert. Certain conditions apply.
| Part No. | Coverage (ft2) | Wattage (W) |
Amperage (A) |
Length (ft) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Membrane STELPRO | Other membrane | Gauges | ||||||||
|
2 1/2"- 3 3/4" Alternate 2 - 3 Studs 13.8 W/ft2 |
3 3/4" 3 Studs 11.5 W/ft2 |
2 3/8"- 3 1/2" Alternate 2 - 3 Studs 14.4 W/ft2 |
3 1/2" 3 Studs 12 W/ft2 |
3" 14.5 W/ft2 |
Alternate 3" - 4" 12.4 W/ft2 |
4" 10.9 W/ft2 |
||||
|
240 V/208 V |
||||||||||
| HGS240L0031 | 9.1 | 10.8 | 8.8 | 10.5 | 8.8 | 10.1 | 11.5 | 113/85 | 0.5/0.4 | 31 |
| HGS240L0049 | 13.9 | 16.6 | 13.4 | 16.0 | 13.4 | 15.5 | 17.6 | 176/132 | 0.8/0.7 | 49 |
| HGS240L0063 | 17.8 | 21.2 | 17.1 | 20.5 | 17.1 | 19.8 | 22.6 | 228/171 | 1.0/0.9 | 63 |
| HGS240L0089 | 24.8 | 29.6 | 23.9 | 28.7 | 23.9 | 27.7 | 31.5 | 322/242 | 1.4/1.2 | 89 |
| HGS240L0111 | 30.8 | 36.8 | 29.6 | 35.6 | 29.6 | 34.4 | 39.1 | 403/303 | 1.7/1.5 | 111 |
| HGS240L0134 | 36.8 | 44.0 | 35.4 | 42.5 | 35.4 | 41.1 | 46.8 | 484/364 | 2.1/1.8 | 134 |
| HGS240L0157 | 43.1 | 51.5 | 41.5 | 49.9 | 41.5 | 48.2 | 54.9 | 570/428 | 2.4/2.1 | 157 |
| HGS240L0178 | 48.6 | 58.1 | 46.7 | 56.2 | 46.7 | 54.3 | 61.9 | 645/484 | 2.7/2.4 | 178 |
| HGS240L0200 | 54.6 | 65.2 | 52.5 | 63.1 | 52.5 | 61.0 | 69.5 | 725/545 | 3.1/2.7 | 200 |
| HGS240L0222 | 60.5 | 72.3 | 58.1 | 70.0 | 58.1 | 67.6 | 77.0 | 806/605 | 3.4/3.0 | 222 |
| HGS240L0258 | 69.9 | 83.6 | 67.2 | 80.9 | 67.2 | 78.1 | 89.1 | 934/702 | 3.9/3.4 | 258 |
| HGS240L0291 | 78.7 | 94.1 | 75.6 | 91.0 | 75.6 | 87.9 | 100.3 | 1054/792 | 4.4/3.9 | 291 |
| HGS240L0320 | 86.4 | 103.3 | 83.0 | 100.0 | 83.0 | 96.6 | 110.1 | 1159/871 | 4.9/4.2 | 320 |
| HGS240L0352 | 95.0 | 113.6 | 91.2 | 109.9 | 91.2 | 106.1 | 121.1 | 1276/958 | 5.4/4.7 | 352 |
| HGS240L0390 | 105.0 | 125.6 | 100.9 | 121.5 | 100.9 | 117.4 | 133.9 | 1413/1062 | 5.9/5.1 | 390 |
| HGS240L0418 | 112.4 | 134.4 | 107.9 | 130.0 | 107.9 | 125.6 | 143.3 | 1515/1138 | 6.4/5.5 | 418 |
| HGS240L0480 | 128.8 | 154.2 | 123.7 | 149.1 | 123.7 | 144.0 | 164.3 | 1739/1306 | 7.3/6.3 | 480 |
| HGS240L0503 | 134.8 | 161.4 | 129.5 | 156.1 | 129.5 | 150.8 | 172.0 | 1760/1322 | 7.4/6.4 | 503 |
| HGS240L0553 | 148.0 | 177.2 | 142.2 | 171.4 | 142.2 | 165.5 | 188.9 | 2109/1584 | 8.8/7.7 | 553 |
| HGS240L0632 | 168.9 | 202.2 | 162.2 | 195.6 | 162.2 | 188.9 | 215.5 | 2234/1678 | 9.4/8.1 | 632 |
| HGS240L0712 | 189.9 | 227.5 | 182.4 | 220.0 | 182.4 | 212.5 | 242.4 | 2438/1831 | 10.2/8.8 | 712 |
| HGS240L0772 | 205.7 | 246.4 | 197.6 | 238.2 | 197.6 | 230.1 | 262.6 | 2796/2100 | 11.7/10.1 | 772 |
| HGS240L0908 | 241.5 | 289.3 | 232.0 | 279.7 | 232.0 | 270.2 | 308.4 | 3289/2470 | 13.7/11.9 | 908 |
|
120 V |
||||||||||
| HGS120L0024 | 7.2 | 8.6 | 6.9 | 8.3 | 6.9 | 8.0 | 9.1 | 88 | 0.8 | 24 |
| HGS120L0031 | 9.2 | 10.9 | 8.9 | 10.6 | 8.9 | 10.2 | 11.6 | 114 | 1.0 | 31 |
| HGS120L0045 | 12.8 | 15.2 | 12.3 | 14.7 | 12.3 | 14.3 | 16.2 | 161 | 1.4 | 45 |
| HGS120L0067 | 18.9 | 22.5 | 18.1 | 21.7 | 18.1 | 21.0 | 23.9 | 242 | 2.1 | 67 |
| HGS120L0079 | 22.0 | 26.3 | 21.2 | 25.4 | 21.2 | 24.6 | 28.0 | 285 | 2.4 | 79 |
| HGS120L0100 | 27.8 | 33.2 | 26.8 | 32.1 | 26.8 | 31.1 | 35.4 | 363 | 3.1 | 100 |
| HGS120L0111 | 30.8 | 36.8 | 29.6 | 35.6 | 29.6 | 34.4 | 39.1 | 403 | 3.4 | 111 |
| HGS120L0129 | 35.6 | 42.5 | 34.2 | 41.1 | 34.2 | 39.7 | 45.2 | 467 | 3.9 | 129 |
| HGS120L0160 | 43.9 | 52.4 | 42.2 | 50.7 | 42.2 | 49.0 | 55.8 | 579 | 4.9 | 160 |
| HGS120L0176 | 48.2 | 57.5 | 46.3 | 55.7 | 46.3 | 53.8 | 61.3 | 638 | 5.4 | 176 |
| HGS120L0195 | 53.2 | 63.5 | 51.2 | 61.5 | 51.1 | 59.4 | 67.7 | 707 | 5.9 | 195 |
| HGS120L0209 | 56.9 | 68.0 | 54.7 | 65.8 | 54.7 | 63.6 | 72.5 | 758 | 6.4 | 209 |
| HGS120L0240 | 65.2 | 78.0 | 62.7 | 75.4 | 62.7 | 72.9 | 83.1 | 870 | 7.3 | 240 |
| HGS120L0252 | 68.3 | 81.7 | 65.6 | 79.0 | 65.6 | 76.3 | 87.0 | 879 | 7.4 | 252 |
| HGS120L0276 | 74.9 | 89.5 | 71.9 | 86.6 | 71.9 | 83.7 | 95.4 | 1054 | 8.8 | 276 |
| HGS120L0316 | 85.3 | 102.1 | 82.0 | 98.7 | 82.0 | 95.4 | 108.8 | 1118 | 9.4 | 316 |
| HGS120L0356 | 96.0 | 114.8 | 92.2 | 111.0 | 92.2 | 107.3 | 122.3 | 1218 | 10.2 | 356 |
| HGS120L0386 | 103.9 | 124.3 | 99.8 | 120.2 | 99.8 | 116.1 | 132.4 | 1398 | 11.7 | 386 |
| HGS120L0454 | 121.8 | 145.8 | 117.0 | 141.0 | 117.0 | 136.2 | 155.4 | 1645 | 13.7 | 454 |

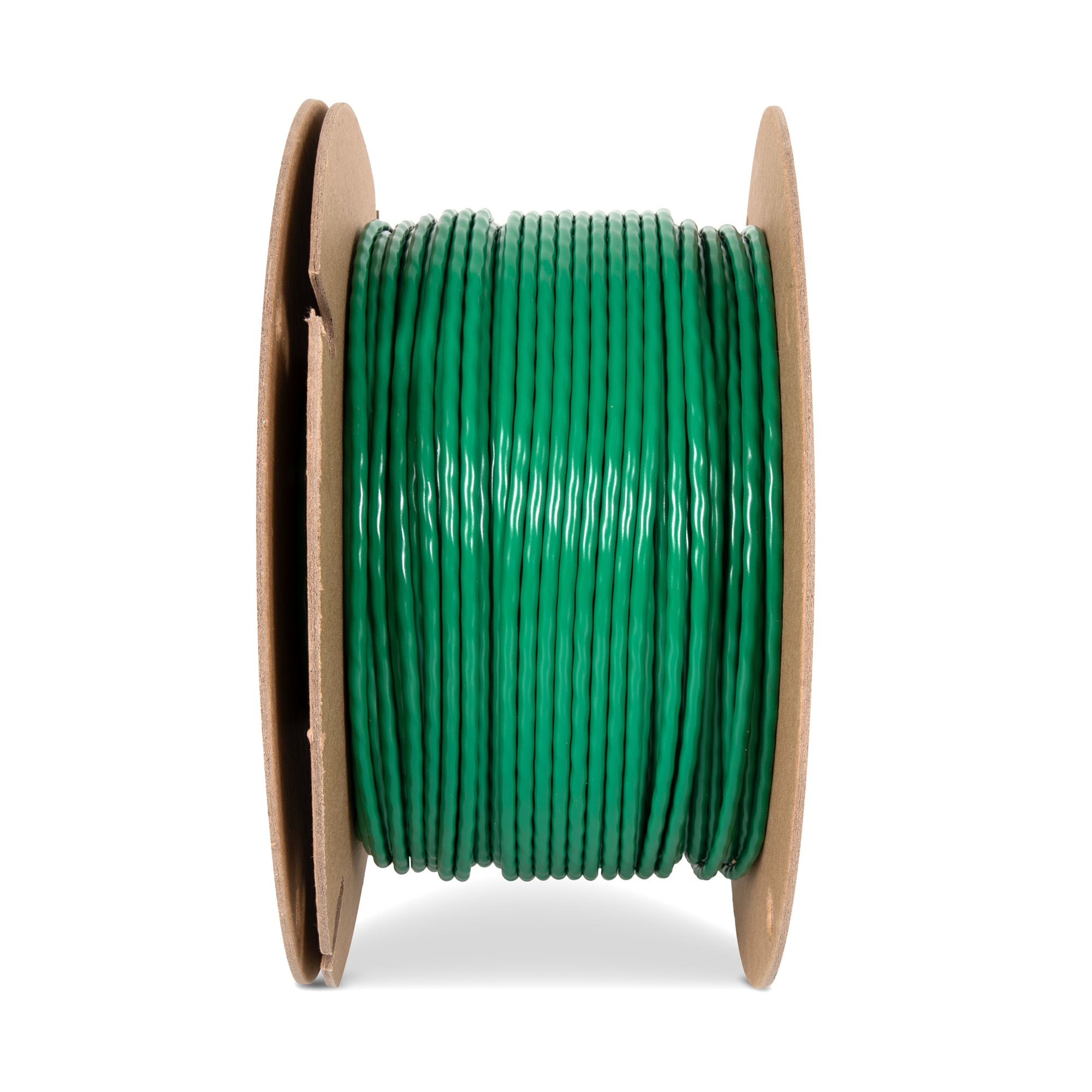

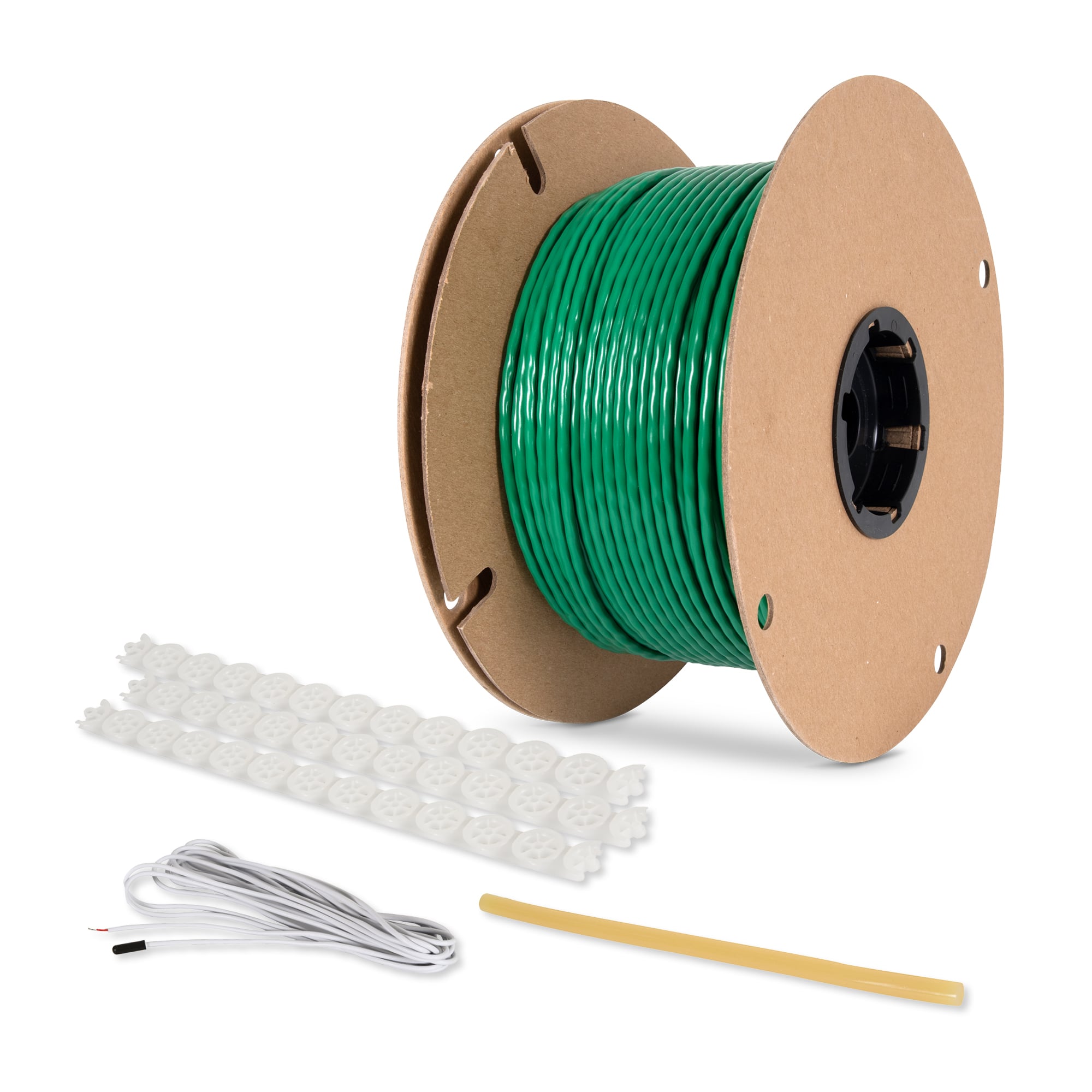

This FLEXTHERM In-Floor Heating Cable kit includes a Green Cable Surface XLTM, Universal Snap-In GaugesTM, hot glue sticks and a floor temperature sensor.
| Code | Description |
|---|---|
| HGSMD162 | STELPRO - UNCOUPLING MEMBRANE (ROLL OF 162 ft²) |
| HGSMD054 | STELPRO - UNCOUPLING MEMBRANE (ROLL OF 54 ft²) |
| HGSMDF | STELPRO - UNCOUPLING MEMBRANE (SHEET OF 8,9 ft²) |
| HGSGG | STELPRO - GAUGES FOR HEATING CABLE (PACK OF 20), INCLUDES GLUE STICK |
| FLS1240 | STELPRO - 10K THERMAL FLOOR SENSOR - 15 ft WIRE |
| FLG25 | STELPRO - HOT GLUE STICKS (25 UNITS) |
| FSK-03 | STELPRO - REPAIR KIT (FOR 1 SPLICE) - TWIN CONDUCTOR SURFACE CABLE (GS, HGS, CGS, CPS) |
