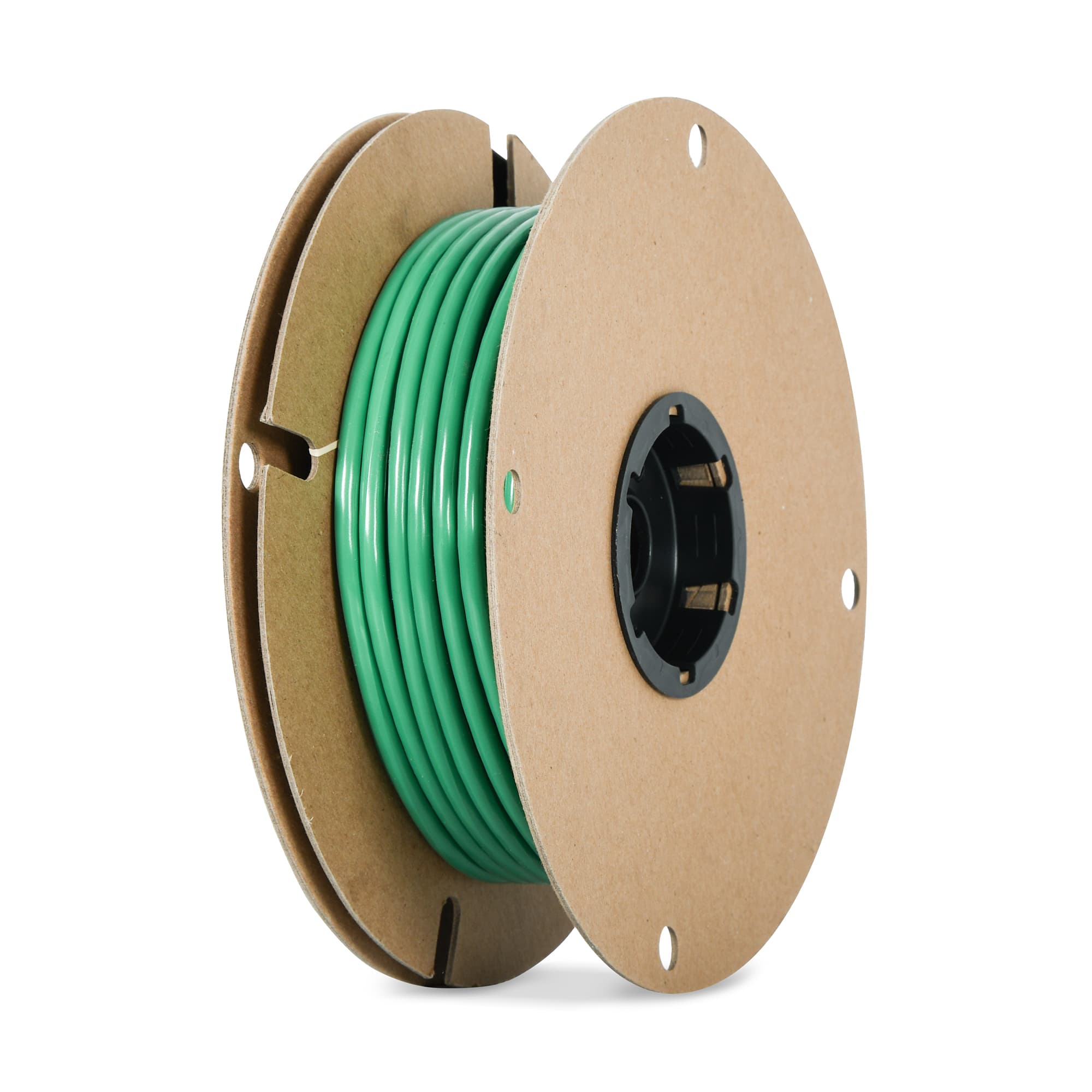

GC
A concrete solution

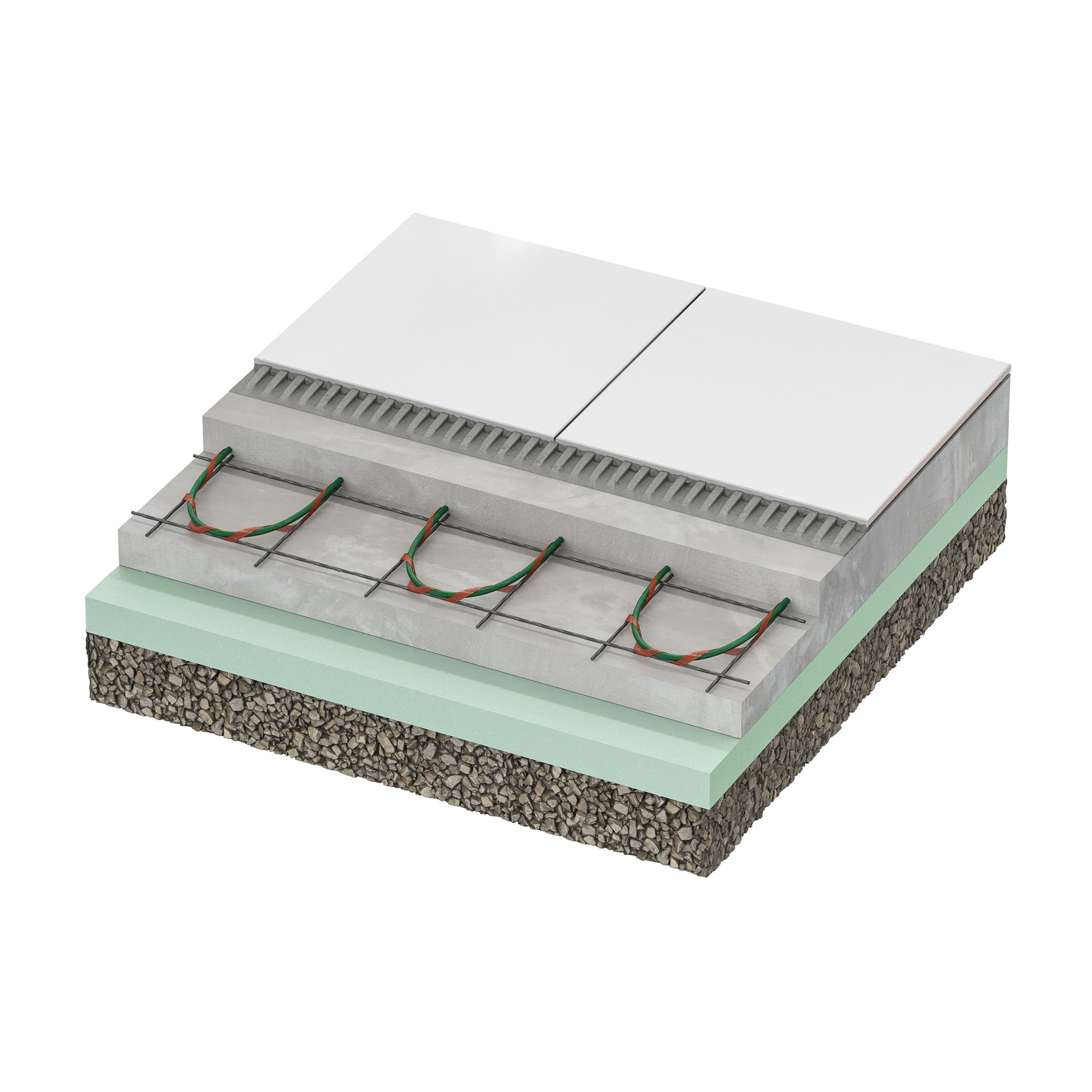

Installed directly on the concrete slab during construction, the Green Cable ConcreteTM ensures optimal and constant comfort. It uses the greater capacity of the concrete slab to store heat, which it then radiates more evenly and for longer.
Electronic thermostat for heated floor (sold separately)
Note: This product must be used with a ground fault circuit interrupter (GFCI) unless not required by the national or local code in the region where it is being installed.
* For more information about the types of floor coverings under which you can safely install a heating cable, we strongly recommend you contact the relevant floor covering manufacturers.
| Area heated (ft2) | |||||
|---|---|---|---|---|---|
| Part no. |
4 in 18 W/ft2 - 240 V 13,5 W/ft2 - 208 V |
6 in 12 W/ft2 - 240 V 9 W/ft2 - 208 V |
Wattage (W) 240 V / 208 V |
Amperage (A) 240 V / 208 V |
Length (ft) |
| GC240P0024 | 8 | 12 | 148/111 | 0,62/0,54 | 24 |
| GC240P0040 | 13 | 20 | 227/170 | 0,94/0,82 | 38 |
| GC240P0048 | 16 | 24 | 300/226 | 1,3/1,1 | 48 |
| GC240P0068 | 23 | 34 | 424/318 | 1,8/1,6 | 68 |
| GC240P0088 | 30 | 44 | 510/383 | 2,2/1,9 | 88 |
| GC240P0104 | 35 | 52 | 624/469 | 2,6/2,3 | 104 |
| GC240P0120 | 40 | 60 | 749/562 | 3,2/2,7 | 120 |
| GC240P0140 | 47 | 70 | 820/616 | 3,5/3,0 | 140 |
| GC240P0156 | 52 | 78 | 932/700 | 3,9/3,4 | 156 |
| GC240P0172 | 58 | 86 | 1043/784 | 4,4/3,8 | 172 |
| GC240P0200 | 67 | 100 | 1206/906 | 5,1/4,4 | 200 |
| GC240P0224 | 75 | 112 | 1370/1029 | 5,8/5,0 | 224 |
| GC240P0248 | 83 | 124 | 1497/1124 | 6,3/5,4 | 248 |
| GC240P0272 | 91 | 136 | 1654/1242 | 6,9/6,0 | 272 |
| GC240P0300 | 100 | 150 | 1839/1381 | 7,7/6,7 | 300 |
| GC240P0324 | 108 | 162 | 1956/1469 | 8,2/7,1 | 324 |
| GC240P0372 | 124 | 186 | 2246/1687 | 9,4/8,1 | 372 |
| GC240P0391 | 131 | 196 | 2265/1701 | 9,5/8,2 | 391 |
| GC240P0428 | 143 | 214 | 2726/2048 | 11,4/9,9 | 428 |
| GC240P0492 | 164 | 246 | 2871/2157 | 12,0/10,4 | 492 |
| GC240P0552 | 184 | 276 | 3144/2362 | 13,1/11,4 | 552 |
| GC240P0600 | 202 | 302 | 3569/2684 | 14,9/12,9 | 604 |
Accessories
| Code | Description |
| FLS1240 | STELPRO - Thermal floor sensor (10K) - 4.6 m (15 ft) wire |
| FLS1250 | STELPRO - 10K Thermal floor sensor for concrete (includes conduit) - 10 ft wire |
| FLS1260T | STELPRO - Conduit for thermal sensor (concrete burial) - 9 ft |
| FSK-05 | STELPRO - Repair kit (for 1 splice) - Embeded in concrete cable and mat (GC, TC) |
