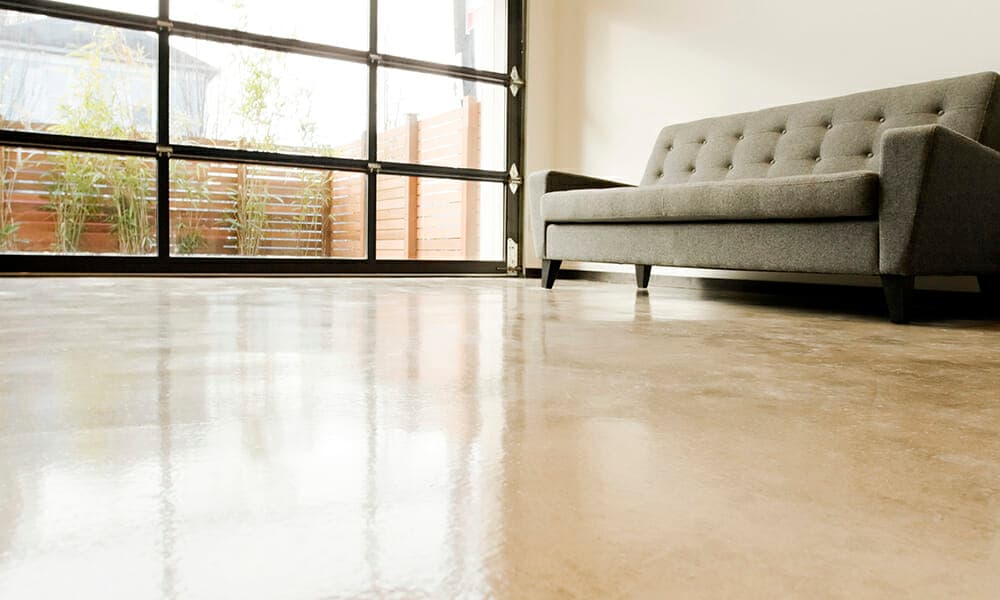

SECM | AMBIANCE

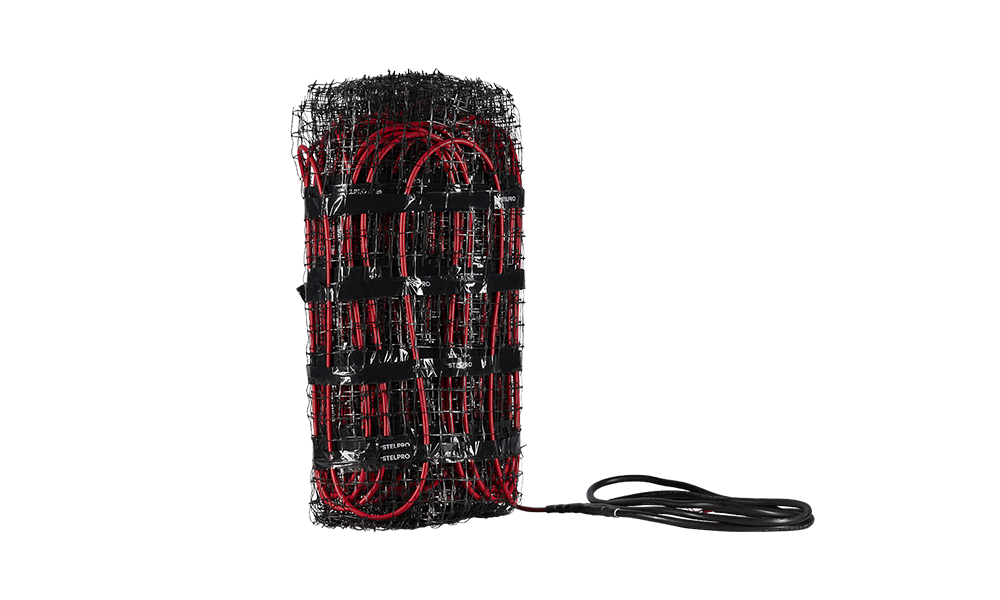

SECM | FACE

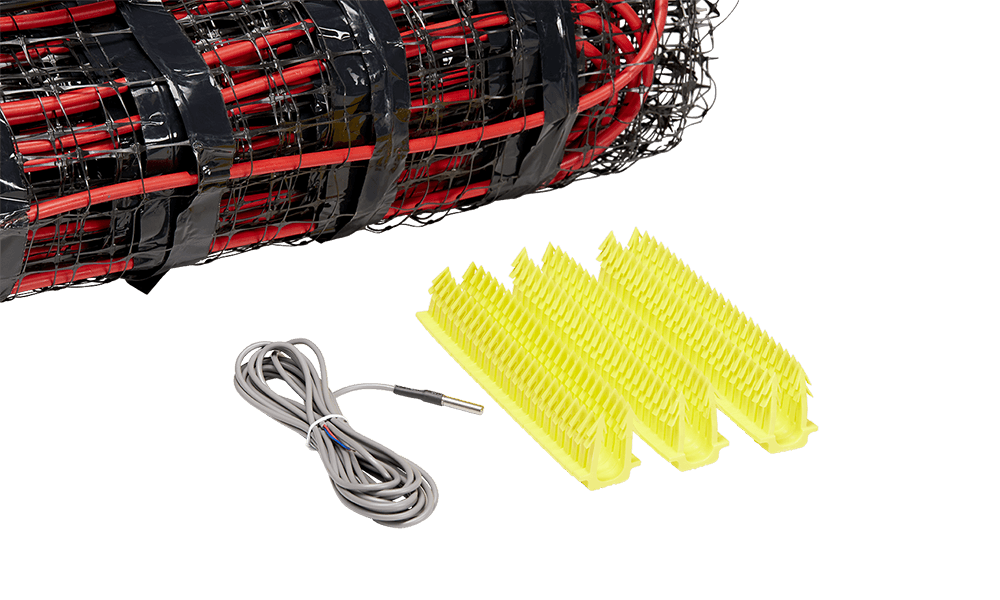

SECM | KIT
Discontinued

SECM

Heating Cable on Lattice for Concrete

Optimal and even heat!

The SECM heating cable is more economical and easier to install than a hydronic floor system. Not only is it perfectly suited to your residential and commercial construction projects, but it also requires no maintenance. Talk about a concrete solution!

Use cases

  • Interior Use

Rooms

  • Garage
  • Basement
  • Dining Room
  • Living Room

Characteristics

Advantages
  • Simpler to install and use than a hydronic system
  • Heat concrete slabs without liquid and or a pump
  • Poured in concrete: does not add thickness to the floor’s surface
  • Increased thermal mass: higher heat build-up
MANUFACTURING
  • Double conductor heating cable fastened to a plastic lattice with negligible magnetic emissions
  • 24 in. wide lattice available in several lengths
  • 9 ft cold lead included
WATTAGE
  • 12 W/ft2 (at 240 V)
  • 9 W/ft2 (at 208 V)
CONTROL
  • Electronic thermostat for heatedfloor (optional floor sensor included with thermostat)

Note: This product must be used with a ground fault circuit interrupter (GFCI) unless this is not required by the national or local code in the region where it is being installed.

INSTALLATION
  • Never cut the cable
  • For indoor residential and commercial applications only
  • Can be installed under a 4 to 6 in. concrete slab or under a 1.5 to 4 in. concrete floor covering
  • Compatible with most floor coverings*
  • Can be installed with or without a metal frame for reinforced concrete
  • Supplied materials: plastic floor staples, 15 ft floor sensor, warranty card and electrical panel label
WARRANTY
  • Twenty years

* For more information about the types of floor coverings under which you can safely install a heating cable, we strongly recommend you contact the relevant floor covering manufacturers.



Documents

SECM

Repair procedure guide

PDF

Download (opens in a new tab)

SECM

TH115 (12 VDC) guide

PDF

Download (opens in a new tab)

SECM

CT230-GA/CT230-GB guide

PDF

Download (opens in a new tab)

SECM

Installation guide

PDF

Download (opens in a new tab)
