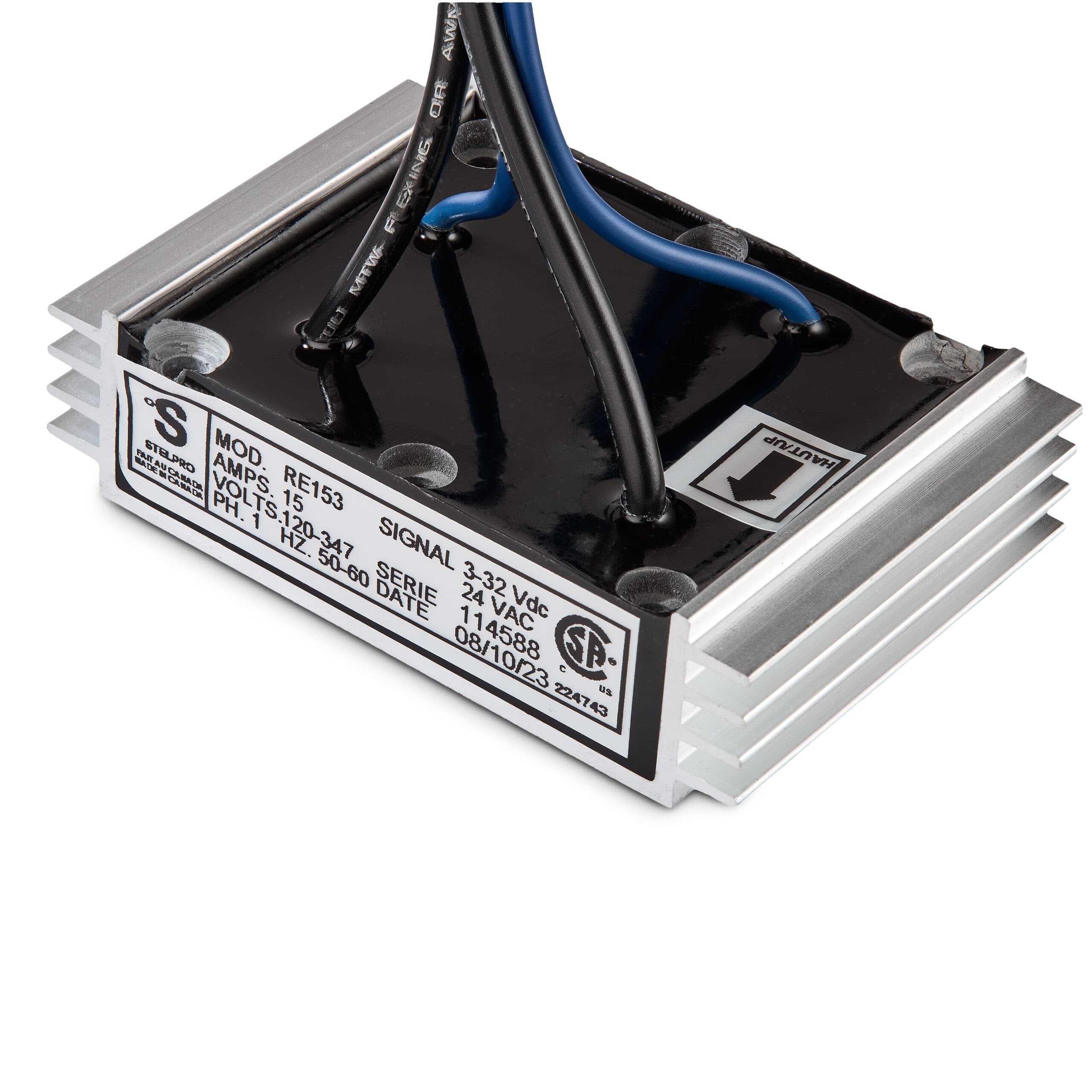

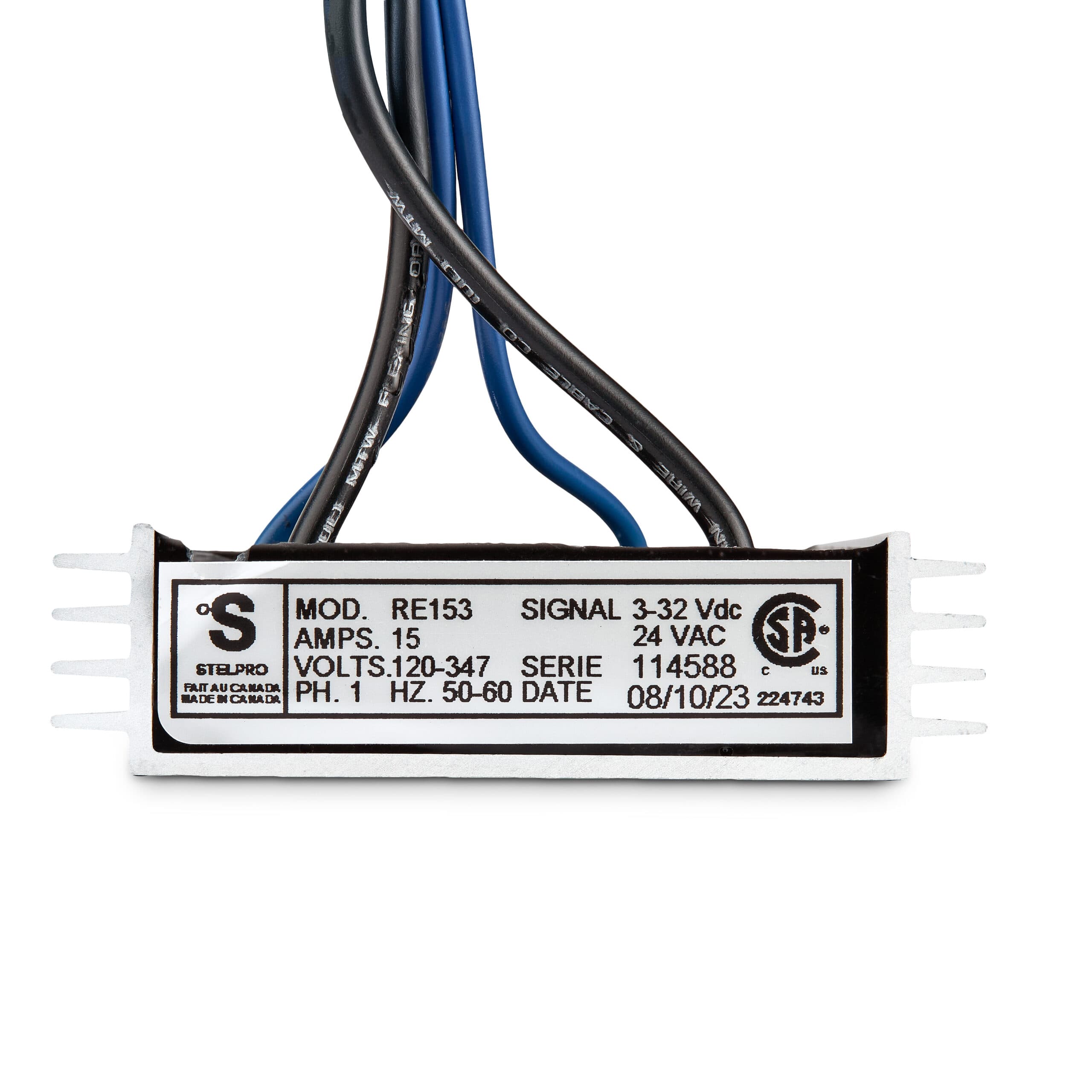

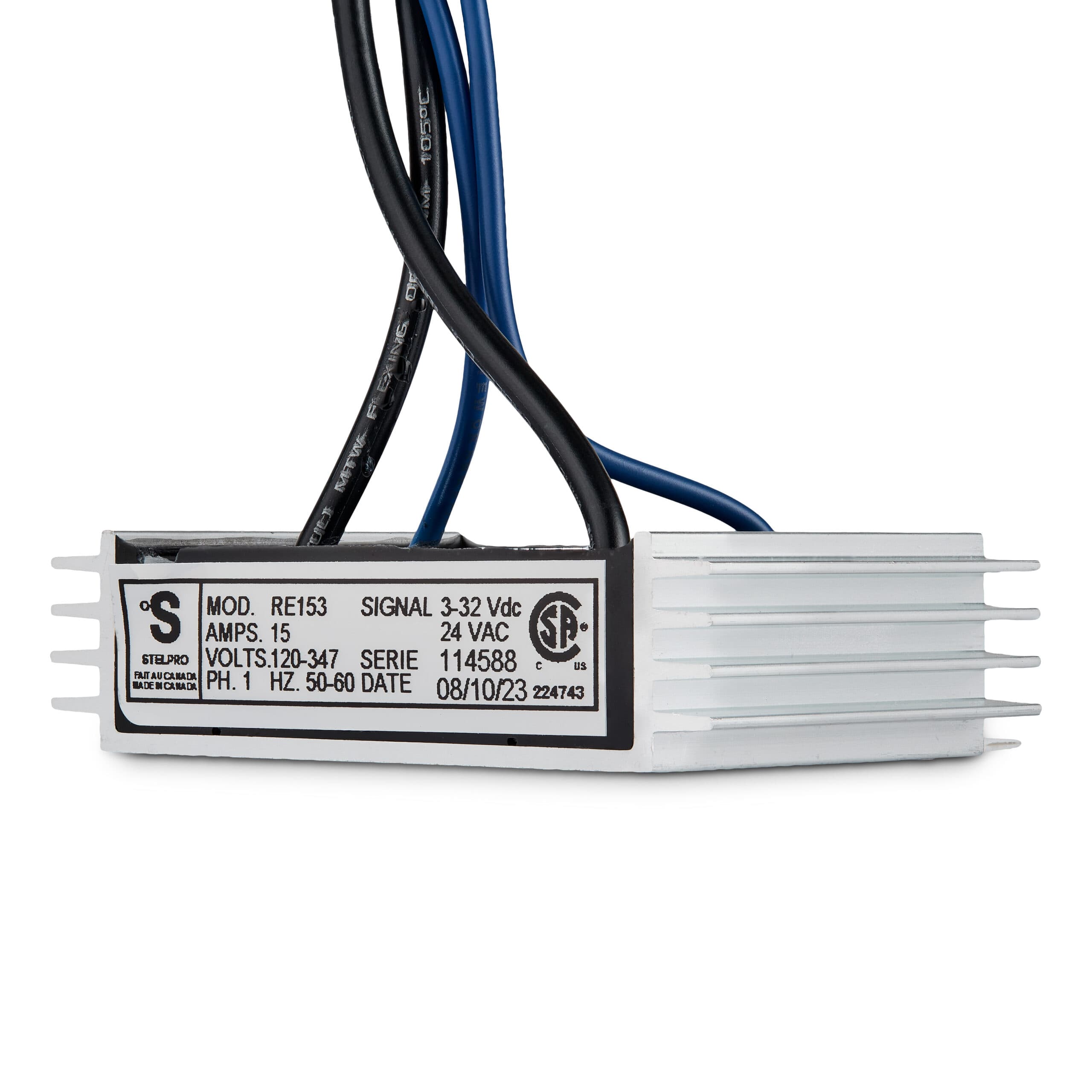

RE153-RE153T-RE156

Low Voltage Smaller-Sized Electronic Relays

Due to their small size, they can be fitted in a heating unit’s junction box. A variety of models are available to meet your needs.

Characteristics

Advantages
  • With transformer (RE153T)
  • Compatible with STE241, T822K1018U and T87K1007U thermostats
  • Compact size
  • 3 to 32 VDC pulse or all or nothing (ON/OFF) signal
  • Delivers more precise temperature control when paired with the right thermostat
CONTROL
  • Pulsed signal (PWM) or all or nothing (on/off) at 24 Vac, 3-32 Vdc signal
  • With a transformer (RE153T)
  • Compatible with the STE241, T822K1018U and T87K1007U thermostats
  • Two additional relays without transformers can be added to the same control circuit as a relay with a transformer
  • Installing more than four relays without transformers to the same thermostat is not recommended

INSTALLATION
  • The relays must be installed inside the junction box of the heating unit
WARRANTY
  • Three years





Documents

RE153-RE153T-RE156

Specsheet

PDF

Download (opens in a new tab)

RE153-RE153T-RE156

Installation guide

PDF

Download (opens in a new tab)

RE153-RE153T-RE156

Shop drawings RE153

ZIP

Download (opens in a new tab)

RE153-RE153T-RE156

Shop drawings RE153T

ZIP

Download (opens in a new tab)

RE153-RE153T-RE156

Shop drawings RE156

ZIP

Download (opens in a new tab)

Related Products

  • R841

    Low Voltage Electromechanical Relay

  • RE253C-RE253T-RE306C

    Low Voltage Electronic Relays

  • RM120T-RM240T-RM277T-RM347C-RM347T

    Low Voltage Electromechanical Relays

Specifications
