MUAA

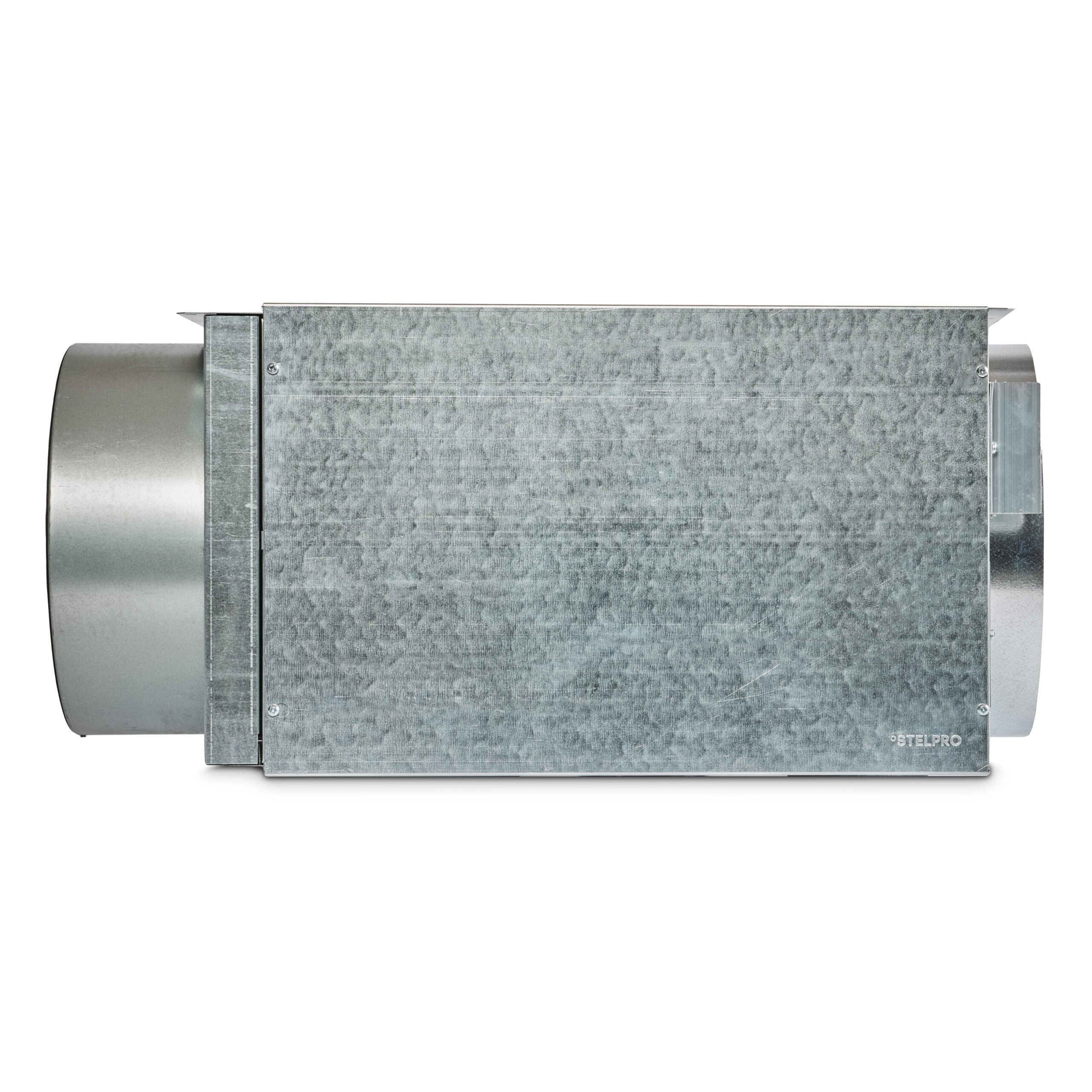

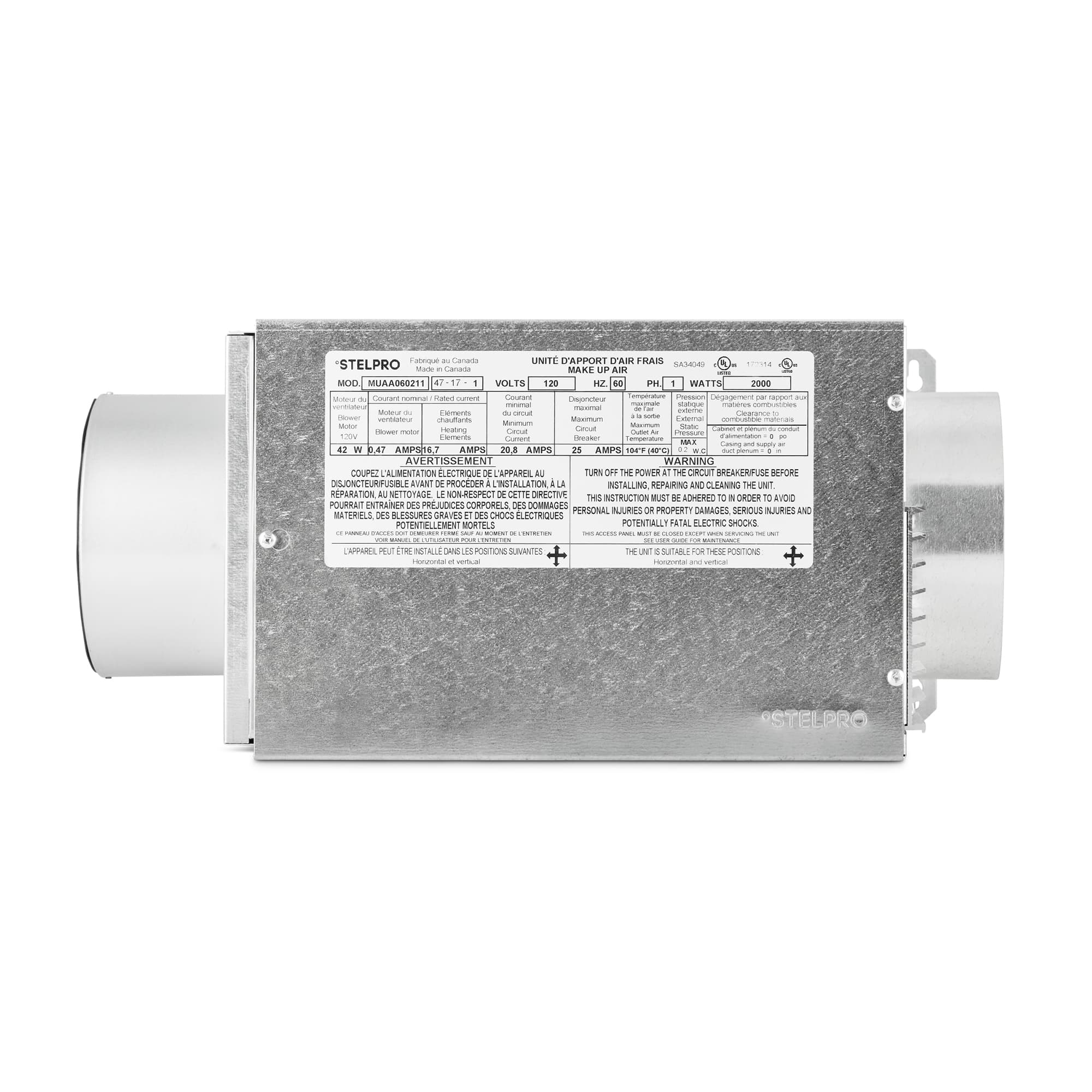

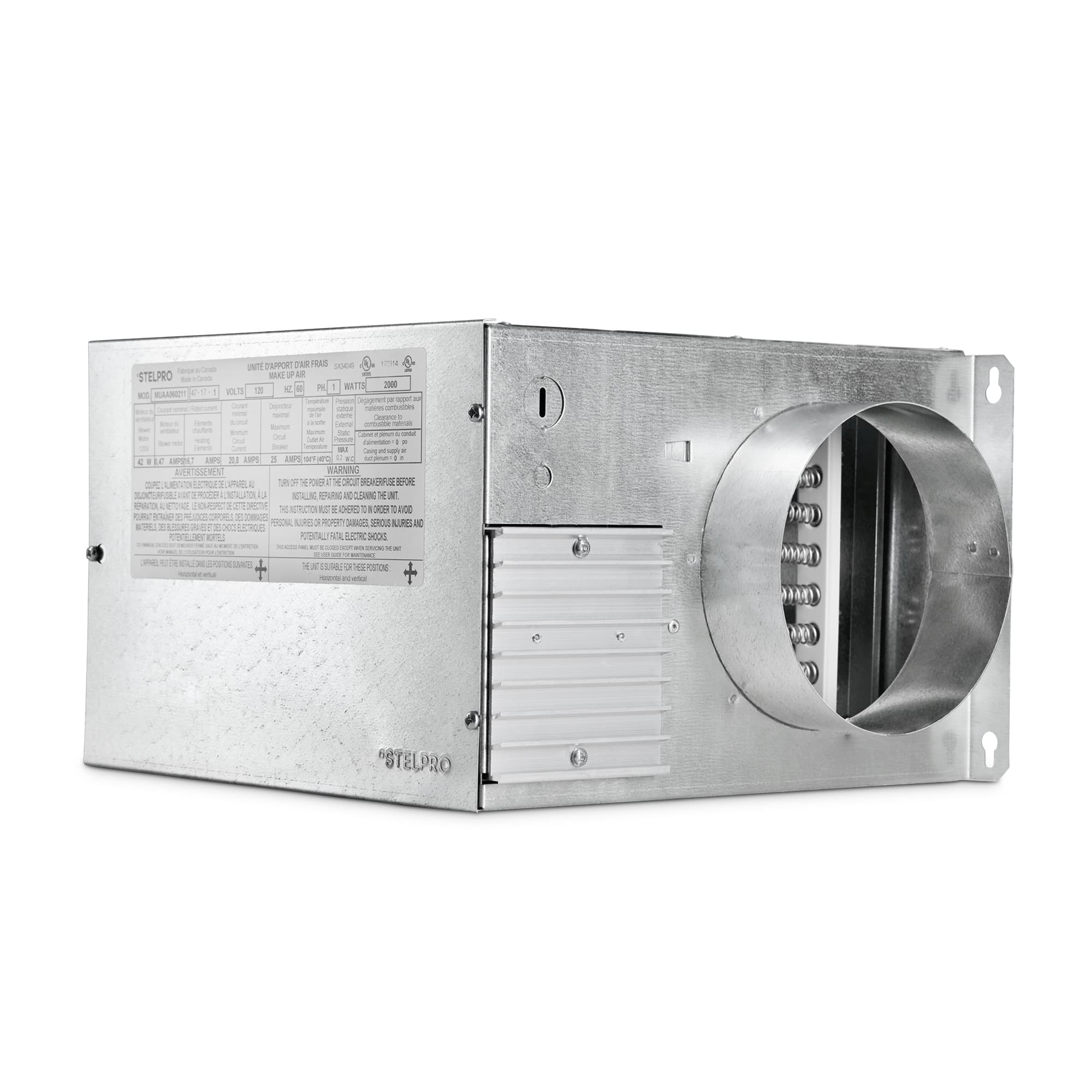

Make-Up Air Unit

A literal breath of fresh air

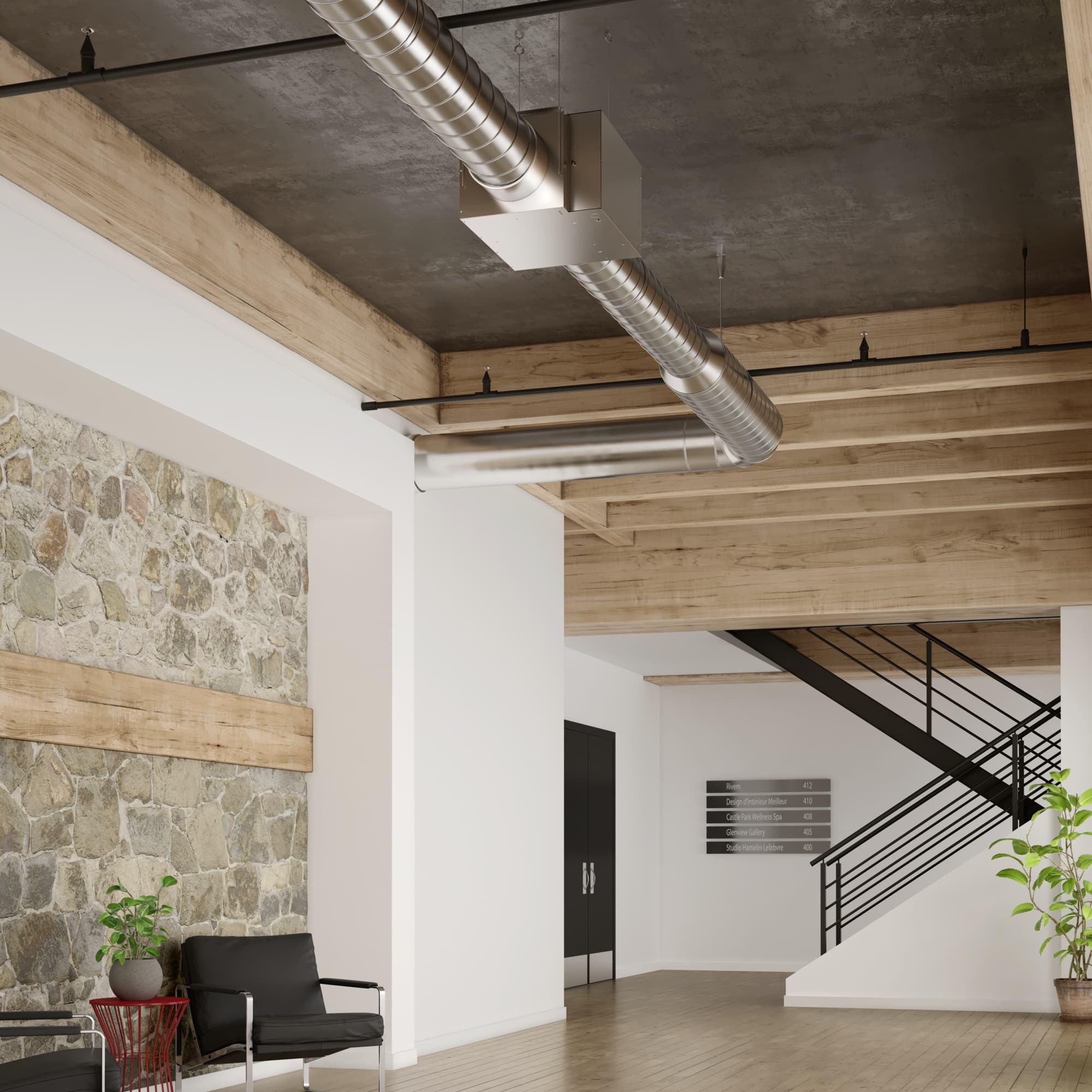

This unit delivers temperate fresh air and ensures a well-ventilated, comfortable home for occupants. Its continuously modulating heating elements allow the unit to heat fresh air at a lower cost. Compact and flexible, the MUAA can be installed in a variety of positions (vertical, horizontal, up or down) and can also be installed in confined spaces. This efficient unit meets indoor air quality (IAQ) standards.

Characteristics

Advantages
  • The most compact and lightweight unit on the market
  • Can be installed in a variety of positions
  • Easy to install thanks to its built-in temperature sensor
  • Easy access to electrical and mechanical components
FINISH
  • 22-gauge galvanized steel cabinet resistant to corrosion
MANUFACTURING
  • Removable electric elements with automatic thermal protection
  • Manual thermal protection
  • Built-in temperature sensor
  • Spring backdraft damper with gasket

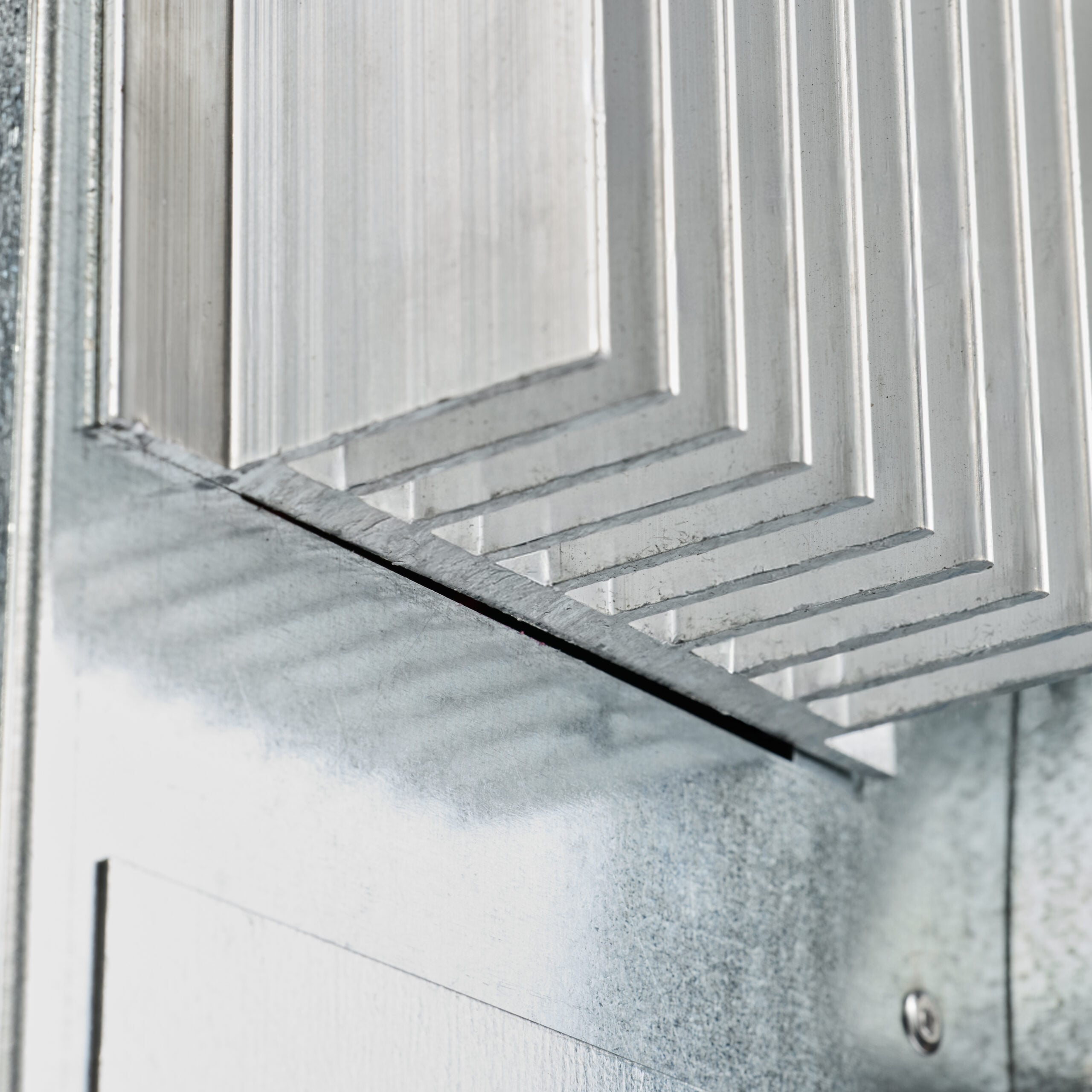

  • Easily accessible, washable aluminum filter
ELEMENTS

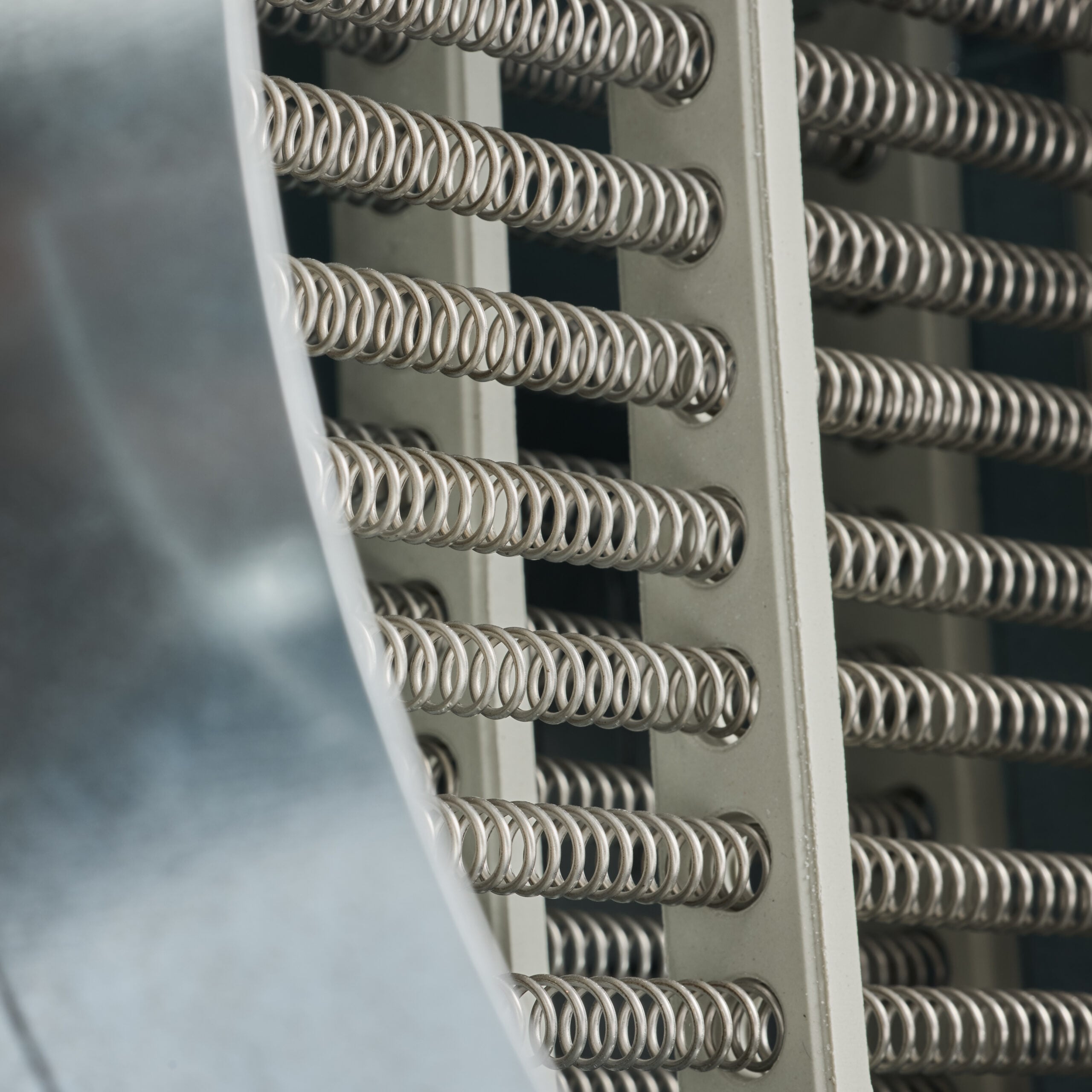

  • Open, nichrome elements
  • Modulation of the elements by the SCR technology to maintain a constant temperature using only the required energy

CONTROL
  • Wall control (MUAA06 120V-1P and 240/208V-1P models)
  • Terminal strip for exhaust fan (MUAA06 120V-1P and 240/208V1P models)
  • Current switch to synchronize with activation of an exhaust fan (other models)

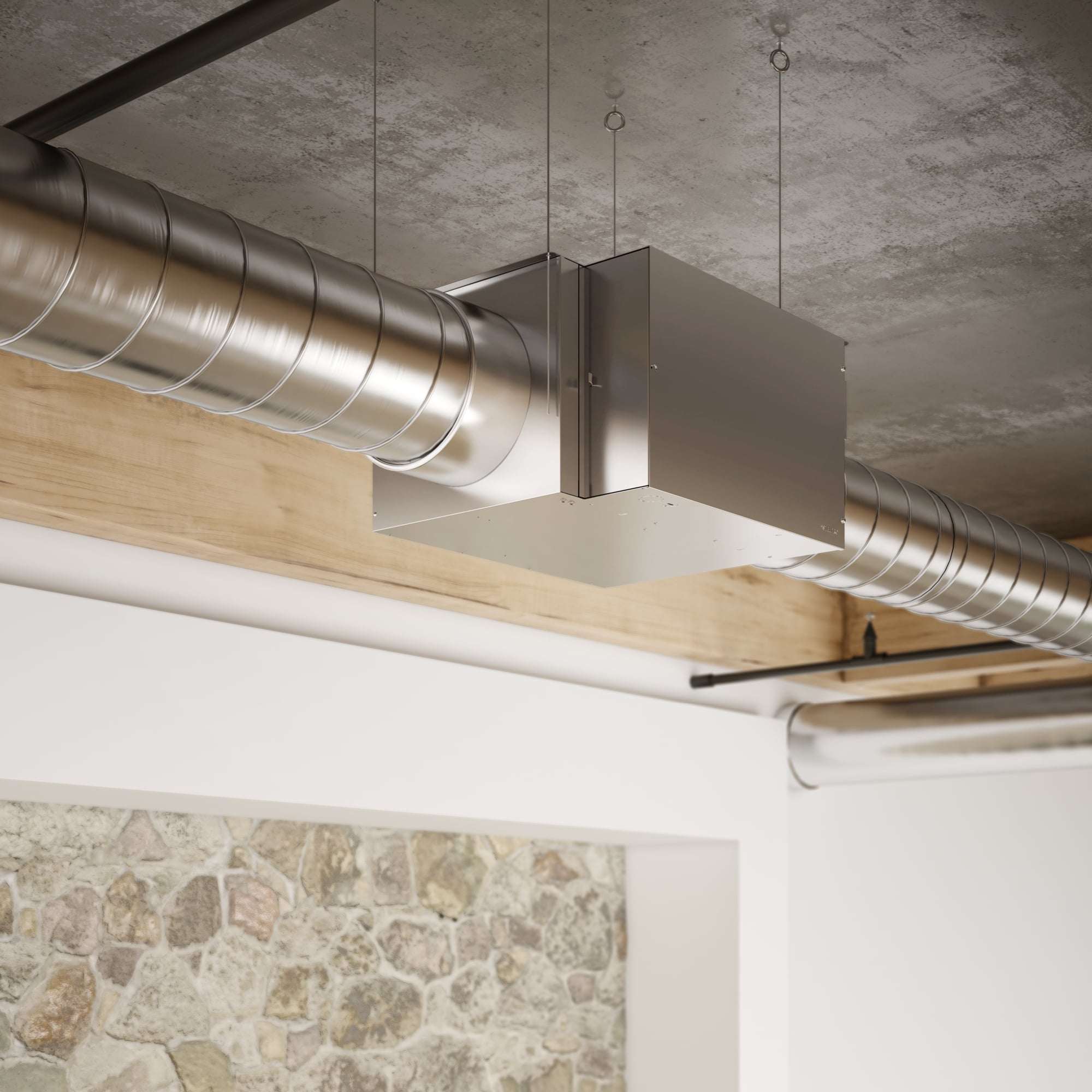

INSTALLATION
  • 6 in. to 12 in. round duct
  • Horizontal air flow for all models
  • Vertical air upflow or downflow on 6 in. to 10 in. models only
  • “Zero inch” clearance from flammable materials
WARRANTY
  • Three years, five years on elements
