Characteristics

Advantages

• Specially designed to meet farm building standards
• Corrosion and moisture resistant: sealed, lifetime lubricated bearing motor and sealed nema-4x housing
• Low-density element keeps the unit’s temperature low
• Fan-only switch
• Easy to install

COLOR

• Charcoal

FINISH

• Satin coat steel cabinet, coated with a high-quality epoxy powder paint making it 10 times more resistant to corrosion

MANUFACTURING

• Robust, 18-gauge satin coat steel cabinet
• NEMA 4X watertight control enclosure made of recyclable polypropylene
• Front-facing louvers set at 45° for optimal heat flow and safety wire mesh
• Thermal protection with manual or automatic reset
• Pilot light indicates when thermal protection has been activated

MOTOR

• Lubricated for life and totally enclosed ball-bearing motor

CERTIFICATIONS

• CSA C22.2 46, UL2021
• Corrosion requirements CSA C22.2 94
• Hose-down requirements CSA C22.2 No.94.2

ELEMENT

• Nickel-plated and sealed with silicone to prevent corrosion
• Enclosed low density element without fins helps to keep cabinet temperature lower than that of a conventional heater

FAN

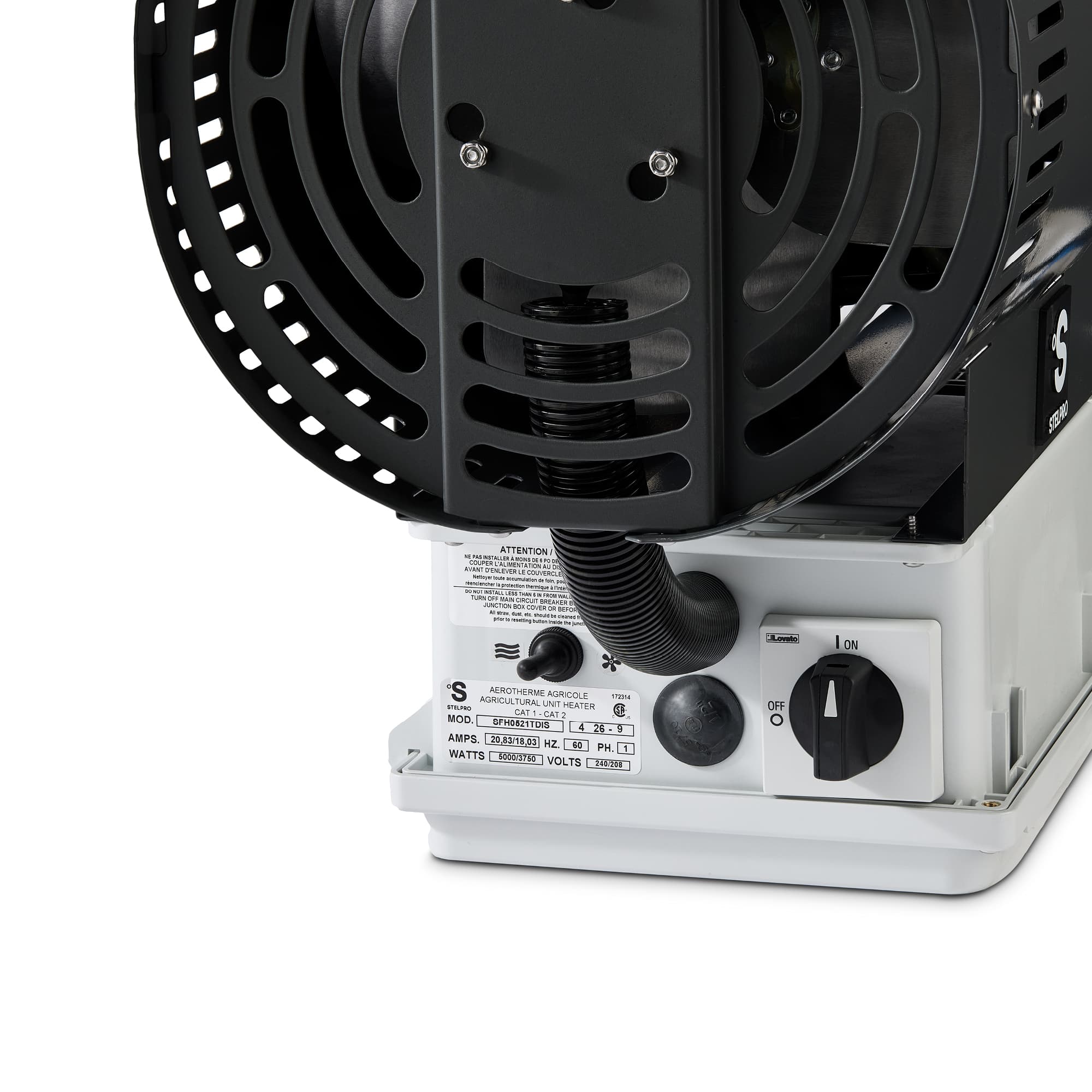

• Switch allows the unit to operate as a FAN only
• Fan delay allows the unit to cool down before shutting off

CONTROL

• Double pole built-in thermostat (T model)
• Wall thermostat compatible with device and its environment (not included)

INSTALLATION

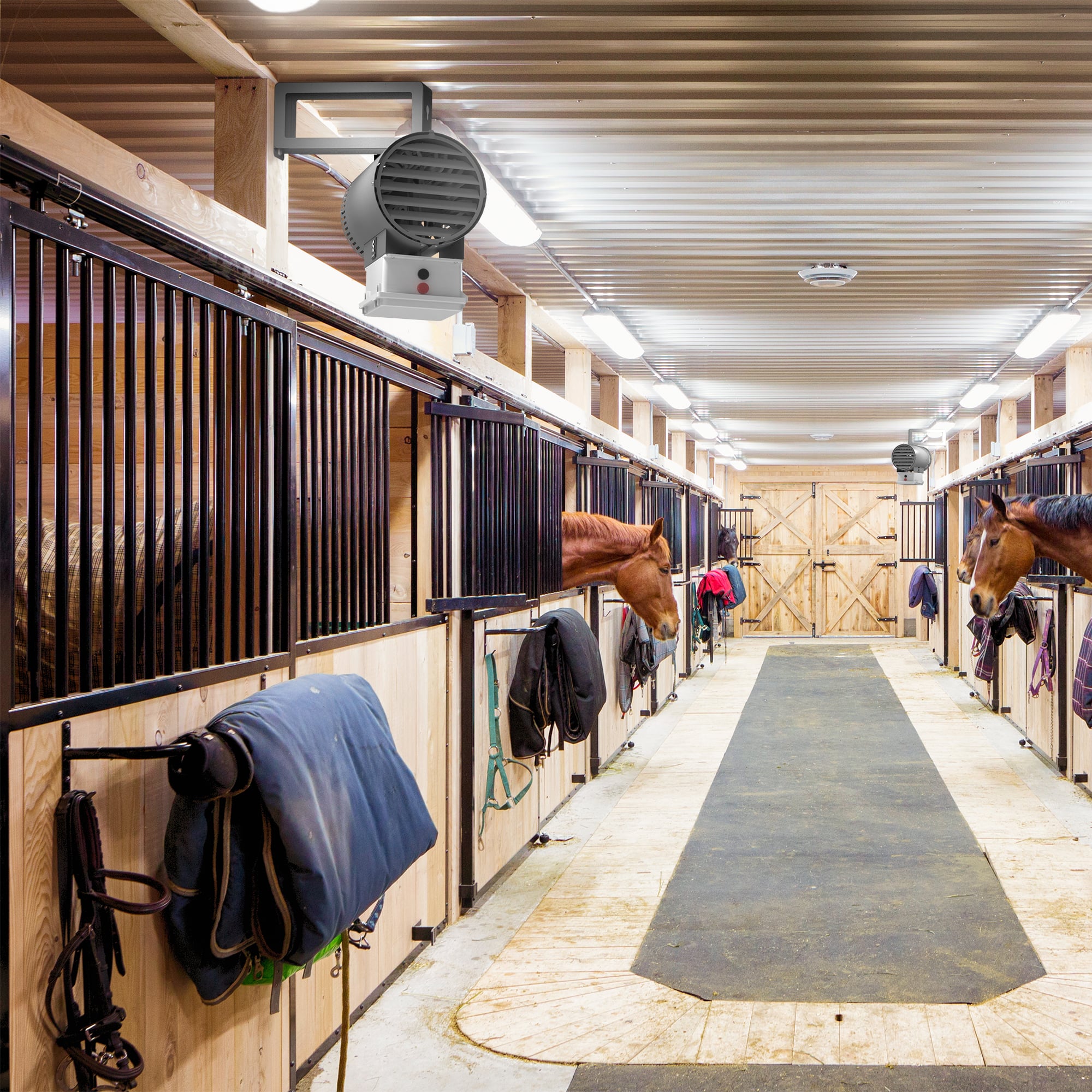

• Wall or ceiling at least 6 feet (1.8 m) and up to 10 feet (3 m) from the ground with universal mounting bracket (included)

WARRANTY

• Three years
