Characteristics

Advantages

• Compact and efficientUp to 25% shorter than a traditional baseboard

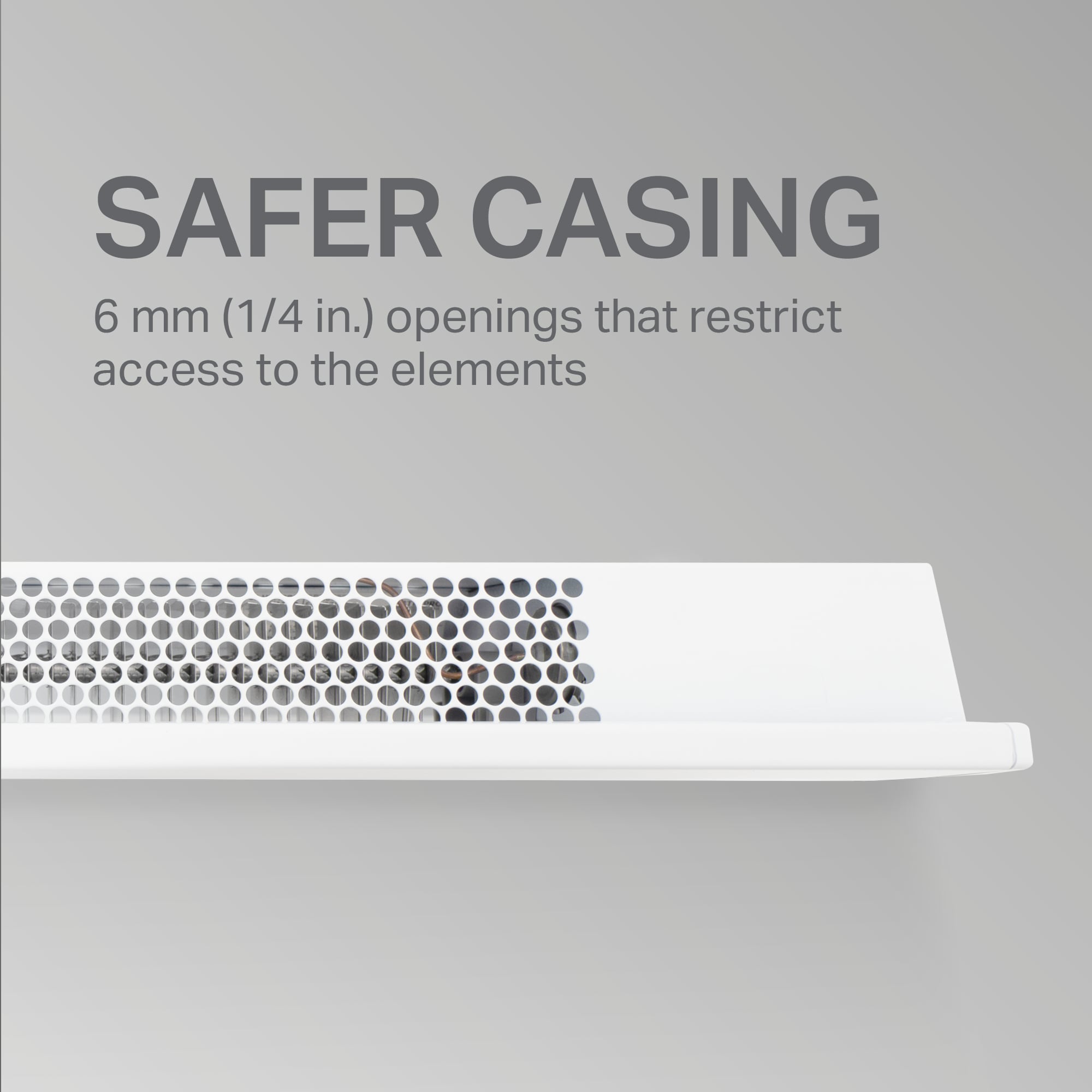

• Safer casing6 mm (1/4 in.) openings that restrict access to the elements

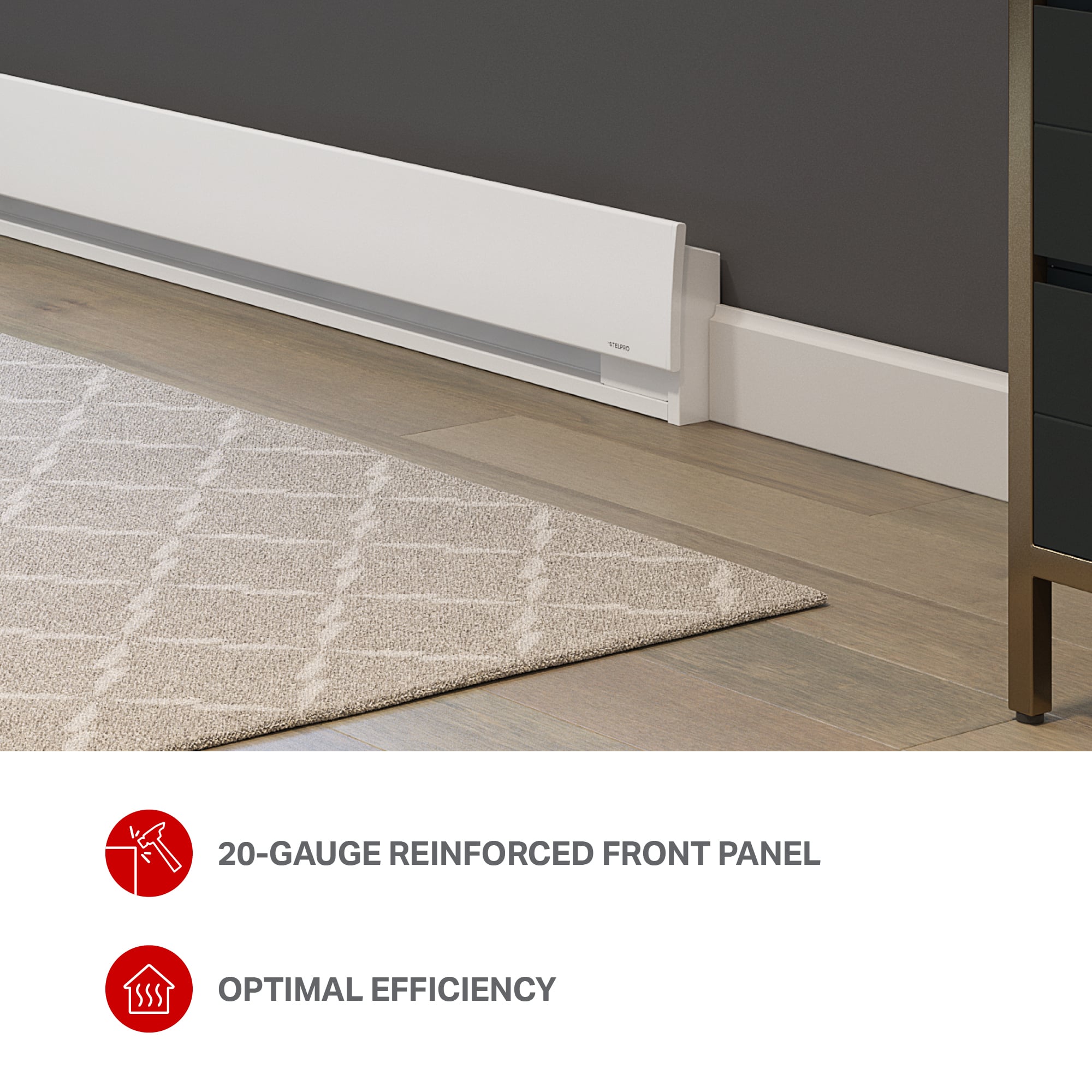

• Impact resistantReinforced front panel

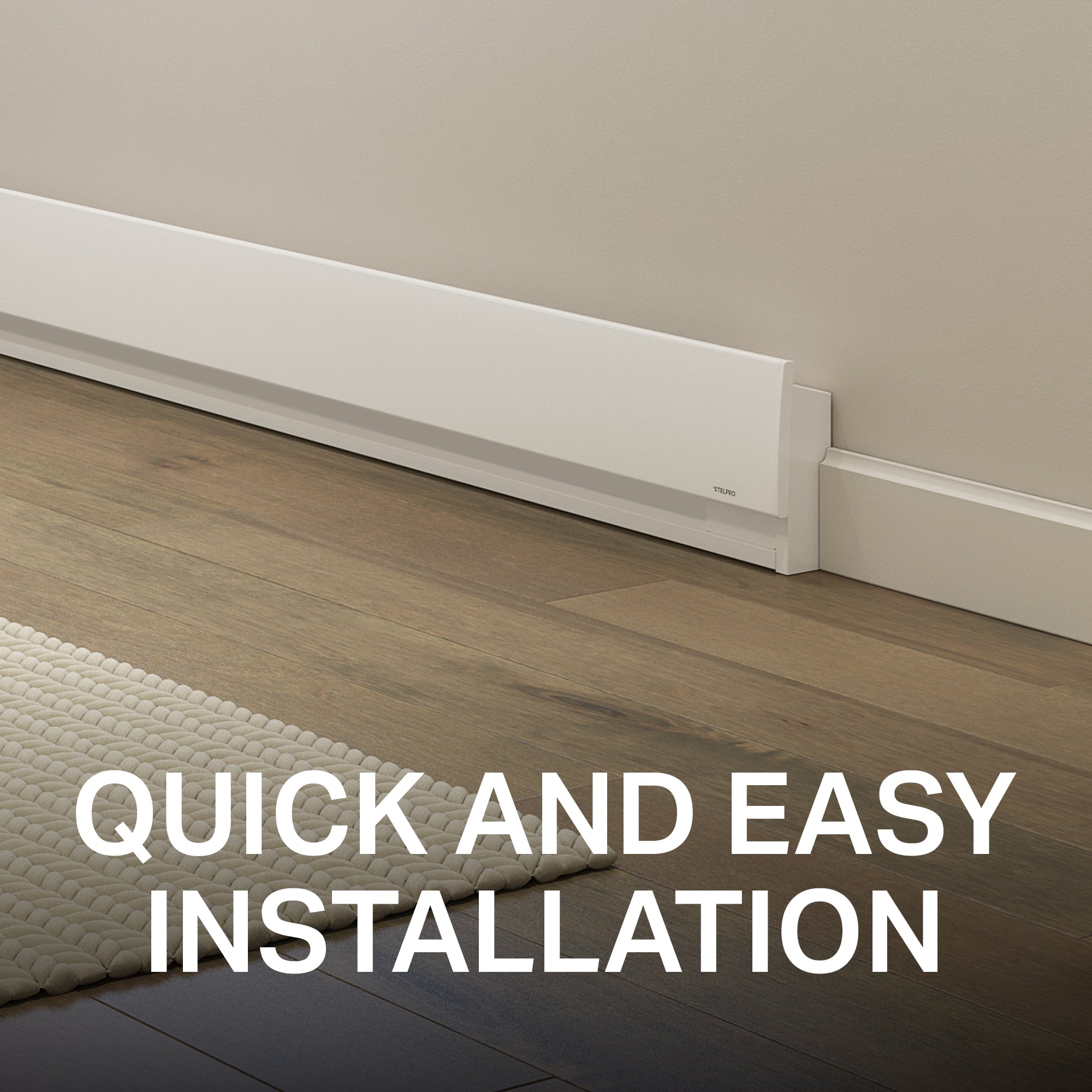

• Quick and easy installationVisual references for easy wall mounting
• Easy to cleanTwo-click detachable front panel

Colors

• Standard: white
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat

Manufacturing

• 22-gauge annealed galvanized steel housing and 20-gauge onepiece front panel that can support 99.8 kg (220 lbs) at the centre
• Full-length thermal protection with automatic reset
• Discreet air inlet; air exits from the top for maximum air circulation
• Full-length wireway

Element

Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises during heat cycles

Control

• Wall thermostat (not included) – use of a Stelpro electronic thermostat is strongly recommended
• Built-in single pole electronic thermostat that can be installed in the right or left junction box (optional)
• Low voltage relay kit and disconnect switch (optional)

Installation

• Surface mounted
• Connection compartment at each end
• knockouts of the BX and clamps for the NMD cables located at each end, at the back and under the unit
• Oblong mounting holes at 1-inch intervals (top and bottom) and marks every 8 inches to locate studs

Warranty

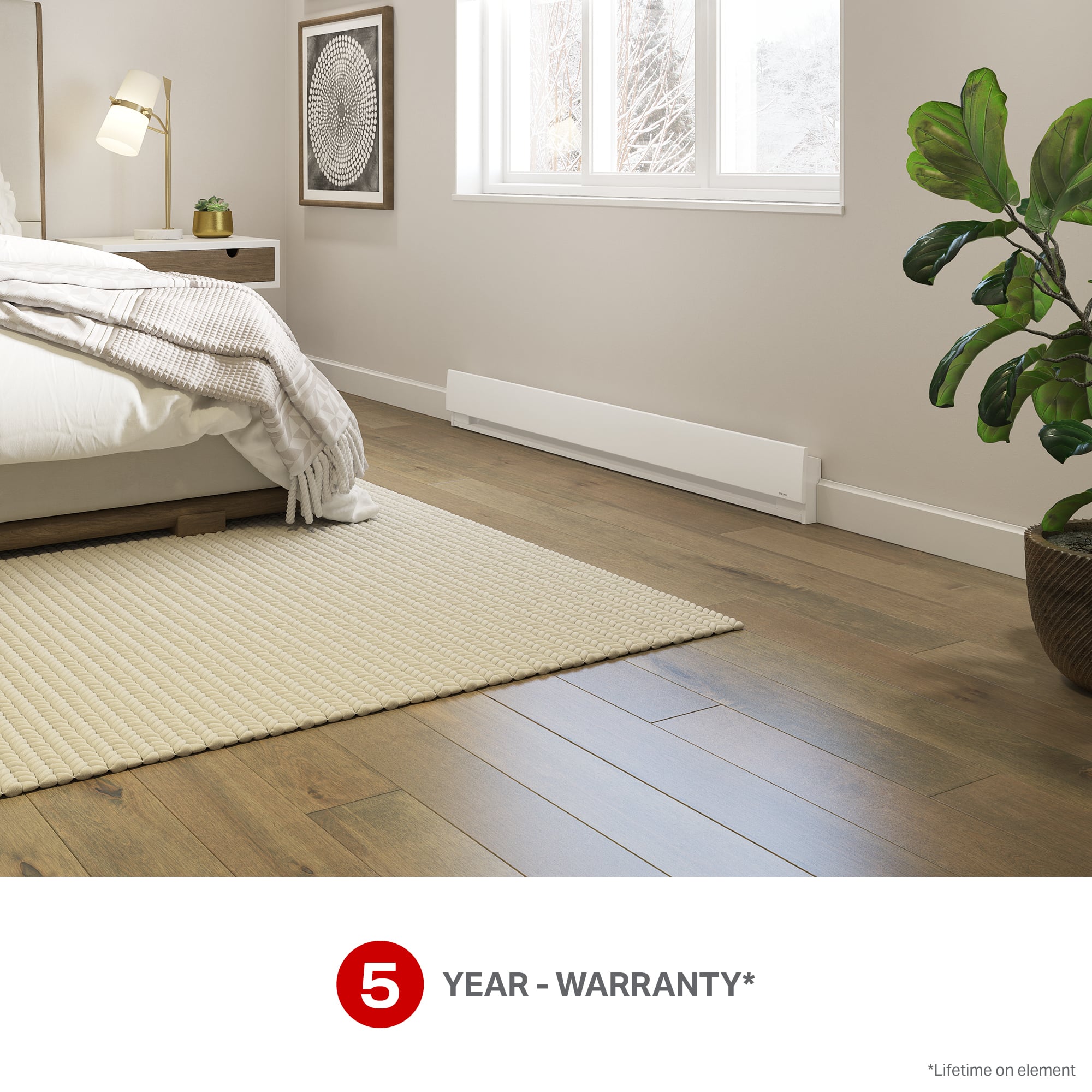

• Five years, *three years on electronic components and lifetime warranty on heating element (for original owner)
