SEPB

Single Zone Ductless Heat Pump

Easy to install, even easier to love

The Pro-B ductless mini-split pump offers A+++ performance, combining energy efficiency and low consumption for optimal heating and cooling. Its ionizer and high-density filter ensure exceptional air quality. With its compact design and flexible installation, it’s the ideal solution for various spaces.

Spaces

  • Commercial Space
  • Restaurant
  • Office

Characteristics

ADVANTAGES
  • New R-454B high-performance gas
  • Greater security thanks to new gas leak sensor
  • New technology and machine design — Meet high energy efficiency standards
  • 5 operation modes — Cooling, heating, dehumidifying, fan and auto
  • Easy-to-clean indoor unit filter — To ensure unmatched air quality
  • Eligible for utilities rebates
NOMINAL CAPACITY
  • 9,000, 12,000, 18,000, 24,000 BTU/hr
VOLTAGE
  • 230/208V, 60 Hz, 1-phase
MANUFACTURING

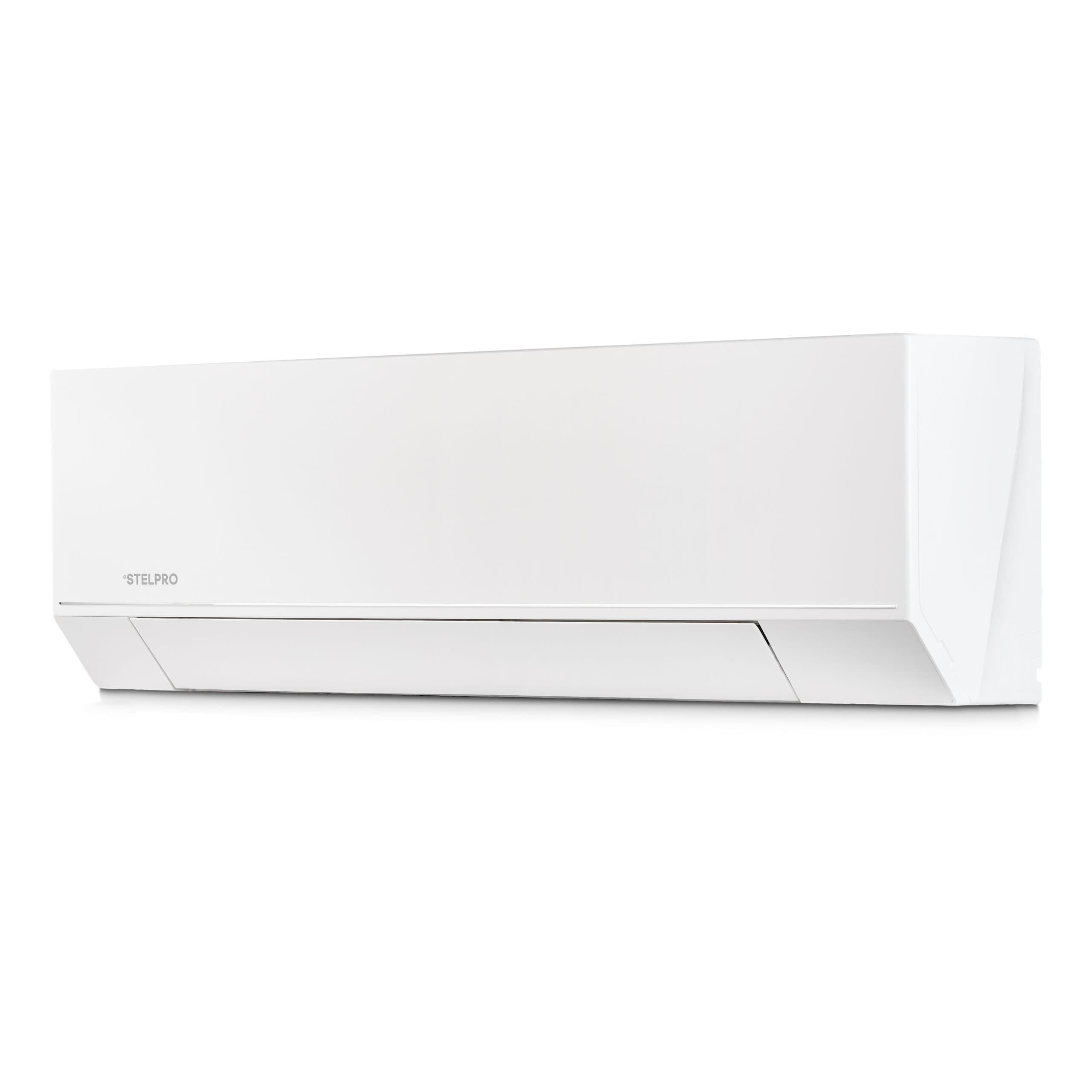

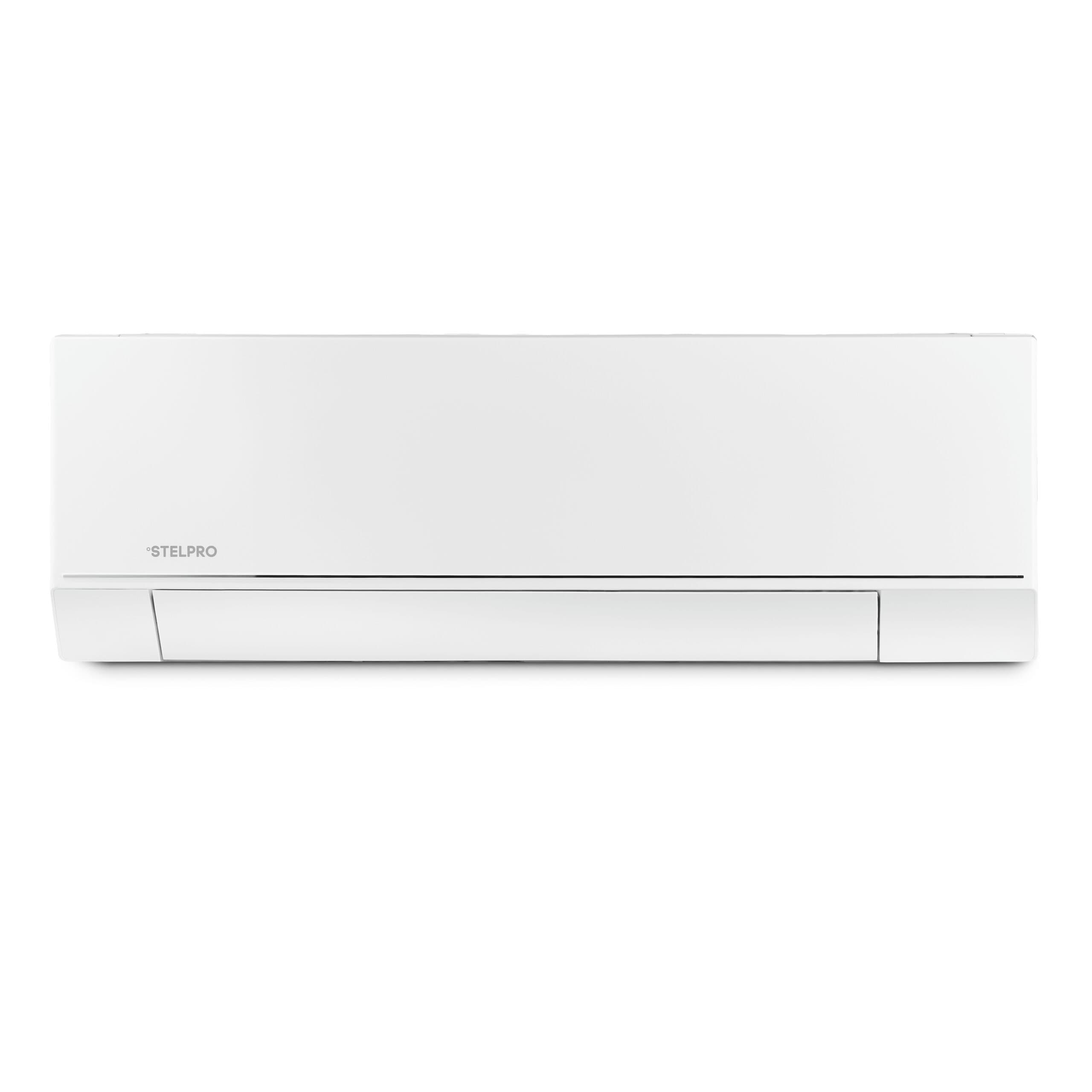

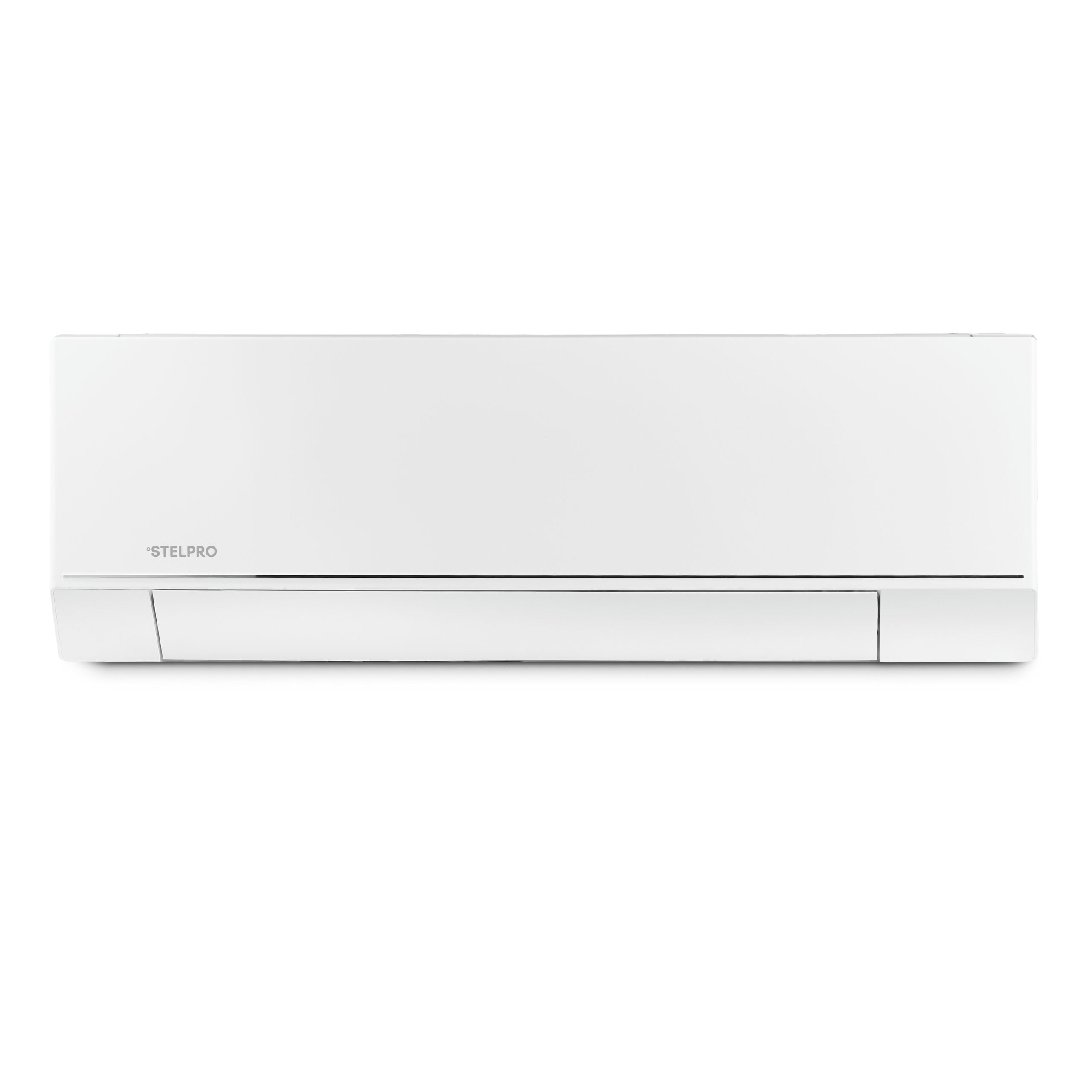

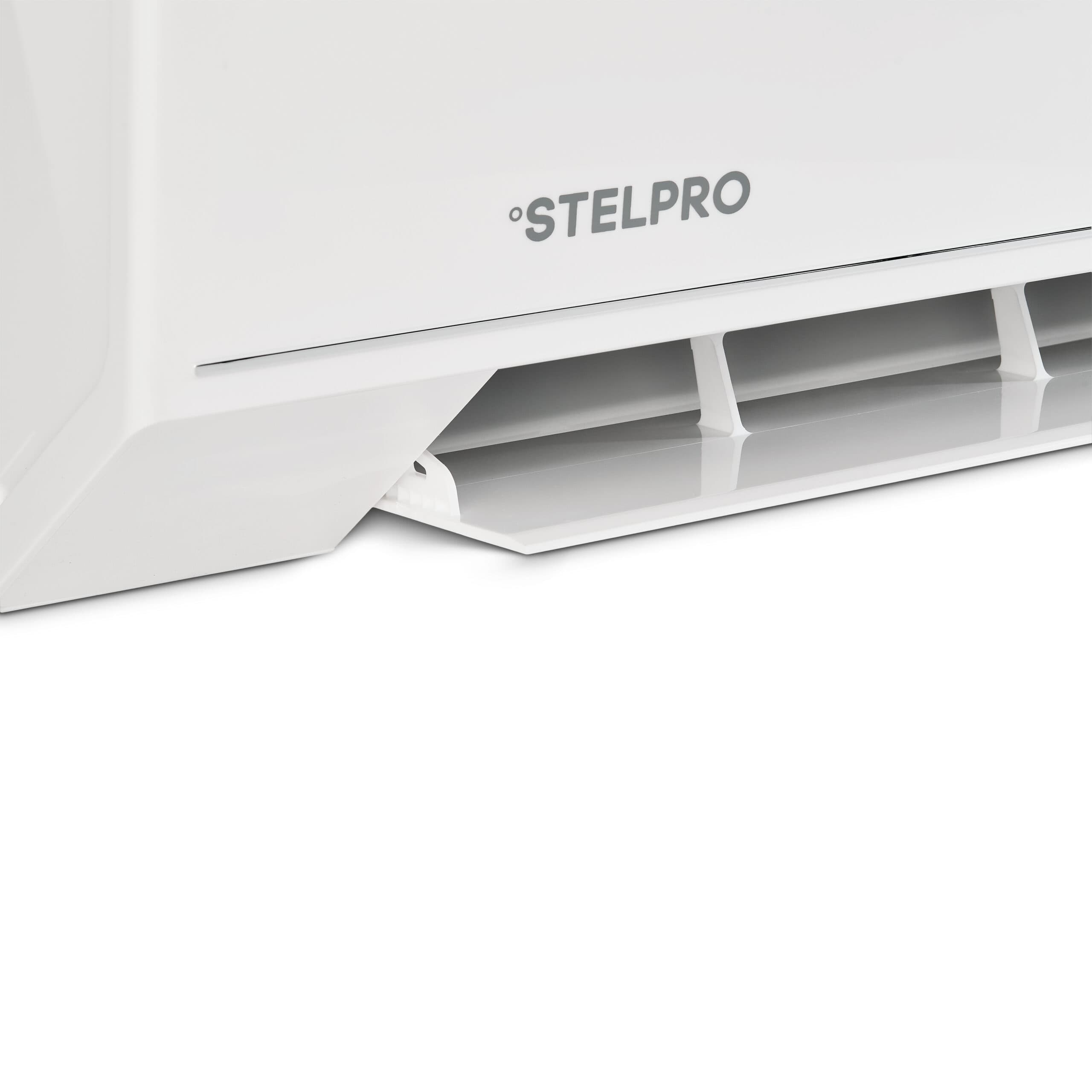

Indoor unit

  • Plastic housing, standard white
  • Cross-flow fan with 4 selectable speed and 2 operation modes (auto and silence). The fan speed can be set between 0% and 100%
  • Evaporator fins covered with hydrophilic coating for improved corrosion resistance
  • Washable filters with magnetic fastener

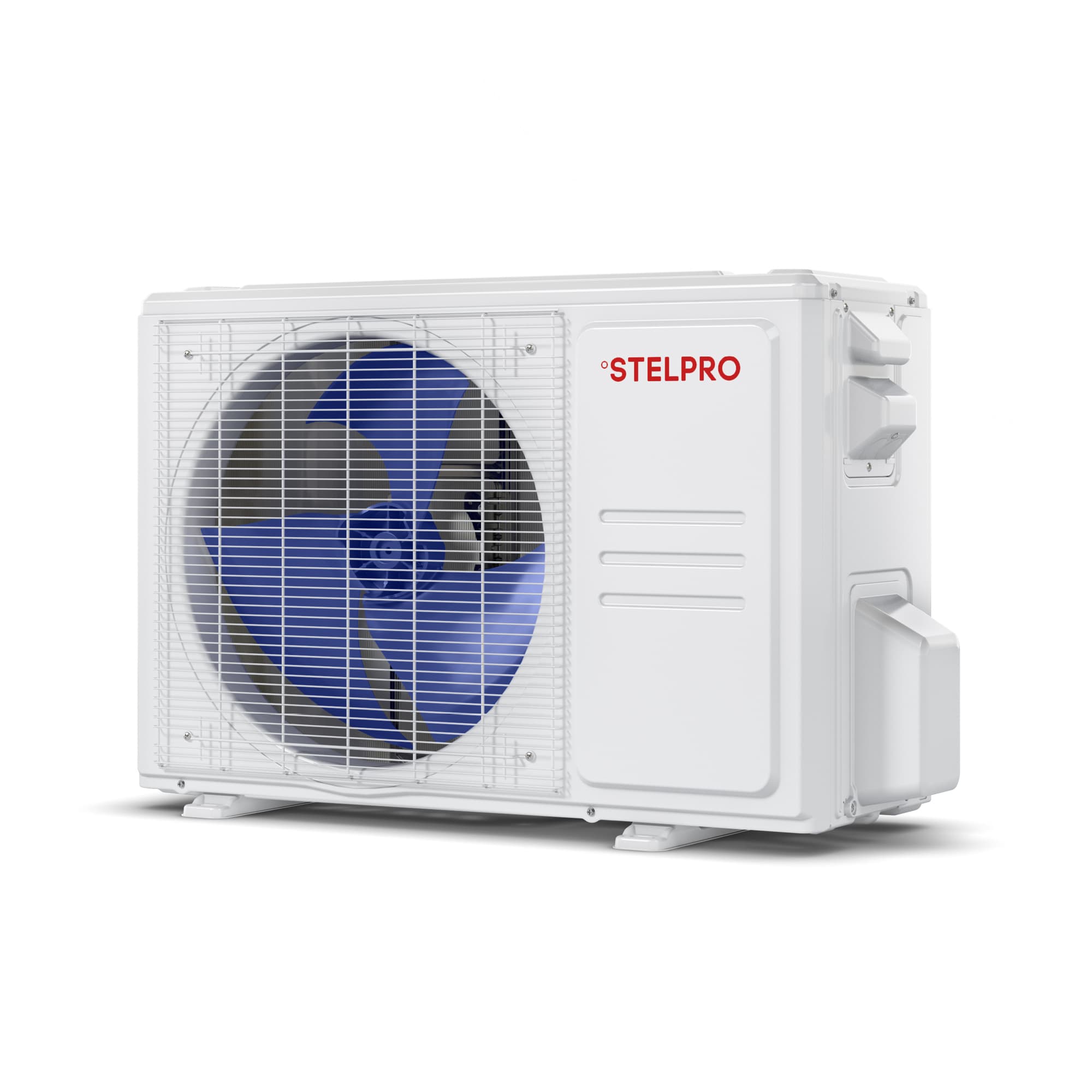

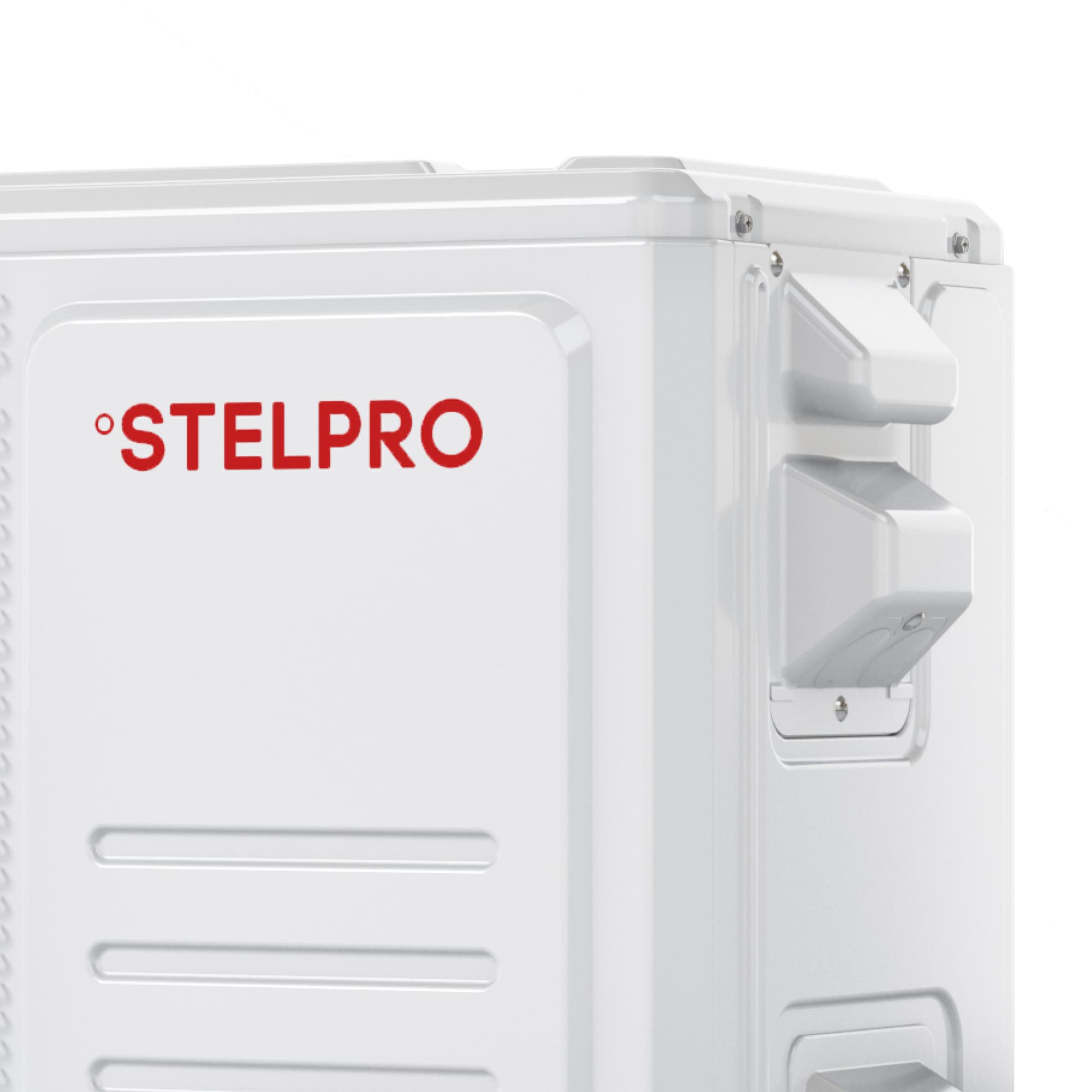

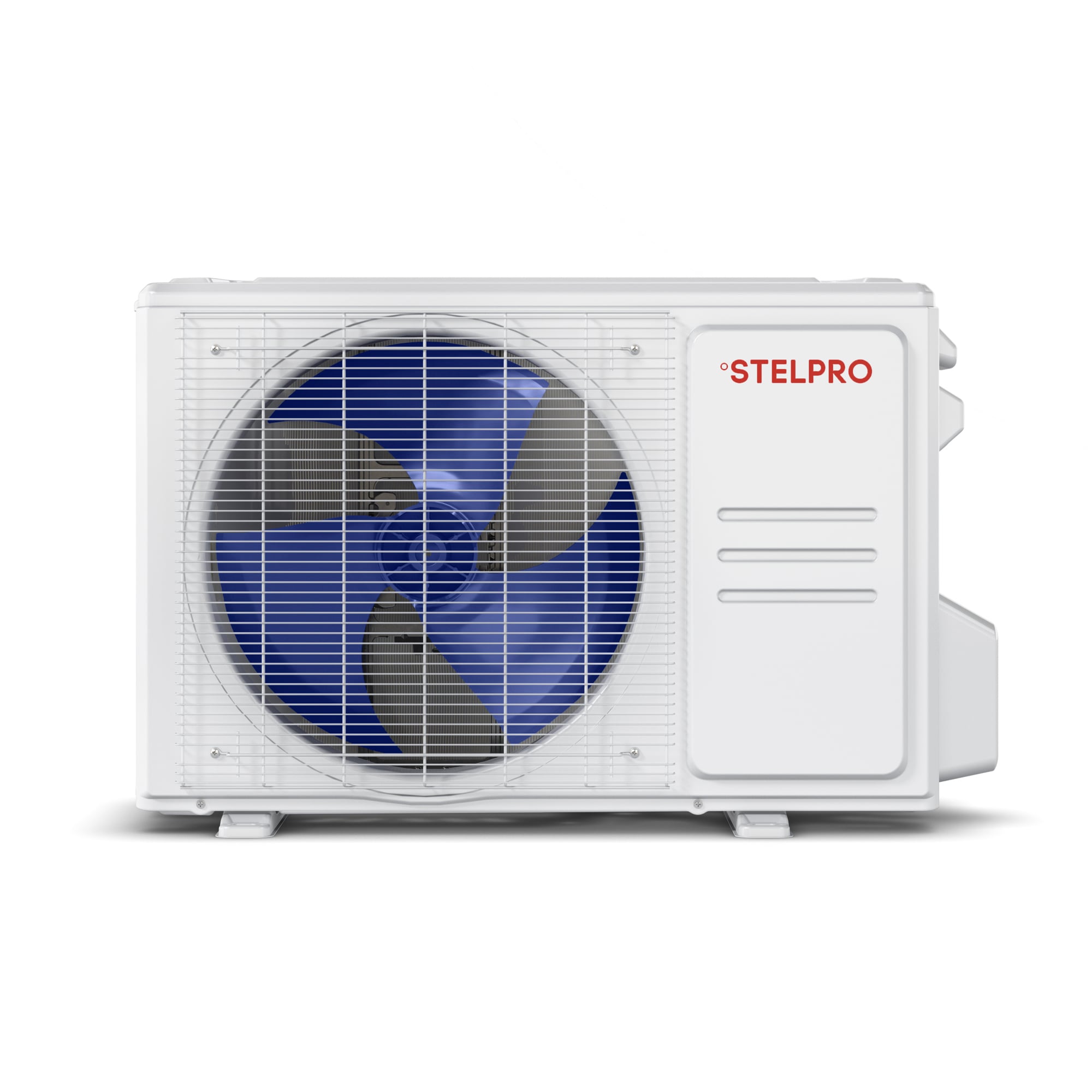

Outdoor unit

  • Variable speed rotary compressor (INVERTER), with PCB control protection
  • Electronic expansion valve for precise control of refrigerant flow
  • Condenser fins covered with a hydrophilic coating for improved corrosion resistance
  • Quiet axial-flow fan
  • Multi-hole pan with smart heater to prevent ice formation
  • Compressor blanket and preheating technology

Connection piping

  • Minimum piping length of 10 ft (3 m)
  • Flared connections
INSTALLATION

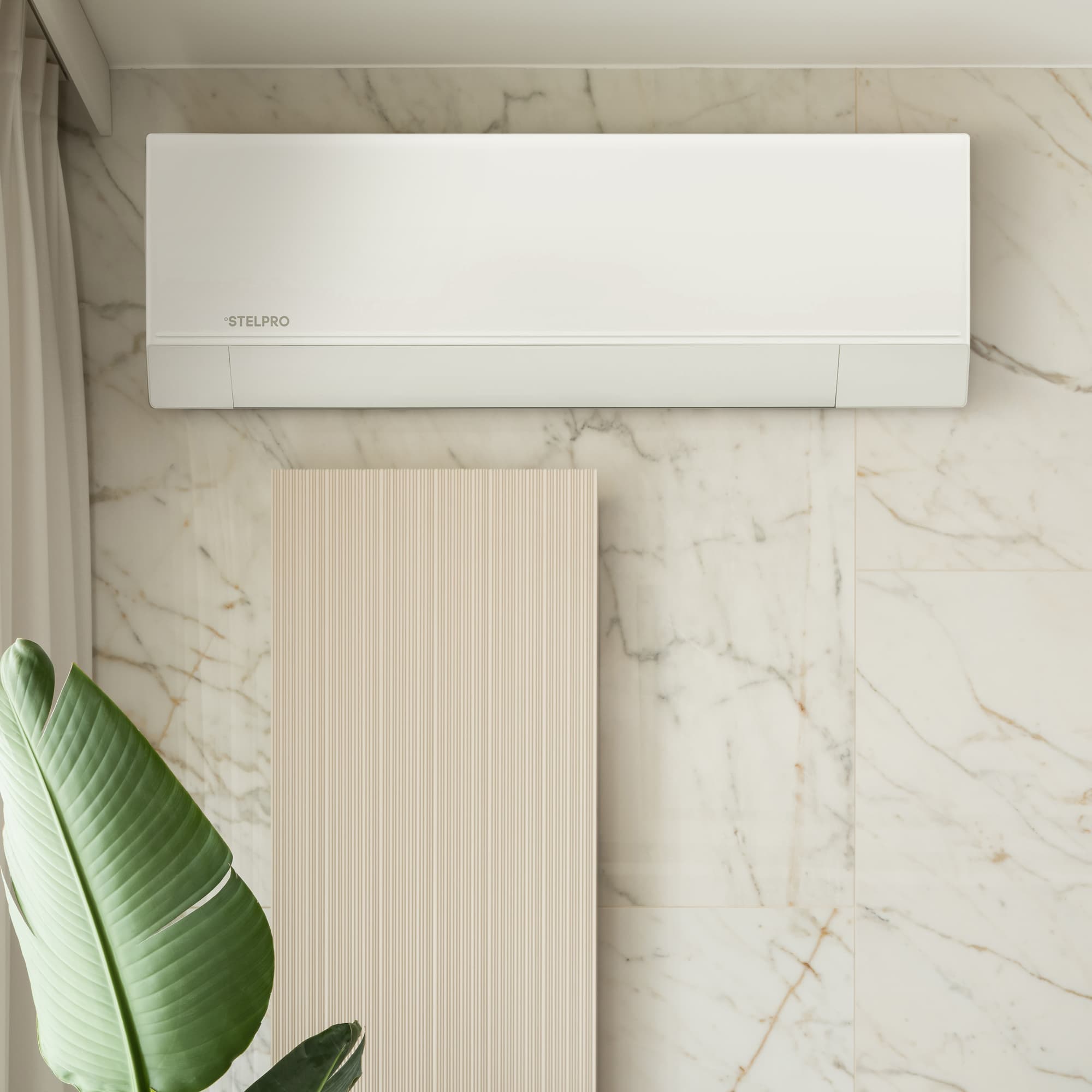

Indoor unit

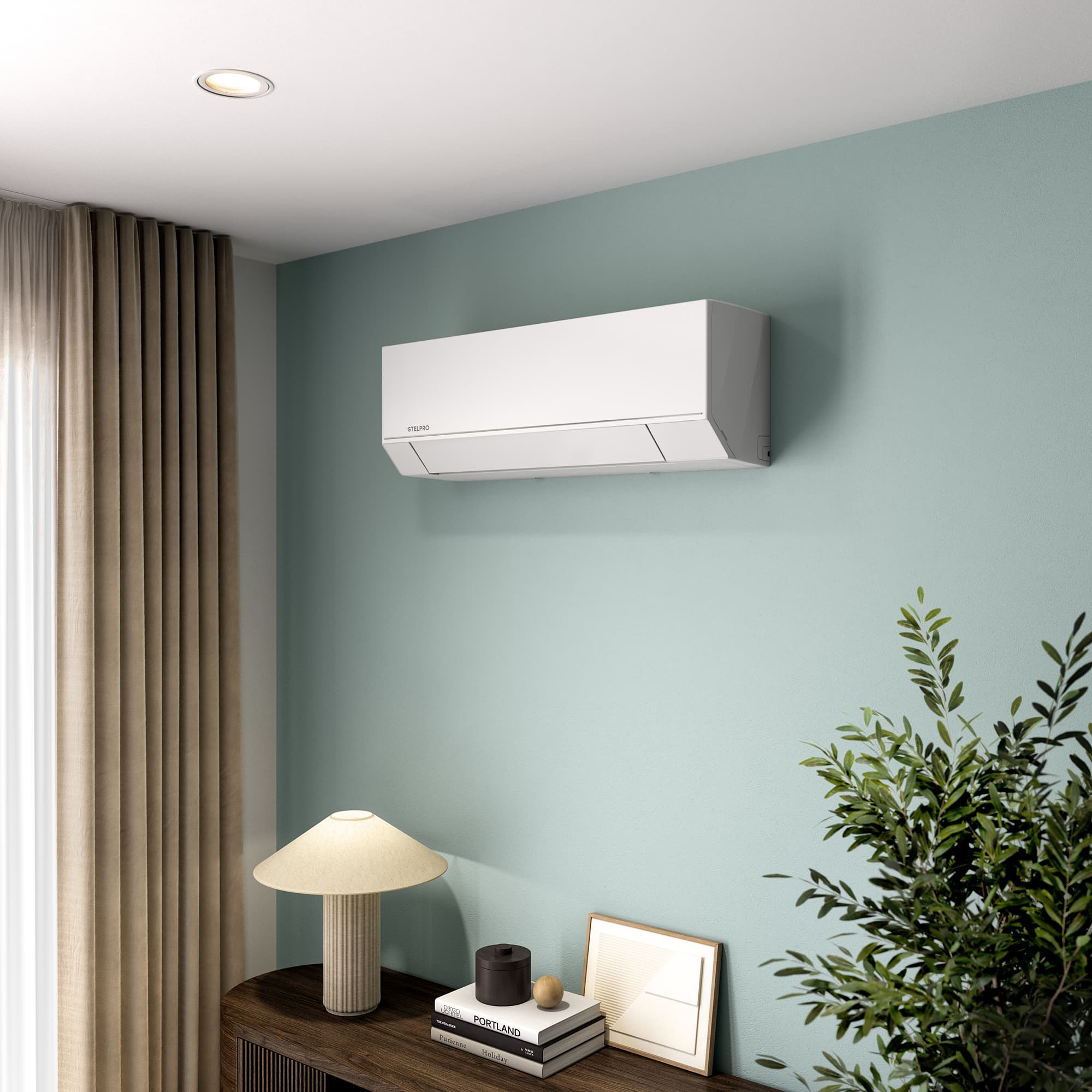

  • High wall installation
  • Dual side connection

Outdoor unit

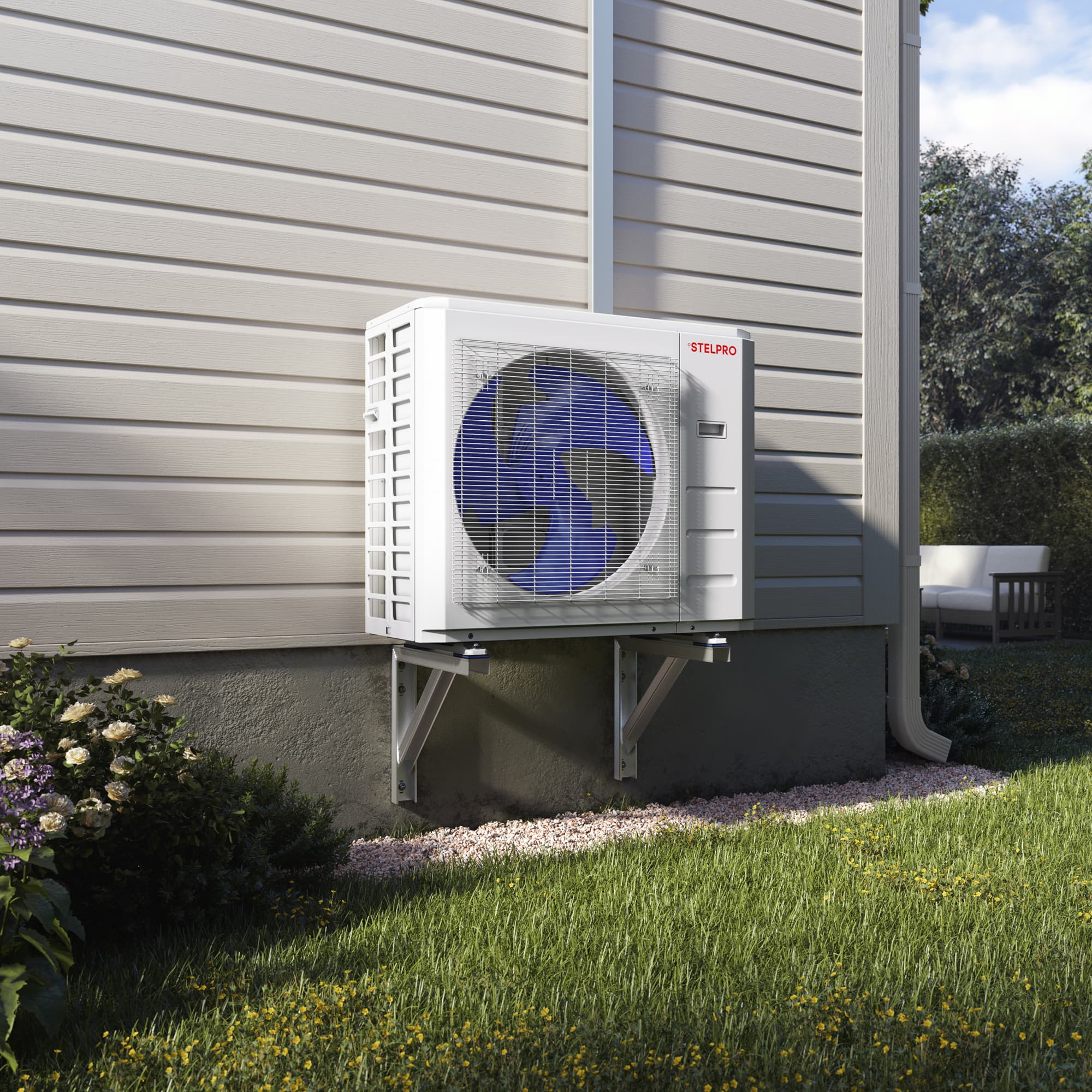

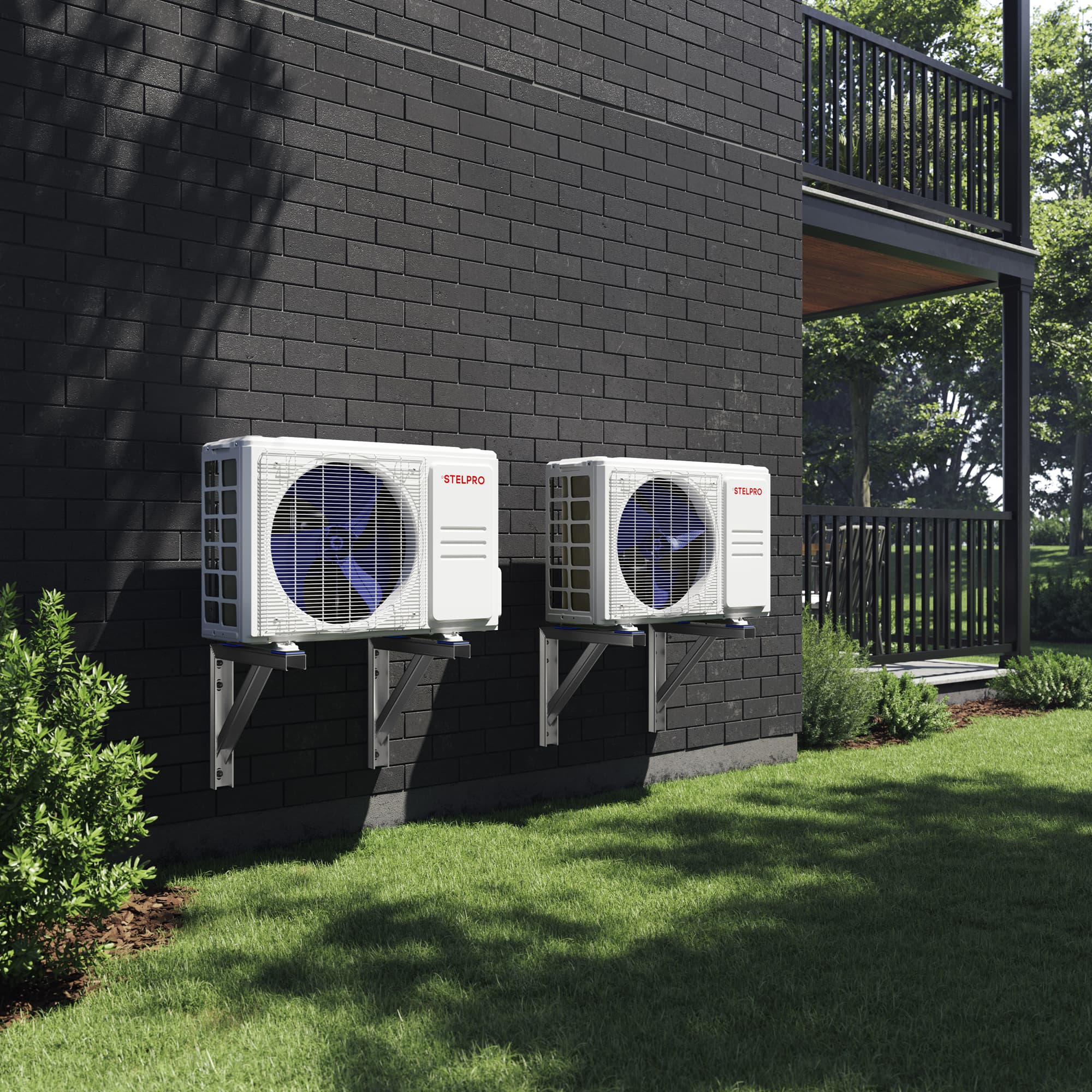

  • Installation on aluminum wall bracket or ground stand (optional)
CONTROL
  • Wireless remote included with wall bracket
  • Wi-Fi optional
  • Set temperature: 16°C to 32°C (61°F to 90°F)
  • Temperature display format: °C or °F
WARRANTY
  • Ten-year basic warranty on parts and ten-year basic warranty on the compressor (labor not included)
REBATES
  • Qualifies for rebate programs

Documents

SEPB

Specsheet

PDF

Download (opens in a new tab)

SEPB

Technical drawings (Indoor unit)

JPG

Download (opens in a new tab)

SEPB

Technical drawings (Outdoor unit)

JPG

Download (opens in a new tab)

SEPB

User guide

PDF

Download (opens in a new tab)

SEPB

User guide Remote Controller

PDF

Download (opens in a new tab)

SEPB

Options list

PDF

Download (opens in a new tab)

SEPB

Shop drawings

ZIP

Download (opens in a new tab)

Spare Parts

SELB-H09A-I

Download the complete parts list for SELB-H09A-I

PDF

Download SELB-H09A-I (opens in a new tab)

SELB-H09A-O

Download the complete parts list for SELB-H09A-O

PDF

Download SELB-H09A-O (opens in a new tab)

SELB-H12A-I

Download the complete parts list for SELB-H12A-I

PDF

Download SELB-H12A-I (opens in a new tab)

SELB-H12A-O

Download the complete parts list for SELB-H12A-O

PDF

Download SELB-H12A-O (opens in a new tab)

SELB-H18A-I

Download the complete parts list for SELB-H18A-I

PDF

Download SELB-H18A-I (opens in a new tab)

SELB-H18A-O

Download the complete parts list for SELB-H18A-O

PDF

Download SELB-H18A-O (opens in a new tab)

SELB-H24A-I

Download the complete parts list for SELB-H24A-I

PDF

Download SELB-H24A-I (opens in a new tab)

SELB-H24A-O

Download the complete parts list for SELB-H24A-O

PDF

Download SELB-H24A-O (opens in a new tab)

Specifications

Performance
INDOOR UNIT1 SEPB-H09A-I SEPB-H12A-I SEPB-H18A-I SEPB-H24A-I
OUTDOOR UNIT1 SEPB-H09A-O SEPB-H12A-O SEPB-H18A-O SEPB-H24A-O
Voltage V 230/208 230/208 230/208 230/208
Cooling capacity Nominal W (BTU/hr) 2638 (9000) 3517 (12000) 5275 (18000) 7034 (24000)
Min. - Max. W (BTU/hr) 1055-2931 (3800-13500) 1172-3810 (3800-14600) 1905-5568 (8800-19400) 2345-7327 (12600-27900)
Heating capacity Nominal W (BTU/hr) 2638 (9000) 3517 (12000) 5275 (18000) 7034 (24000)
Min. - Max. W (BTU/hr) 1055-2931 (3800-16000) 1172-3810 (3800-16000) 1905-5568 (11200-19500) 2345-7327 (11800-29700)
Cooling rated current A 4.1 4 6.4 8.3
Heating rated current A 4.1 4.1 7.2 11
MCA A 12 12 18 24
Max. over-current protection (MOCP) A 15 15 20 25
SEER2 – 27.4 25.4 21.4 21
HSPF2 IV – 12.5 10.5 11 13.5
EER2 BTU/W 15.4 13.4 12.5 13
COP at 8C W/W 3.76 3.76 3.26 3.42
COP at -15C W/W 2.07 2 2.23 2.36
AHRI number 216082321 216082322 216082324 216082326
ENERGY STAR ✓ ✓ ✓ ✓
ENERGY STAR COLD CLIMATE ✓ ✓ ✓ ✓

11 Indoor unit and 1 outdoor unit. Note that each unit is individually packaged.

2Cross-Flow Fan Speeds: (UH) Ultra High (100%) / (H) High (80%) / (M) medium (60%) / (L) Low (40%) / (S) Silence.

Indoor Unit – Wall-Mounted Split
SEPB-H09A-I SEPB-H12A-I SEPB-H18A-I SEPB-H24A-I
Dehumidification pt/hr (l/hr) 1.9 (0.9) 2.54 (1.2) 3.17 (1.5) 4.65 (2.2)
Air flow volume UH / H / M / L (cfm) 441 / 324 / 230 / 177 441 / 324 / 230 / 177 636 / 500 / 359 / 294 812 / 618 / 412 / 318
Sound level UH / H / M / L / S2 (dB A) 42 / 39 / 37 / 35 / 32 42 / 39 / 37 / 35 / 32 48 / 45 / 41 / 39 / 36 50 / 48 / 43 / 41 / 39
Fan motor power output W 25 25 35 35
Fan motor RLA A 0.11 0.11 0.17 0.17
Net weight lb (kg) 17.64 (8.5) 17.64 (8.5) 30.87 (14) 30.87 (14)

2Cross-Flow Fan Speeds: (UH) Ultra High (100%) / (H) High (80%) / (M) Medium (60%) / (L) Low (40%) / (S) Silence.

Outdoor Unit – Condenser
SEPB-H09A-O SEPB-H12A-O SEPB-H18A-O SEPB-H24A-O
Sound level dB(A) 53 53 58 61
Compressor power input W 659 979 1425 1959
Fan motor power output W 36 36 60 102
Fan motor RLA A 0.17 0.17 0.27 0.45
Refrigerant volume (R-454B) oz (g) 35.27 (1000) 38.1 (1080) 52.91 (1500) 70.55 (2000)
Net weight lb (kg) 70.55 (32) 70.55 (32) 97 (44) 112.44 (51)
Operating ambient temperature Cooling °C (°F) -30 to 50 (-22 to 122) -30 to 50 (-22 to 122) -30 to 50 (-22 to 122) -30 to 50 (-22 to 122)
Heating °C (°F) -30 to 24 (-22 to 75) -30 to 24 (-22 to 75) -30 to 24 (-22 to 75) -30 to 24 (-22 to 75)
Connection Piping/Refrigerant
Pre-charge length ft (m) 25 (7.5) 25 (7.5) 25 (7.5) 25 (7.5)
Liquid pipe outer diameter in. 1/4 1/4 1/4 3/8
Gas pipe outer diameter in. 3/8 3/8 1/2 5/8
Maximum height difference ft (m) 49.21 (15) 49.21 (15) 49.21 (15) 49.21 (15)
Maximum total length ft (m) 65.62 (20) 65.62 (20) 98.43 (30) 98.43 (30)
Indoor Unit
Model L H D
mm in. mm in. mm in.
SEPB-H09A-I 857 33 3/4 299 11 3/4 231 9 1/8
SEPB-H12A-I 857 33 3/4 299 11 3/4 231 9 1/8
SEPB-H18A-I 1024 40 1/4 321 12 5/8 246 9 3/4
SEPB-H24A-I 1038 40 7/8 372 14 5/8 279 11
Outdoor Unit
Model L H D A B
mm in. mm in. mm in. mm in. mm in.
SEPB-H09A-O 874 34 3/8 554 21 3/4 346 13 5/8 511 20 1/8 317 12 1/2
SEPB-H12A-O 874 34 3/8 554 21 3/4 346 13 5/8 511 20 1/8 317 12 1/2
SEPB-H18A-O 955 37 5/8 673 26 1/2 380 15 663 26 1/8 325 12 3/4
SEPB-H24A-O 1030 40 1/2 810 31 7/8 455 17 7/8 672 26 1/2 386 15 1/4
