SSFR

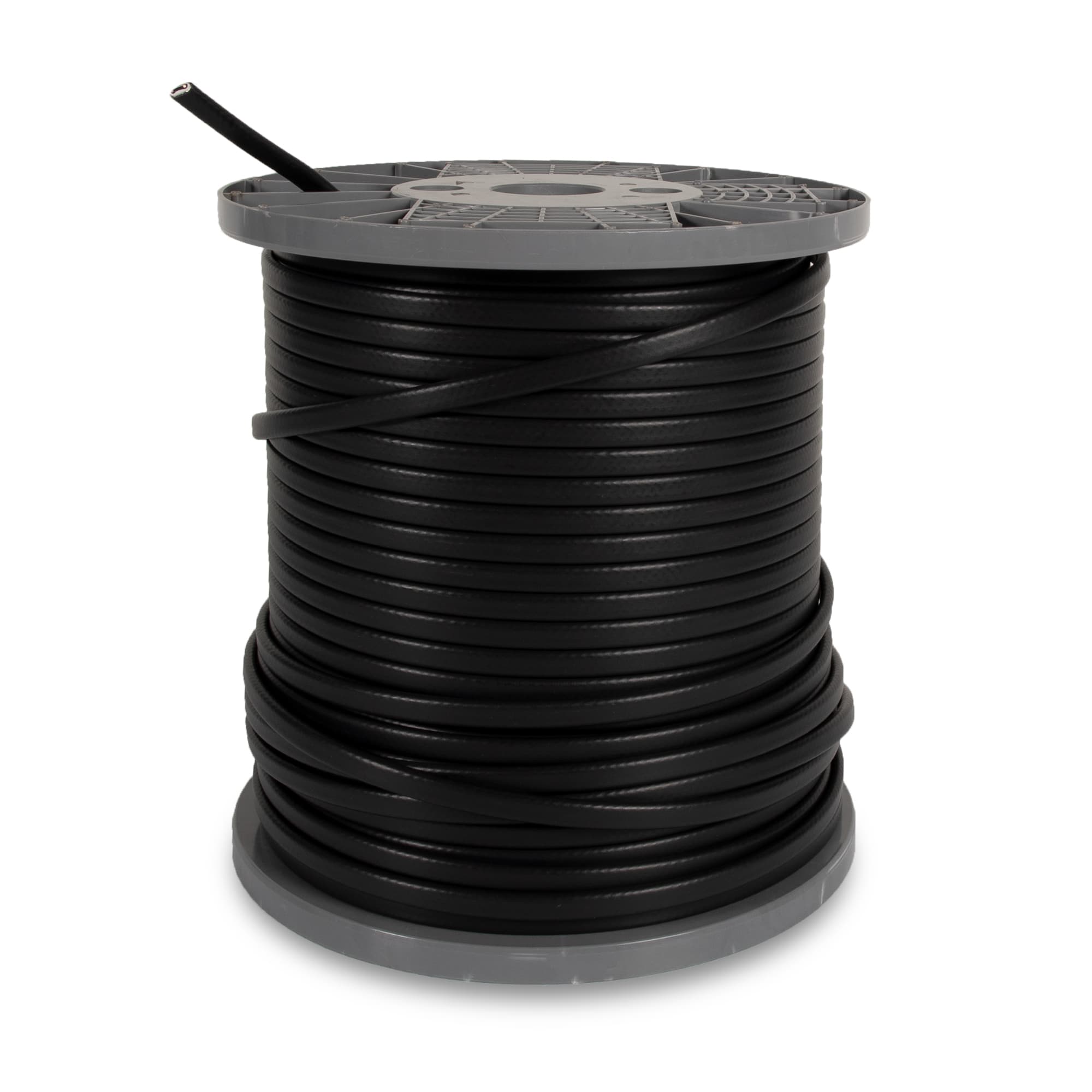

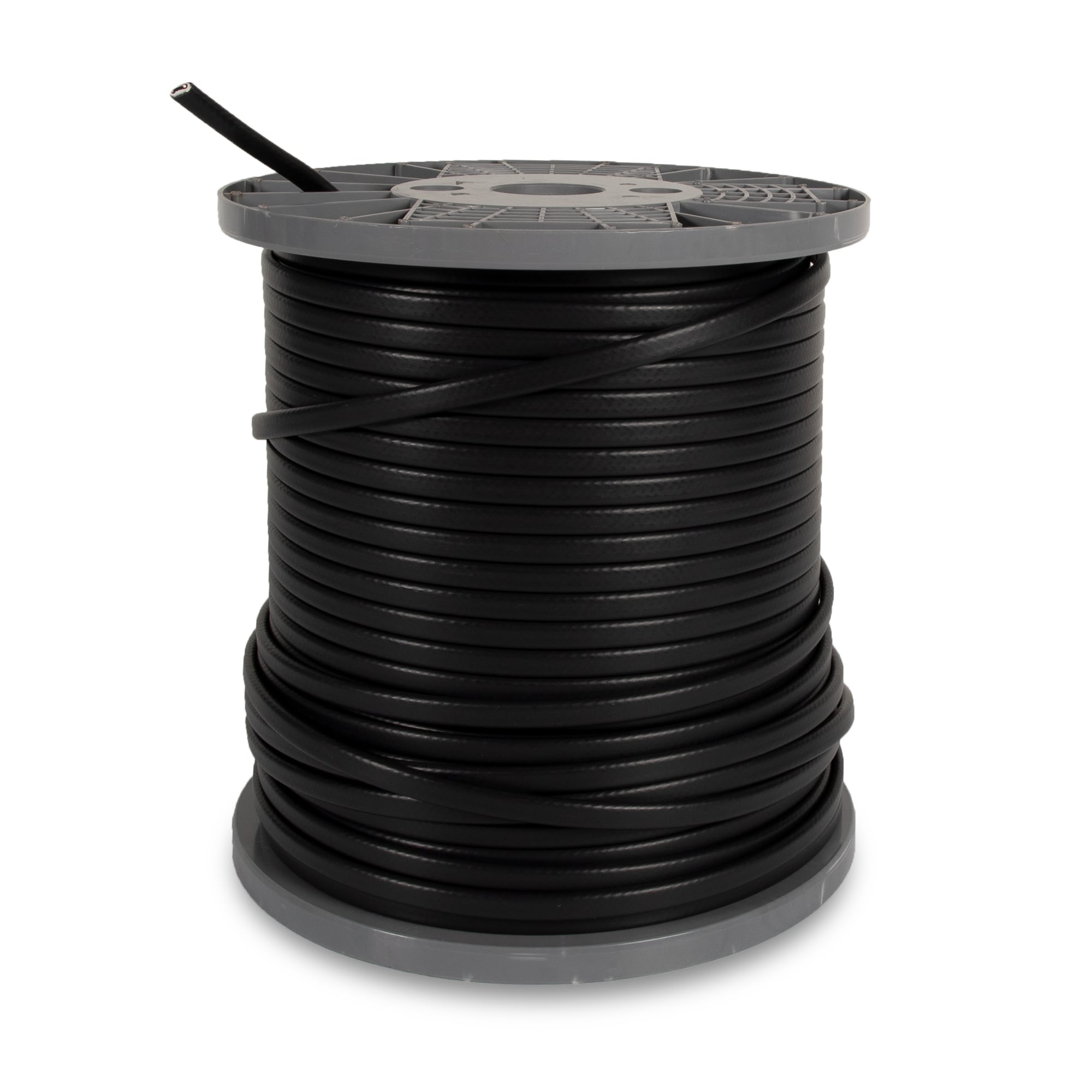

Self-regulating Freeze Protection Cable Reel

Melt away your worries

The SSFR heating cable increases or decreases its heat output in a self-regulating way, based on changes in the ambient temperature. Therefore, it will never overheat or burn, even if it is overlapped. A host of accessories requiring no special tools are available to cut down on installation time.

Use cases

  • Exterior Use
  • Interior Use

Spaces

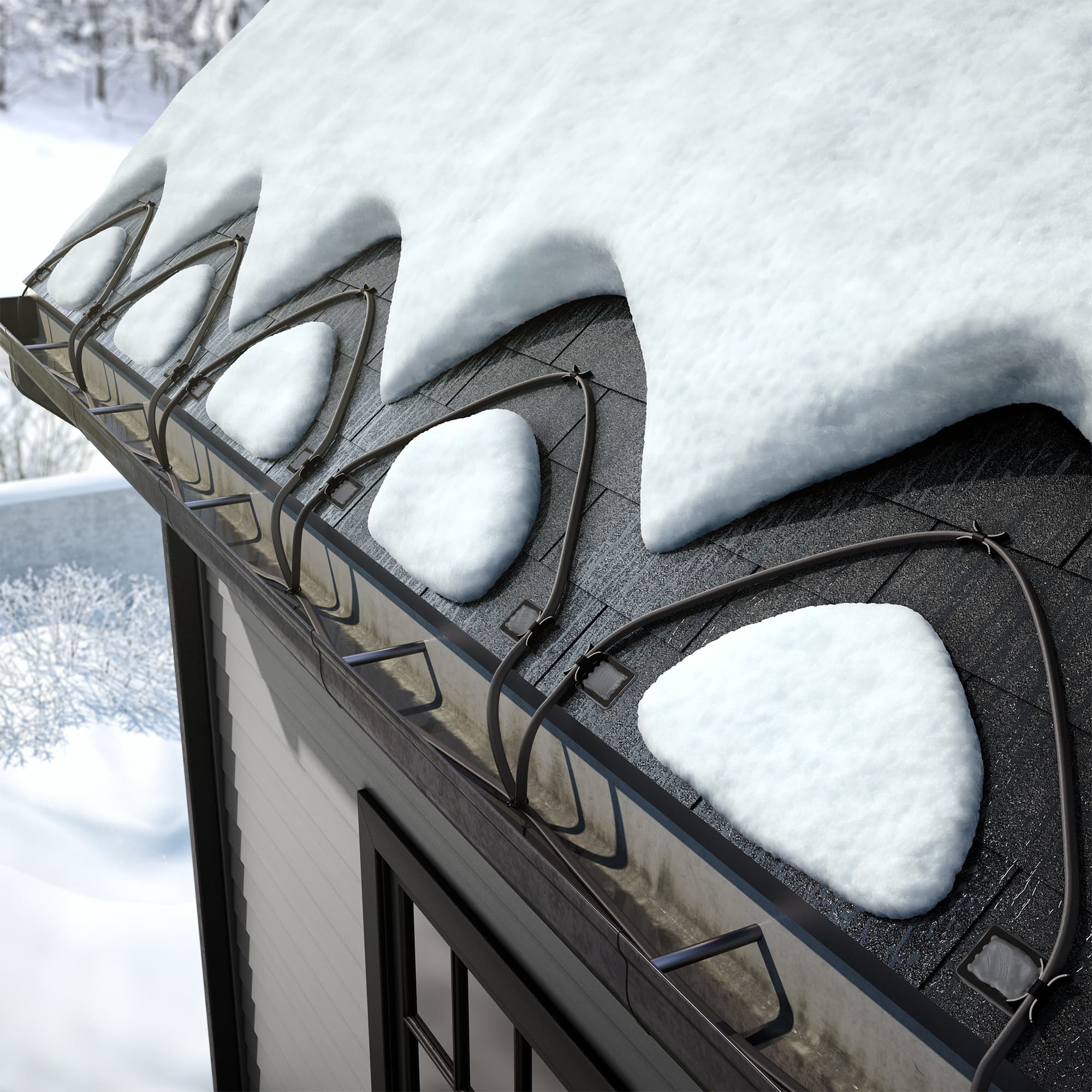

  • Roofs and Gutters with Ice Damming Problems

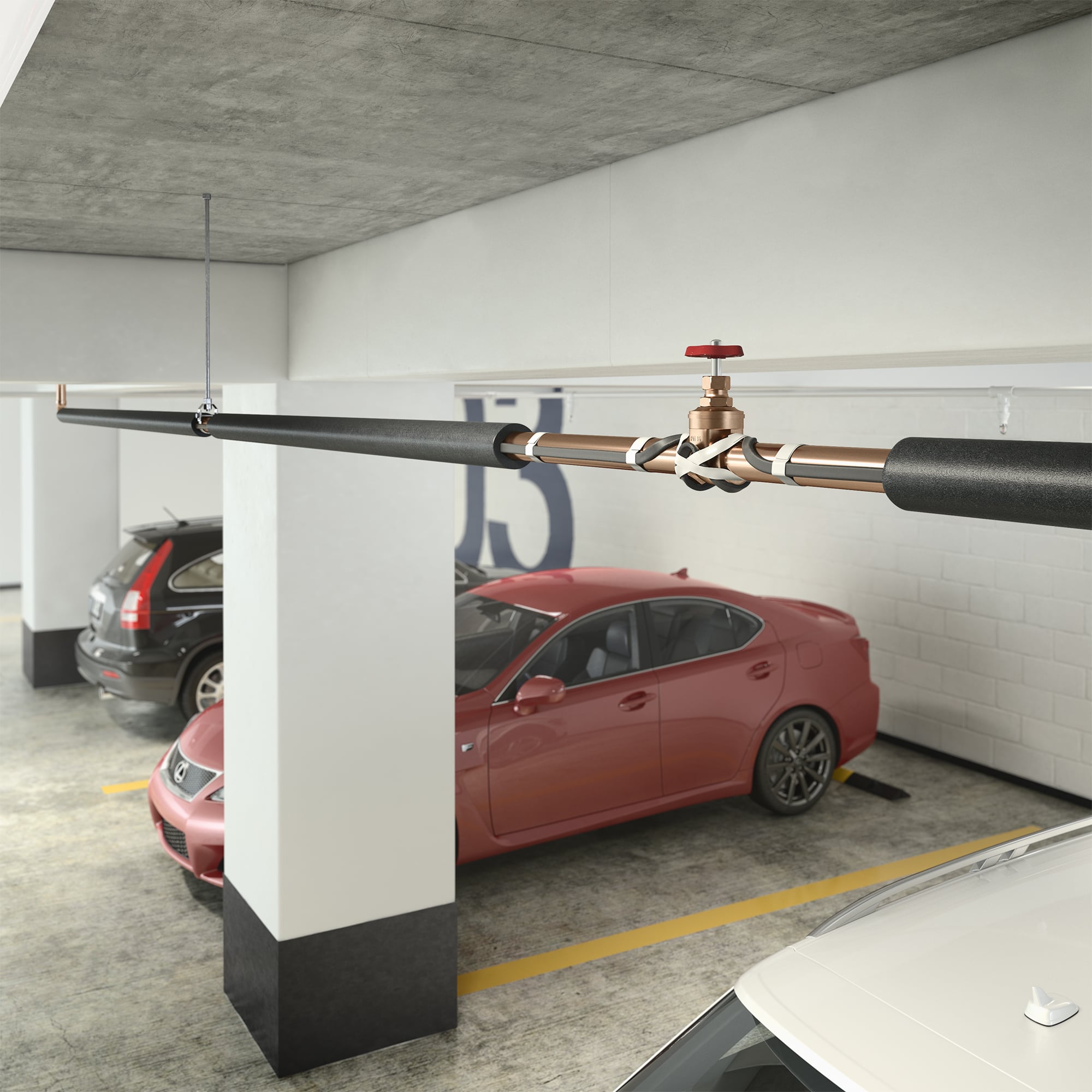

  • Pipes at Risk of Freezing

Characteristics

Advantages
  • Saves on energy — Automatically adjusts its heat output based on ambient temperature
  • Easy to install — Can be cut to the desired length (up to the maximum circuit capacity) on site, which avoids wasting cable
  • Safe — Even if the cable is overlapped
  • Greater installation flexibility

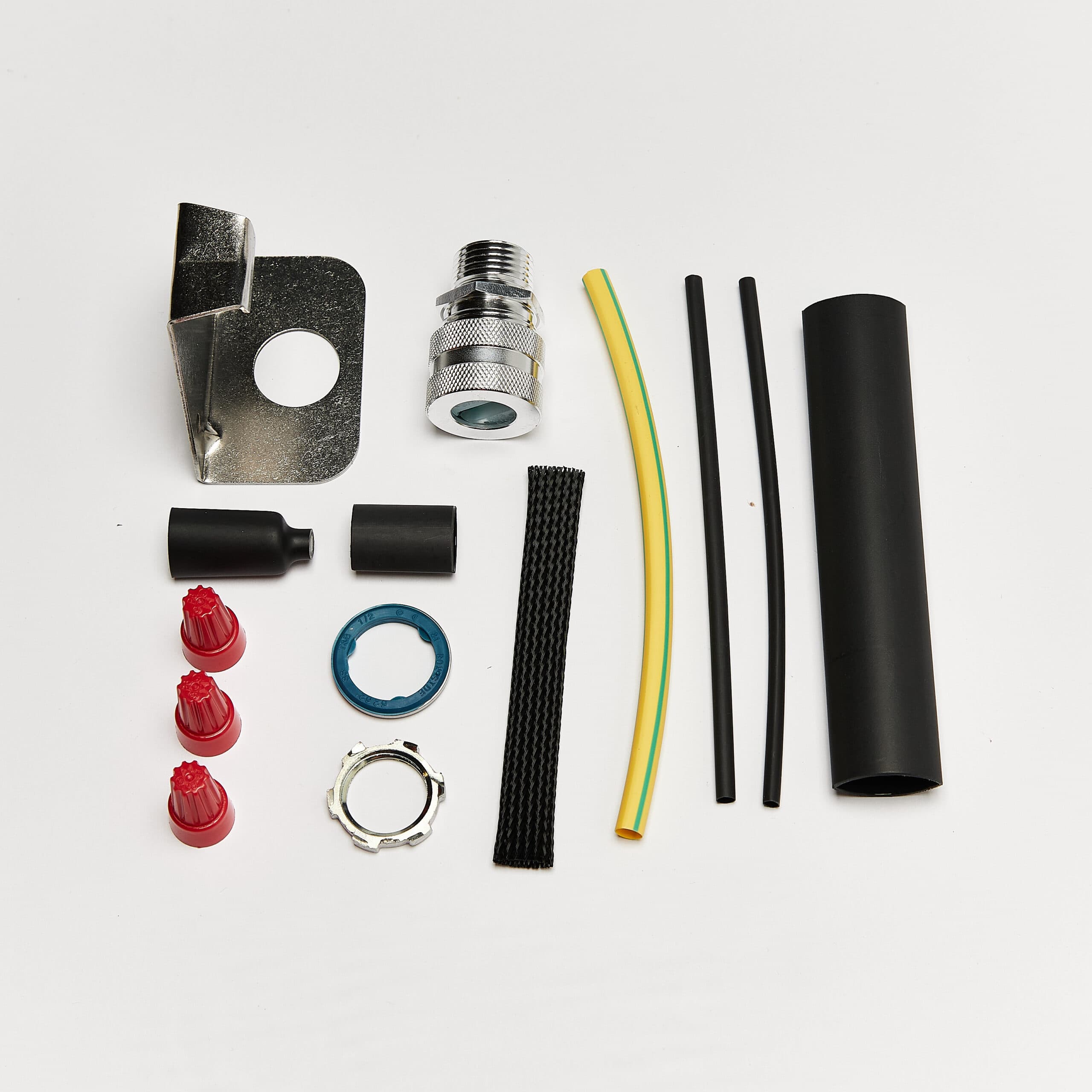

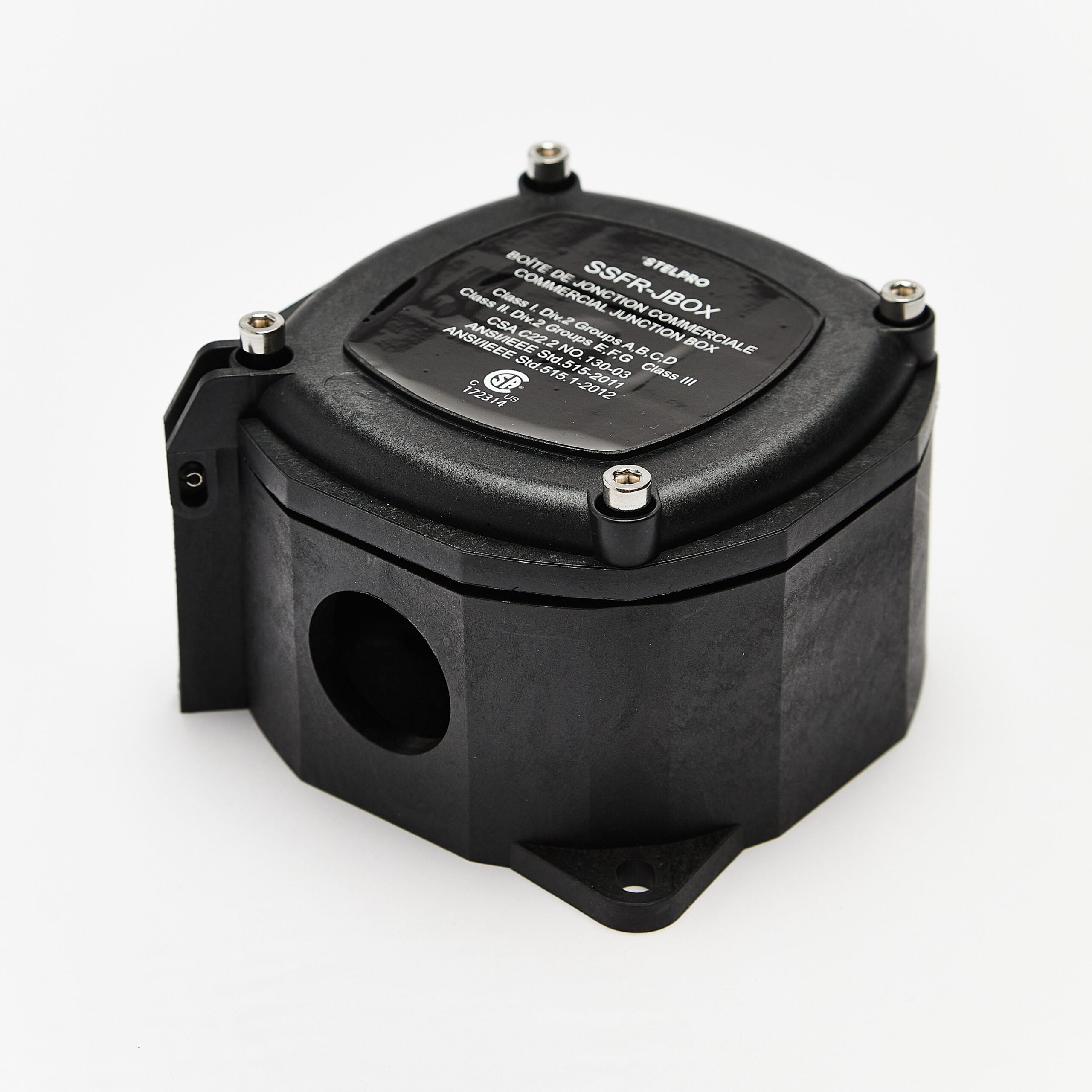

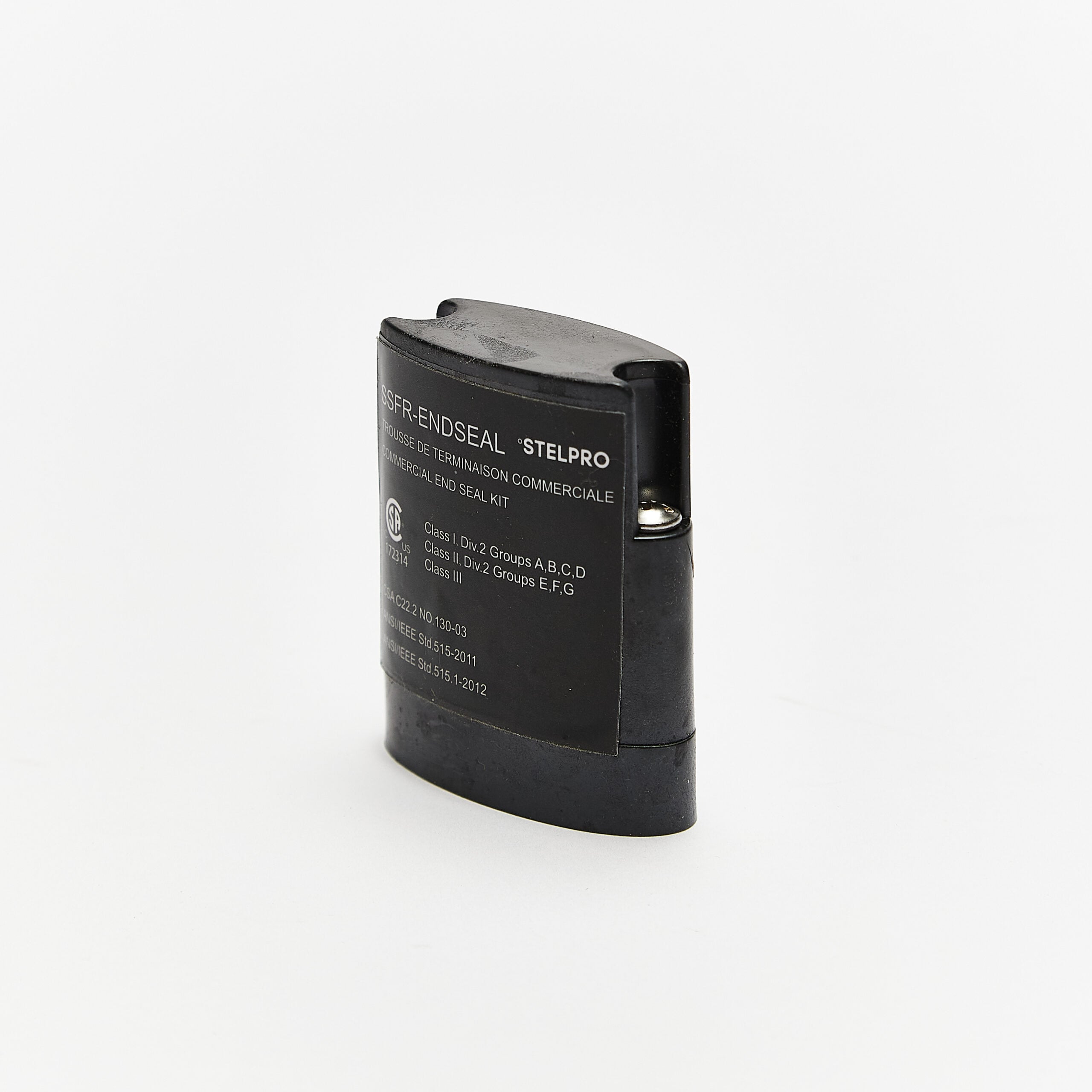

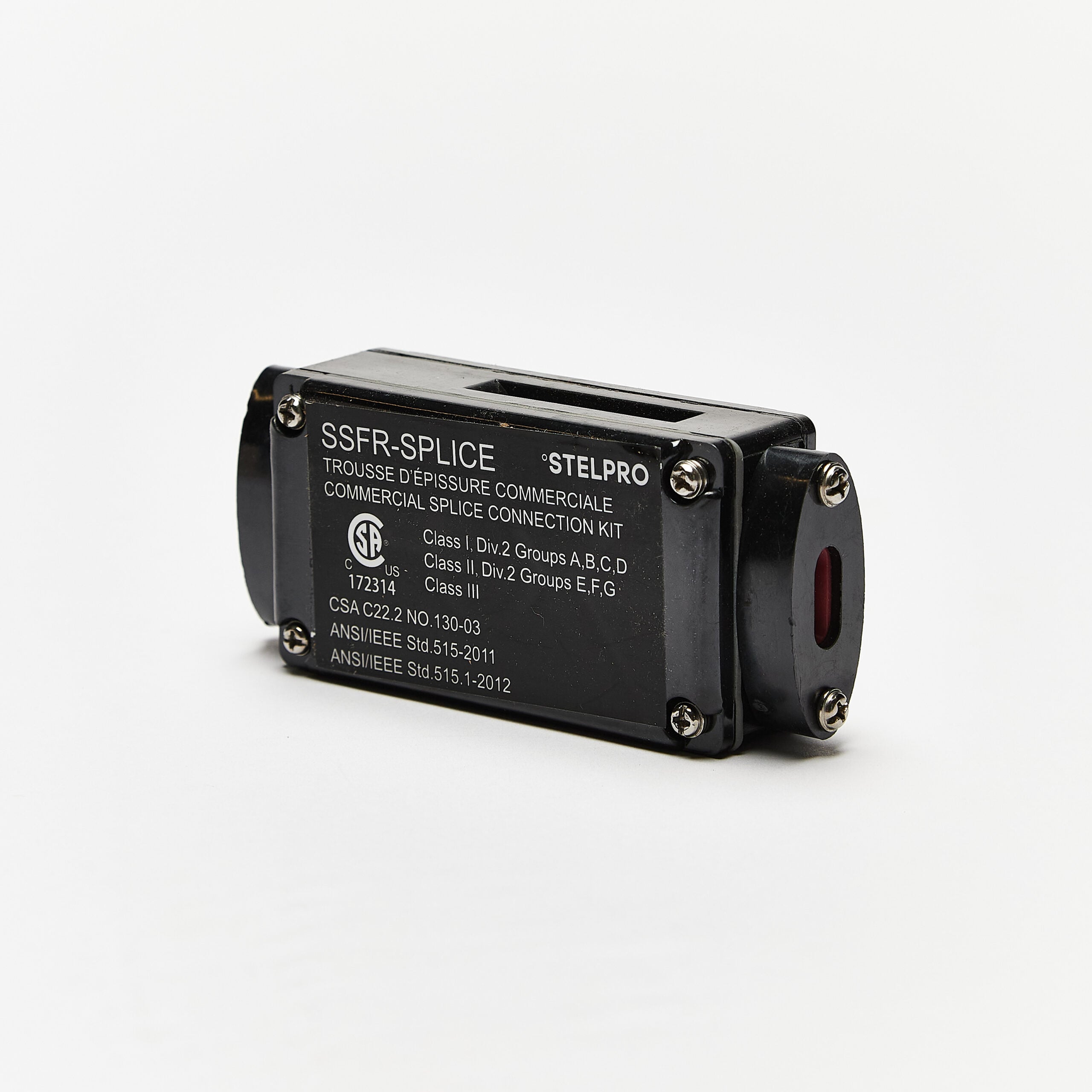

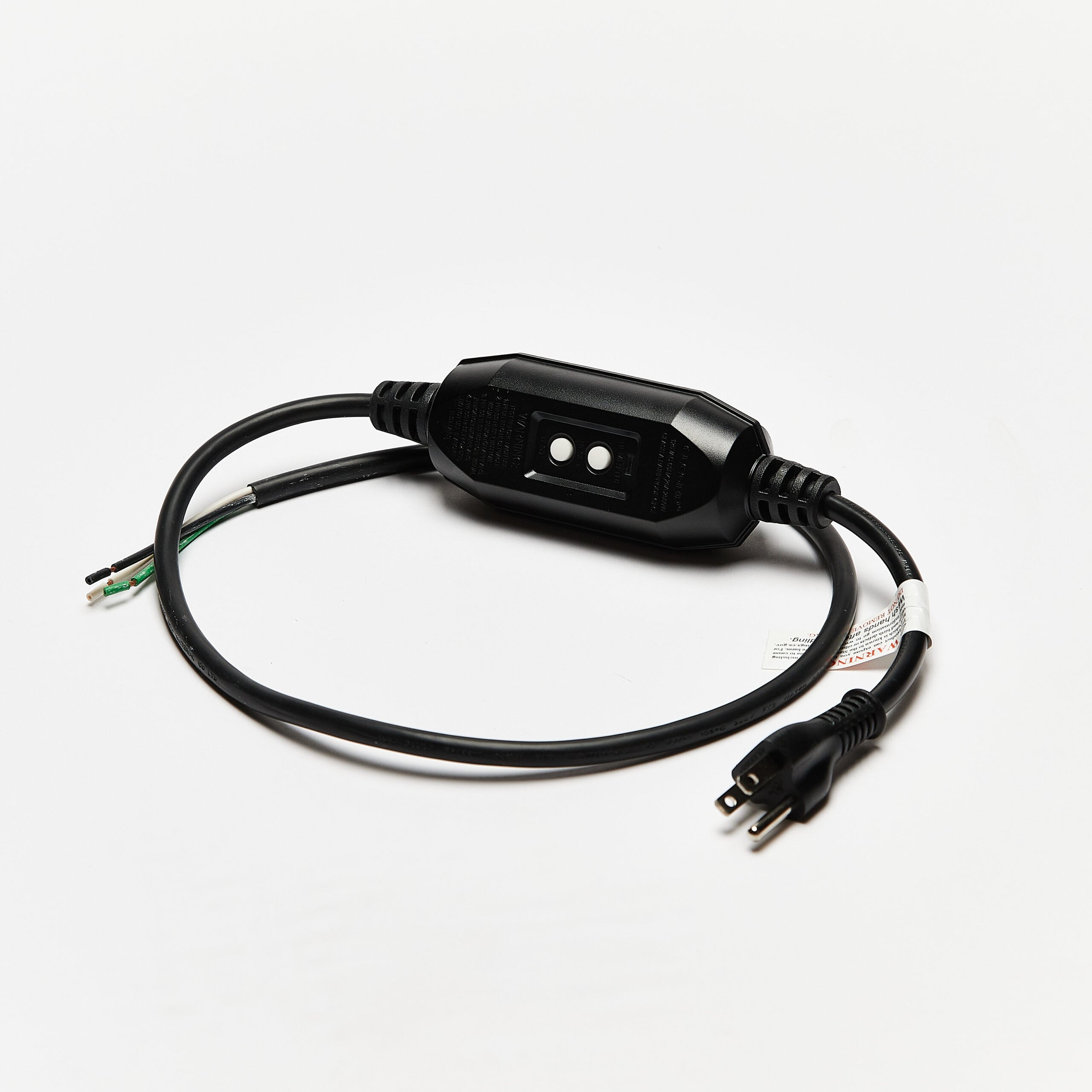

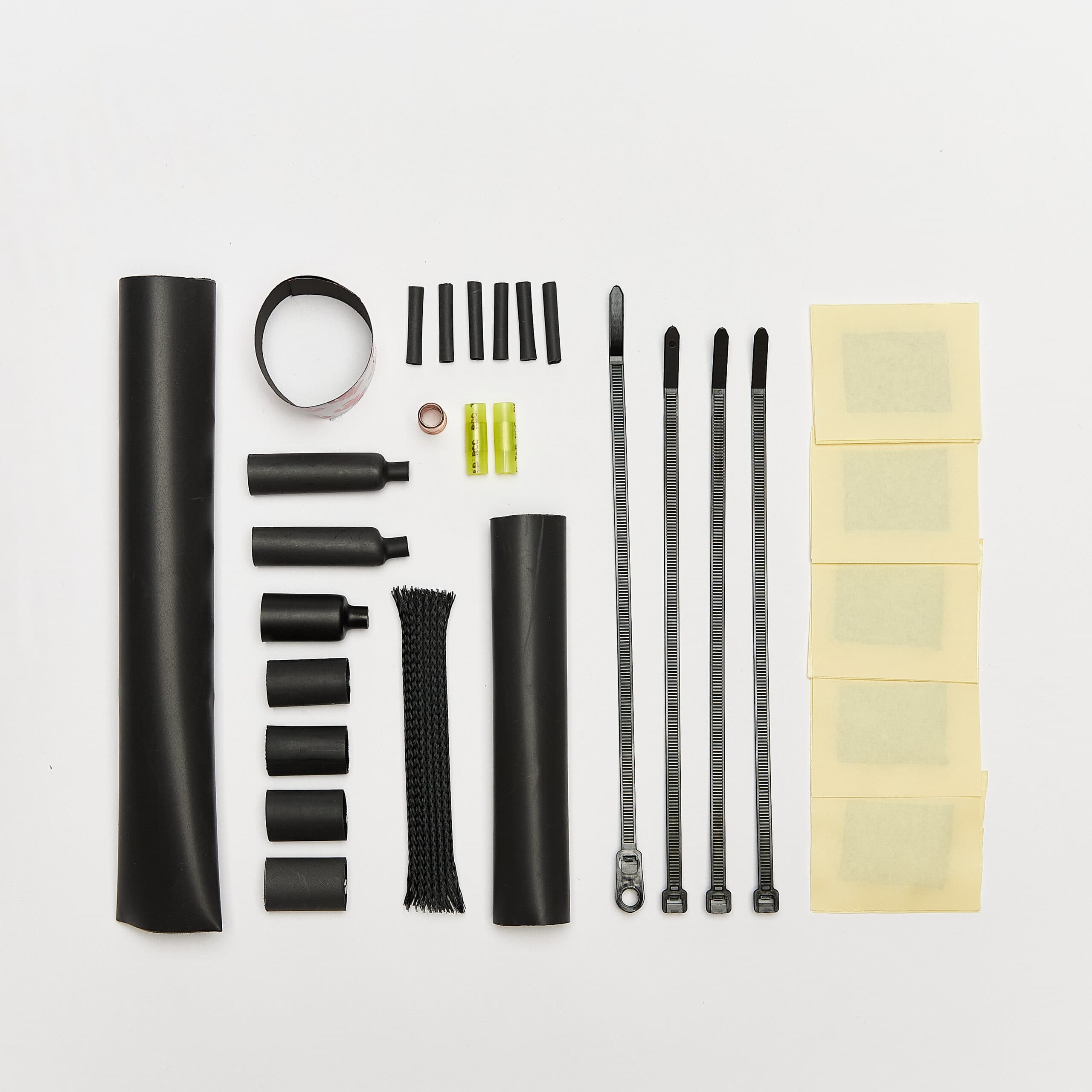

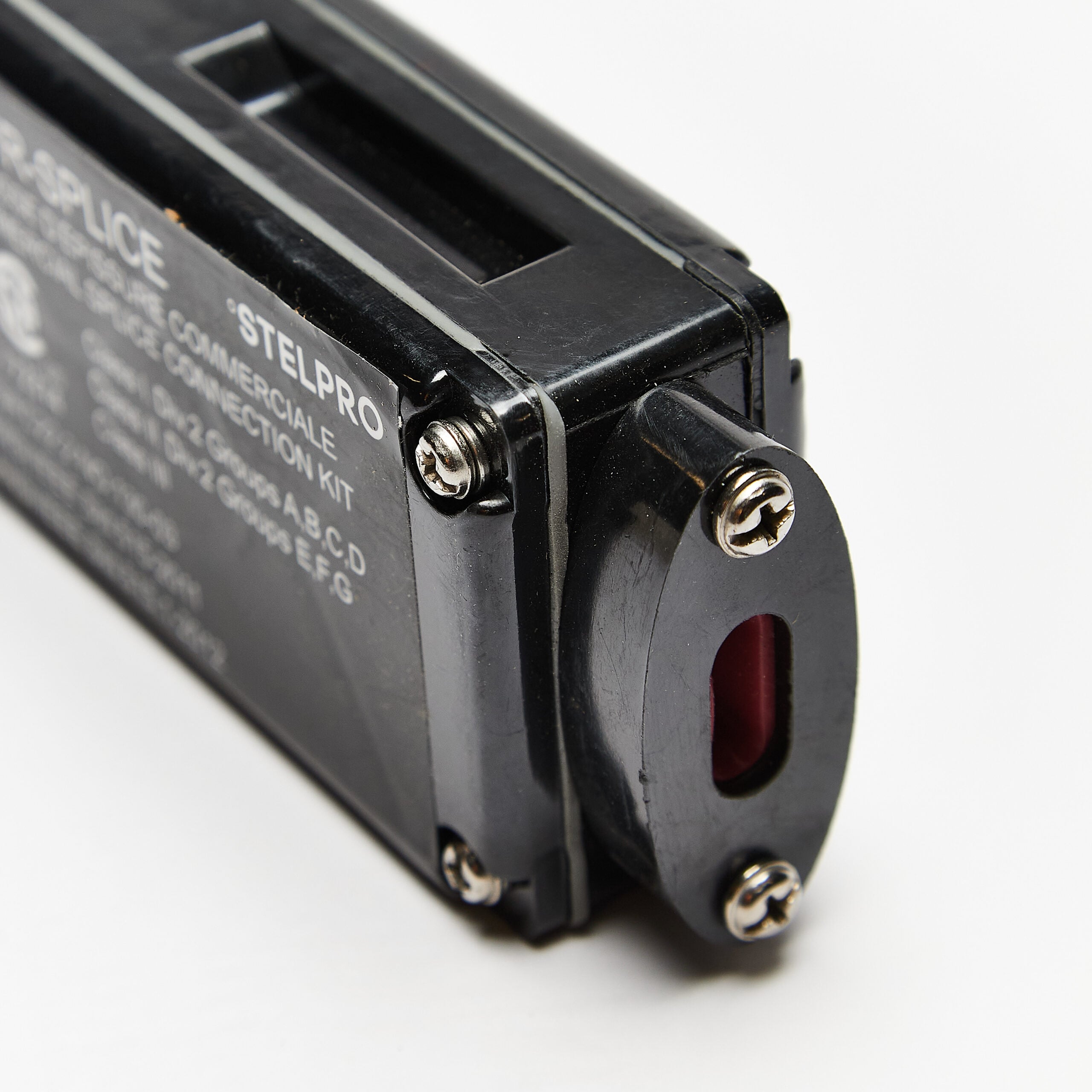

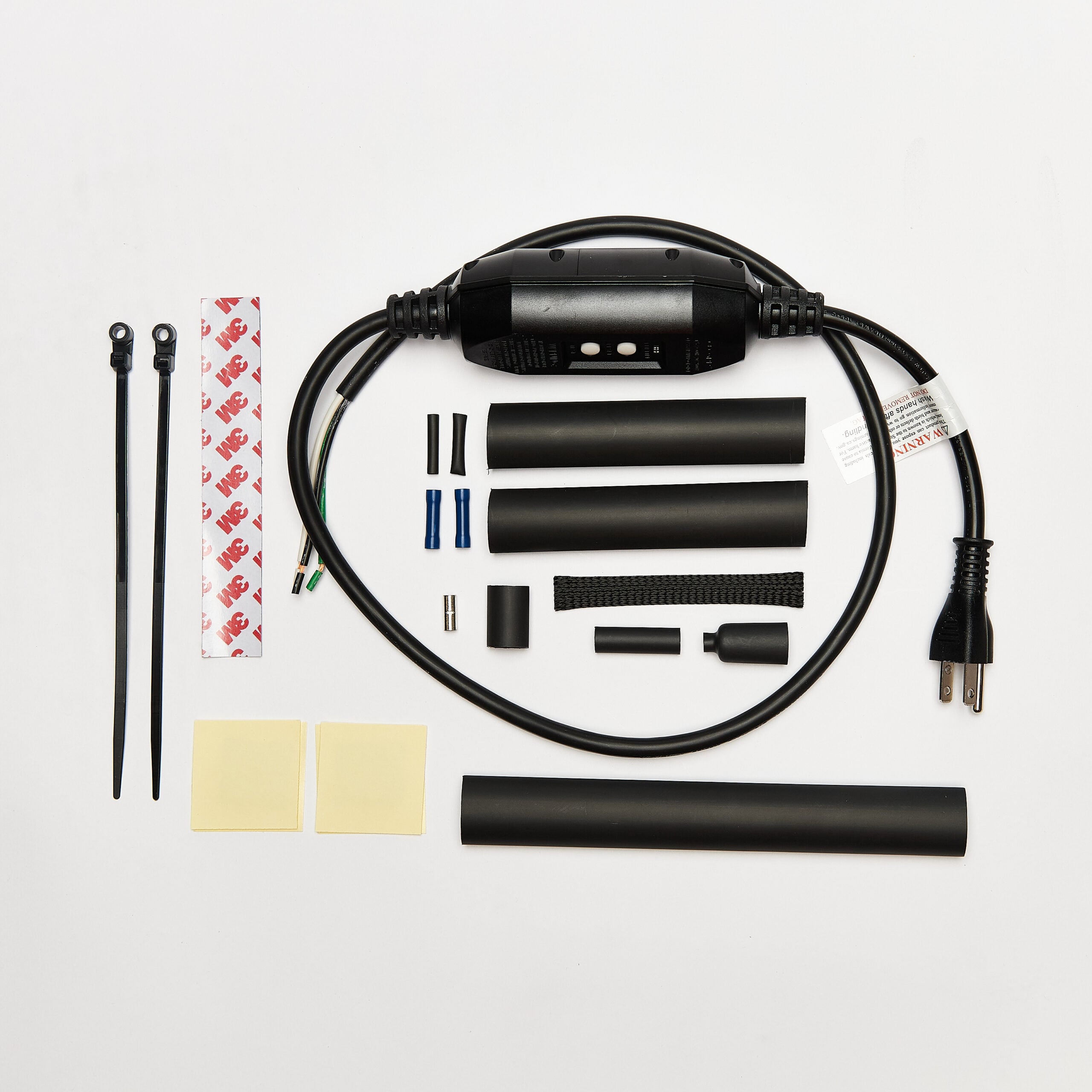

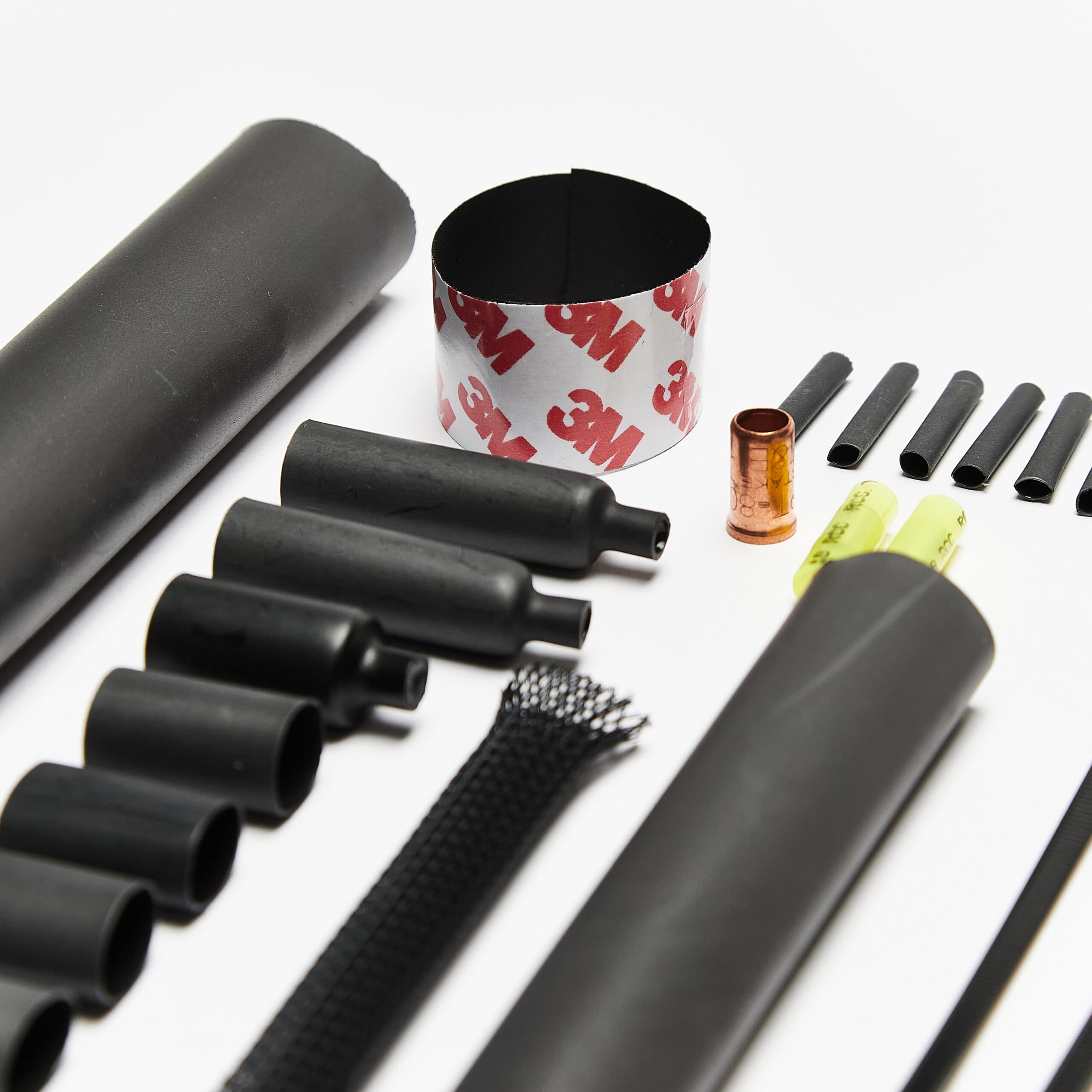

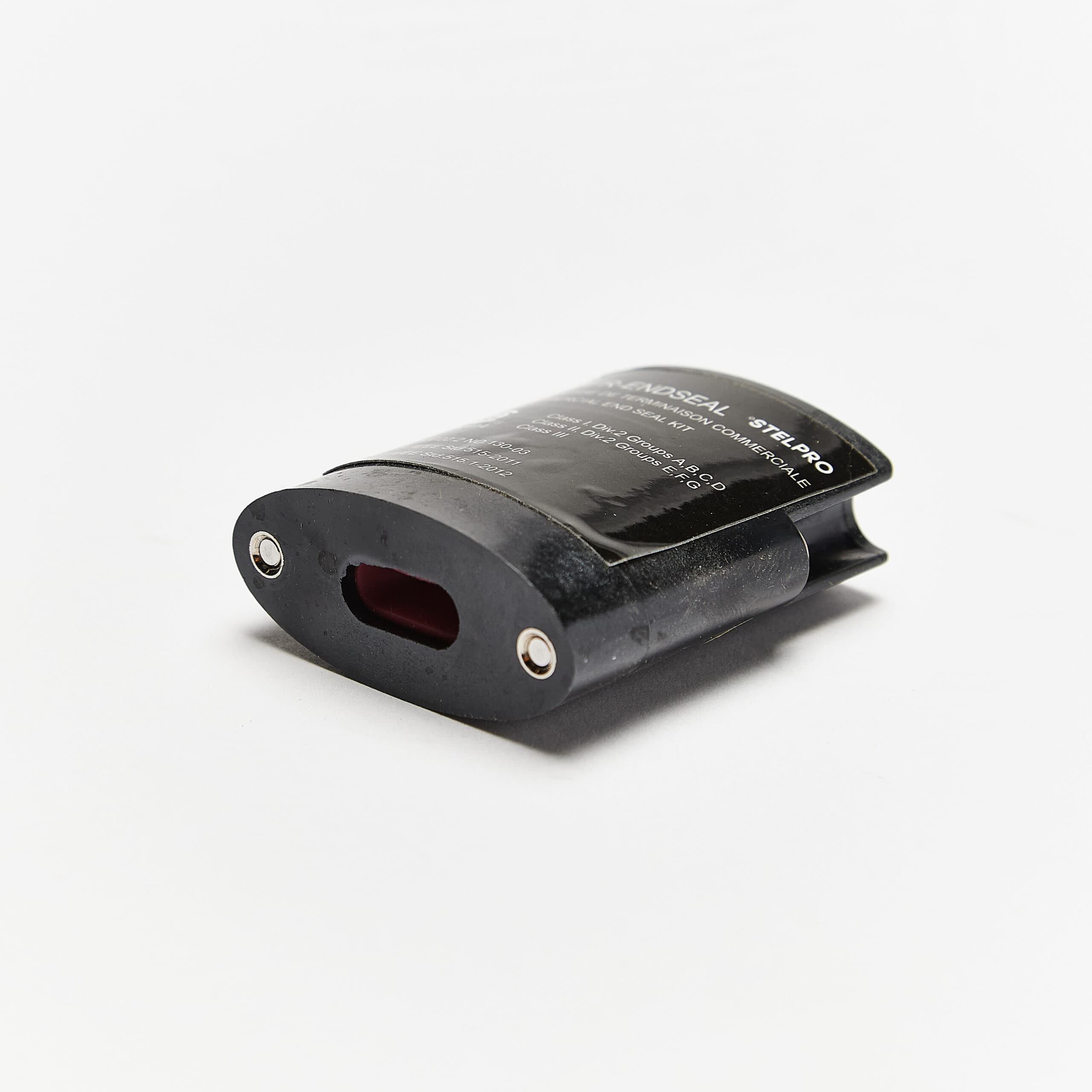

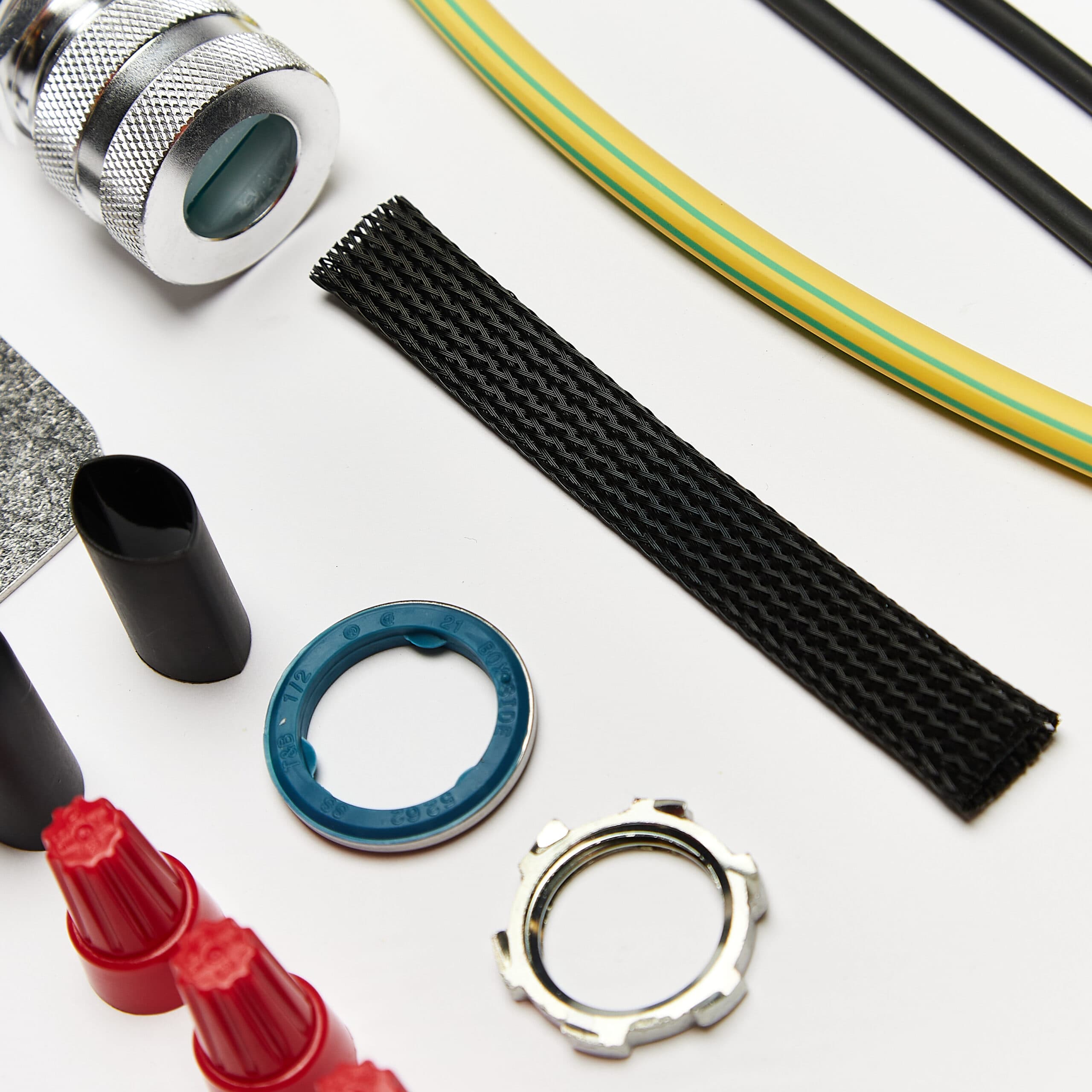

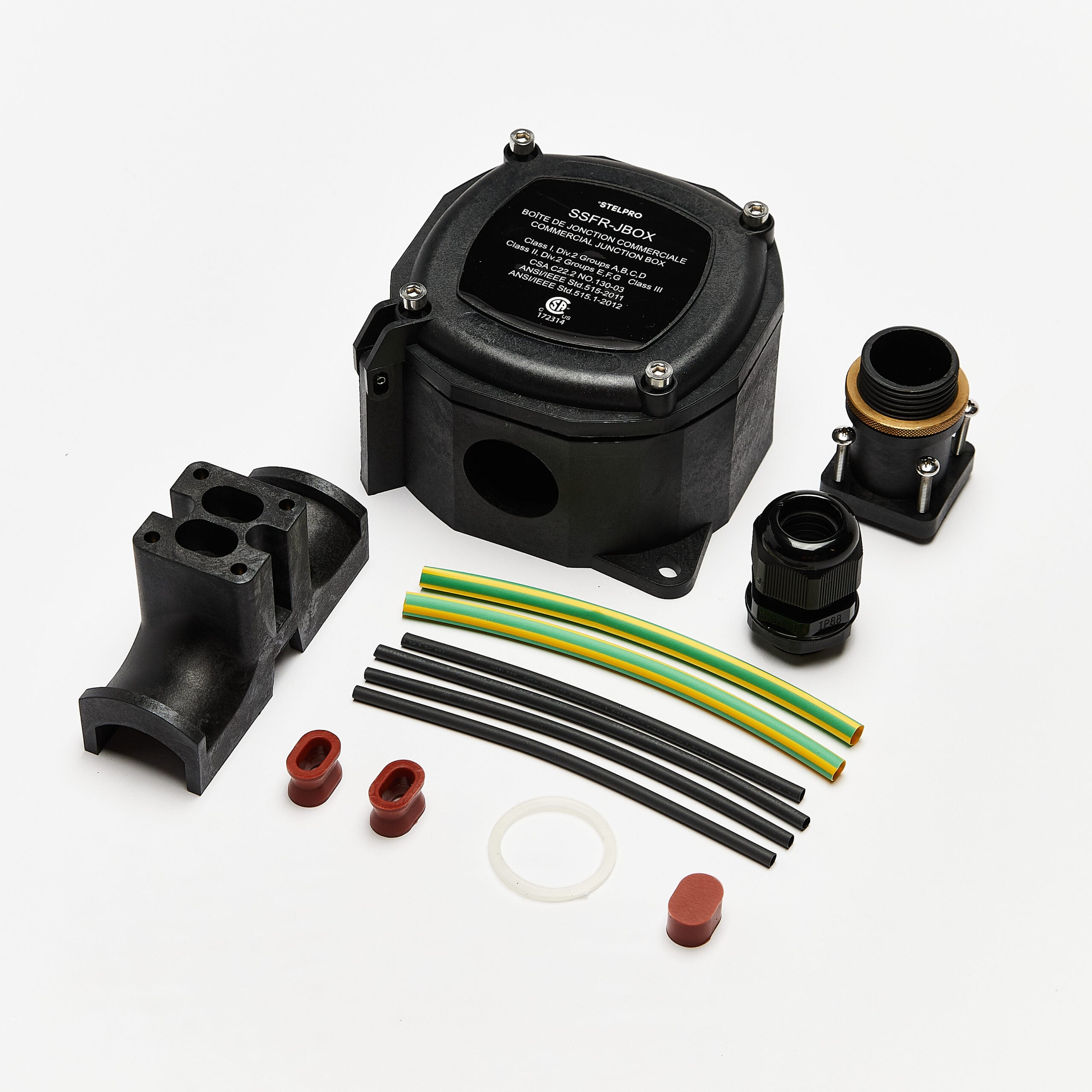

  • Optional connection, splice, T-connection and end-seal kit
MANUFACTURING
  • Normal cable width 0.42 in.
  • Normal cable thickness 0.23 in.
  • Cable bus wire gauge 16 AWG
WATTAGE
  • 5 W/ft, 8 W/ft, 10 W/ft

INSTALLATION
  • Maximum exposure temperature is 185 °F
  • Minimum installation temperature -40 °F
WARRANTY
  • Two years

Documents

SSFR

Specsheet

PDF

Download (opens in a new tab)

SSFR

Technical drawings

PDF

Download (opens in a new tab)

SSFR

Design guide

PDF

Download (opens in a new tab)

SSFR

User guide

PDF

Download (opens in a new tab)

SSFR

Shop drawings

ZIP

Download (opens in a new tab)
