STCP

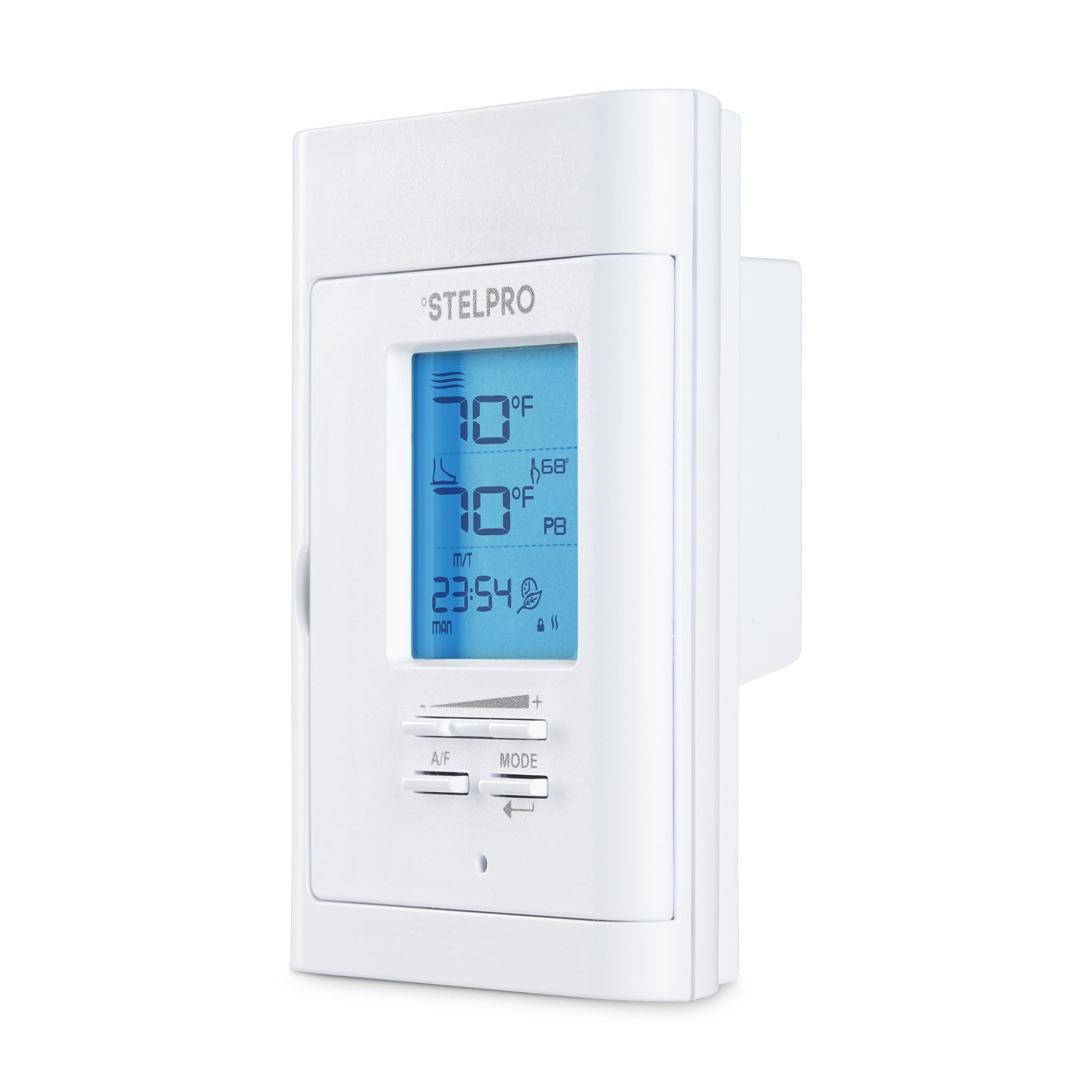

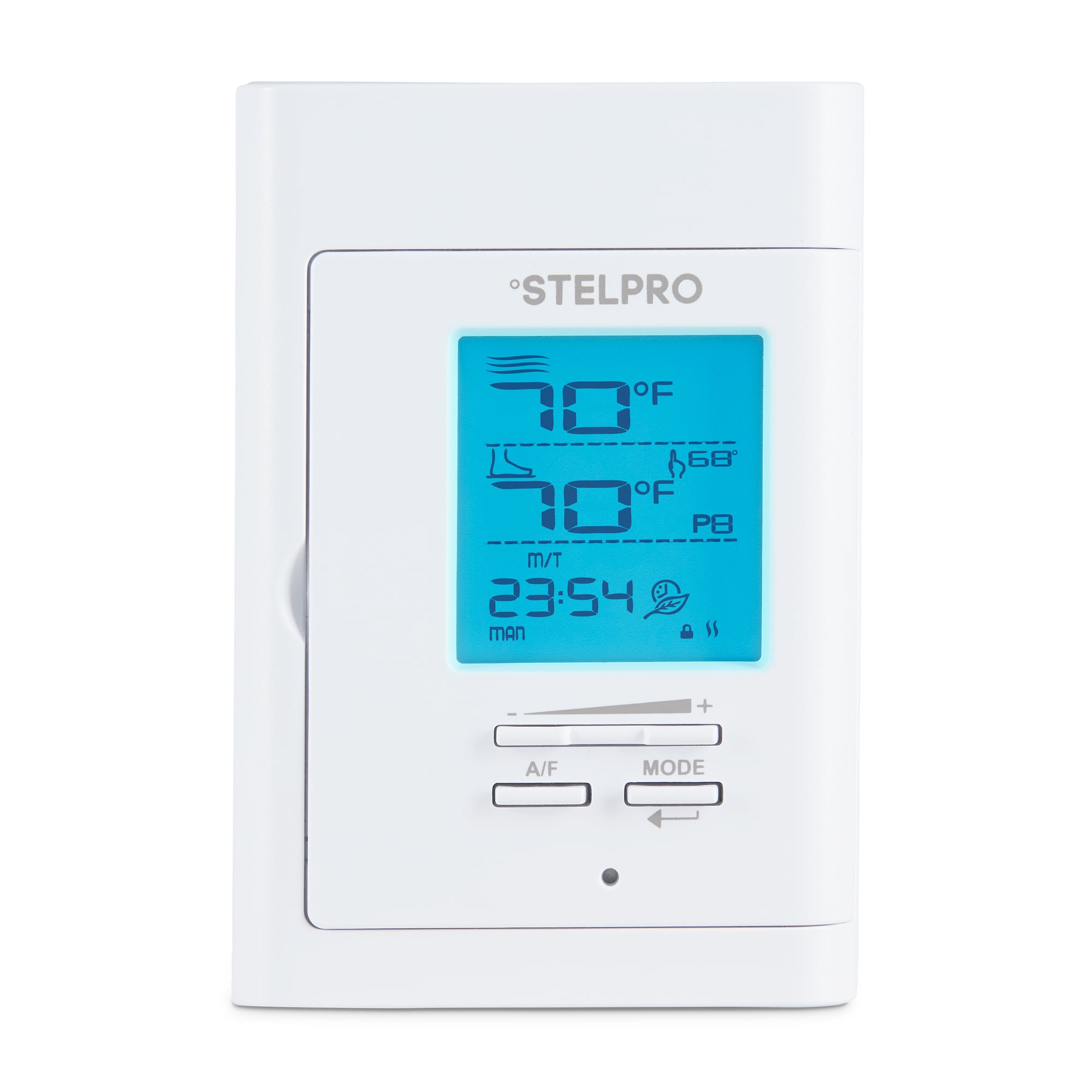

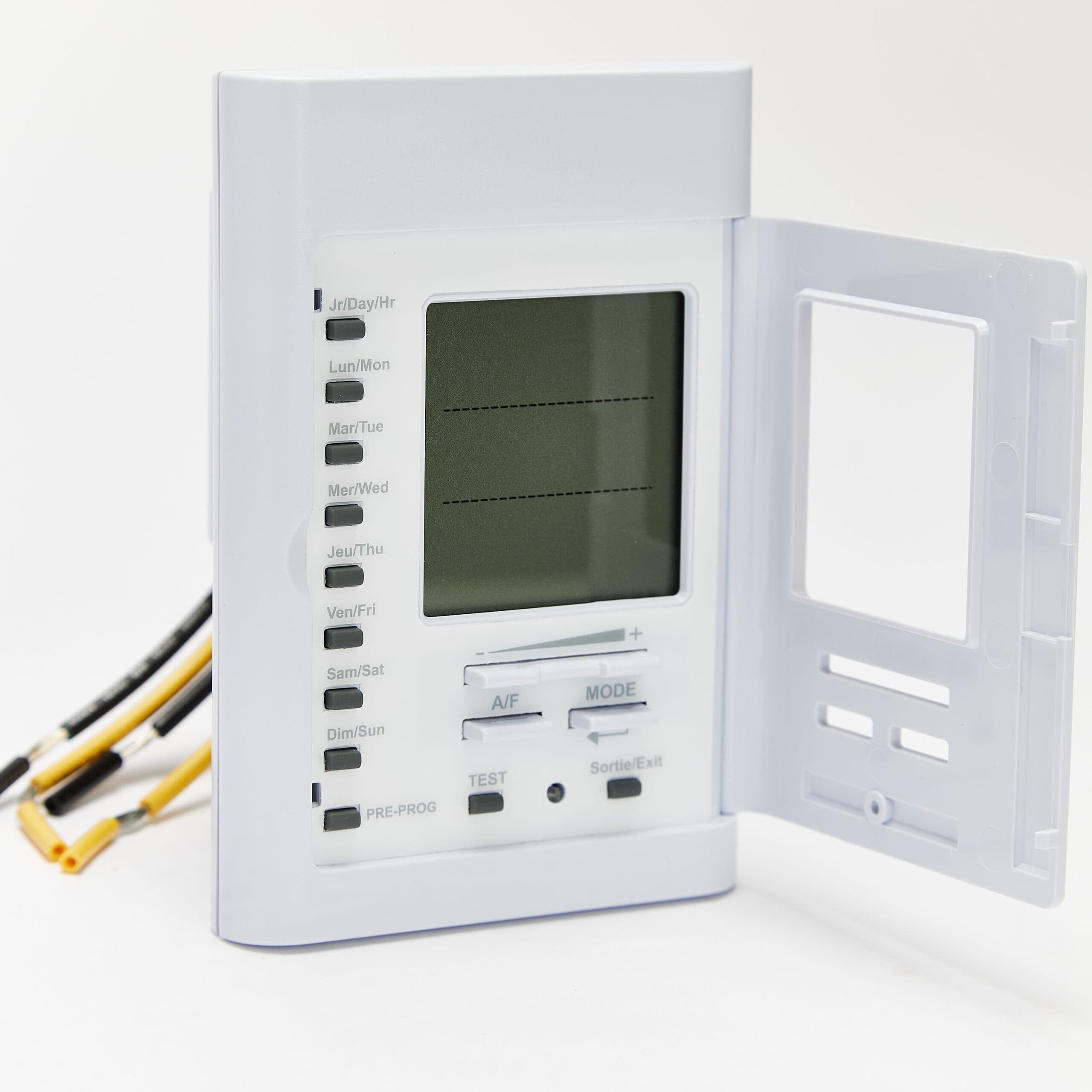

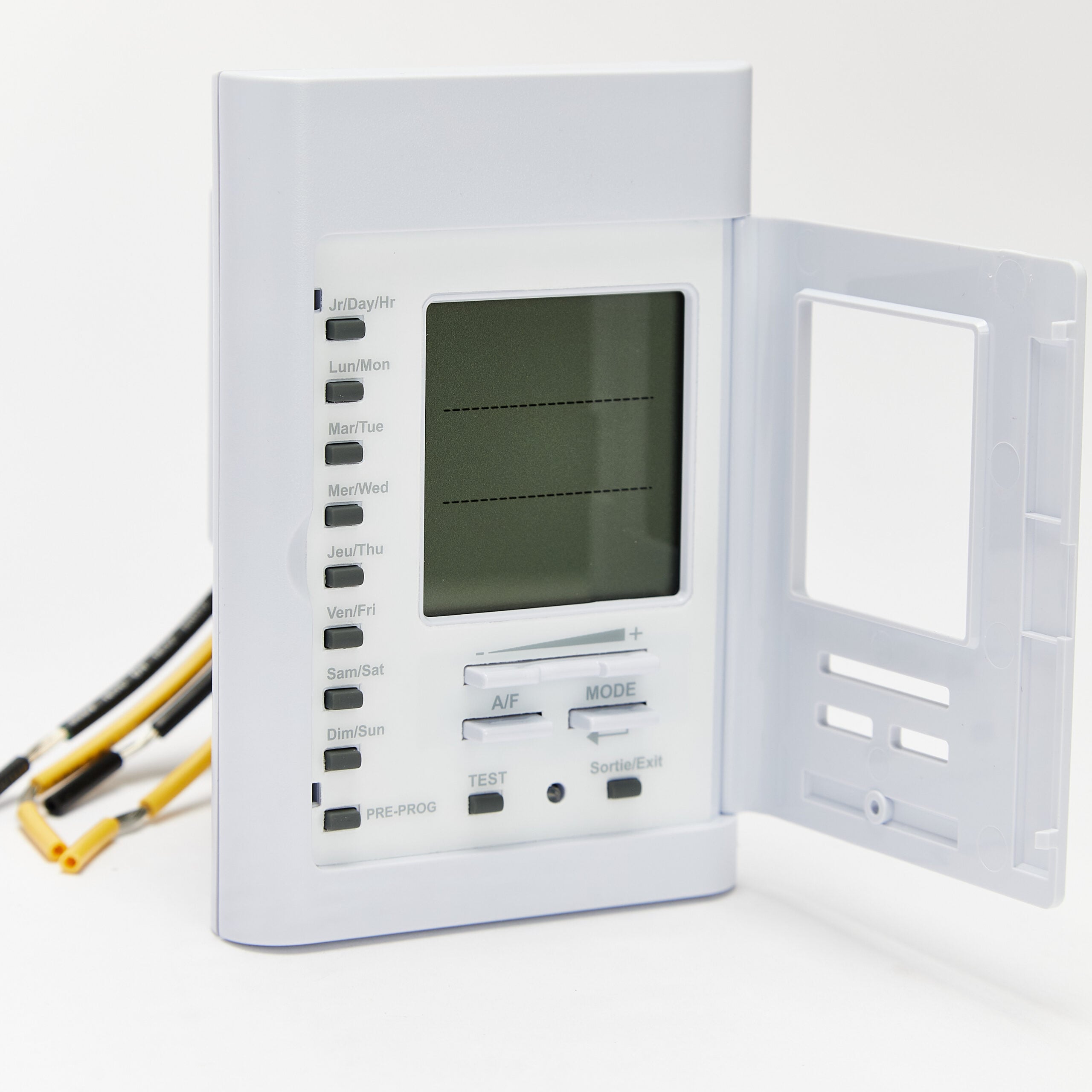

Floor Heating Thermostat – Multiple Programming

Programming the comfort of your feet

The STCP thermostat is designed for floor heating applications. It is compatible with all recessed or surface floor heating systems. A host of pre-programmed settings are accessible using the buttons on the front panel.

Characteristics

Advantages
  • Easy 7-day programming
  • Greater savings and comfort
  • Anticipated start
  • Controls floor or ambient air temperature
COLOR
  • White
FINISH
  • Molded plastic
MANUFACTURING
  • Built-in GFCI and pilot light (test)
  • Four-wire connection/DPST with bipolar tripping

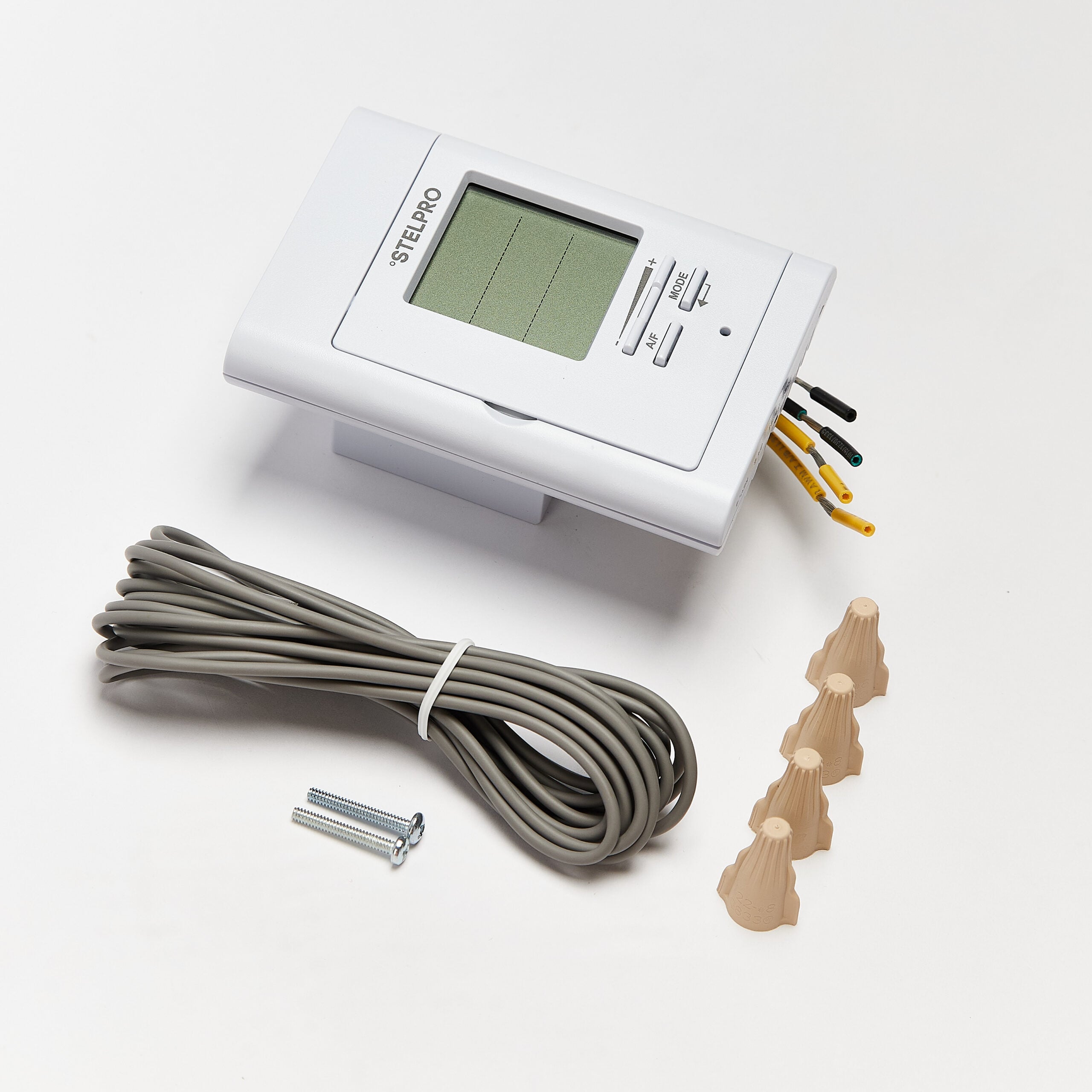

  • 13 ft. floor sensor included*
WATTAGE AND VOLTAGE
  • Maximum of 1920 W @ 120 V
  • Maximum of 3330 W @ 208 V
  • Maximum of 3840 W @ 240 V
CONTROL
  • Possibility of four events on weekdays and four events on weekends
  • Anticipated start (the thermostat reaches the desired temperature at the requested time)
  • Advanced floor or ambient temperature control (your choice)
  • Protection against power failures (two hours)
  • Lock option at a maximum temperature setpoint (Security mode)
  • Display in Celsius or Fahrenheit

ACCURACY
  • Accurate ambient temperature control of ± 1 °F
  • Temperature sensing with thermistor
TEMPERATURE RANGE
  • Ambient mode: 37 to 95 °F
  • Floor mode: 37 to 82 °F
WARRANTY
  • Three years

* This thermostat is compatible with some floor sensors sold by other manufacturers.
