Characteristics

Advantages

• Easy to install and use
• Greater savings and comfort
• Controls floor or ambient air temperature

COLOR

• White

FINISH

• Molded plastic

MANUFACTURING

• Built-in GFCI and pilot light (test)
• Four-wire connection/DPST with bipolar tripping

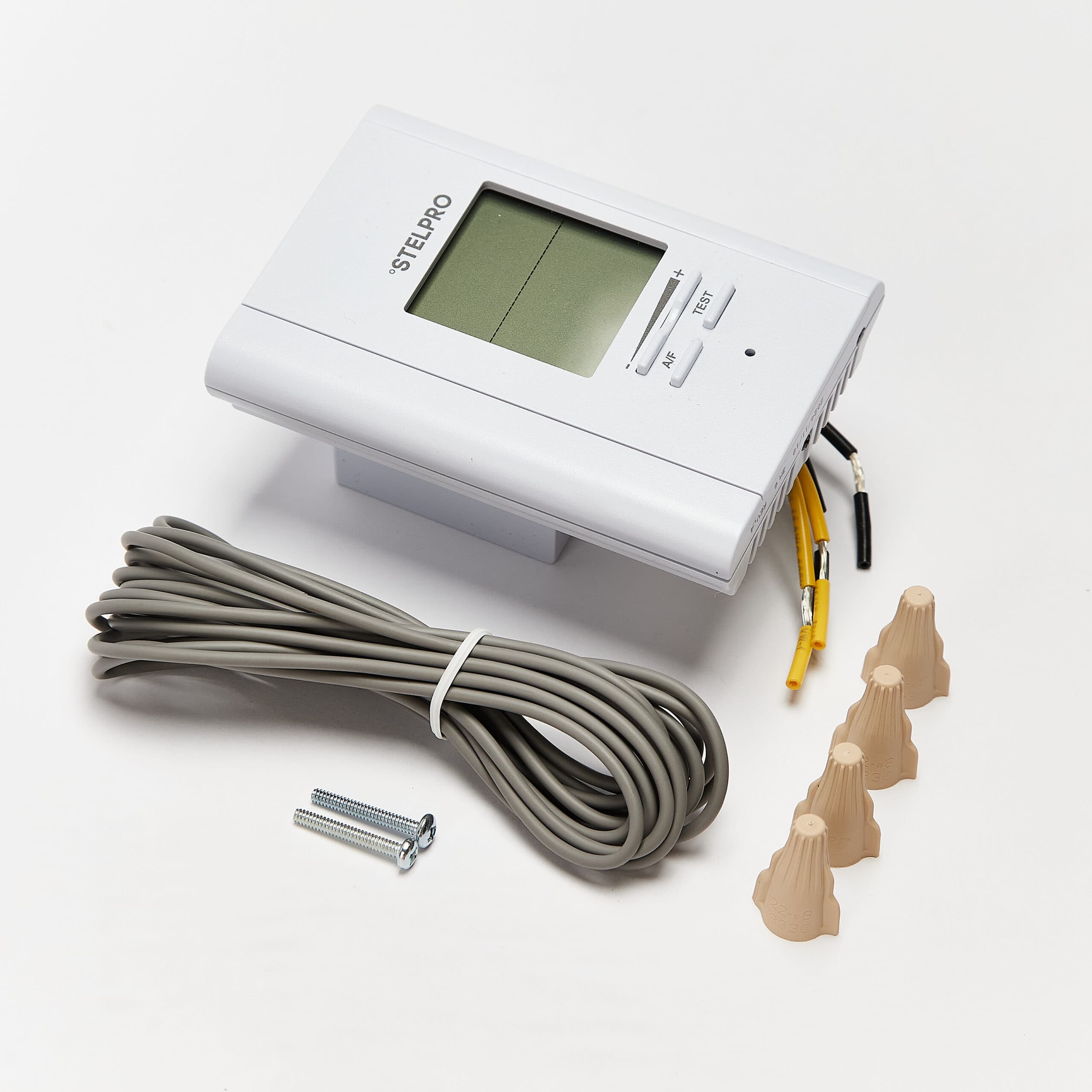

• 13 ft. floor sensor included*

WATTAGE AND VOLTAGE

• Maximum of 1920 W @ 120 V
• Maximum of 3330 W @ 208 V
• Maximum of 3840 W @ 240 V

CONTROL

• Acts like a programmable thermostat by automatically lowering the temperature once per 24-hour period (Single programming mode)
• Advanced floor or ambient temperature control
• Protection against power failures (two hours)
• Lock option at a maximum temperature setpoint (Security mode)
• Display in Celsius or Fahrenheit

ACCURACY

• Accurate ambient temperature control of ± 1 °F
• Temperature sensing with thermistor

TEMPERATURE RANGE

• Ambient mode: 37 to 95 °F
• Floor mode: 37 to 82 °F

WARRANTY

• Three years

* This thermostat is compatible with some floor sensors sold by other manufacturers.
