Characteristics

Advantages

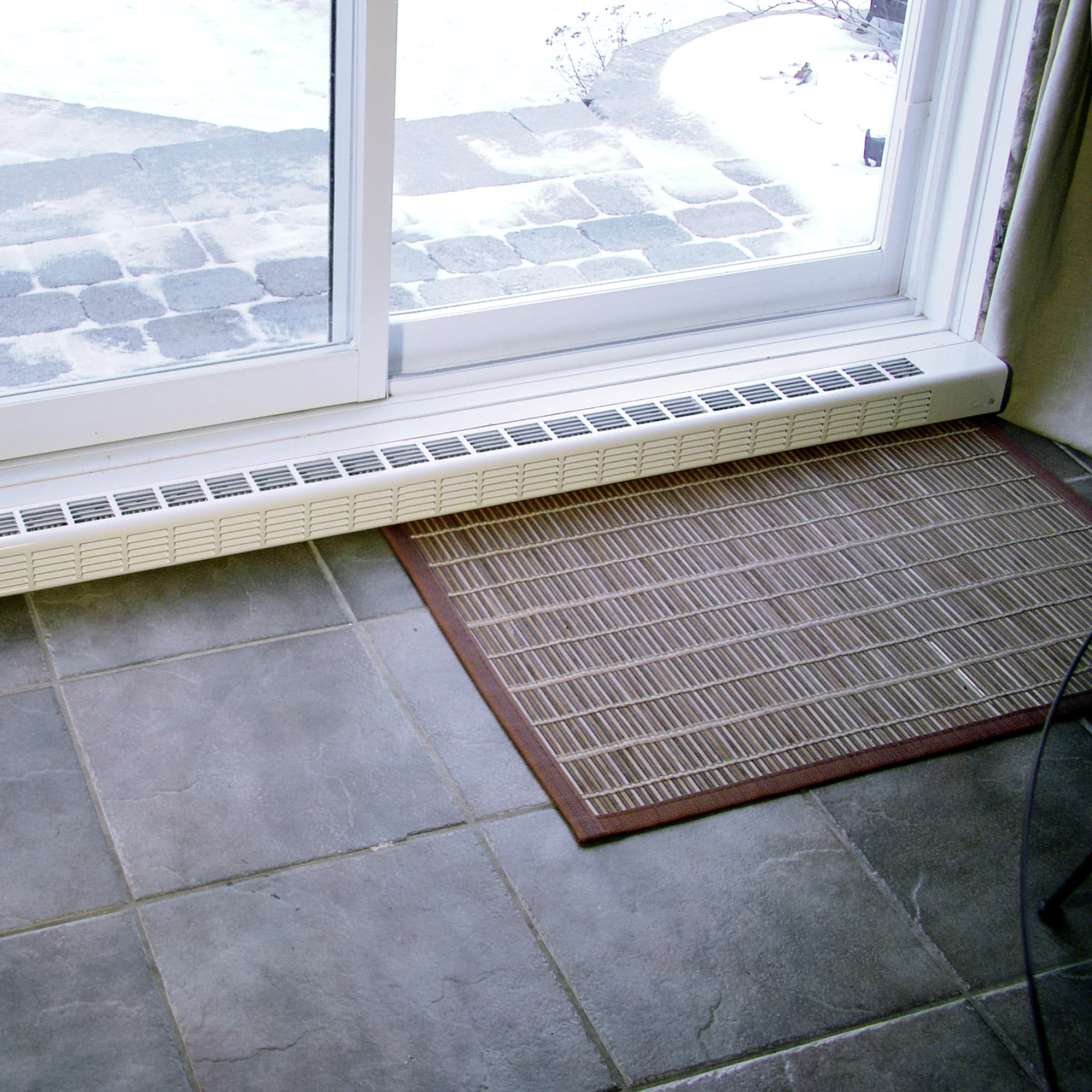

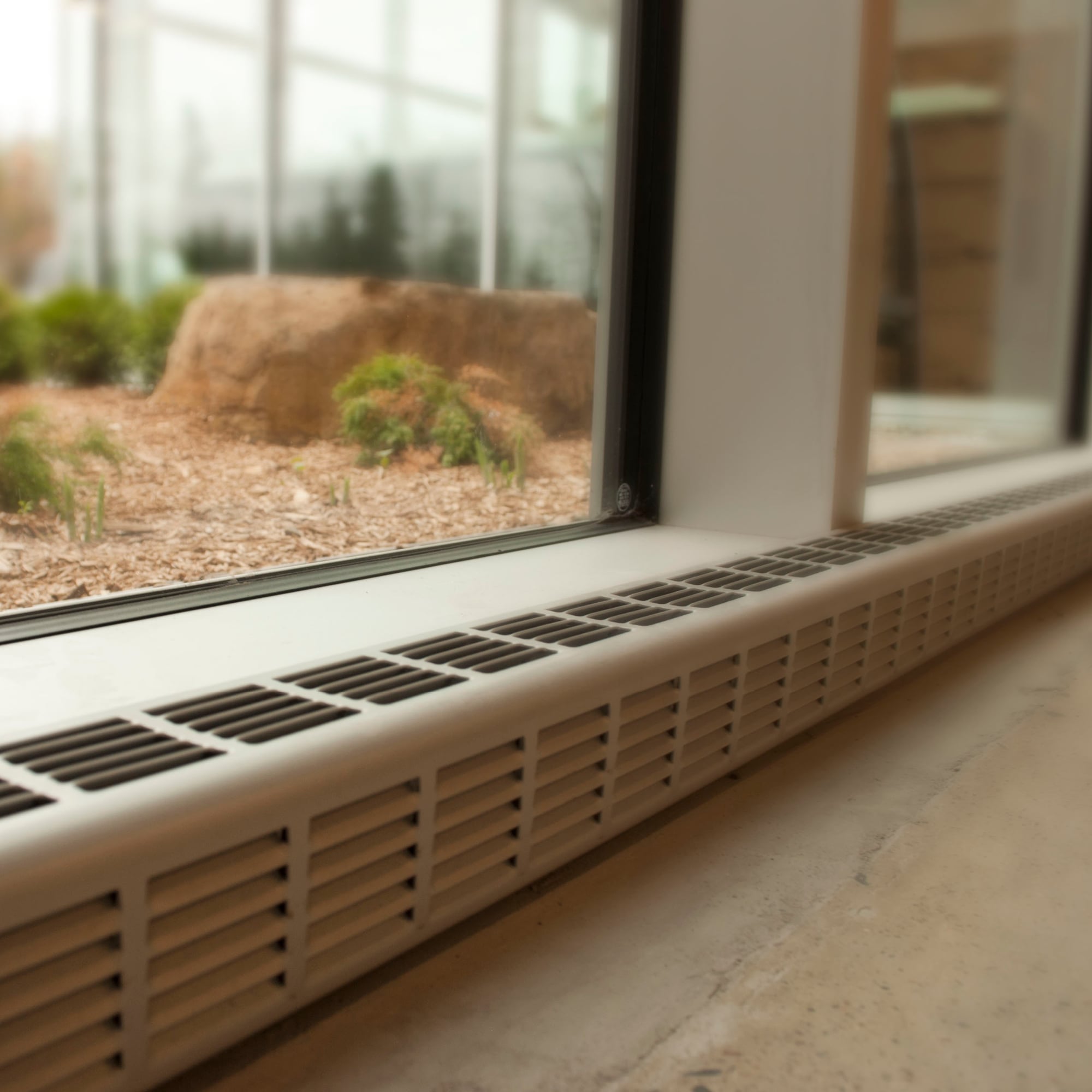

• Compact and sturdy (3″ x 3″) — Perfect below patio doors and large windows
• Low density — 150 W per linear foot
• Faux sections, pedestals and finished backs available — Customizable installation

COLORS

• Standard: white
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

• 3 in. x 3 in. compact profile
• Solid, 18-gauge steel cabinet and front that may be used as a step
• Thermal protection with automatic reset
• Full-length wireway
• Pencil-proof openings of less than 1/4 in. prevent foreign objects from entering the unit

ELEMENT

• Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Built-in thermostat accessible without removing front grille, installed in the left junction box only (optional)
• Low voltage relay kit installed in the left junction box only (optional)

INSTALLATION

• Surface mounted
• Wall or floor mounted with or without pedestal kit (optional)
• Wiring compartment at both ends of unit
• Blank sections (custom lengths) and accessories are available for a continuous look (optional)

WARRANTY

• Three years
