Characteristics

Advantages

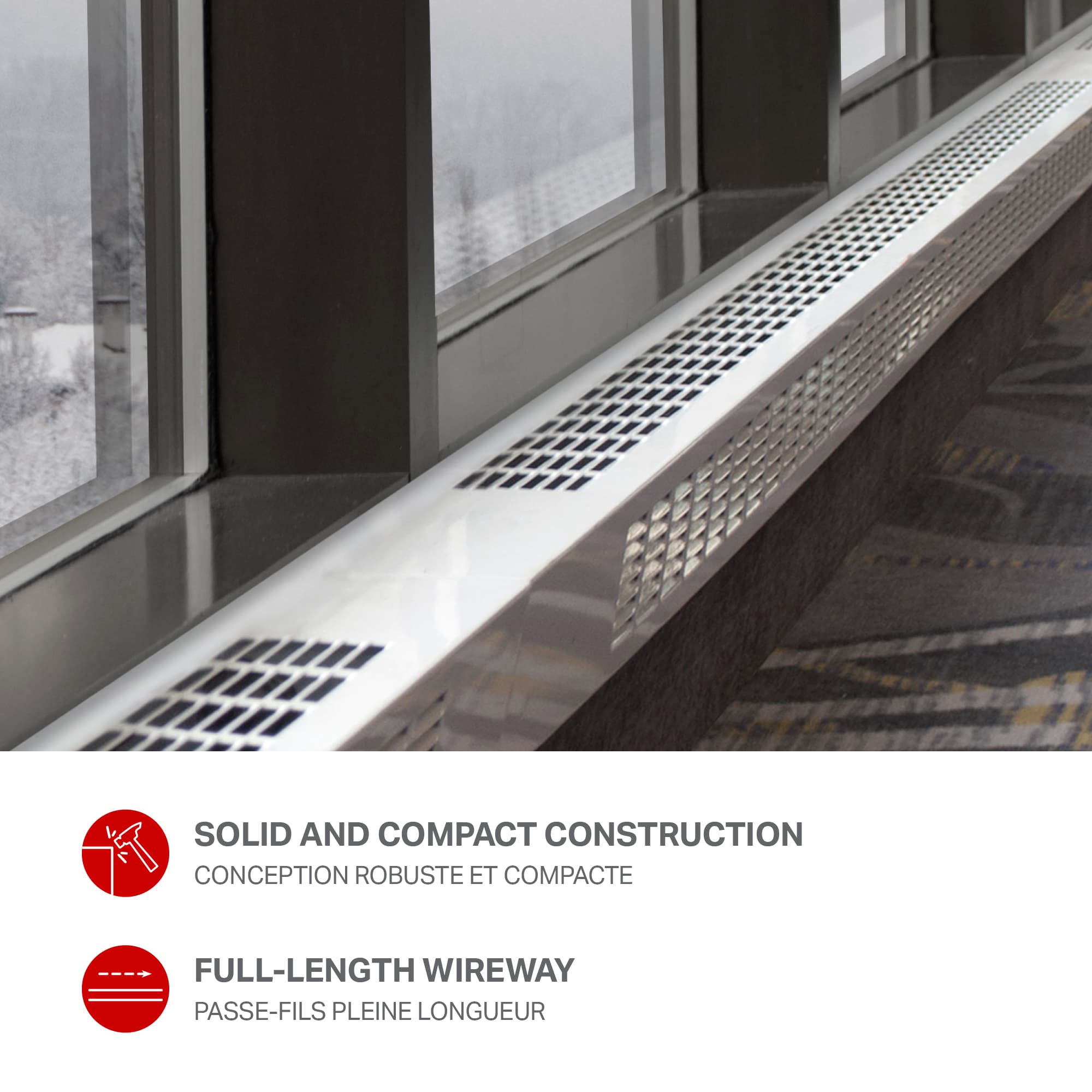

• Solid construction

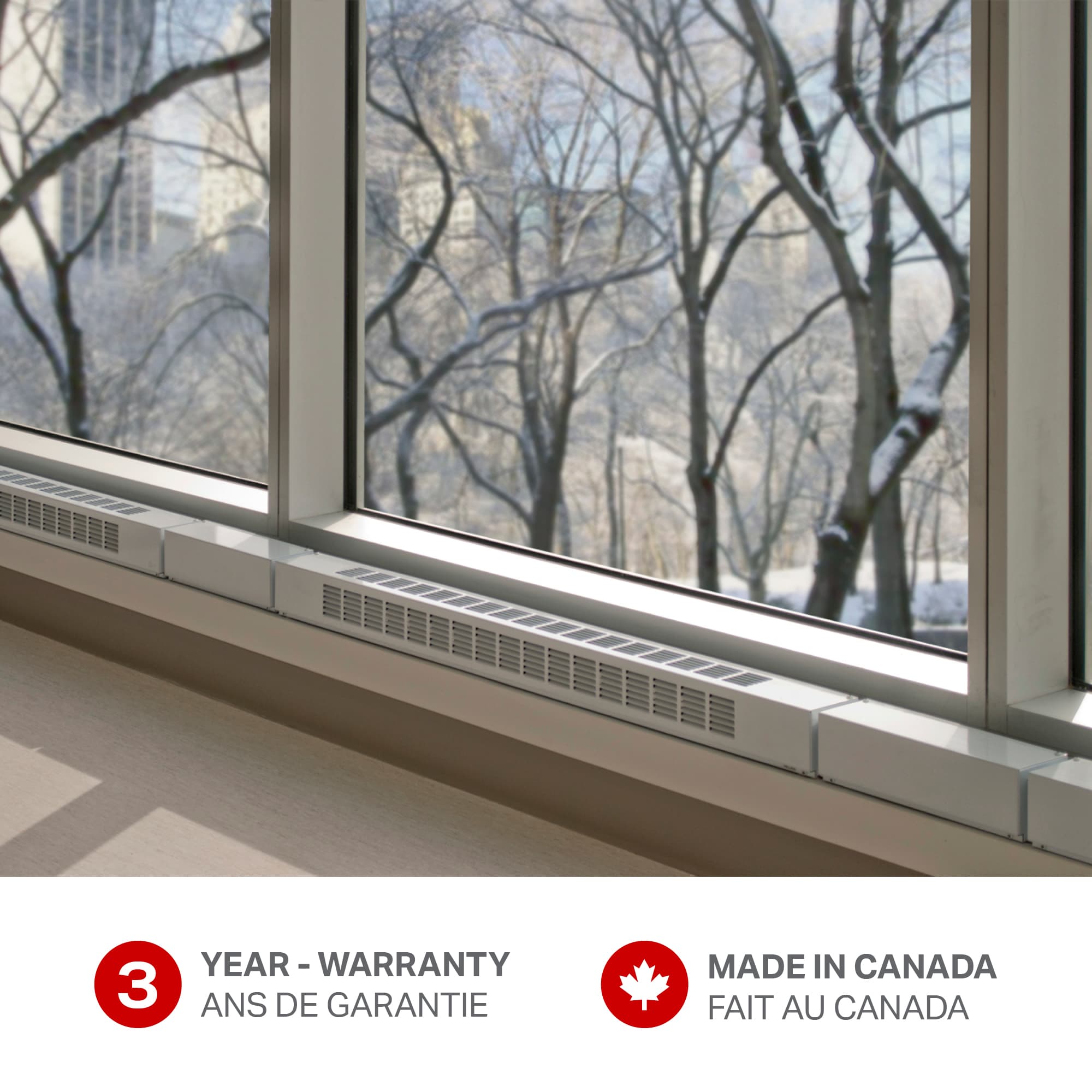

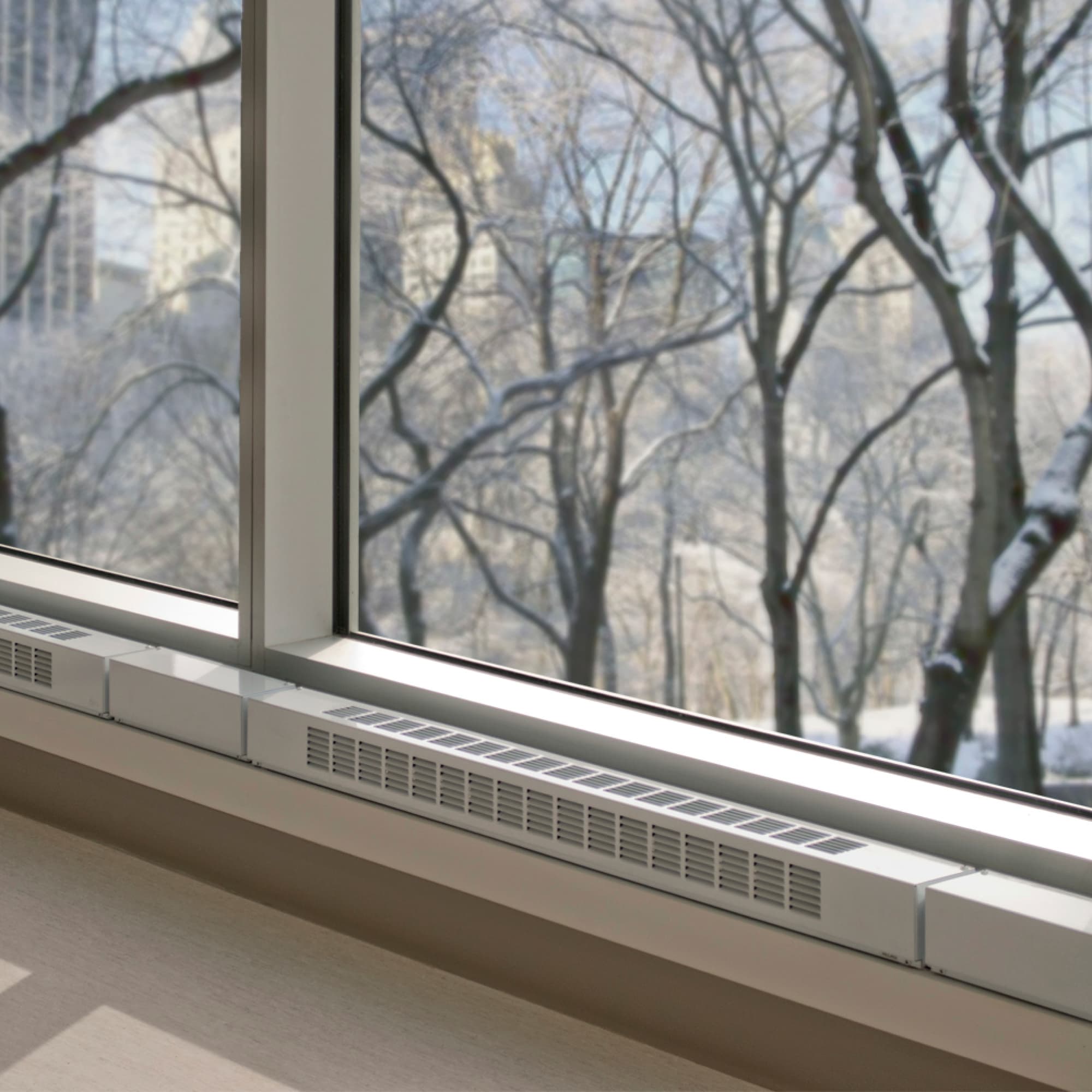

• Designed specifically to prevent cold air entry from patio doors
• Faux sections, pedestals and finished backs available – Customizable installation
• Full-length wireway

COLORS

• Standard: white
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

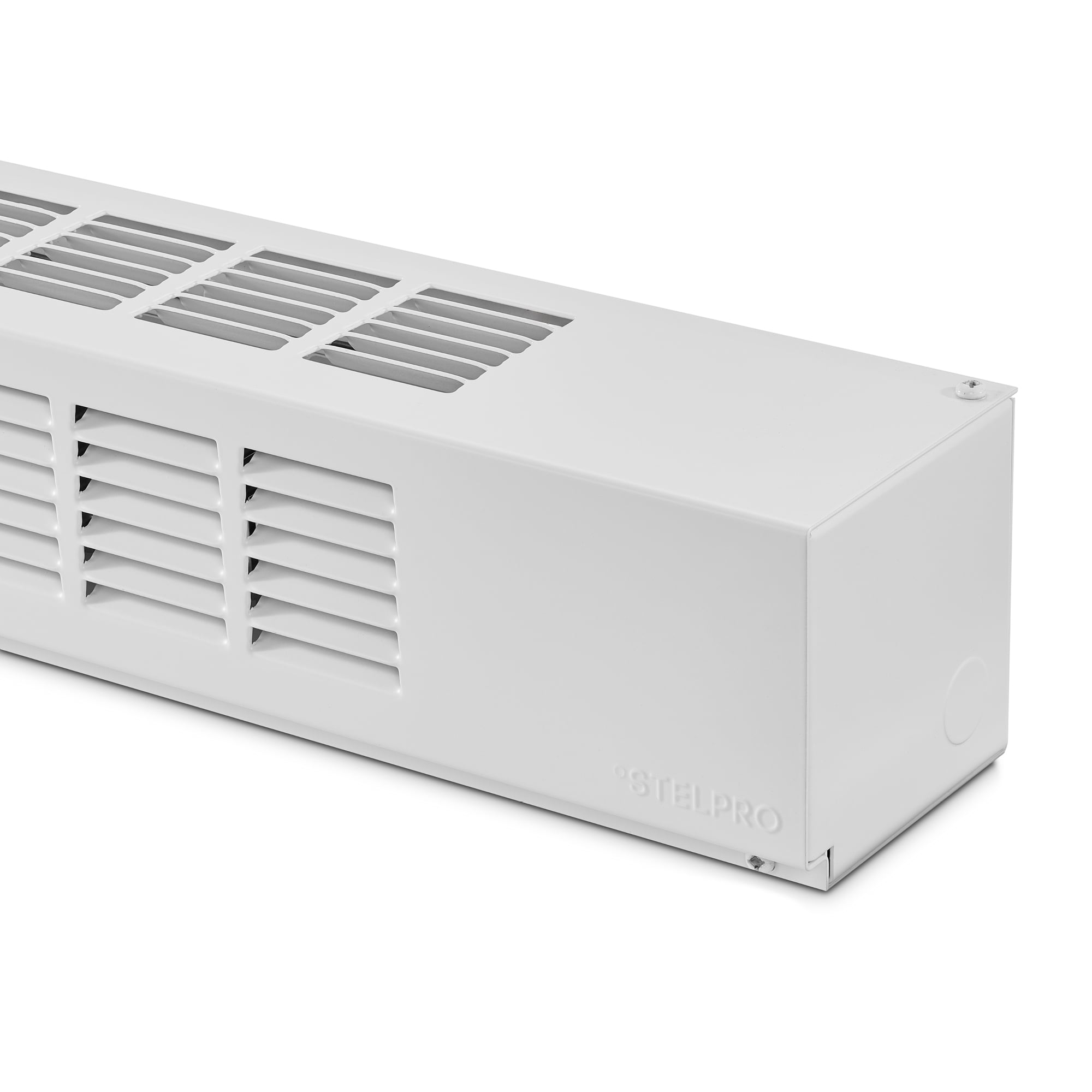

• 4 in. x 4 in. compact profile
• Solid, 18-gauge steel cabinet and front that may be used as a step
• Thermal protection with automatic reset
• Full-length wireway
• Pencil-proof openings of less than 1/4 in. prevent foreign objects from entering the unit

ELEMENT

• Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Built-in thermostat accessible without removing front grille, installed in the left junction box only (optional)
• Low voltage relay kit installed in the left or right junction box (optional)

INSTALLATION

• Surface mounted
• Wall or floor mounted with or without pedestal kit (optional)
• Wiring compartment at both ends of unit
• Blank sections (custom lengths) and accessories are available for a continuous look (optional)

WARRANTY

• Three years
