Characteristics

Advantages

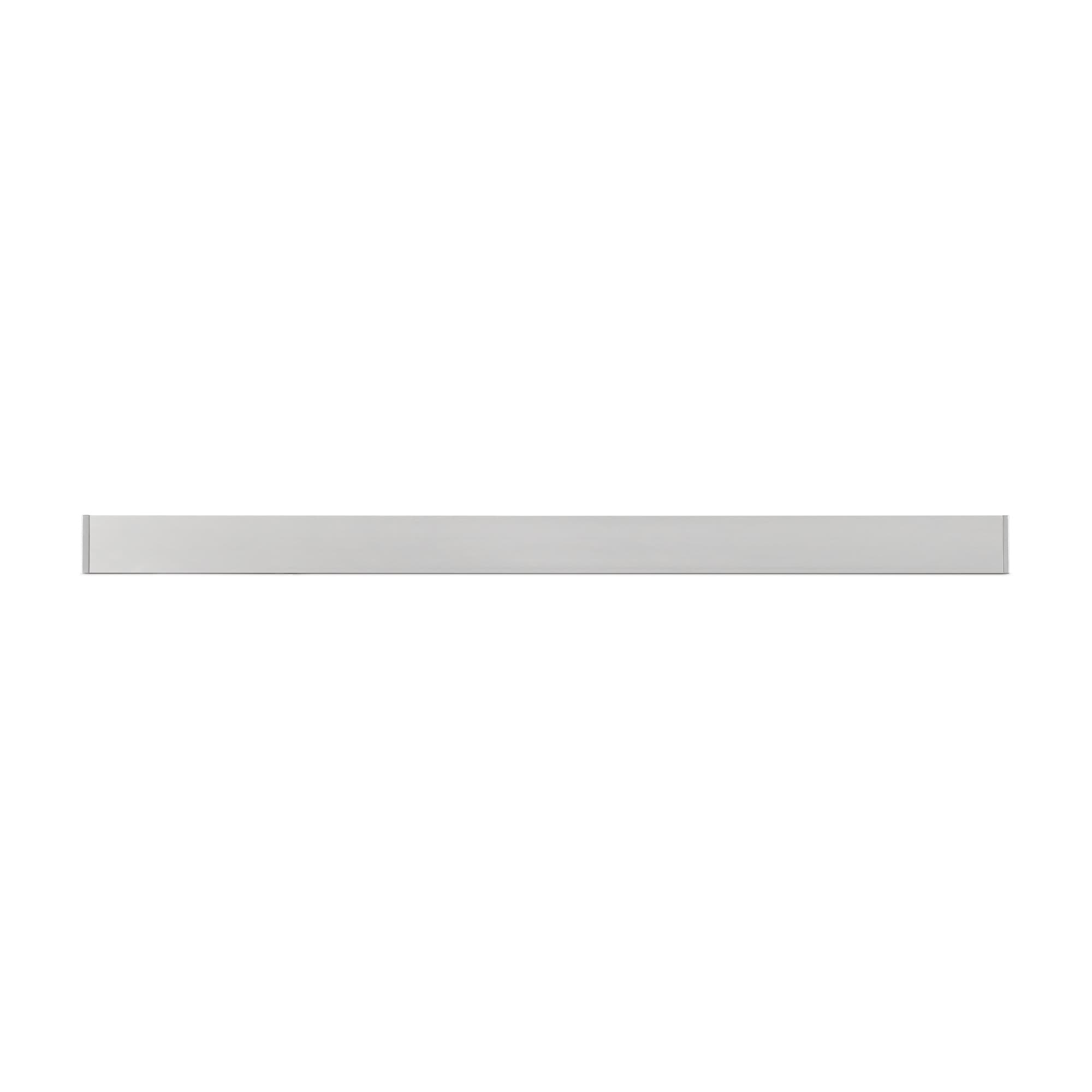

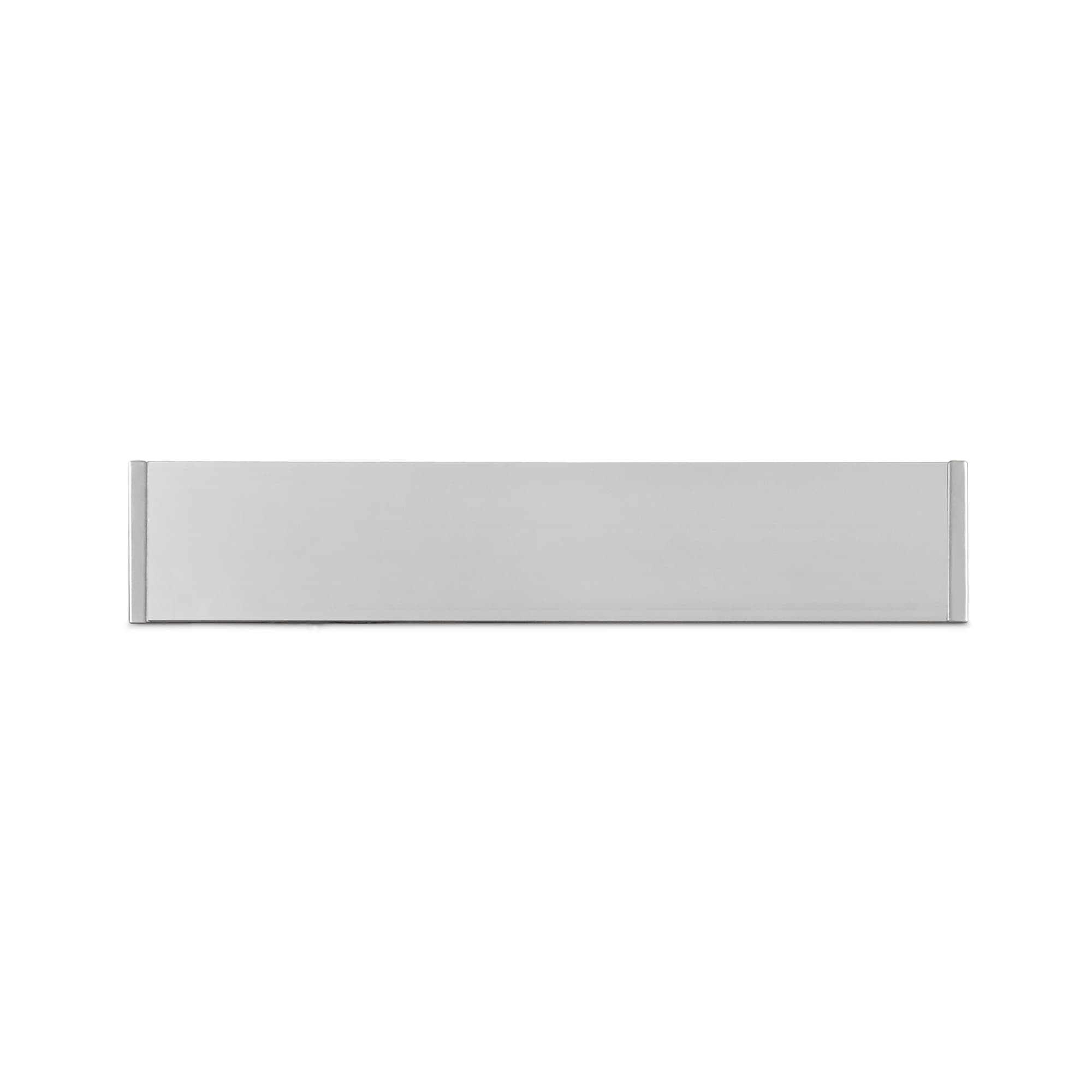

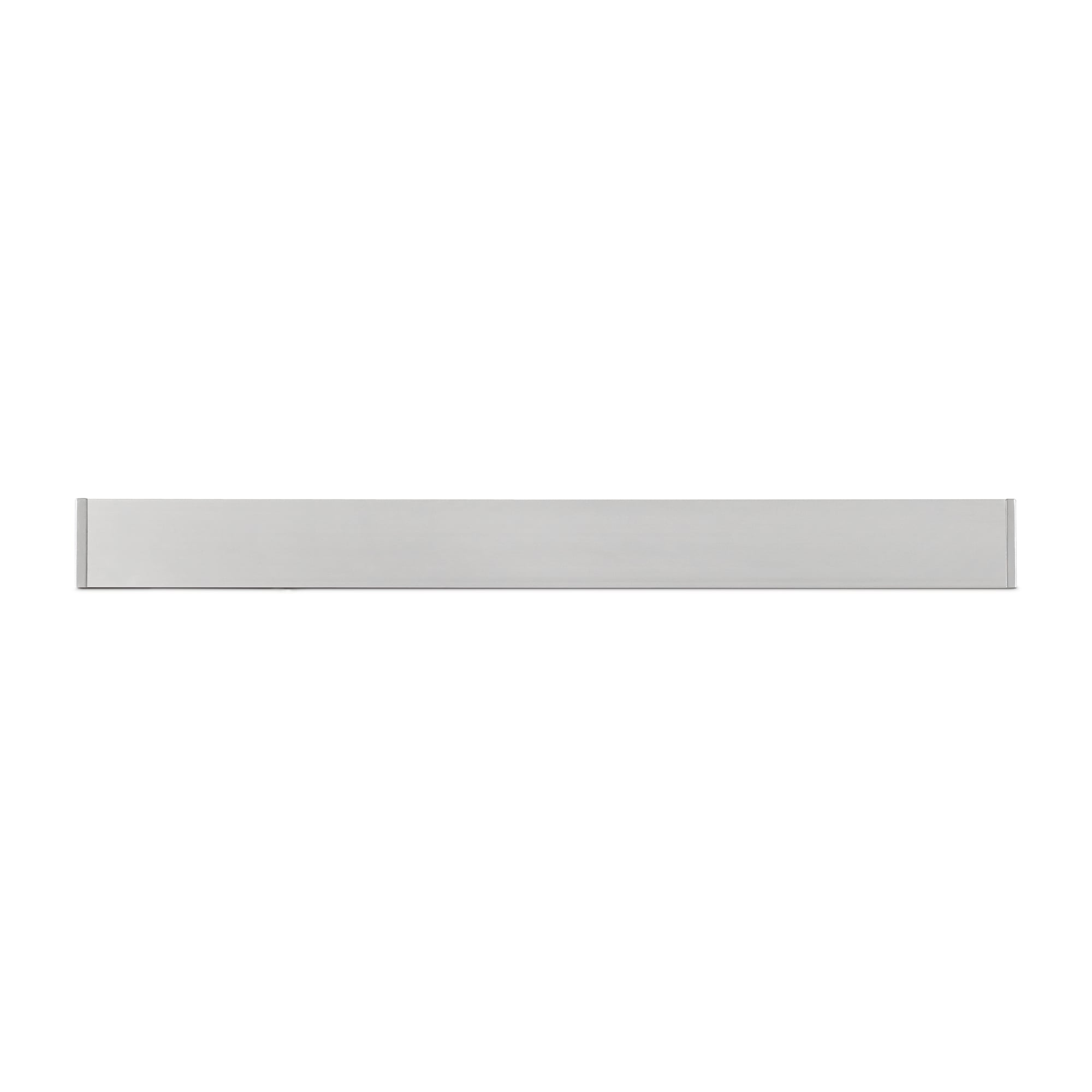

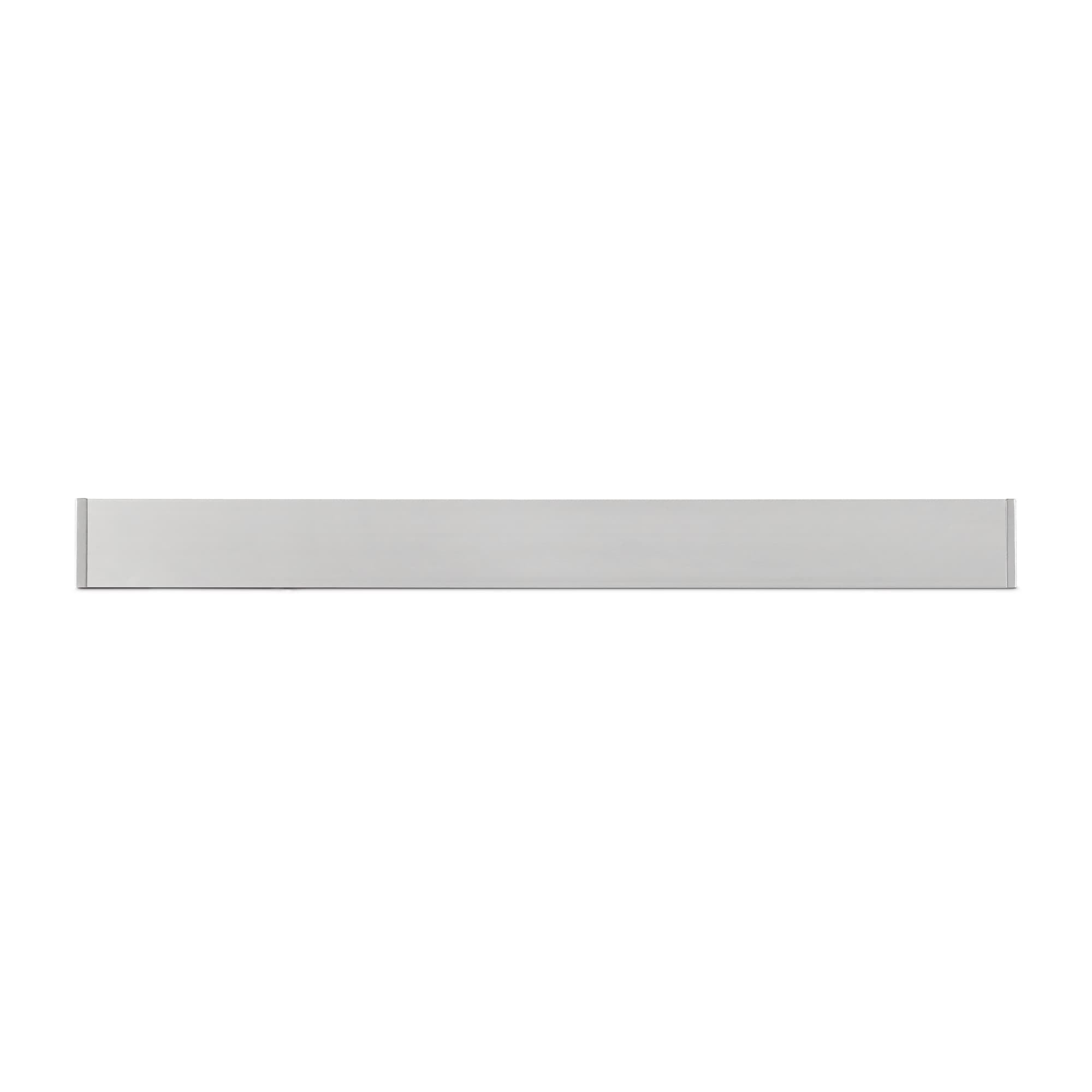

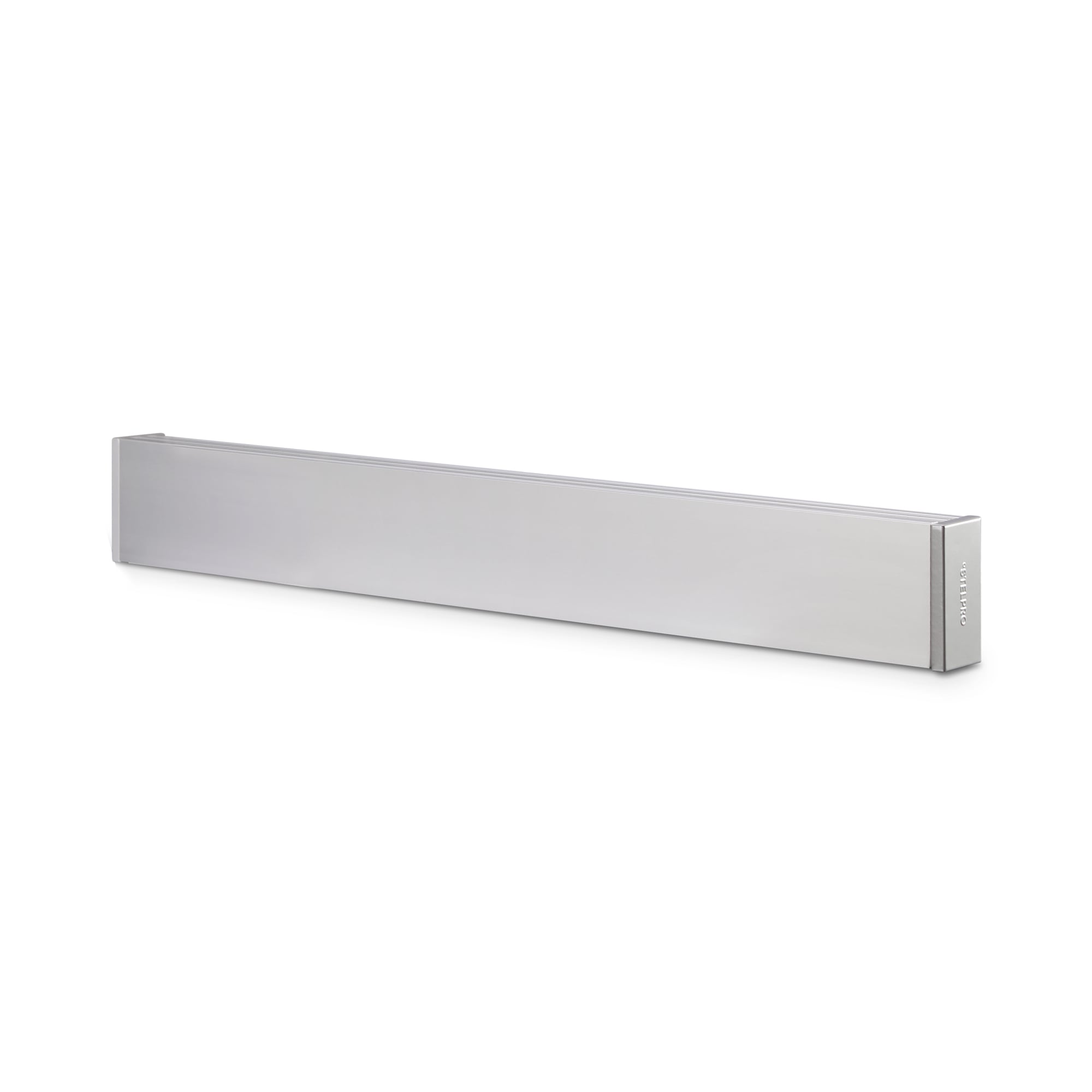

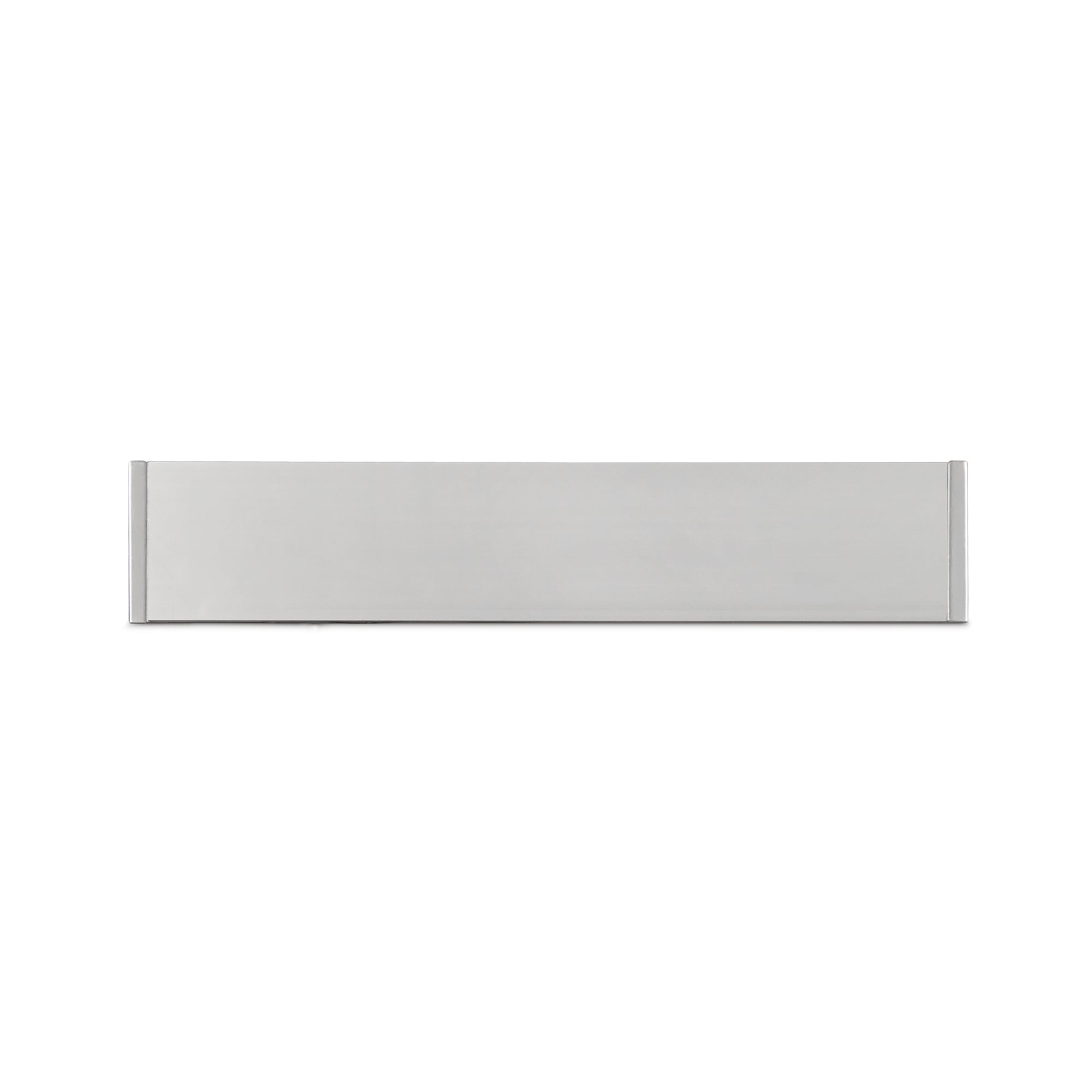

• Extruded aluminum front and top cover — With a unique, luxury design
• Extremely solid, impact And rust resistant

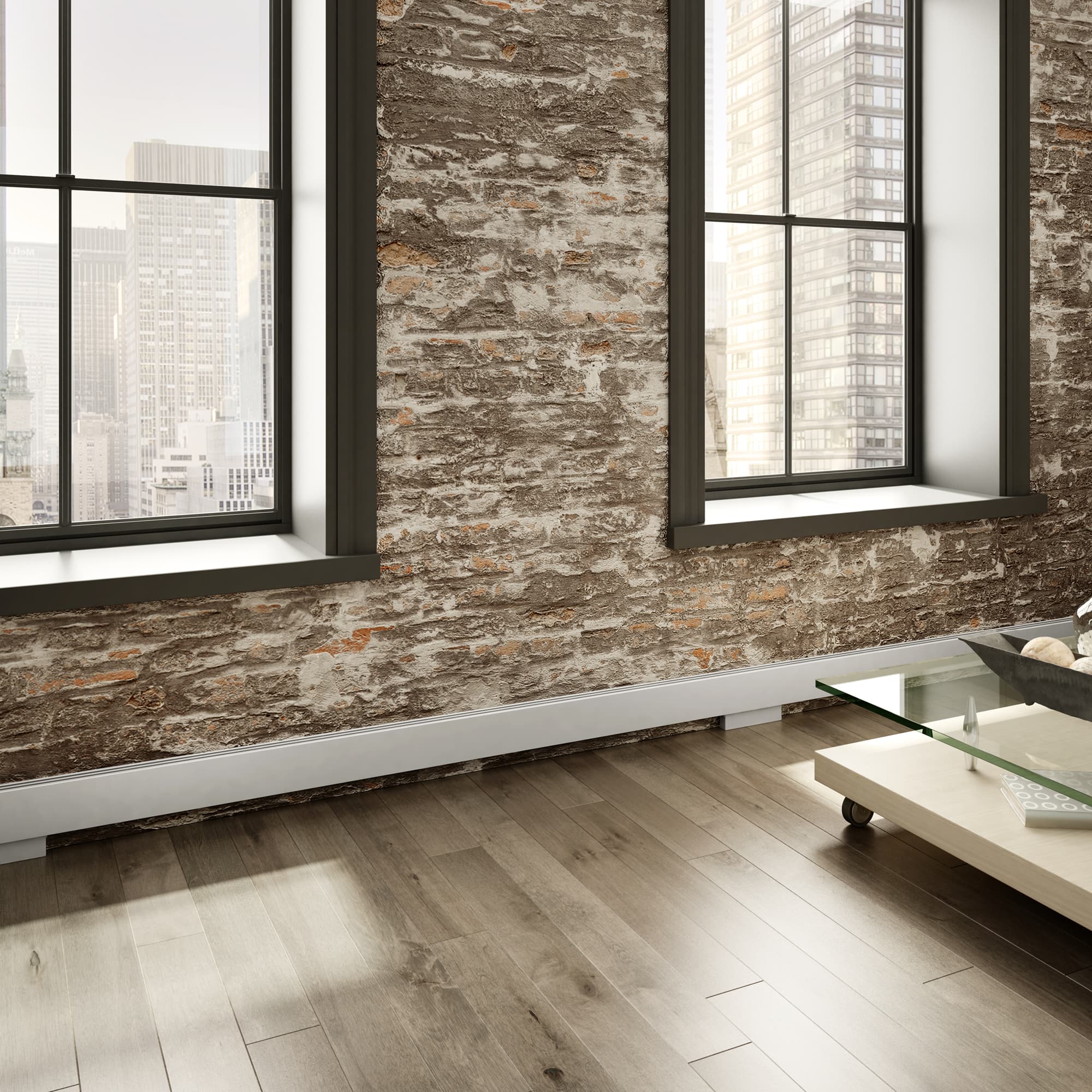

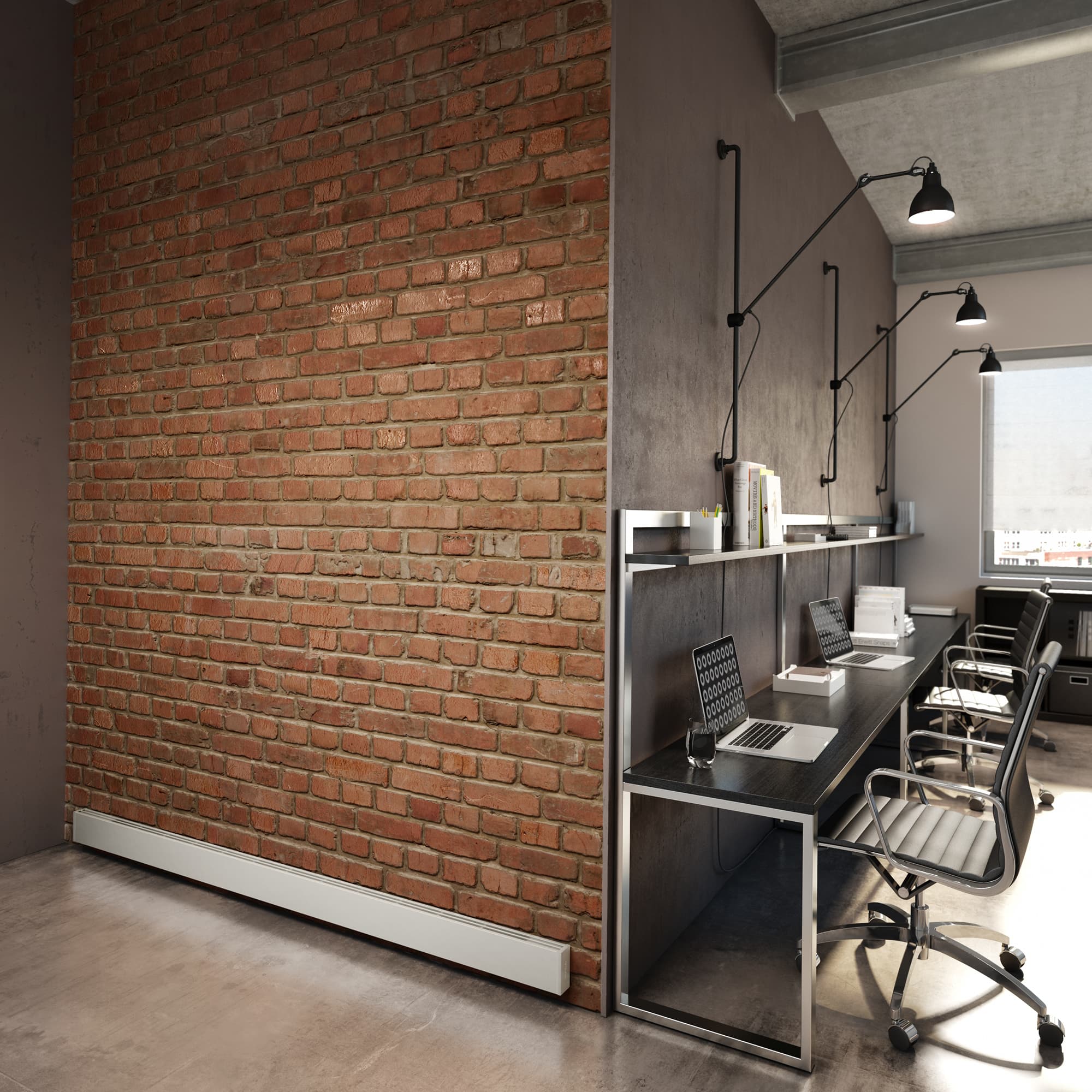

• Versatile — Adapts to any building’s architecture
• Personalized installation — Faux sections, pedestals and finished backs available

COLORS

• Standard: white
• Luxury finish: anodized aluminum (see price list)
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat or anodized aluminum finish

MANUFACTURING

• 2 in. x 4 1/2 in. compact profile
• Solid 20-gauge steel cabinet

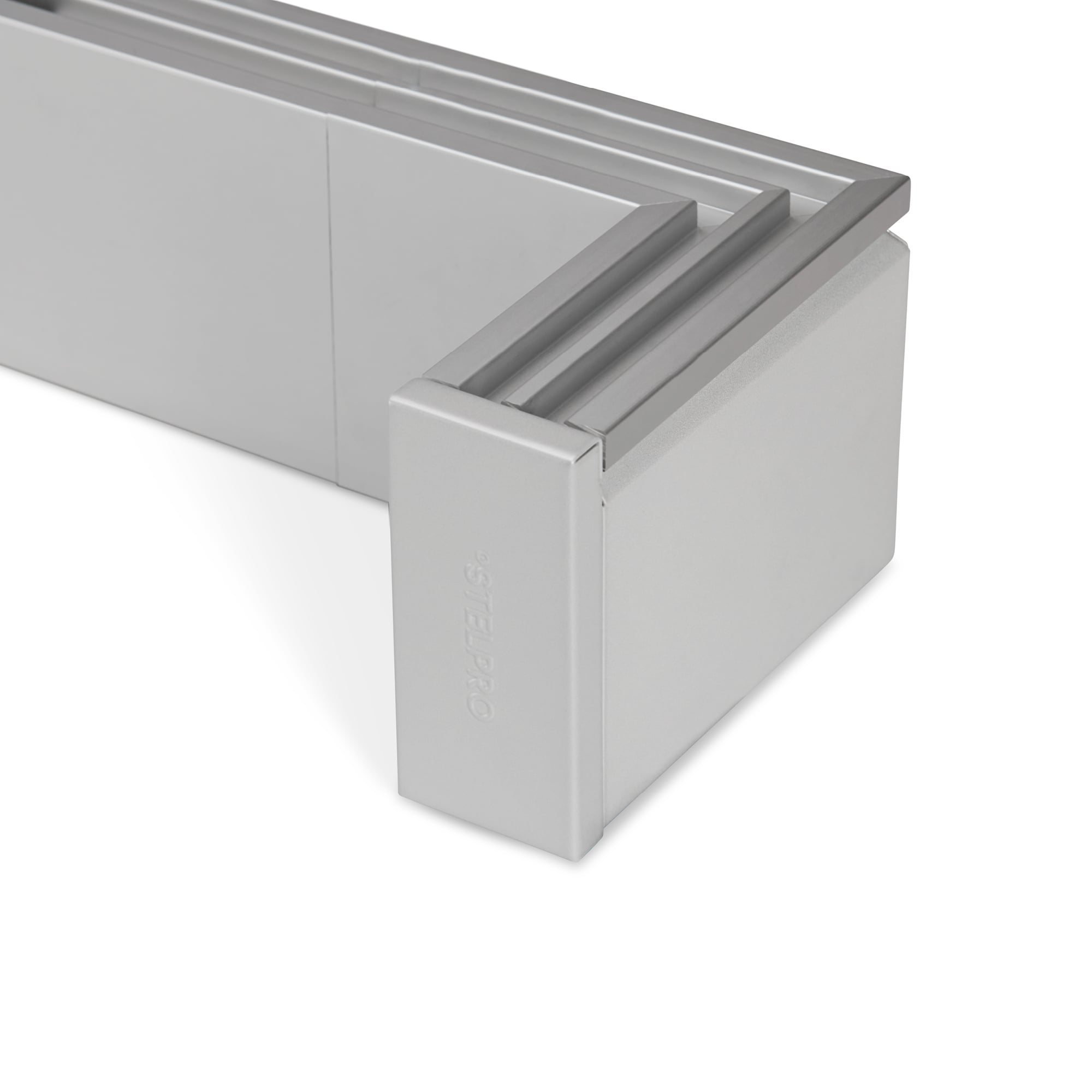

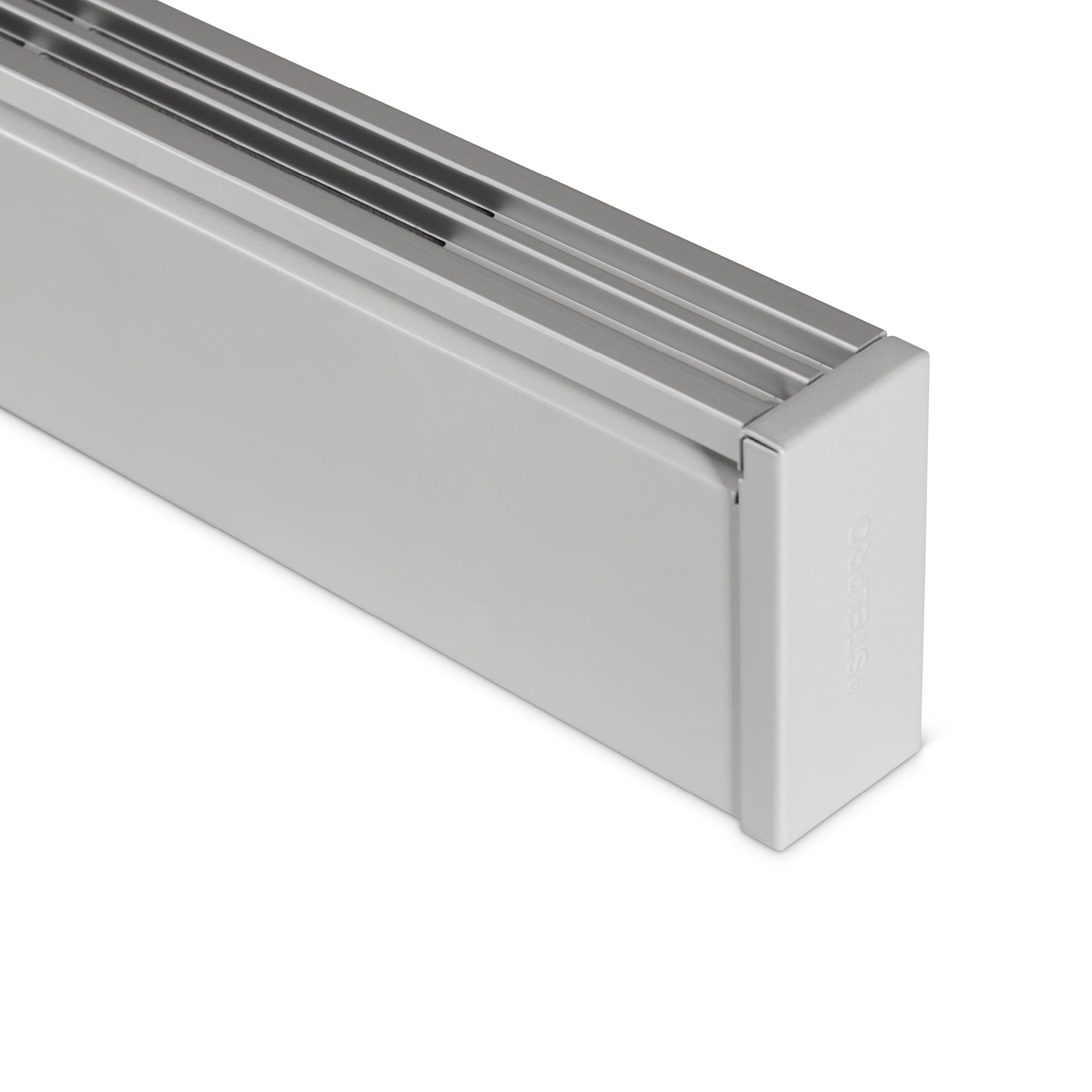

• Extremely resistant extruded aluminum front cover with a thickness equivalent to 10 gauge
• Bottom air intake and top air discharge
• Thermal protection with automatic reset
• Full-length wireway

ELEMENT

• Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation; the element is securely fastened at its centre, floating in nylon sleeves at each end, eliminating expansion and contraction noises

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Built-in tamper-proof thermostat accessible without removing front grille, installed in the left junction box only (optional)
• Low voltage relay kit installed in the left junction box only (optional)
• Multiple integrated controls can be installed in the same baseboard by adding one or two optional extensions (see accessories)

INSTALLATION

• Surface mounted
• Wall mounted
• Floor mounted with pedestal kit (sold separatly)
• At least 2 in. from the floor
• Wiring compartment at both ends of unit
• For a continuous look, custom blank sections with a simple attachment system are available (optional)
• Multiple integrated controls can be installed in the same baseboard inside an extension

WARRANTY

• Three years
