Characteristics

Advantages

• Outstanding heat density

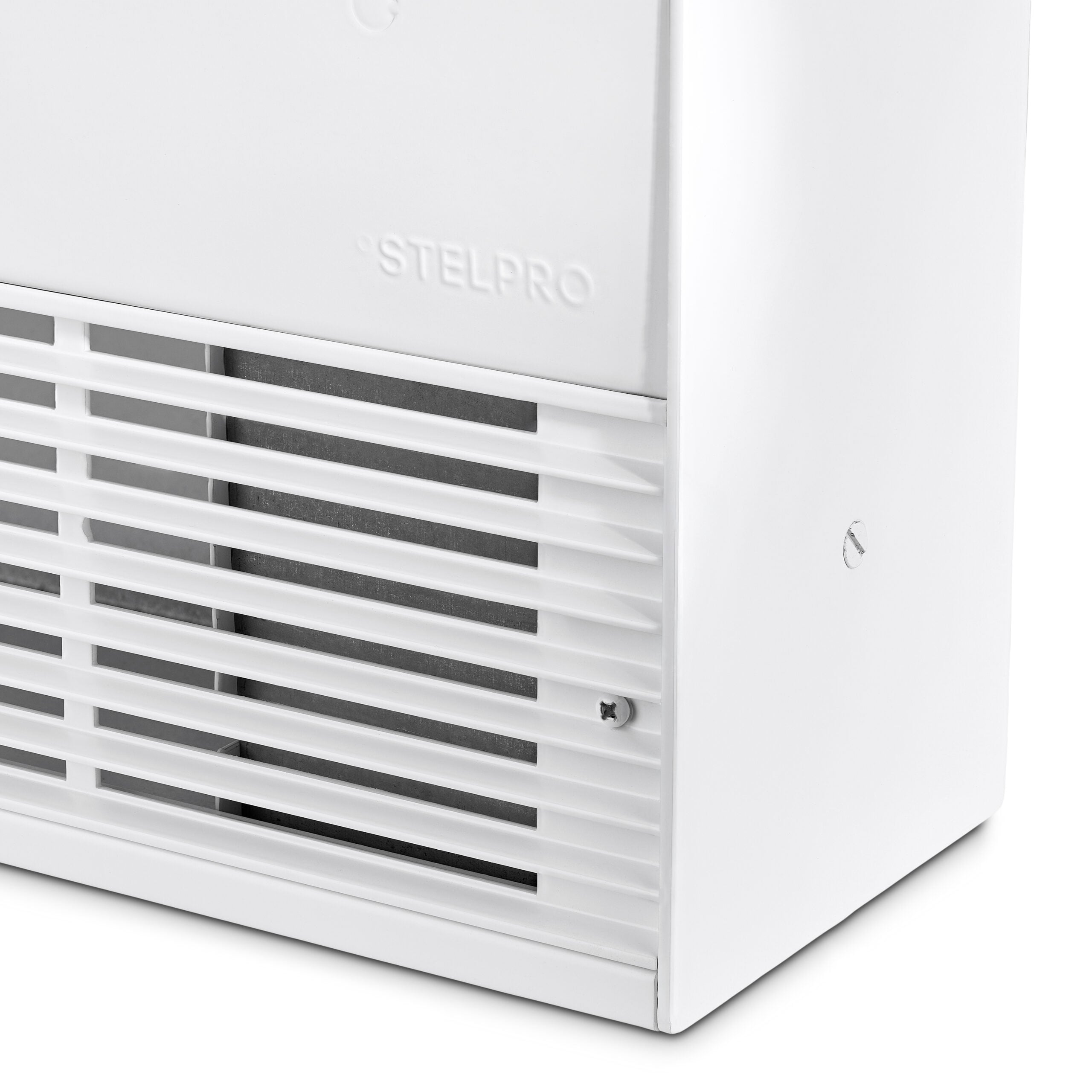

• Extruded aluminum grille serves to enhance the unit’s appearance
• Can be installed in public spaces
• Can be recessed

COLORS

• Standard: white
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

• 18-gauge steel cabinet, 16-gauge steel front panel and extruded aluminum grilles with a thickness equivalent to 13 gauge
• Front air intake and top air discharge (front inlet and front outlet available*)
• Thermal protection with automatic reset
• Full-length wireway

ELEMENTS

• Tubular elements, stainless steel sheathed with boxed aluminum fins for improved heat dissipation; the elements are securely fastened at their centres, floating in nylon sleeves at each end, eliminating expansion and contraction noises
• Three (ACW750) or four (ACW1000) elements

CONTROL

• Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
• Built-in tamper-proof thermostat accessible without removing front grille, installed in the left or right junction box (optional)
• Low voltage relay kit installed in the left or right junction box (optional)

INSTALLATION

• Surface mounted or wall recessed* with four-piece trim frame (optional)
• Wall or floor mounted with or without pedestal kit (optional)
• Wiring compartments at both ends of unit

WARRANTY

• Three years

* Front inlet and front outlet [FF] version is available only in 450-W, 600-W and 800-W densities per linear foot (see the technical specifications table).
