ACWS750-ACWS1000

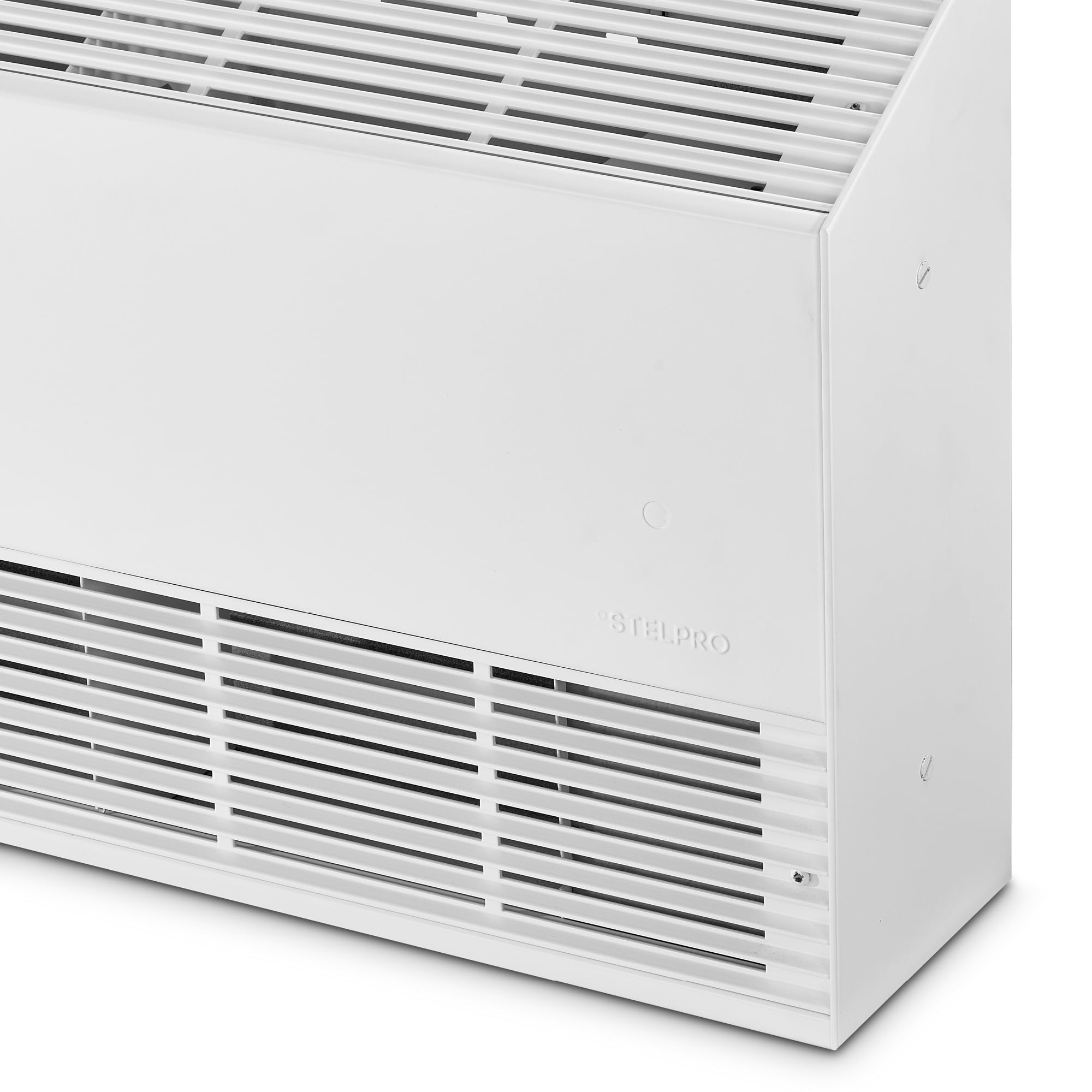

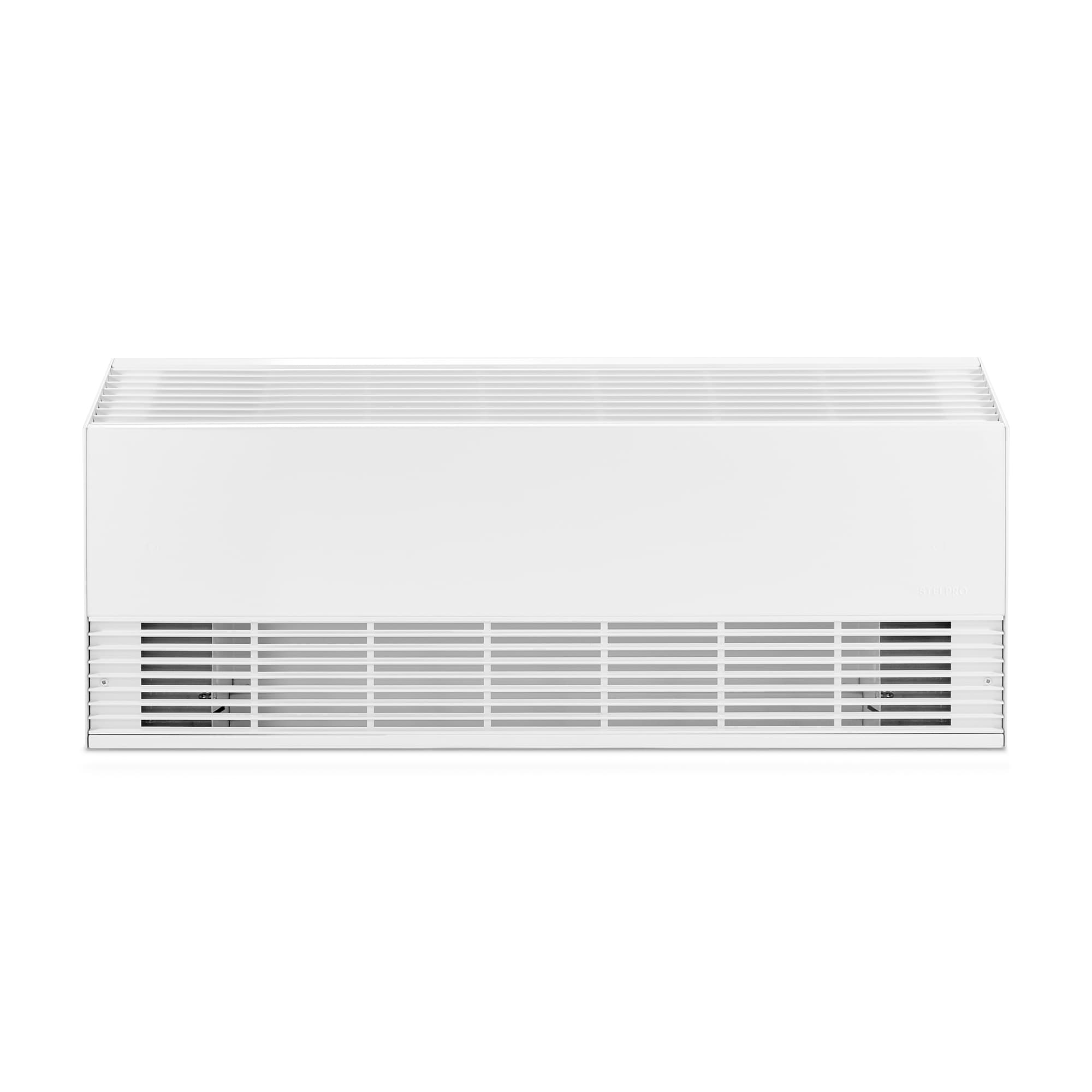

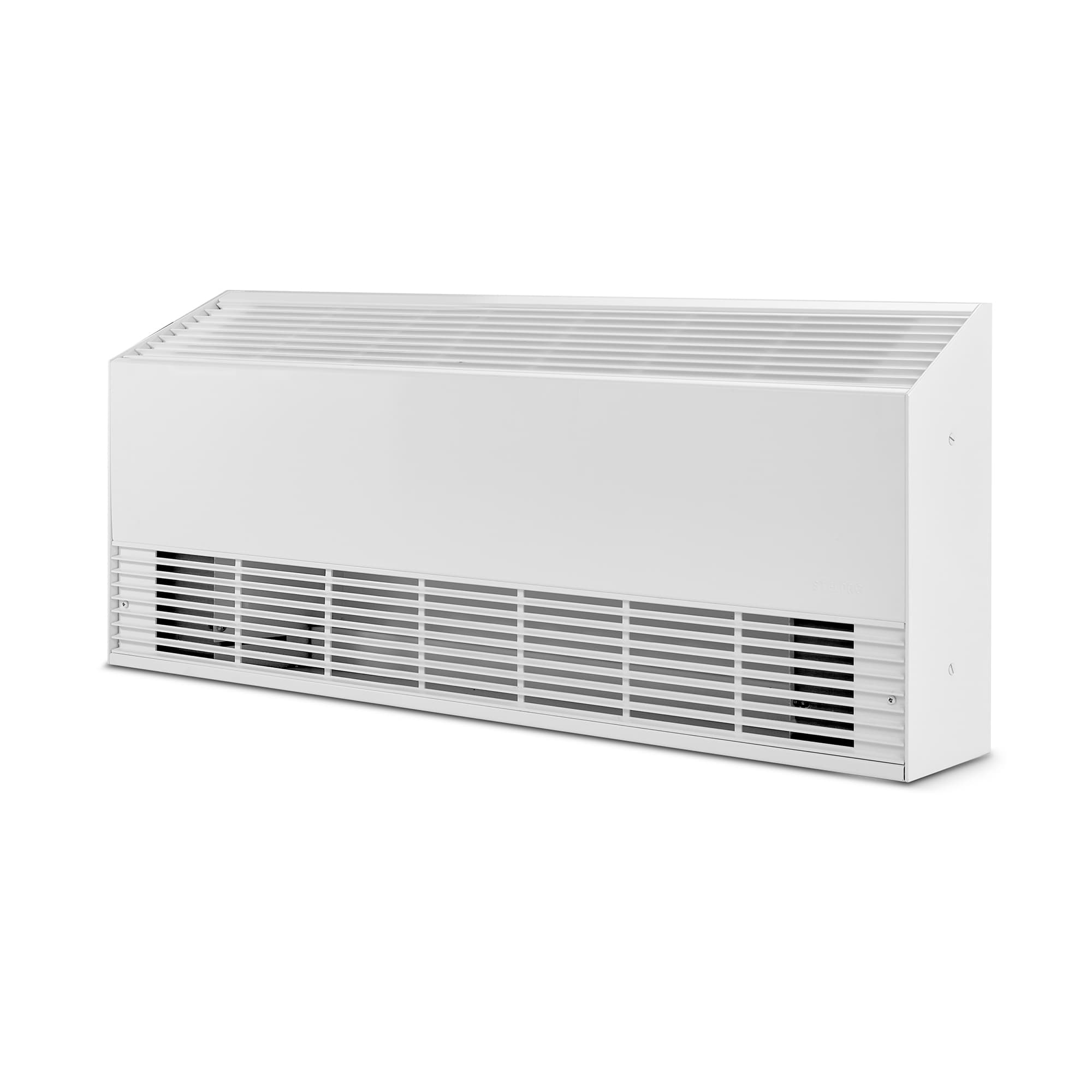

Sloped Architectural Cabinet

One step closer to perfection

The ACWS Architectural cabinet is a preferred unit for public institutions or any other commercial location requiring a large heating capacity. Its forward sloping top prevents people from depositing objects on it that could interfere with its efficiency. Finally, its sturdiness, including extruded aluminum grills, and high performance have made its reputation. The ACWS is often the first choice for exhibition halls, conference centres, libraries and museums.

Color

Rooms

  • Corridor

Spaces

  • Shopping Mall
  • Hospital

Characteristics

Advantages
  • Sloped top – keeps the unit from being used as a shelf or bench
  • Outstanding heat density
  • Extruded aluminum grille – serves to enhance the unit’s appearance
  • Can be installed in public spaces
COLORS
  • Standard: white
  • ORORA (optional): refer to the Orora page
FINISH
  • Epoxy-polyester powdercoat
MANUFACTURING
  • 18-gauge steel cabinet, 16-gauge steel front panel and extruded aluminum grilles with a thickness equivalent to 13 gauge
  • Front air intake and top air discharge
  • Thermal protection with automatic reset
  • Full-length wireway
ELEMENTS
  • Tubular elements, stainless steel sheathed with boxed aluminum fins for improved heat dissipation; the elements are securely fastened at their centres, floating in nylon sleeves at each end, eliminating expansion and contraction noises
  • Three (ACWS750) or four elements (ACWS1000)

CONTROL
  • Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended
  • Built-in tamper-proof thermostat accessible without removing front grille, installed in the left or right junction box (optional)
  • Low voltage relay kit installed in the left or right junction box (optional)
INSTALLATION
  • Surface mounted
  • Wall or floor mounted with or without pedestal kit (optional)
  • Wiring compartments at both ends of unit
WARRANTY
  • Three years
