Characteristics

Advantages

• Powerful, high airflow
• Multiple installation options – recessed, semi-recessed, surface mounted, ceiling or wall mounted
• Sturdy and durable
• Various adaptable air inlet and outlet configurations
• Motorized or passive fresh air intake options
• Customizable installation – optional pedestal or finished back

COLORS

• Standard: white
• ORORA (optional): refer to the Orora page

FINISH

• Epoxy-polyester powdercoat

MANUFACTURING

• 18-gauge steel cabinet and 16-gauge steel front panel
• Powerful motor with squirrel-cage blower and time-delay relay
• 1/15 hp (2 kW to 12 kW units); 1/5 hp (15 kW to 20 kW units)
• Large variety of airflow configurations which are adaptable on the construction site
• Thermal protection with automatic reset
• High intensity (factory setting)
• Low intensity available when manufactured with high/low selection switch (optional)

ELEMENT

• Nichrome element producing instant heat

CONTROL

• High/low switch (heating and ventilation) (available from 4 kW)
• Connection of multiple units to the same thermostat is possible with a relay kit without transformer (optional) and an external transformer (not provided)

INSTALLATION

• Wall mounted
• Ceiling mounted (maximum 12 ft. in height)

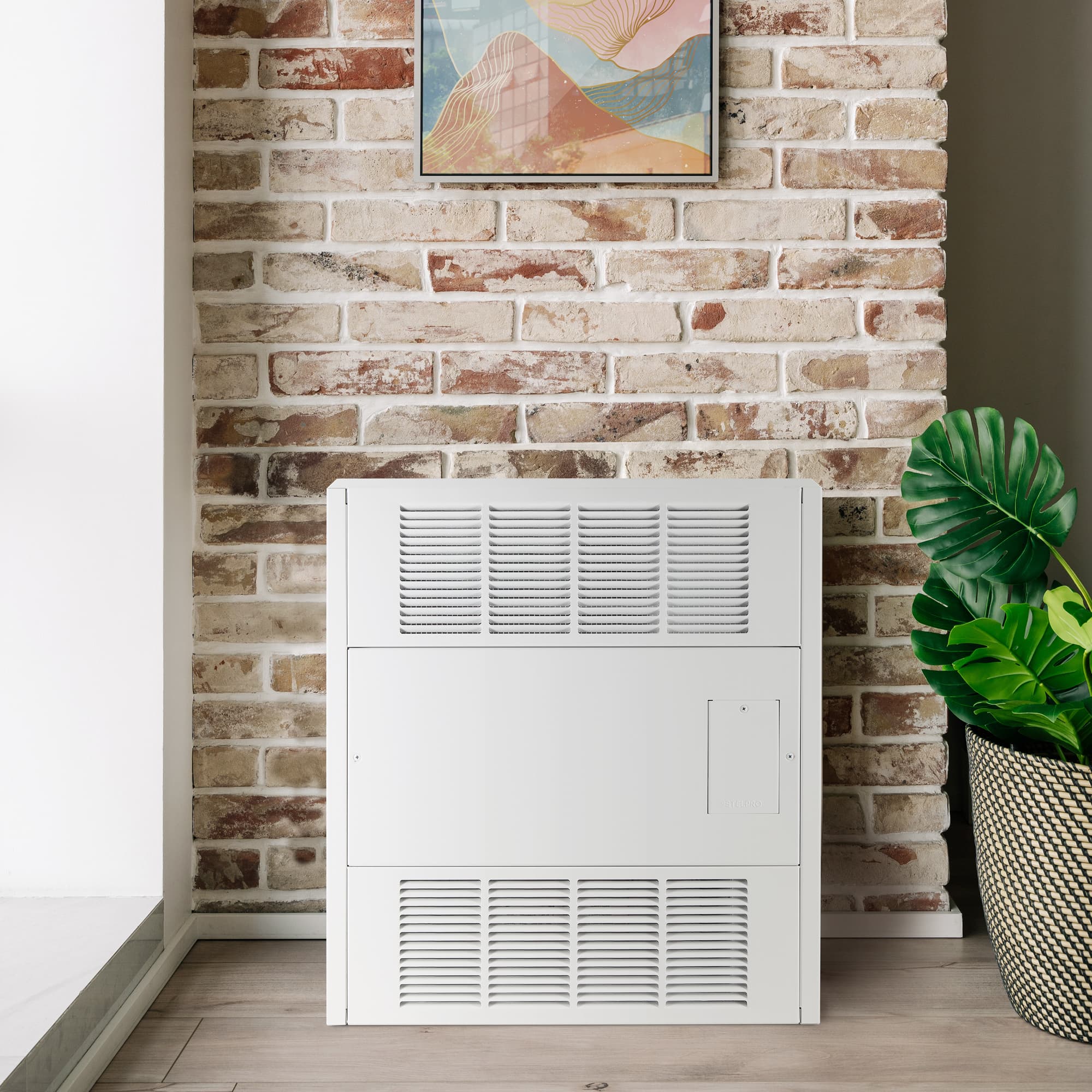

• Surface mounted

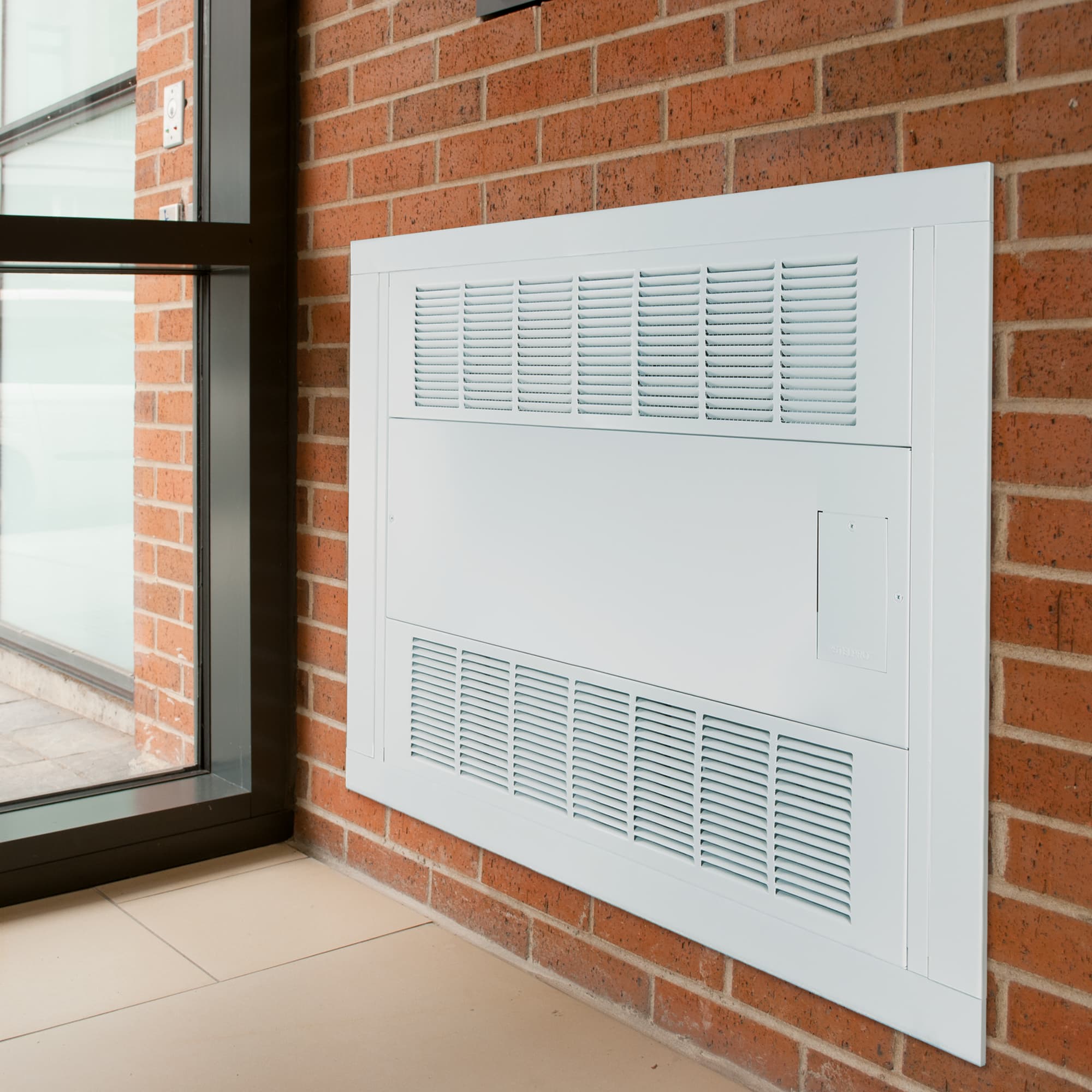

• Recessed or semi-recessed with four-piece trim frame (optional)

WARRANTY

• Three years
