ACF

Ceiling Fan Heater

For a warm welcome

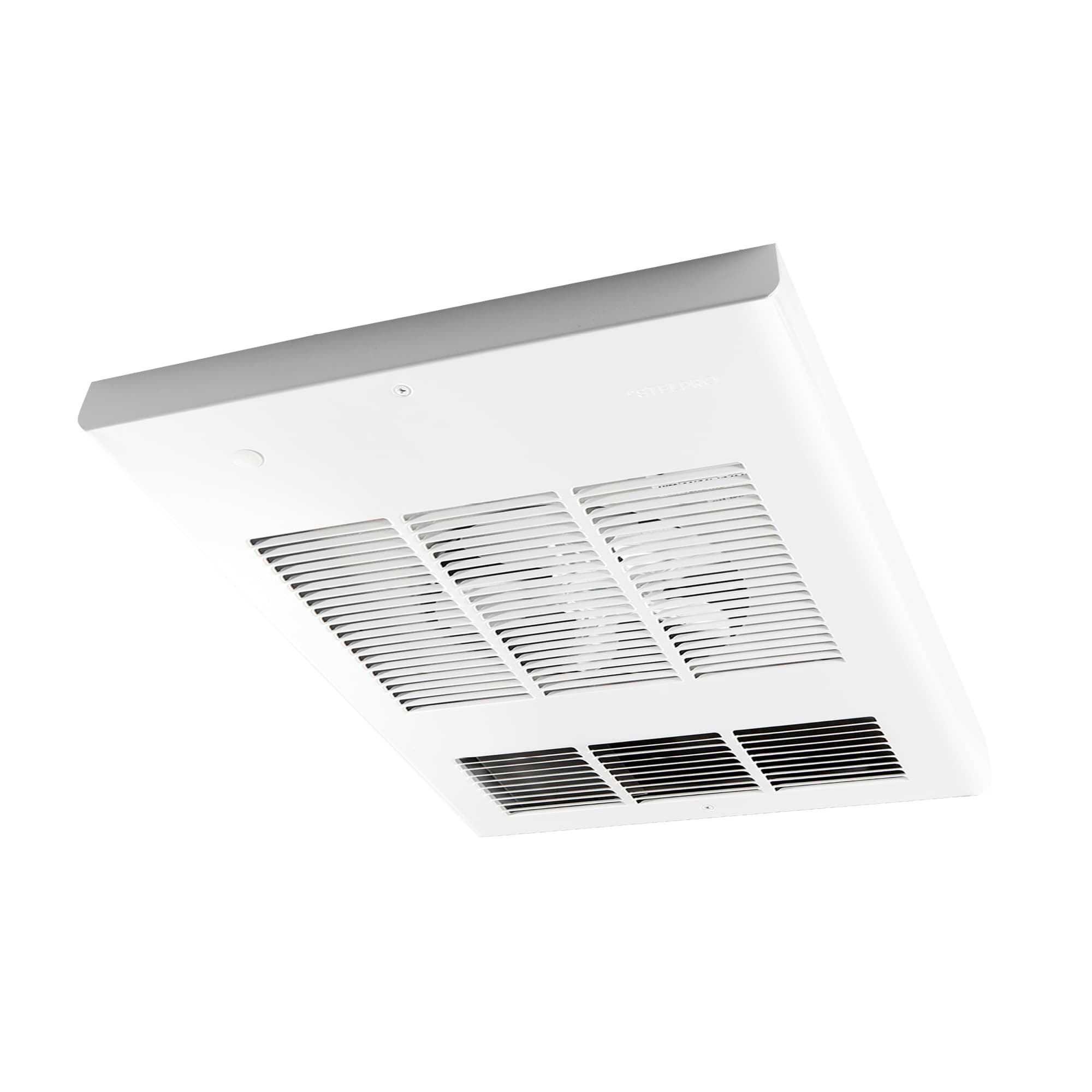

The ACF ceiling fan heater is sturdy and durable and is suitable for heating entrances, lobbies or halls that do not have walls on which a heater can be installed. Built to last, this unit circulates the warm air that has risen to the ceiling and mixes it with cooler air. It can be mounted on or recessed in the ceiling or recessed in a suspended ceiling.

Color

Rooms

  • Stairwell

Spaces

  • Shopping Mall

Characteristics

Advantages
  • Ideal for lobbies and entrance halls
  • Ceiling installation for protection against impact and vandalism
  • Multiple installation options (surface mounted, recessed or recessed in a suspended ceiling)
  • Nichrome alloy elements deliver instant heat
COLORS
  • Standard: white
  • ORORA (optional): refer to the Orora page
FINISH
  • Epoxy-polyester powdercoat
MANUFACTURING
  • 20-gauge steel cabinet and 18-gauge steel grille
  • Fan: 1 x 160 CFM (single unit) – 2 x 160 CFM (double unit)
  • Closed and permanently lubricated motor
  • Thermal protection with automatic reset

ELEMENT
  • Nichrome element producing instant heat
CONTROL
  • Connection of multiple units to the same thermostat is possible with a relay kit without transformer (optional) and an external transformer (not provided)
  • Built-in thermostat (optional), 3 control knobs included (white, soft white and black) for standard installation, without knob for tamper proof installation
INSTALLATION
  • Ceiling
  • Recessed or surface mounted with surface adapter (optional)
  • T-Bar adapter (optional)
WARRANTY
  • Three years

Documents

ACF

Specsheet

PDF

Download (opens in a new tab)

ACF

Technical drawings

PDF

Download (opens in a new tab)

ACF

User guide

PDF

Download (opens in a new tab)

ACF

Accessories installation guides

PDF

Download (opens in a new tab)

ACF

Revit files

ZIP

Download (opens in a new tab)

ACF

Shop drawings

ZIP

Download (opens in a new tab)
