AWF

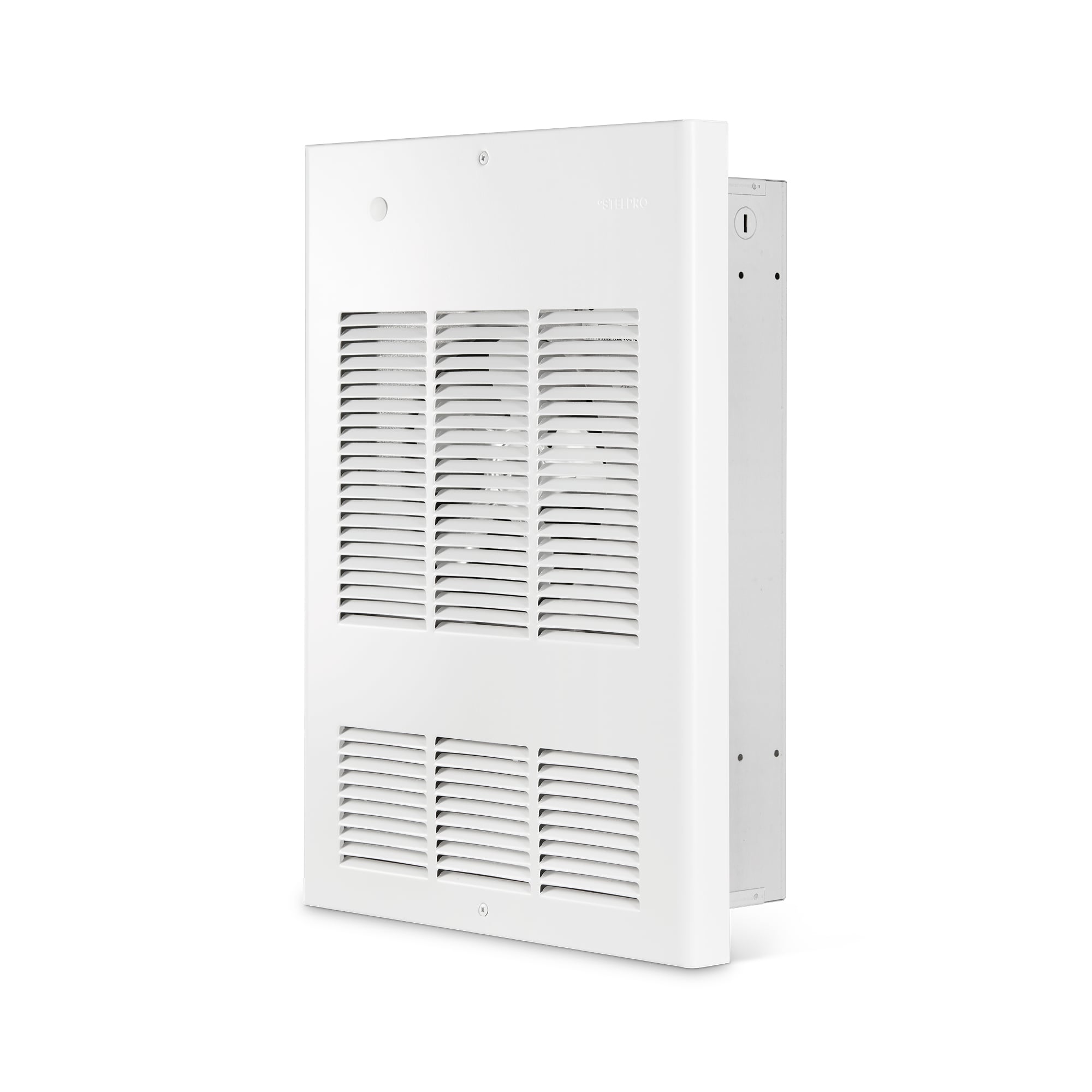

Wall Fan Heater

Power for large spaces

The WF fan heater is a high-output unit designed for large commercial and institutional spaces. Its nichrome alloy heating element generates an instant burst of heat. This versatile unit can be installed in different ways (surface mounted or recessed) and comes in an impressive range of sizes and capacities.

Color

Rooms

  • Stairwell
  • Corridor

Spaces

  • Warehouse
  • Factory

Characteristics

Advantages
  • Sturdy and safe grill with rounded sides
  • Wide range of sizes and powers
  • Nichrome alloy elements deliver instant heat
COLORS
  • Standard: white
  • ORORA (optional): refer to the Orora page
FINISH
  • Epoxy-polyester powdercoat
MANUFACTURING
  • 20-gauge steel cabinet and 18-gauge steel grille
  • Top air intake with bottom air discharge
  • Quiet helicoidal fan: single unit 1 x 160 CFM – double unit 2 x 160 CFM – triple unit 3 x 160 CFM
  • Thermal protection with automatic reset
  • Closed and permanently lubricated motor

ELEMENT
  • High-quality nichrome element producing instant heat
CONTROL
  • Connection of multiple units to the same thermostat is possible with a relay kit without transformer (optional) and an external transformer (not provided)
  • Built-in thermostat (optional), 3 control knobs included (white, soft white and black) for standard installation, witho
INSTALLATION
  • Wall mounted
  • Recessed or surface mounted with surface adapter (optional)
WARRANTY
  • Three years

Documents

AWF

Specsheet

PDF

Download (opens in a new tab)

AWF

Technical drawings

PDF

Download (opens in a new tab)

AWF

User guide

PDF

Download (opens in a new tab)

AWF

Accessories installation guides

PDF

Download (opens in a new tab)

AWF

Revit files

ZIP

Download (opens in a new tab)

AWF

Shop drawings

ZIP

Download (opens in a new tab)

Related Products

  • AWFA

    Aluminum Wall Fan Heater

  • ACF

    Ceiling Fan Heater

  • ADR

    Dragon Ceiling Fan Heater

Complementary Products

  • ST252NPFF-ST402NPFF

    Non-Programmable Electronic Thermostats

  • ST402PFF | AMBIANCE

    ST402PFF

    Programmable Electronic Thermostat
