Characteristics

ADVANTAGES

• Easy heating cable installation
• Protects tiles from cracking and delamination
• More uniform transition — With adjacent non-heated floor covering
• Can replace the underlayment required for tiling
• Subfloor vapour management
• Uniform load distribution
• Heating cable and tile installation — Without drying delay time

MANUFACTURING

• Entirely made of polypropylene

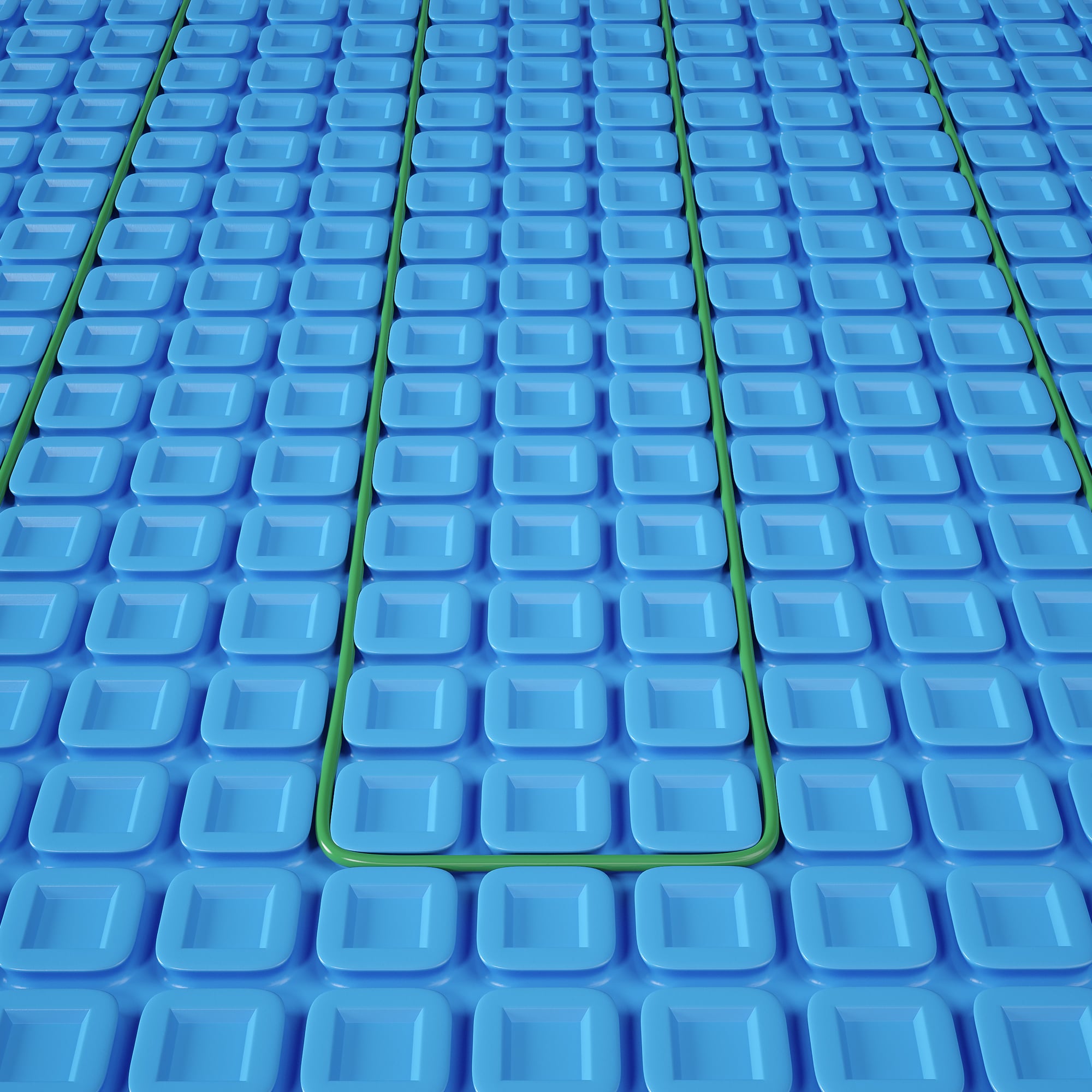

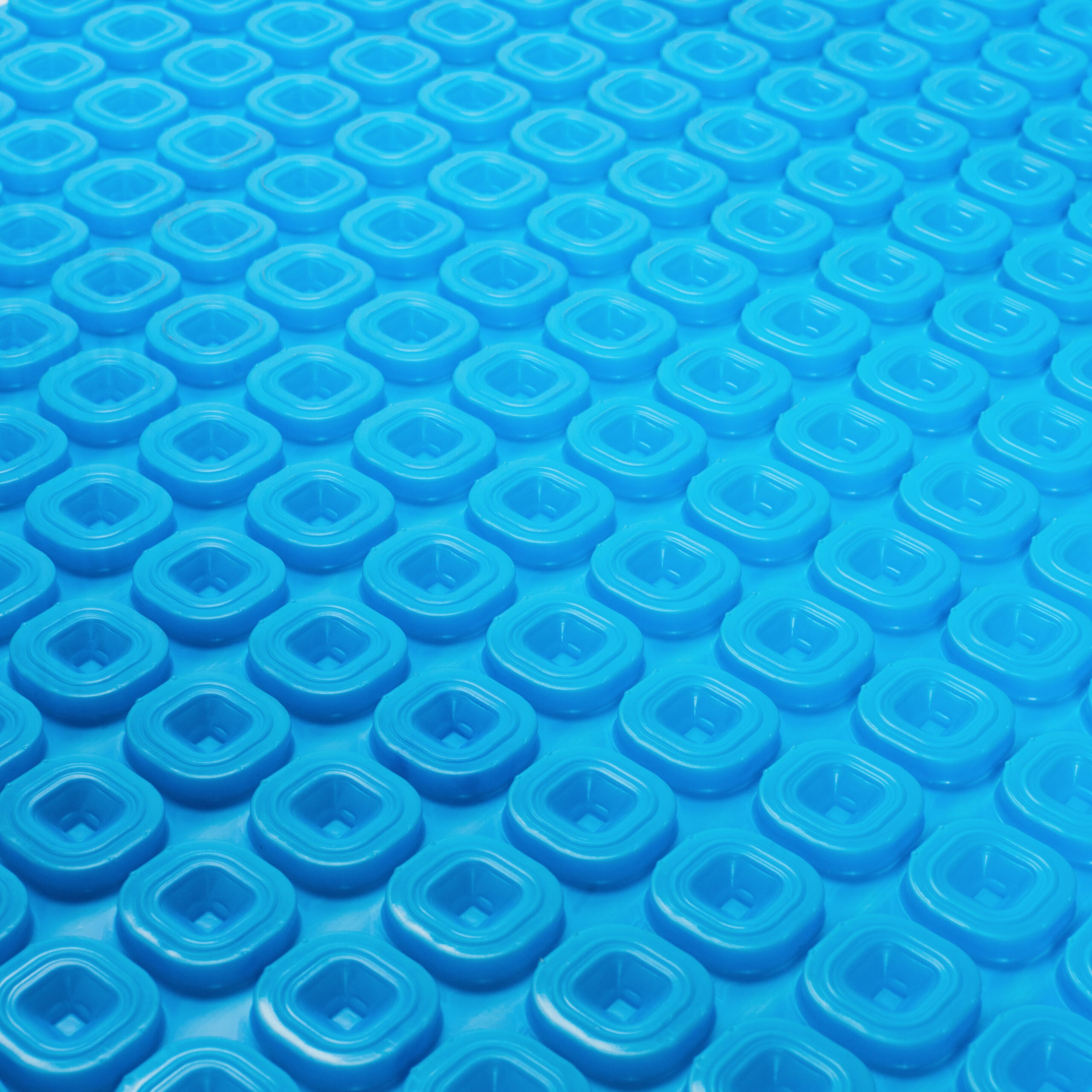

• Rounded square studs for easy heating cable installation
• 3 rounded square studs spacing of 3 ¾ in. for optimal heat distribution and coverage
• Thermo welded woven back to increase the bond between the subfloor and membrane.
• Color: blue
• Height of ¼ in. (5.5 mm)

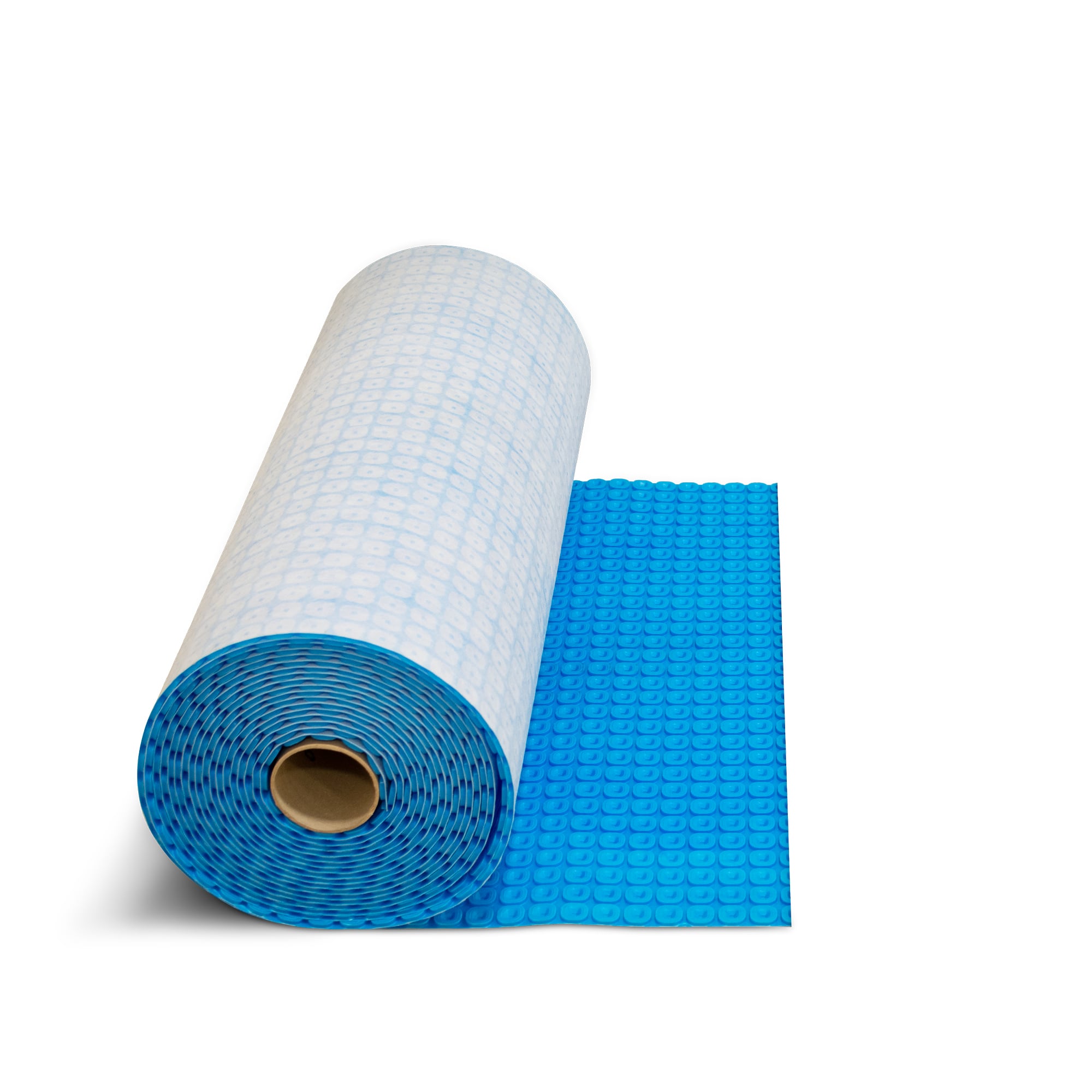

• Available in 53.8 ft² and 161 ft² rolls

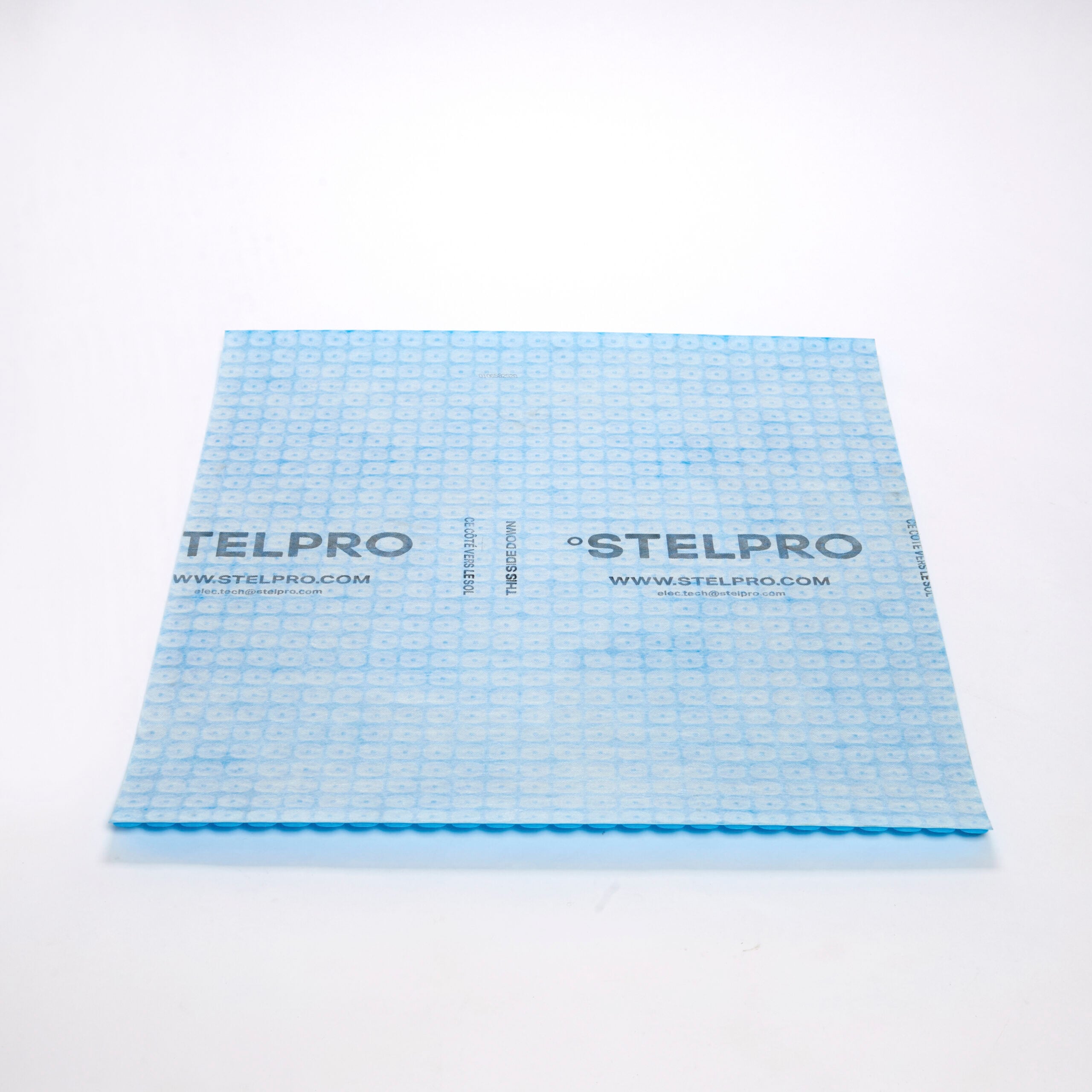

•  Available in 8.9 ft² sheets

COMPATIBLE FLOORINGS

• Ceramic, porcelain, stone, vinyl, laminated engineered wood
• Soft and wood floorings must be installed on a self-leveling underlayment layer of ½ in. on top of the studs.

INSTALLATION

• Modified and non-modified mortars can be used as per mortar manufacturer recommendations
• Installation over plywood, OSB, concrete, gypsum base and existing vinyl
• Installation possible directly over the subfloor (limitations apply)
• The membrane does not replace the need for movement joints
• Heating cable and tile installation without drying delay time

WARRANTY

• Twenty-five years
